Model # 6651386580 Official Kenmore trash compactor

Here are the diagrams and repair parts for Official Kenmore 6651386580 trash compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

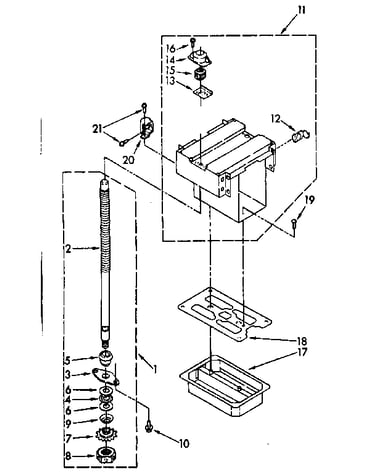

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Gear 777124
#10

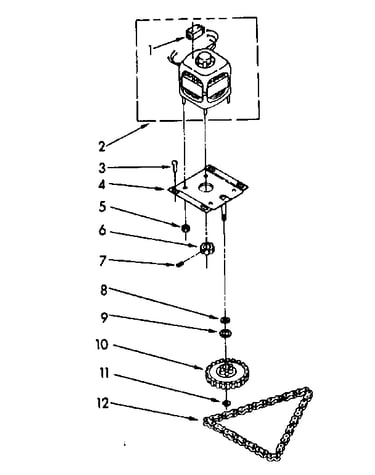

Motor and drive parts diagram

Gear

Part #777124

Replaced by #882699

?
Manufacturer substitution
This part replaces 777124. Substitute parts can look different from the original.
BEST SELLER
$50.90 |
11% OFF Phone Price : $56.90
In Stock
Gear 776839
#6

Motor and drive parts diagram

Gear

Part #776839

Replaced by #882699

?
Manufacturer substitution
This part replaces 776839. Substitute parts can look different from the original.
BEST SELLER
$50.90 |
11% OFF Phone Price : $56.90
In Stock
Switch 777971
#1

Motor and drive parts diagram

Switch

Part #777971

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 777971. Substitute parts can look different from the original.
BEST SELLER
$195.89 |
6% OFF Phone Price : $207.89
In Stock
Motor 780359
#2

Motor and drive parts diagram

Motor

Part #780359

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 780359. Substitute parts can look different from the original.
BEST SELLER
$195.89 |
6% OFF Phone Price : $207.89
In Stock
Switch 780379
#23

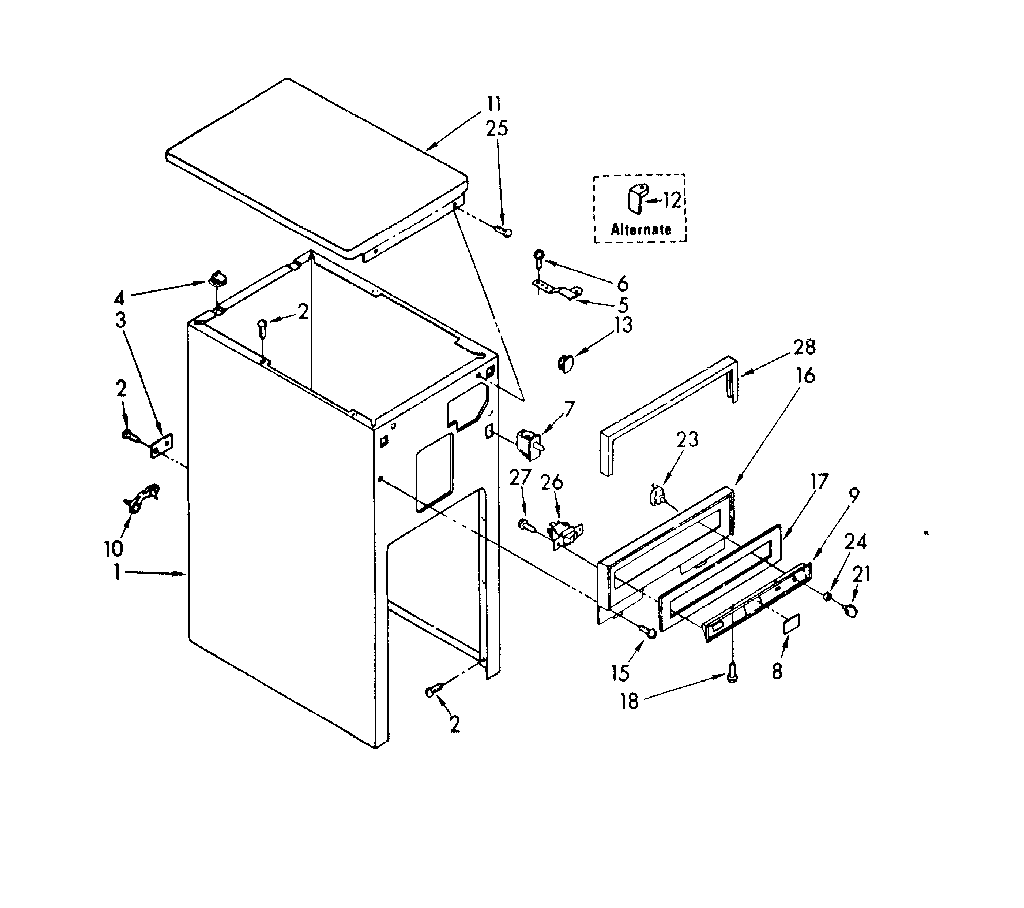

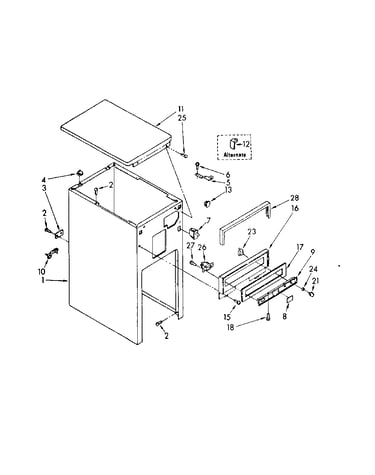

Cabinet and control parts diagram

Switch

Part #780379

Replaced by #675382

?
Manufacturer substitution
This part replaces 780379. Substitute parts can look different from the original.
BEST SELLER
$102.63 |
10% OFF Phone Price : $114.63
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Paint (white) 350930

#NI

All parts diagram

Paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Leveler 775526
#27

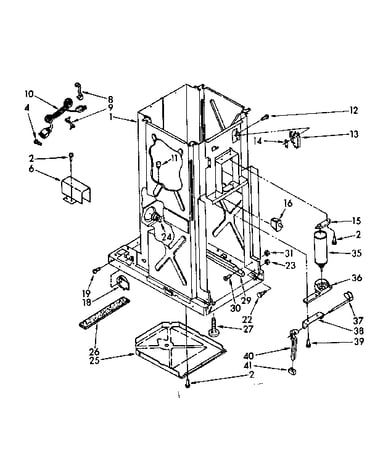

Frame parts diagram

Leveler

Part #775526

Replaced by #WPW10001130

?
Manufacturer substitution
This part replaces 775526. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.23 |
19% OFF Phone Price : $5.23
In Stock
Pin 454512
#7

Motor and drive parts diagram

Pin

Part #454512

Replaced by #WP454512

?
Manufacturer substitution
This part replaces 454512. Substitute parts can look different from the original.
This item is not returnable
$5.84 |
15% OFF Phone Price : $6.84
In Stock
Trash Compactor Container Handle 608732
#2

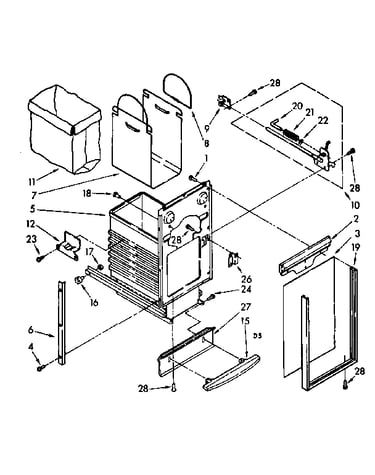

Container parts diagram

Trash compactor container handle

Part #608732

Replaced by #WP608732

?
Manufacturer substitution
This part replaces 608732. Substitute parts can look different from the original.
$107.85 |
10% OFF Phone Price : $119.85
In Stock
