Norge
Washer

Model # LWL202AC Official Norge laundry

Here are the diagrams and repair parts for Official Norge LWL202AC laundry, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

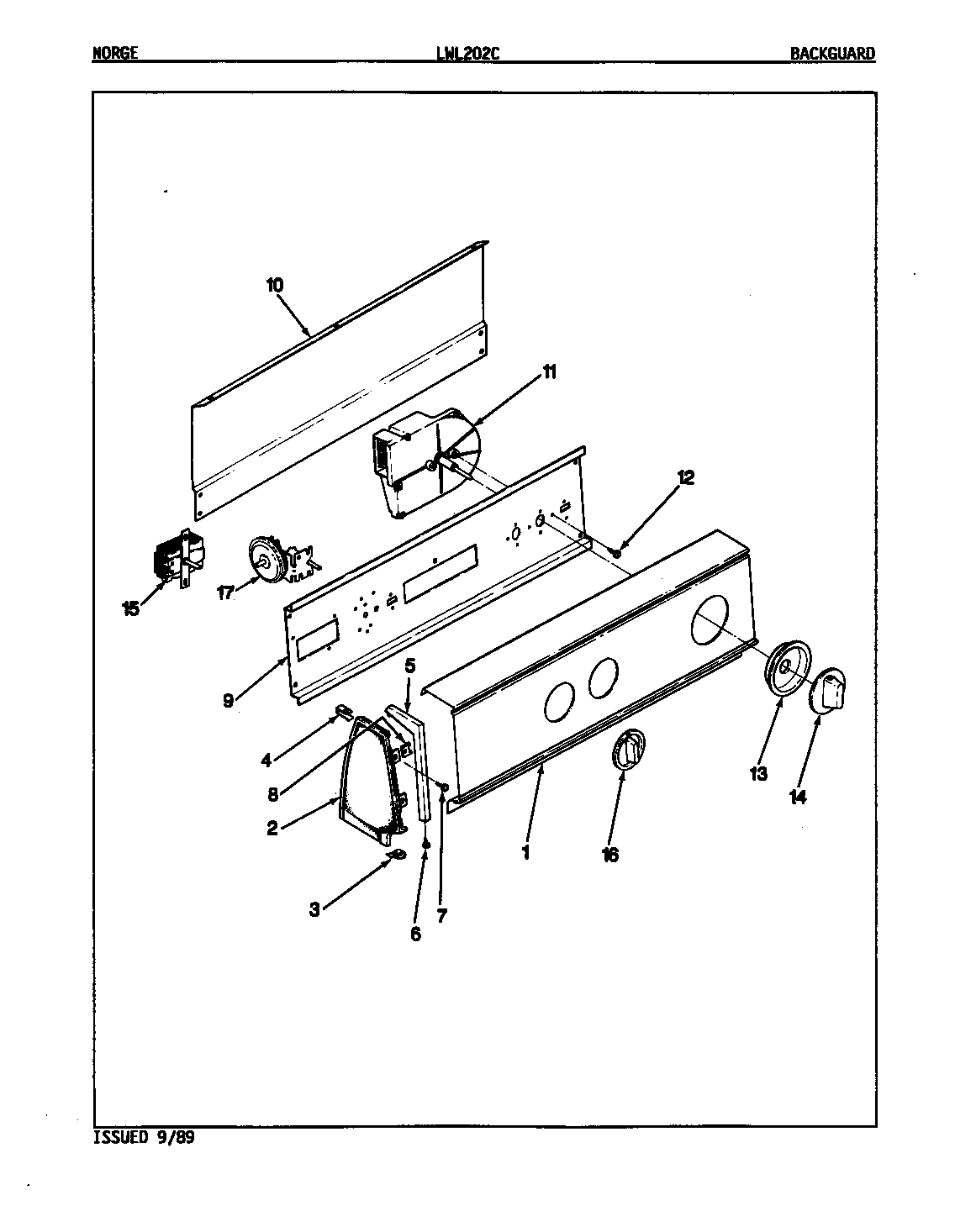

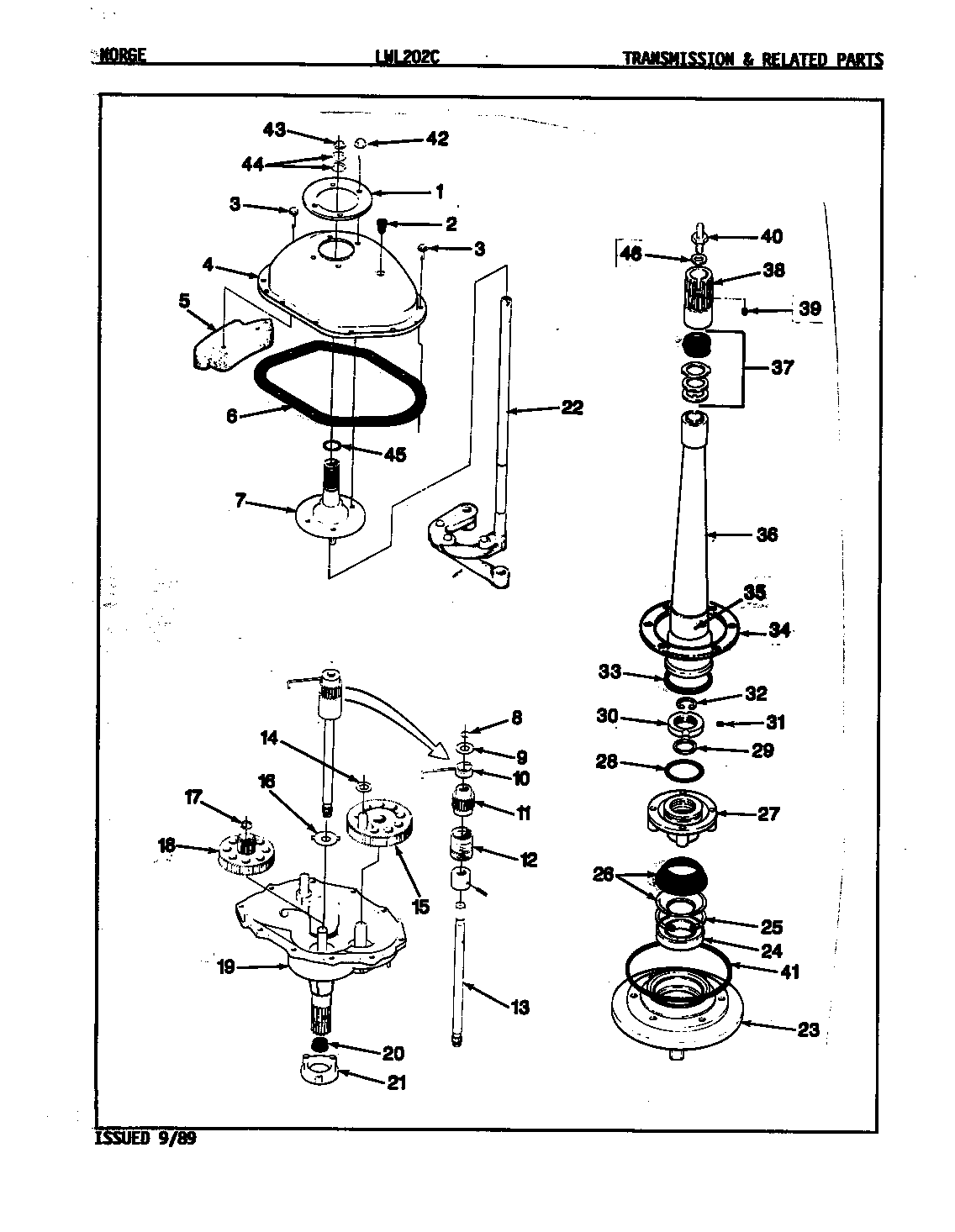

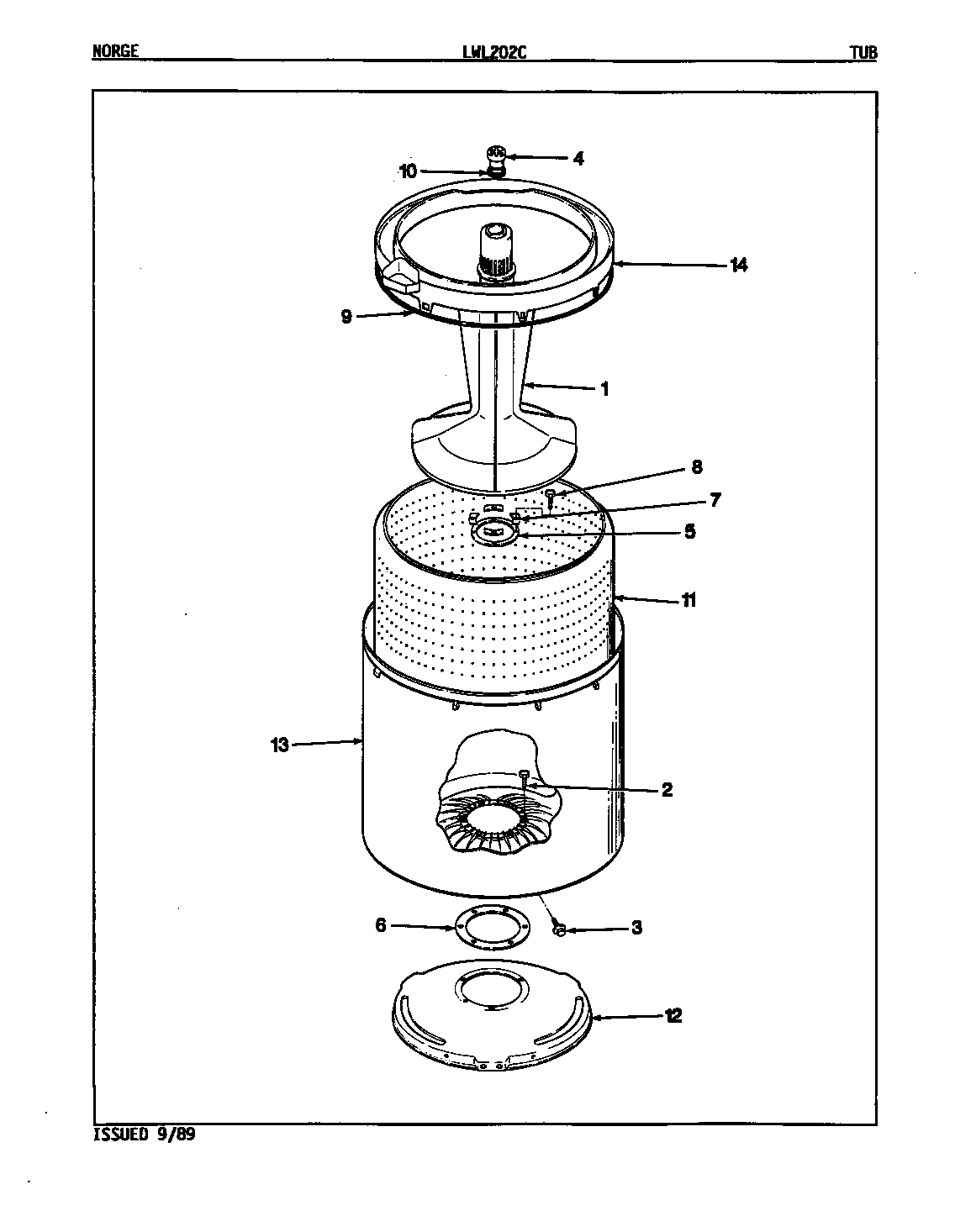

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Hose Clamp 25-7867
Hose clamp

Part #25-7867

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7867. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp, Pressure Switch Hose 25-7796
Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Drive Belt 35-2320
#53

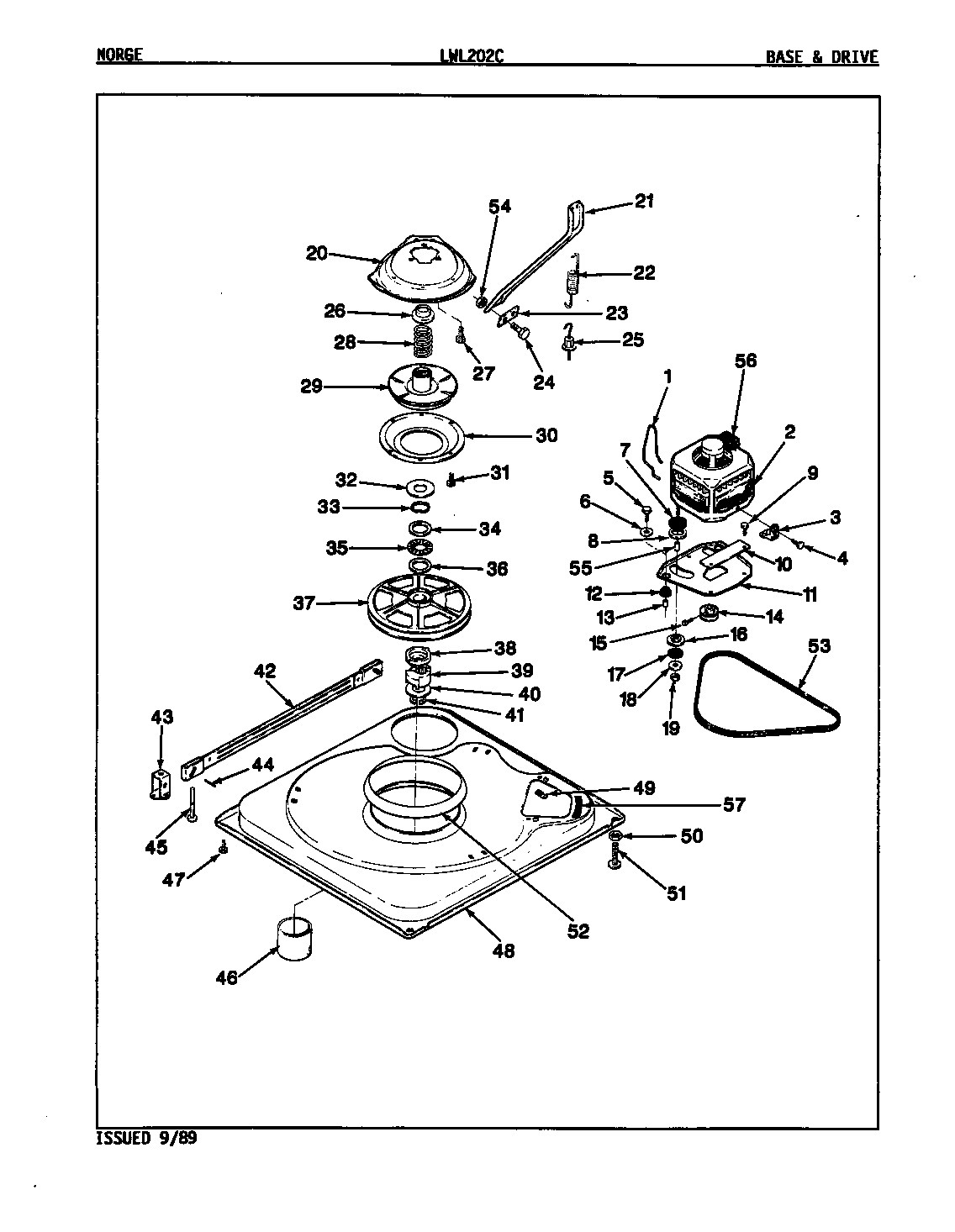

Base & drive (orig. rev. a) diagram

Drive belt

Part #35-2320

Replaced by #WP21352320

?
Manufacturer substitution
This part replaces 35-2320. Substitute parts can look different from the original.
BEST SELLER
$15.14 |
12% OFF Phone Price : $17.14
In Stock
Lower Cam 35-2439
#39

Base & drive (orig. rev. a) diagram

Lower cam

Part #35-2439

Replaced by #12002213

?
Manufacturer substitution
This part replaces 35-2439. Substitute parts can look different from the original.
BEST SELLER
$41.09 |
13% OFF Phone Price : $47.09
In Stock
Drive Pulley 35-2119
#37

Base & drive (orig. rev. a) diagram

Drive pulley

Part #35-2119

Replaced by #12002213

?
Manufacturer substitution
This part replaces 35-2119. Substitute parts can look different from the original.
BEST SELLER
$41.09 |
13% OFF Phone Price : $47.09
In Stock
Cam 35-2441
#38

Base & drive (orig. rev. a) diagram

Cam

Part #35-2441

Replaced by #12002213

?
Manufacturer substitution
This part replaces 35-2441. Substitute parts can look different from the original.
BEST SELLER
$41.09 |
13% OFF Phone Price : $47.09
In Stock
Impeller 35-2057
#5

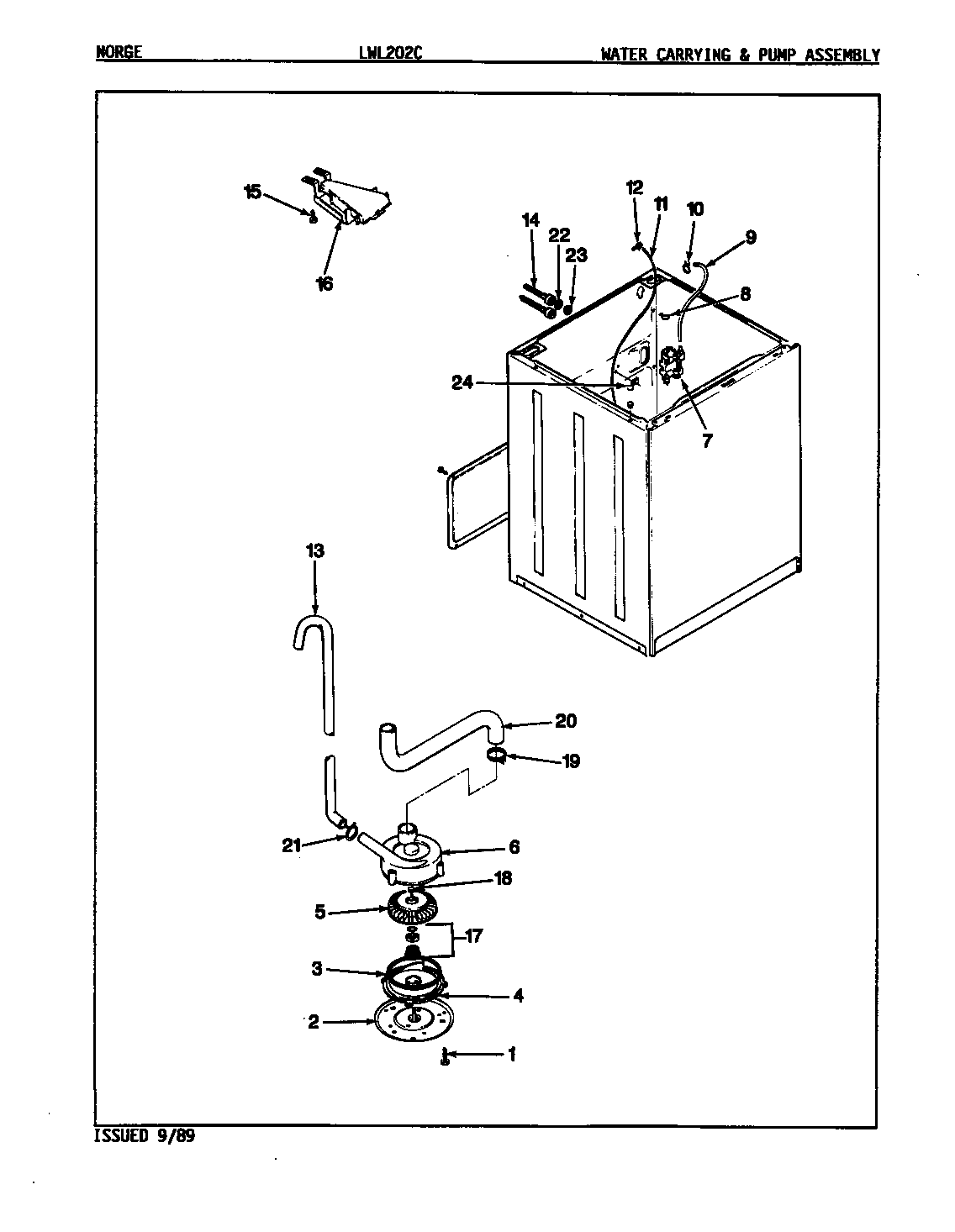

Water carrying & pump (orig. rev. a) diagram

Impeller

Part #35-2057

Replaced by #WP35-6465

?
Manufacturer substitution
This part replaces 35-2057. Substitute parts can look different from the original.
$84.87 |
7% OFF Phone Price : $90.87
In Stock
Pump Assy (c 35-2099
#6A

Water carrying & pump (orig. rev. a) diagram

Pump assy (c

Part #35-2099

Replaced by #WP35-6465

?
Manufacturer substitution
This part replaces 35-2099. Substitute parts can look different from the original.
$84.87 |
7% OFF Phone Price : $90.87
In Stock
Washer Lid Hinge Pin 35-2045
#4

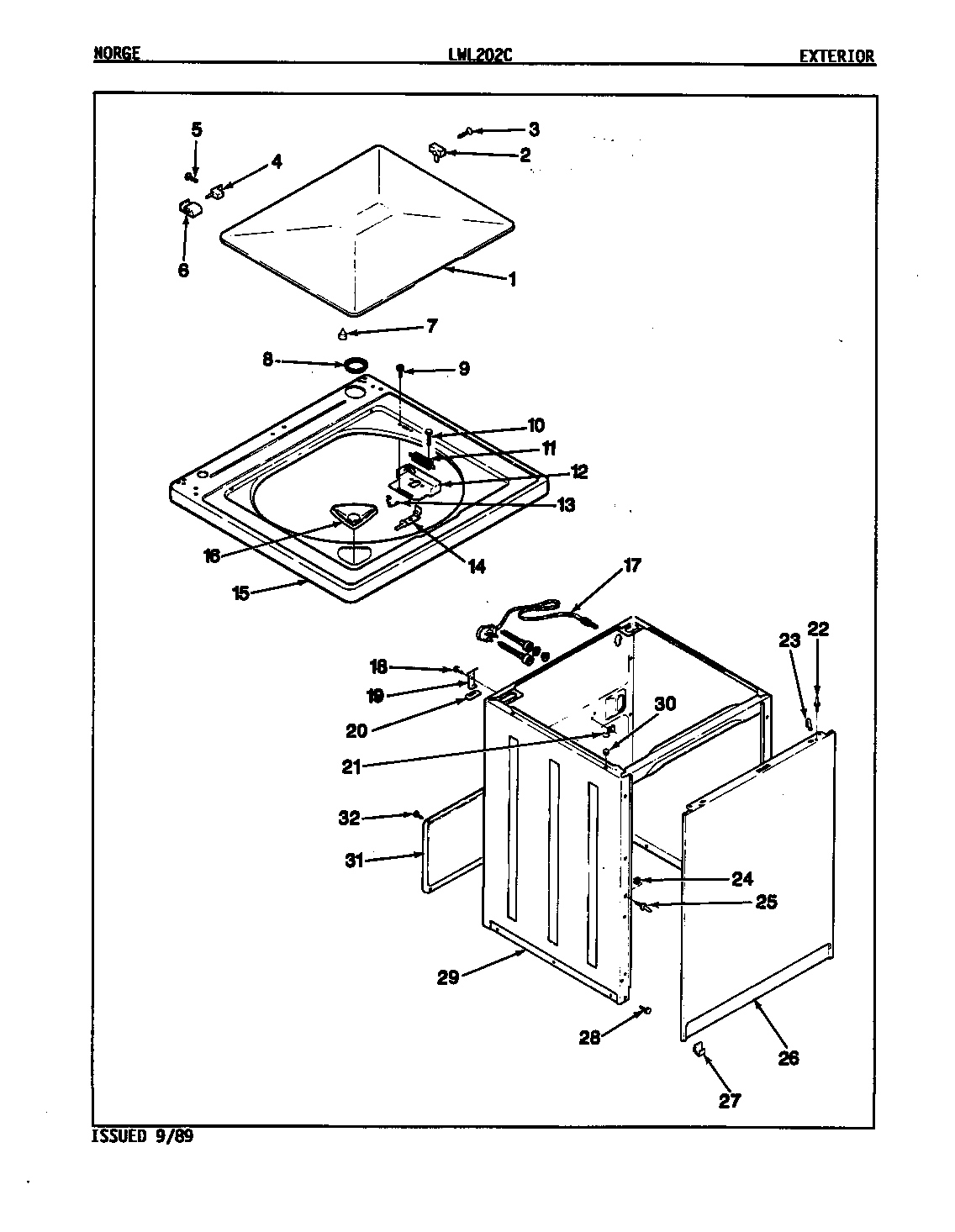

Exterior (orig. rev. a) diagram

Washer lid hinge pin

Part #35-2045

Replaced by #WP35-2045

?
Manufacturer substitution
This part replaces 35-2045. Substitute parts can look different from the original.
$13.99 |
13% OFF Phone Price : $15.99
In Stock
Door Switch 33-8911
#11A

Exterior (orig. rev. a) diagram

Door switch

Part #33-8911

Replaced by #12001187

?
Manufacturer substitution
This part replaces 33-8911. Substitute parts can look different from the original.
$67.22 |
8% OFF Phone Price : $73.22
In Stock
