Model # 7577293131 Official Kenmore upright freezer

Here are the diagrams and repair parts for Official Kenmore 7577293131 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Clips & Holders

ALL PARTS

Showing 10 of 83 parts |

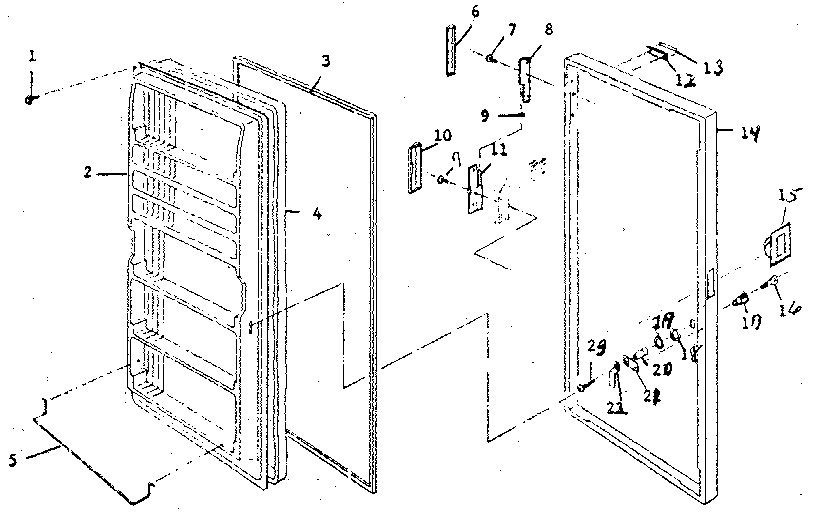

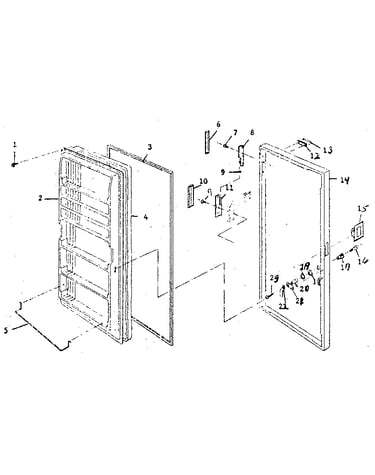

Freezer door diagram

Kenmore freezer door gasket

Part #16658-000

The manufacturer no longer makes this part, and there's no substitute part

#NI

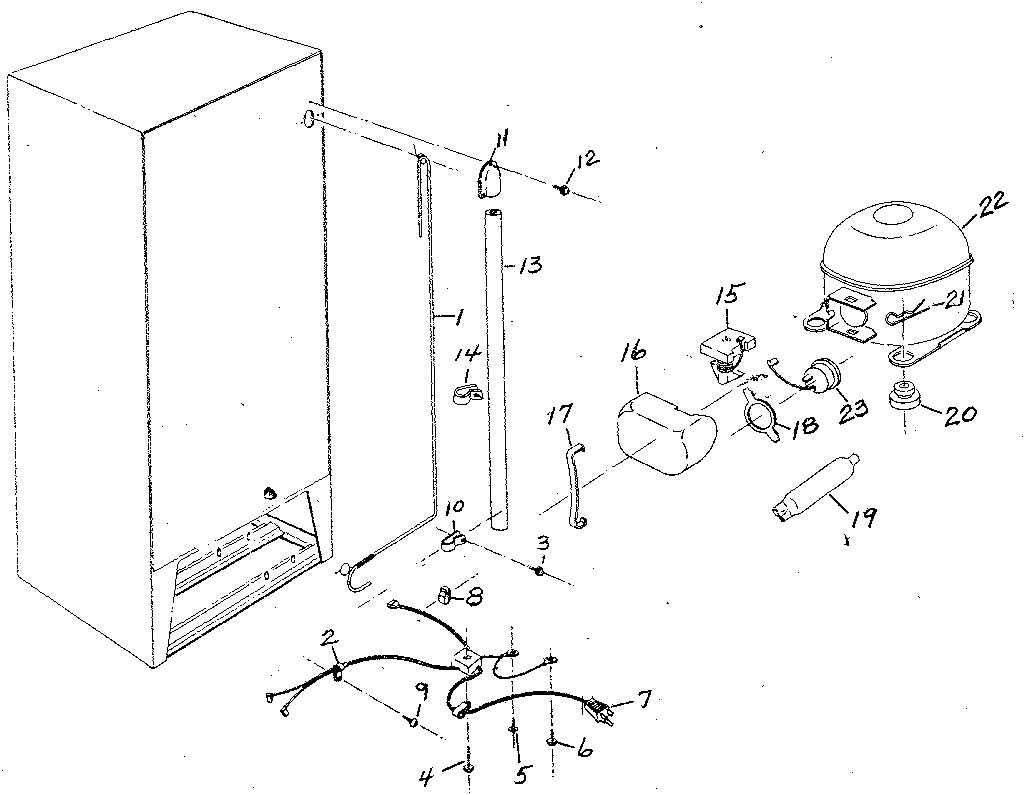

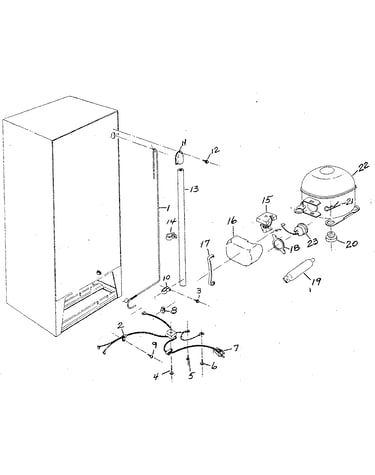

All parts diagram

Kenmore technical sheet

Part #16882-000

The manufacturer no longer makes this part, and there's no substitute part

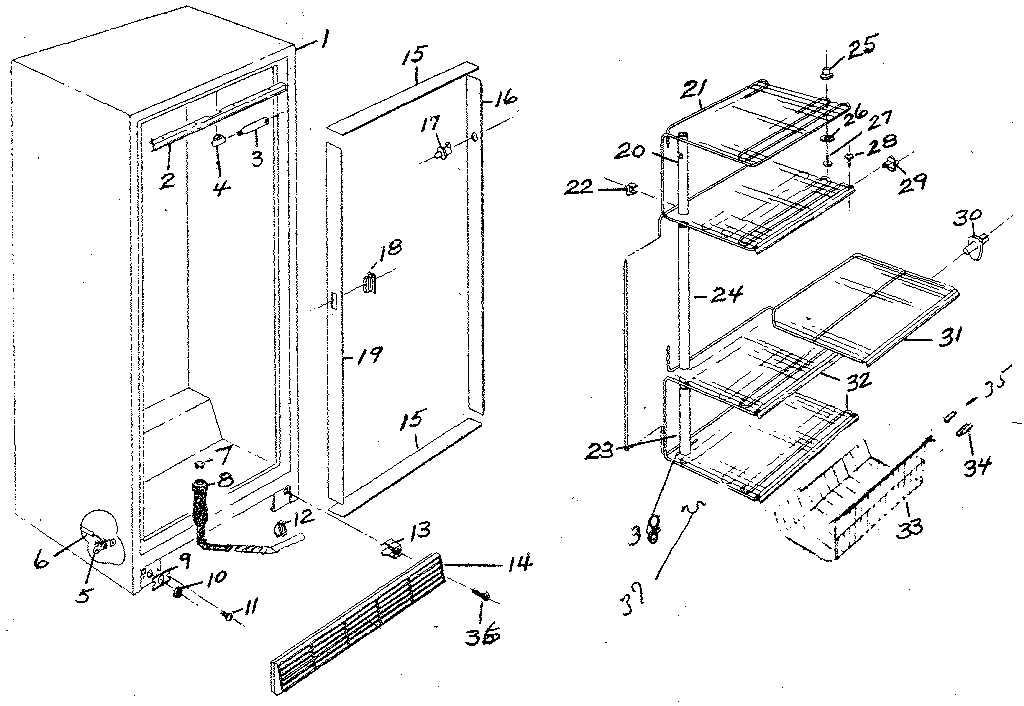

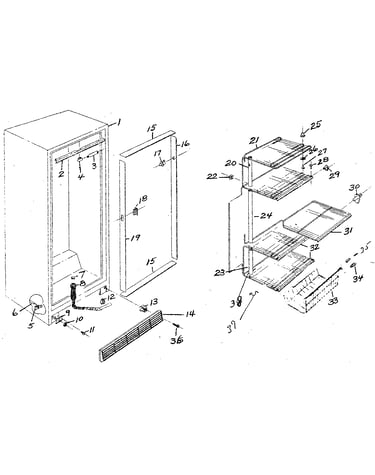

Freezer cabinet diagram

Freezer temperature control thermostat

Part #17772-000

The manufacturer no longer makes this part, and there's no substitute part

#23

Freezer cabinet diagram

Cover

Part #16674-002

The manufacturer no longer makes this part, and there's no substitute part

#30

Freezer cabinet diagram

Freezer shelf support

Part #11869-000

The manufacturer no longer makes this part, and there's no substitute part

#24

Freezer cabinet diagram

Cover

Part #16674-001

The manufacturer no longer makes this part, and there's no substitute part

#34

Freezer cabinet diagram

Imperial bumper

Part #14512-000

The manufacturer no longer makes this part, and there's no substitute part

#27

Freezer cabinet diagram

Screw

Part #91196-000

The manufacturer no longer makes this part, and there's no substitute part

#18

Freezer cabinet diagram

Escutcheon

Part #11568-001

The manufacturer no longer makes this part, and there's no substitute part

#36

Freezer cabinet diagram

Imperial screw

Part #91200-000

The manufacturer no longer makes this part, and there's no substitute part
