Model # PRD366EHC/02 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRD366EHC-02 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

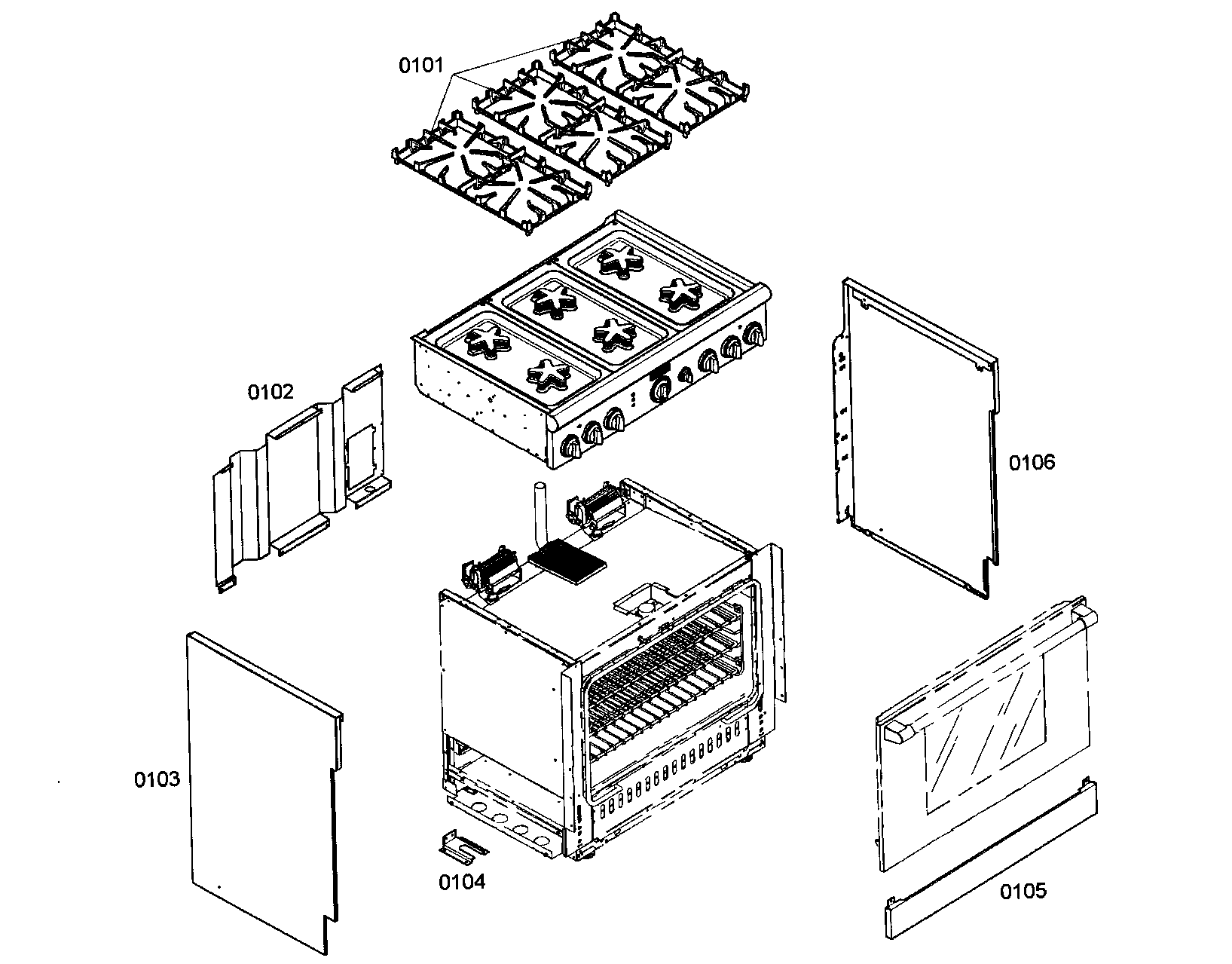

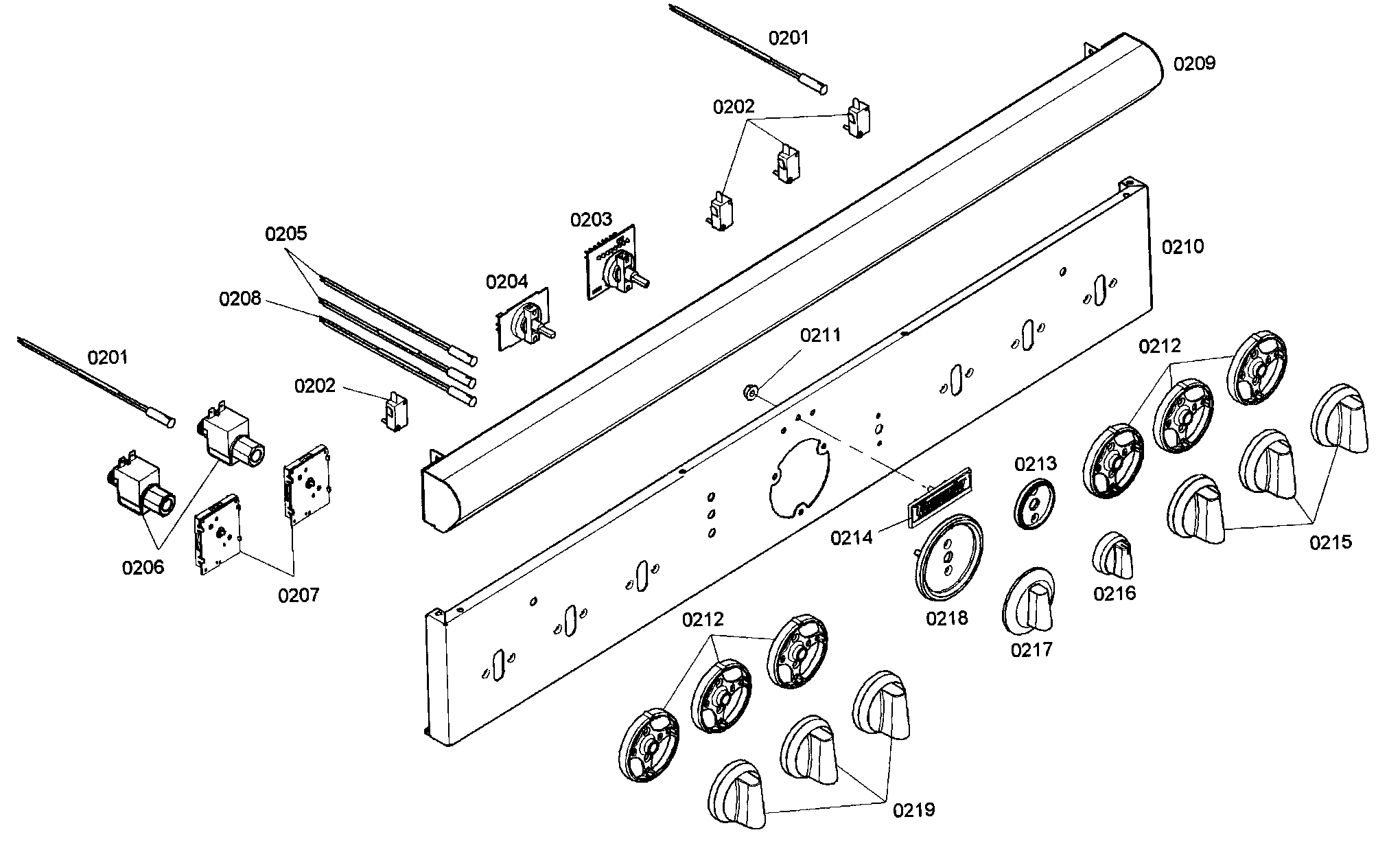

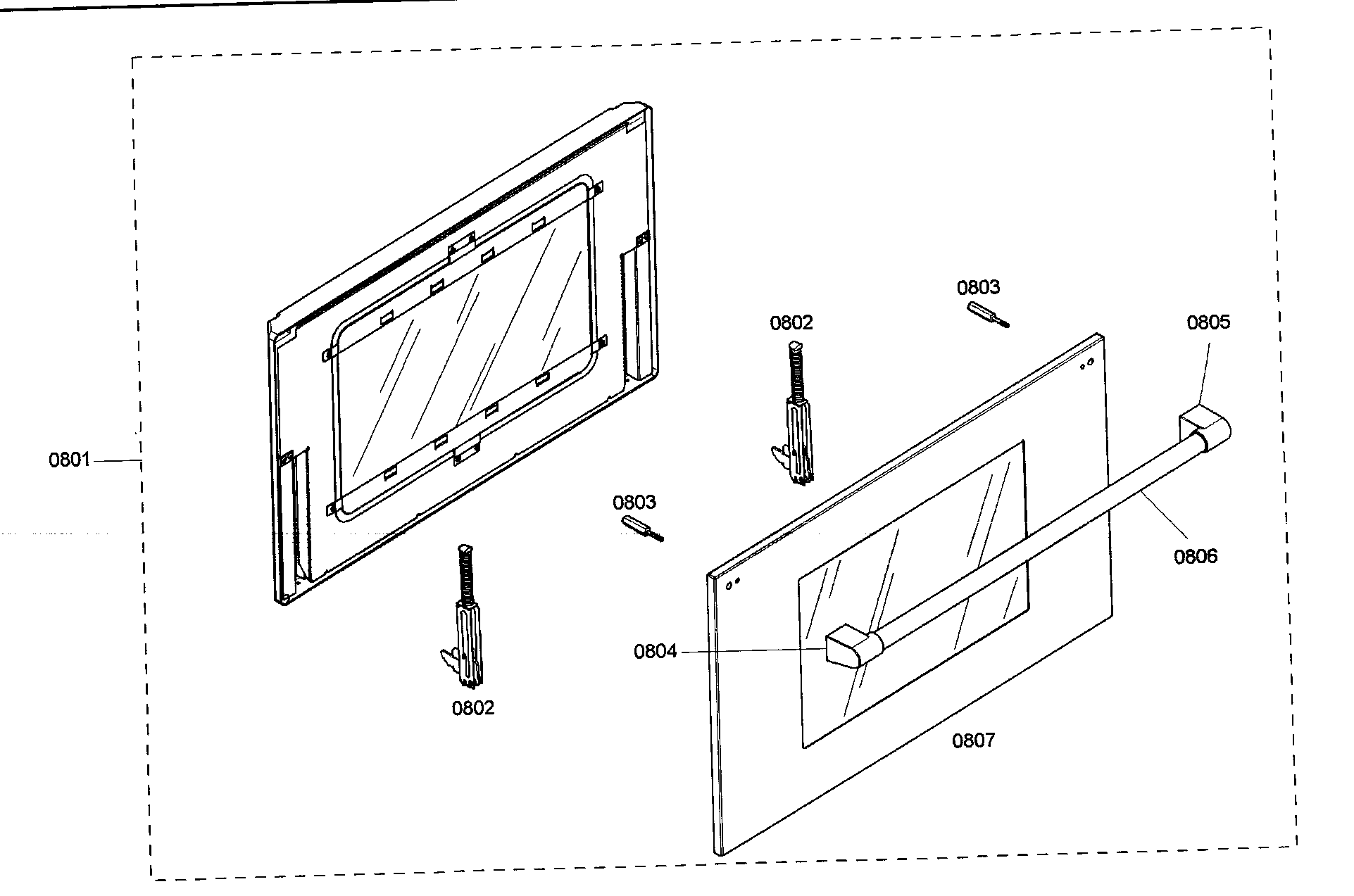

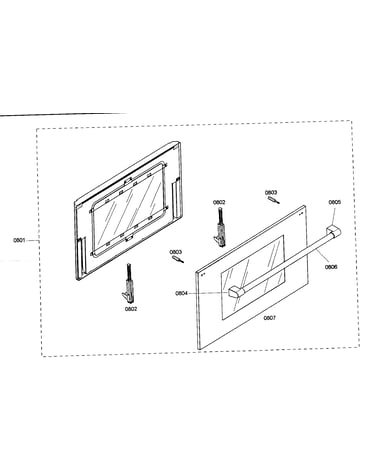

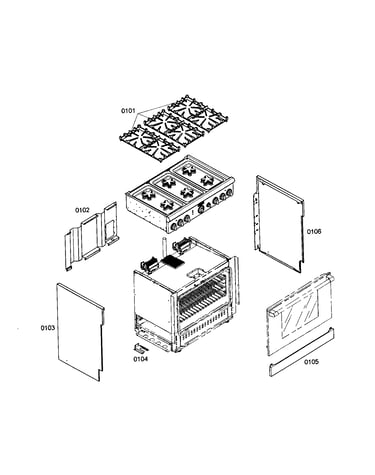

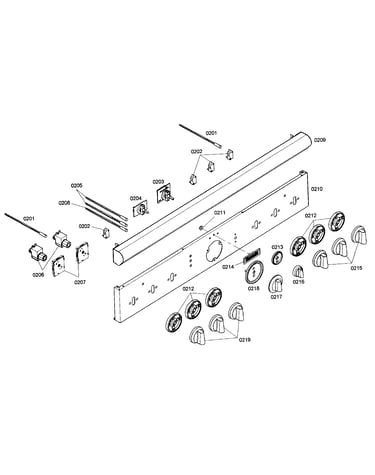

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Holder 600607
#309

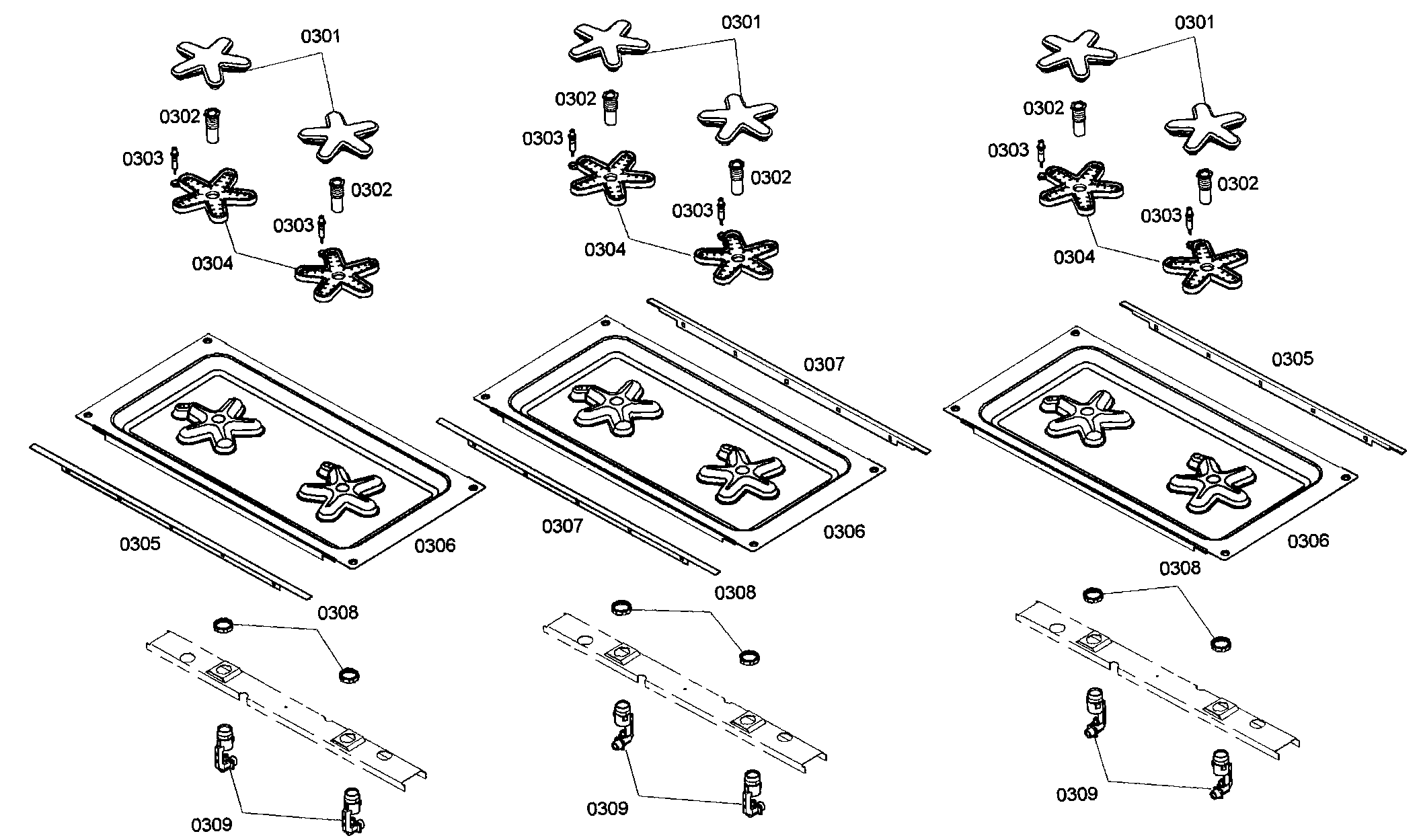

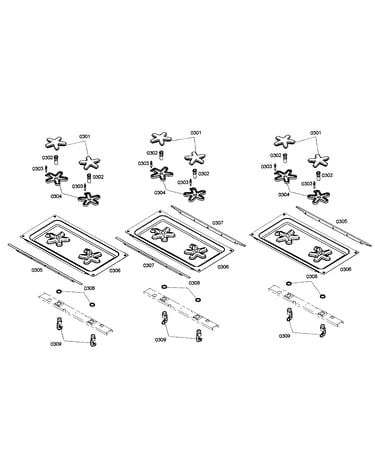

Burners diagram

Holder

Part #600607

Replaced by #00600607

?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Nut 188978
#308

Burners diagram

Nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Tube 415133
#302

Burners diagram

Tube

Part #415133

Replaced by #00189023

?
Manufacturer substitution
This part replaces 415133. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Ignition 427090
#502

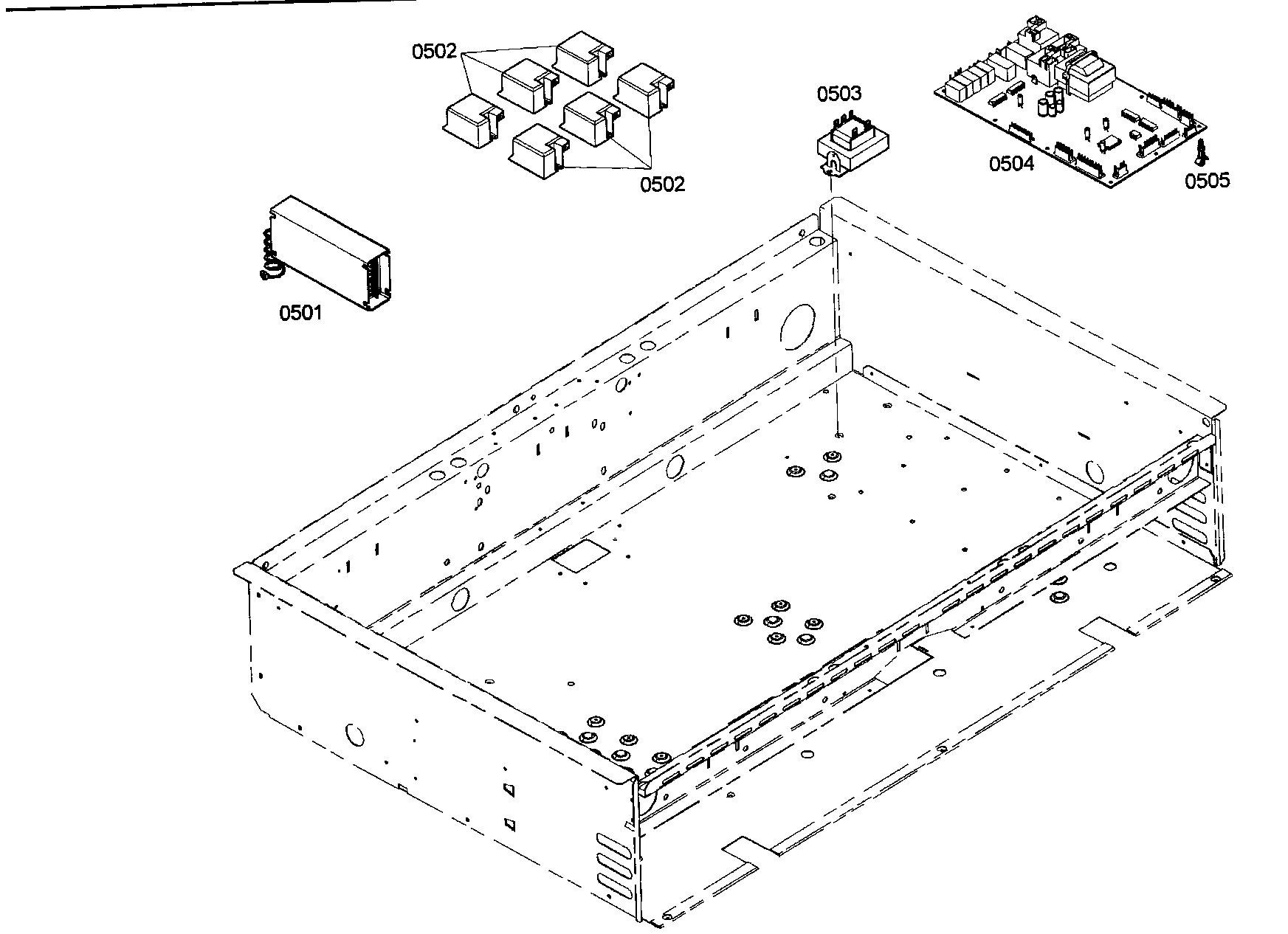

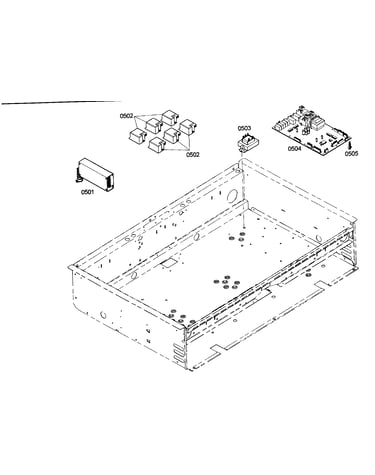

Pcbs diagram

Ignition

Part #427090

Replaced by #00619017

?
Manufacturer substitution
This part replaces 427090. Substitute parts can look different from the original.
$138.31 |
8% OFF Phone Price : $150.31
In Stock
Door Switch 489370
#705

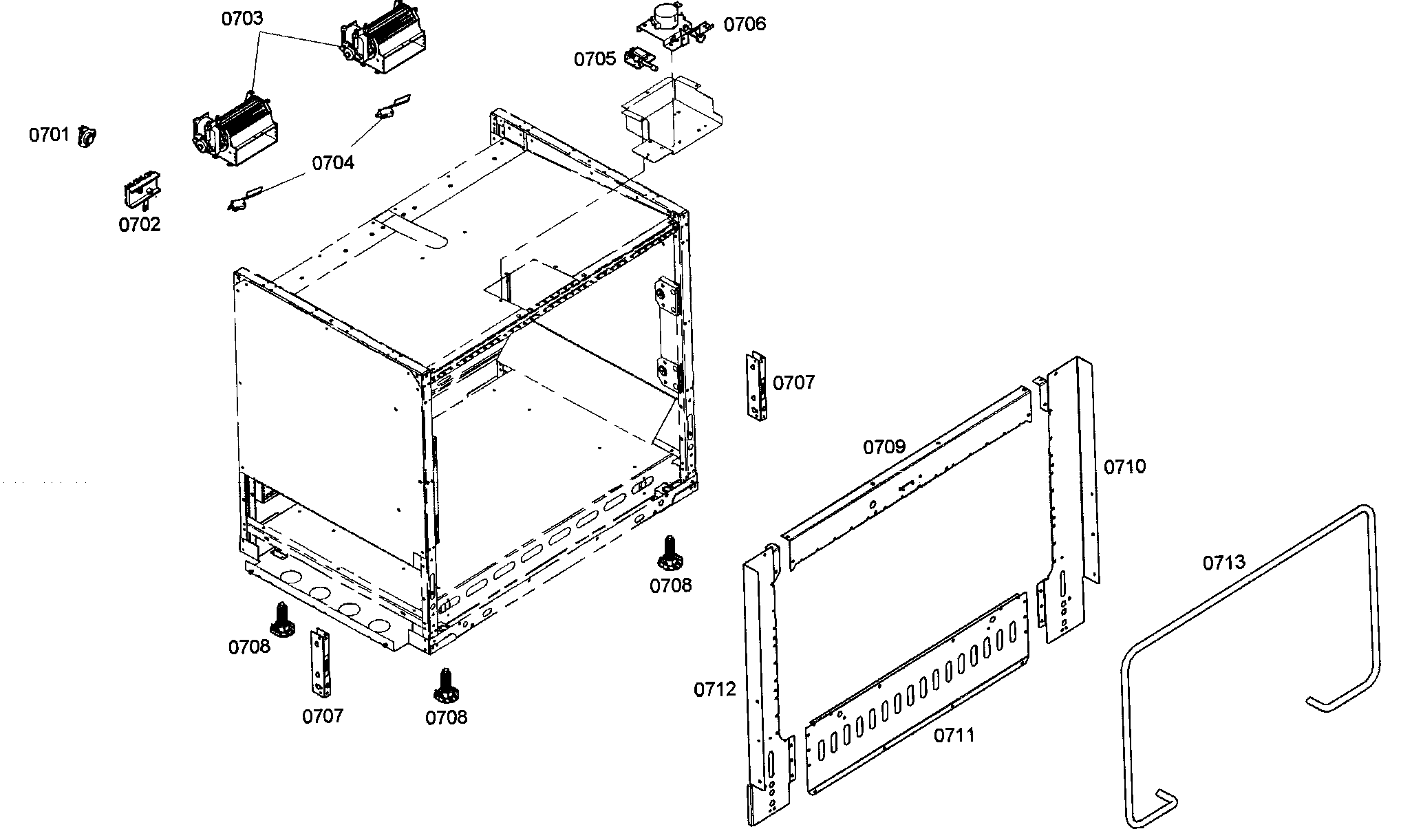

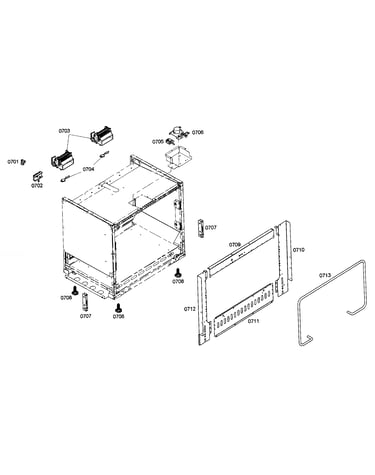

Mounting assy diagram

Door switch

Part #489370

Replaced by #00489370

?
Manufacturer substitution
This part replaces 489370. Substitute parts can look different from the original.
$49.89
In Stock
Housing 494134
#304

Burners diagram

Housing

Part #494134

Replaced by #00494134

?
Manufacturer substitution
This part replaces 494134. Substitute parts can look different from the original.
$91.19 |
6% OFF Phone Price : $97.19
In Stock
Control Unit 605350
#501

Pcbs diagram

Control unit

Part #605350

Replaced by #00619016

?
Manufacturer substitution
This part replaces 605350. Substitute parts can look different from the original.
$192.89 |
6% OFF Phone Price : $204.89
In Stock
Spill Tray 143472
#306

Burners diagram

Spill tray

Part #143472

Replaced by #00143472

?
Manufacturer substitution
This part replaces 143472. Substitute parts can look different from the original.
$185.89
In Stock
Heater Element 640401
#606

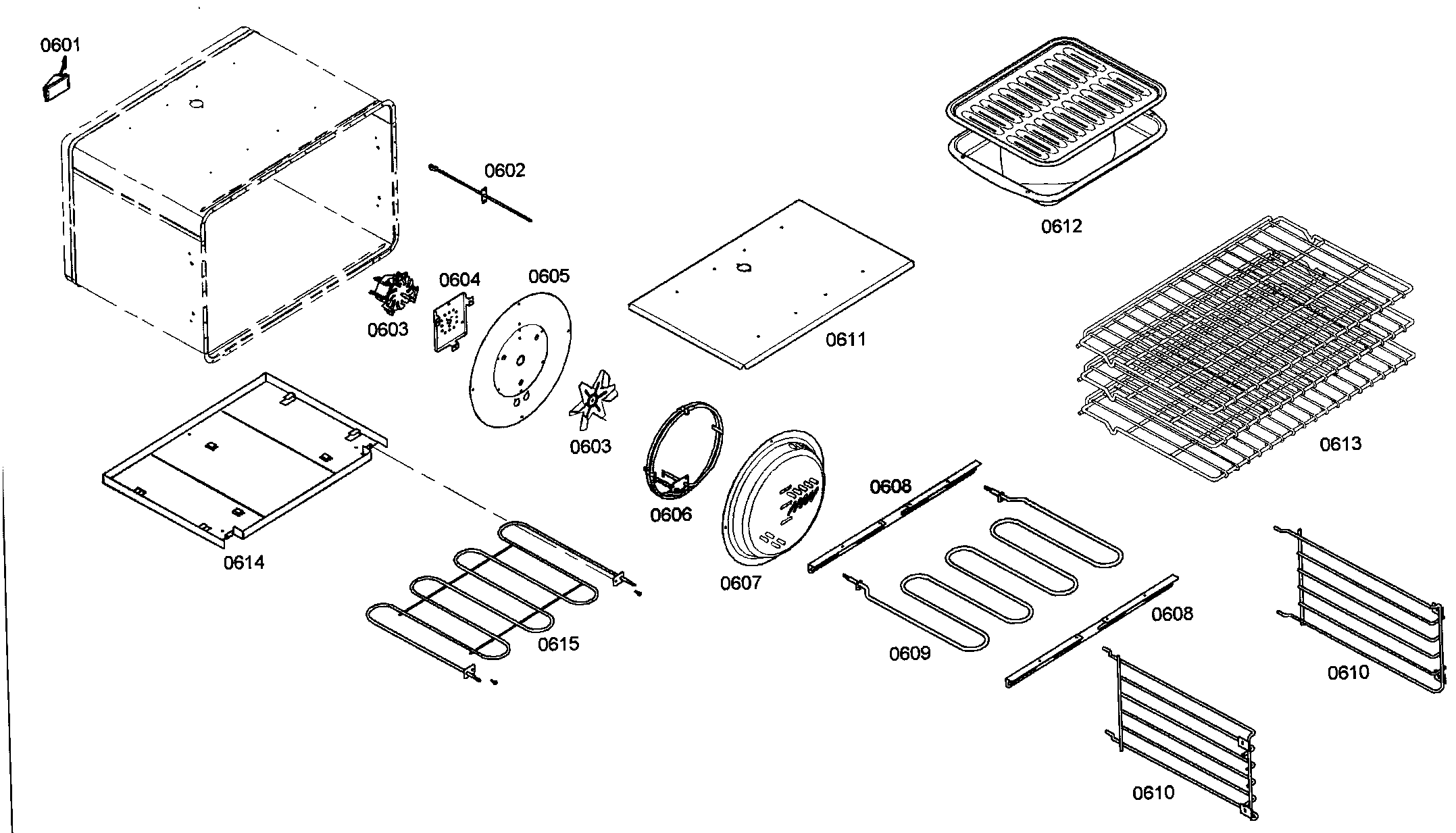

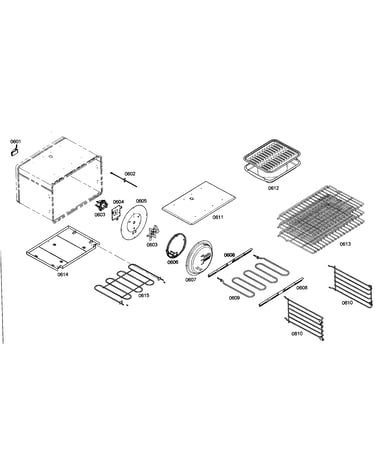

Oven diagram

Heater element

Part #640401

Replaced by #00640401

?
Manufacturer substitution
This part replaces 640401. Substitute parts can look different from the original.
$133.20
In Stock
Elbow 415030
#401

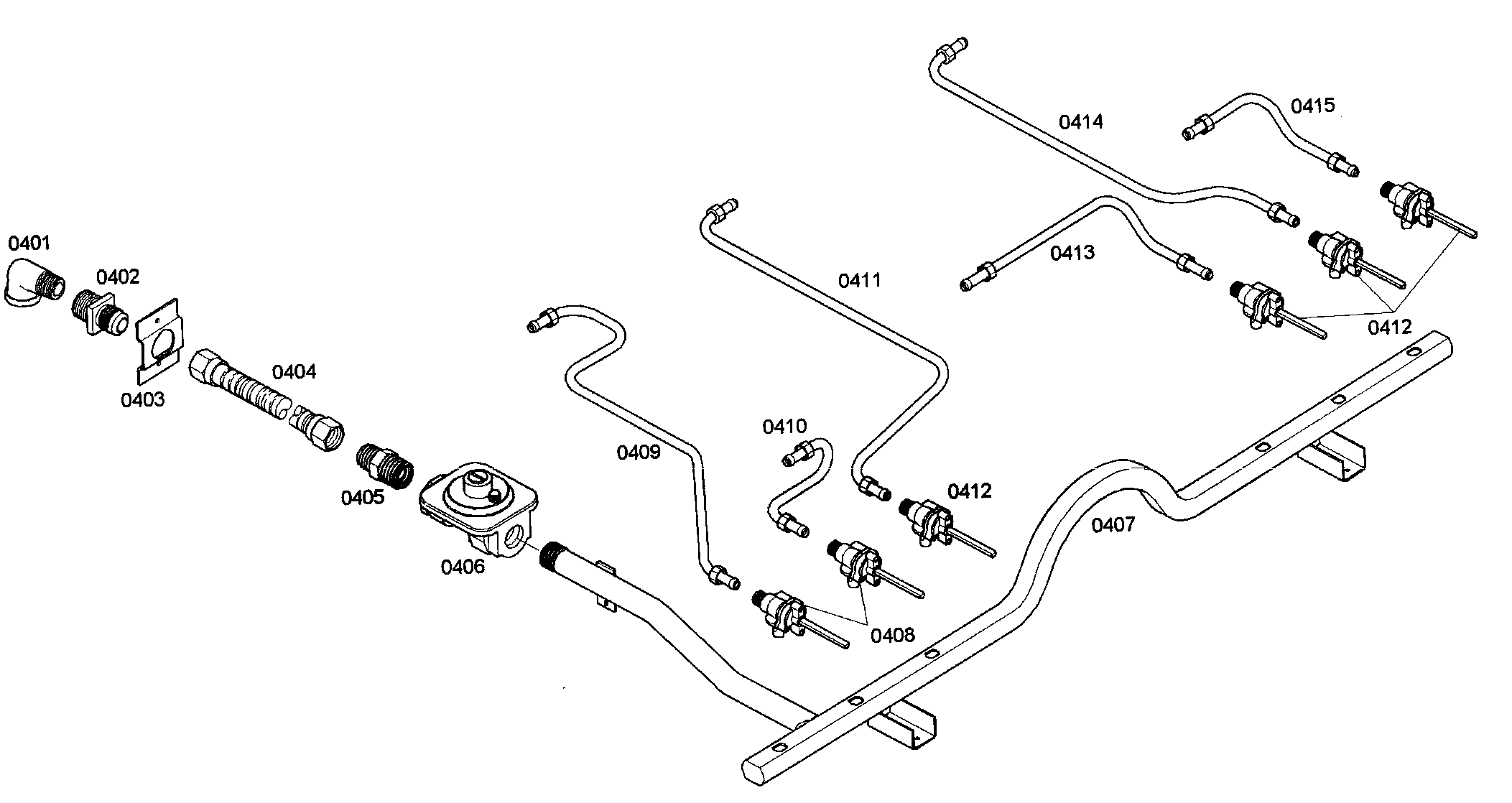

Gas supply diagram

Elbow

Part #415030

Replaced by #00633920

?
Manufacturer substitution
This part replaces 415030. Substitute parts can look different from the original.
$192.88
In Stock
