Model # WF457ARGSGR/A2-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF457ARGSGR-A2-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

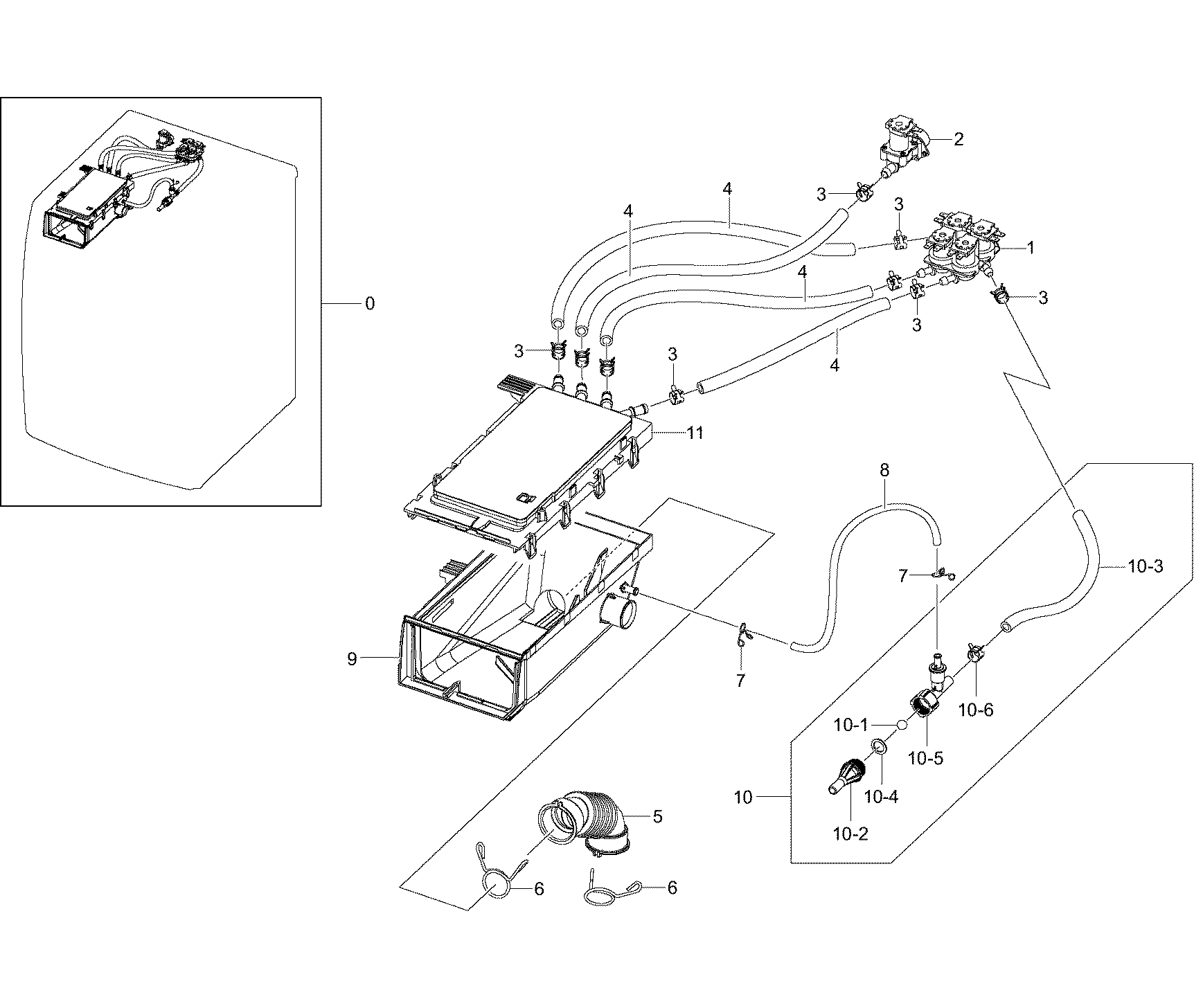

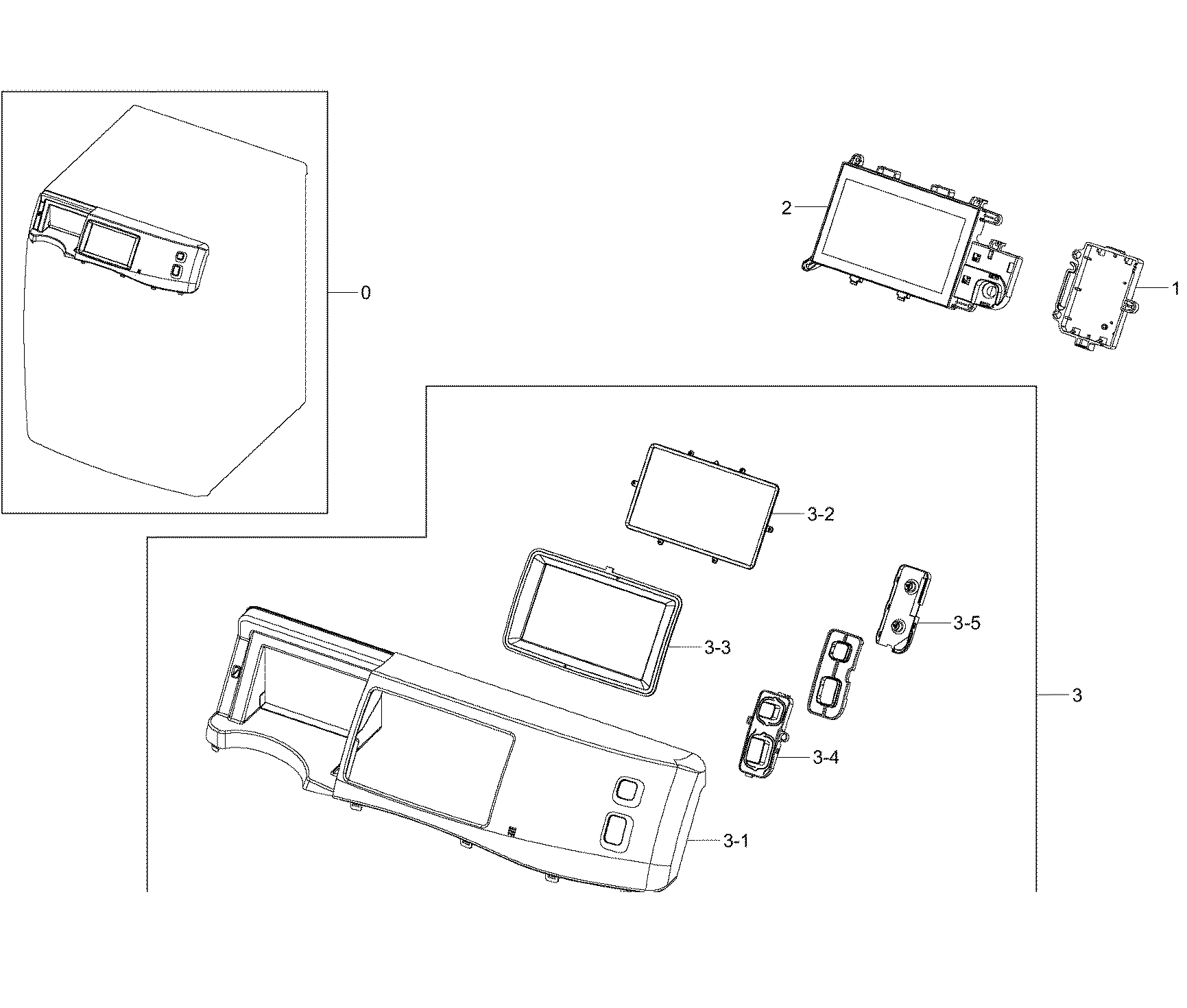

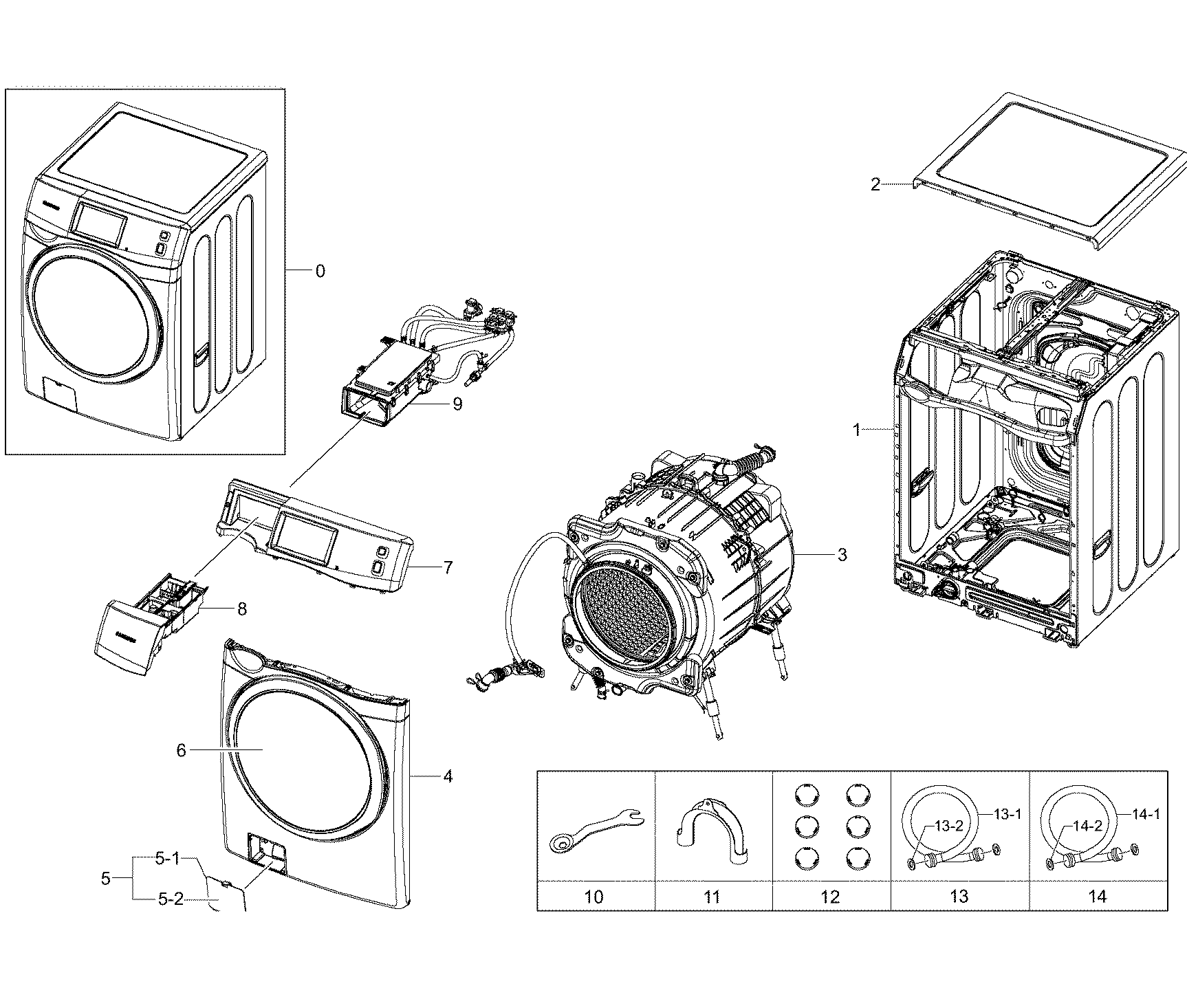

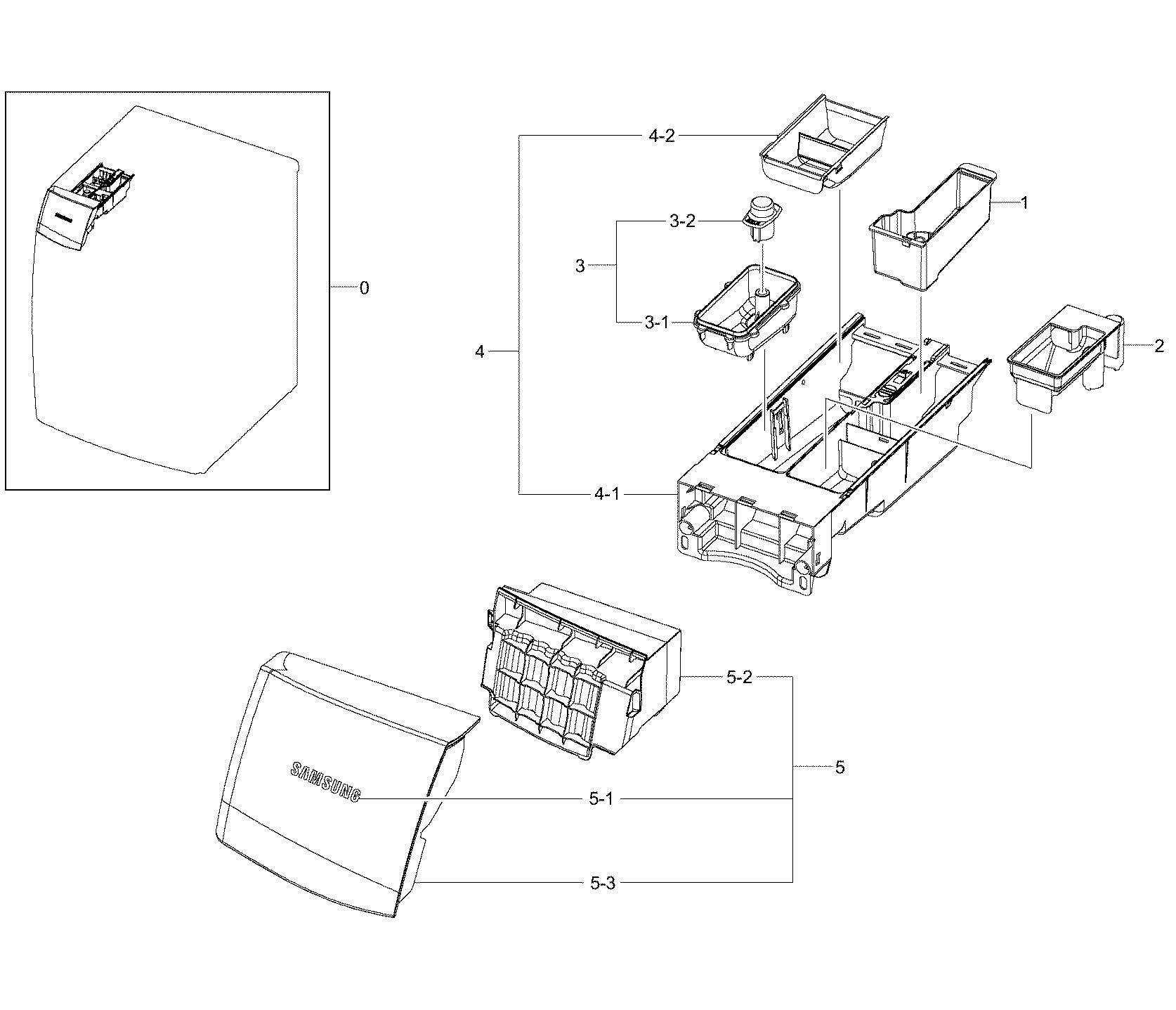

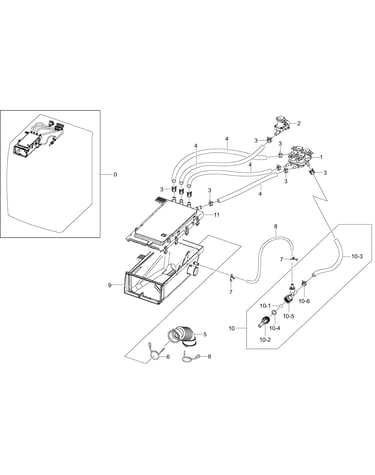

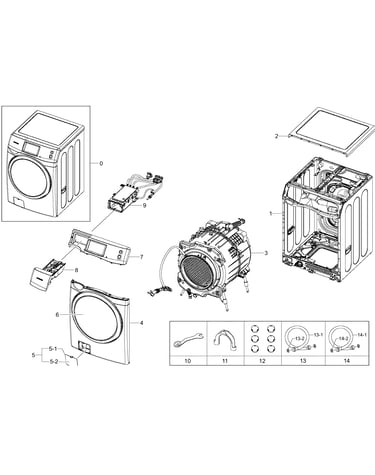

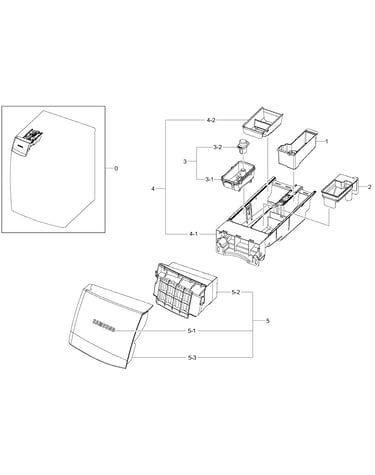

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Washer Shock Absorber (replaces Dc66-00650d) DC66-00470A
#8-3

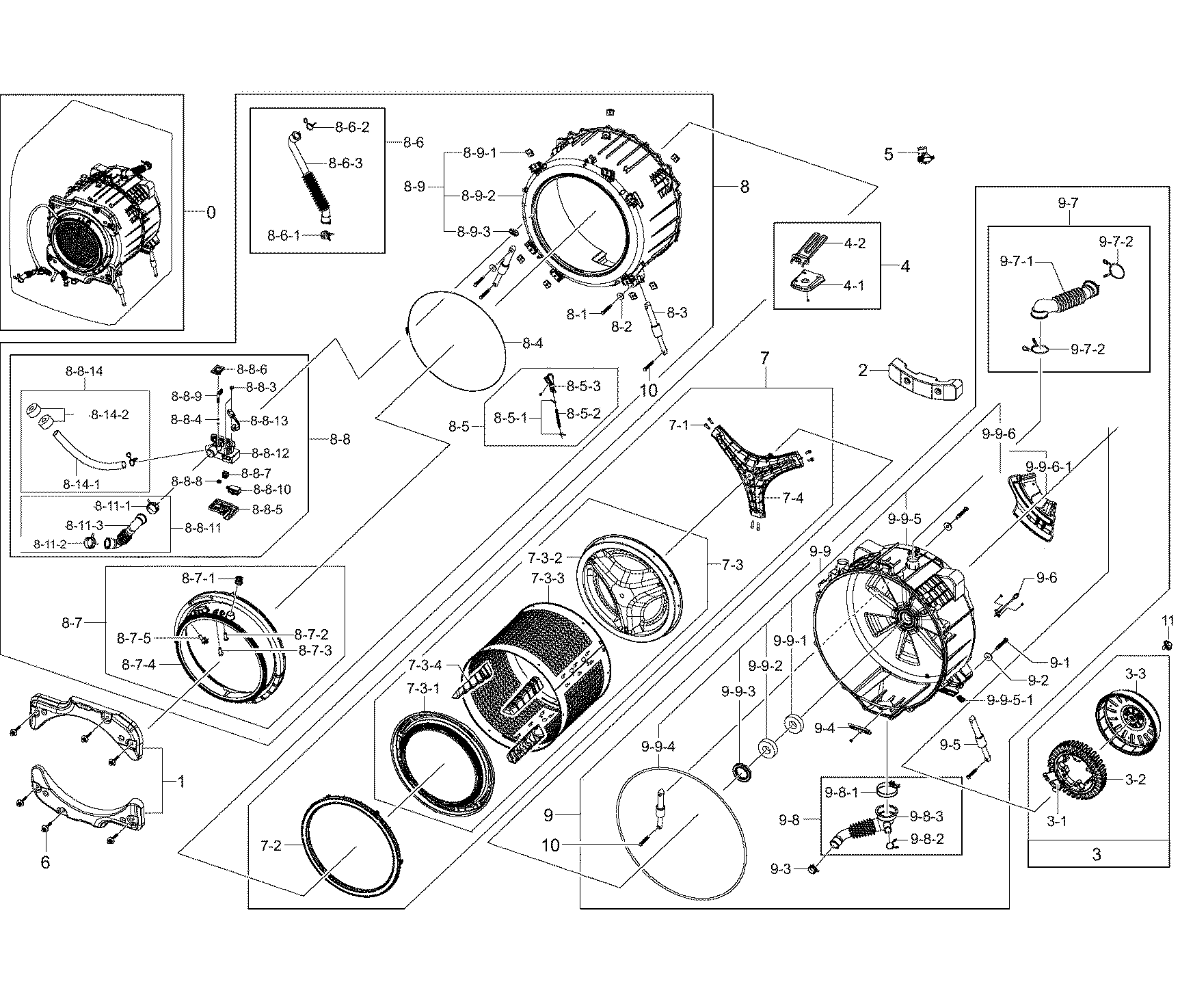

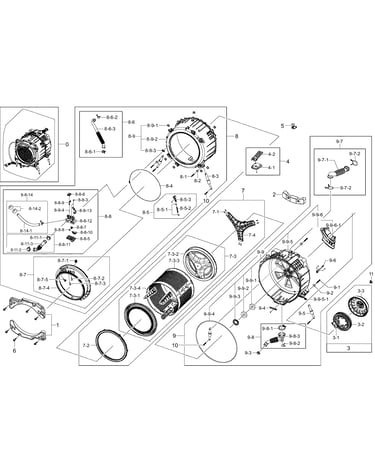

Tub & drum diagram

Washer shock absorber (replaces dc66-00650d)

Part #DC66-00470A

BEST SELLER
$49.01 |
11% OFF Phone Price : $55.01
In Stock
Washer Shock Absorber (replaces Dc66-00650c) DC66-00470B
#9-5

Tub & drum diagram

Washer shock absorber (replaces dc66-00650c)

Part #DC66-00470B

BEST SELLER
$30.91 |
16% OFF Phone Price : $36.91
In Stock
Washer Bolt (replaces Dc60-40138a) DC97-02412A
#6

Tub & drum diagram

Washer bolt (replaces dc60-40138a)

Part #DC97-02412A

BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Washer Motor Rotor Position Sensor DC31-00098A
#3-1

Tub & drum diagram

Washer motor rotor position sensor

Part #DC31-00098A

BEST SELLER
$59.00 |
9% OFF Phone Price : $65.00
In Stock
Washer Drum Shaft Assembly DC97-16509C
#7-4

Tub & drum diagram

Washer drum shaft assembly

Part #DC97-16509C

BEST SELLER
$209.95 |
5% OFF Phone Price : $221.95
In Stock
Washer Drain Pump DC31-00054D
#11-2

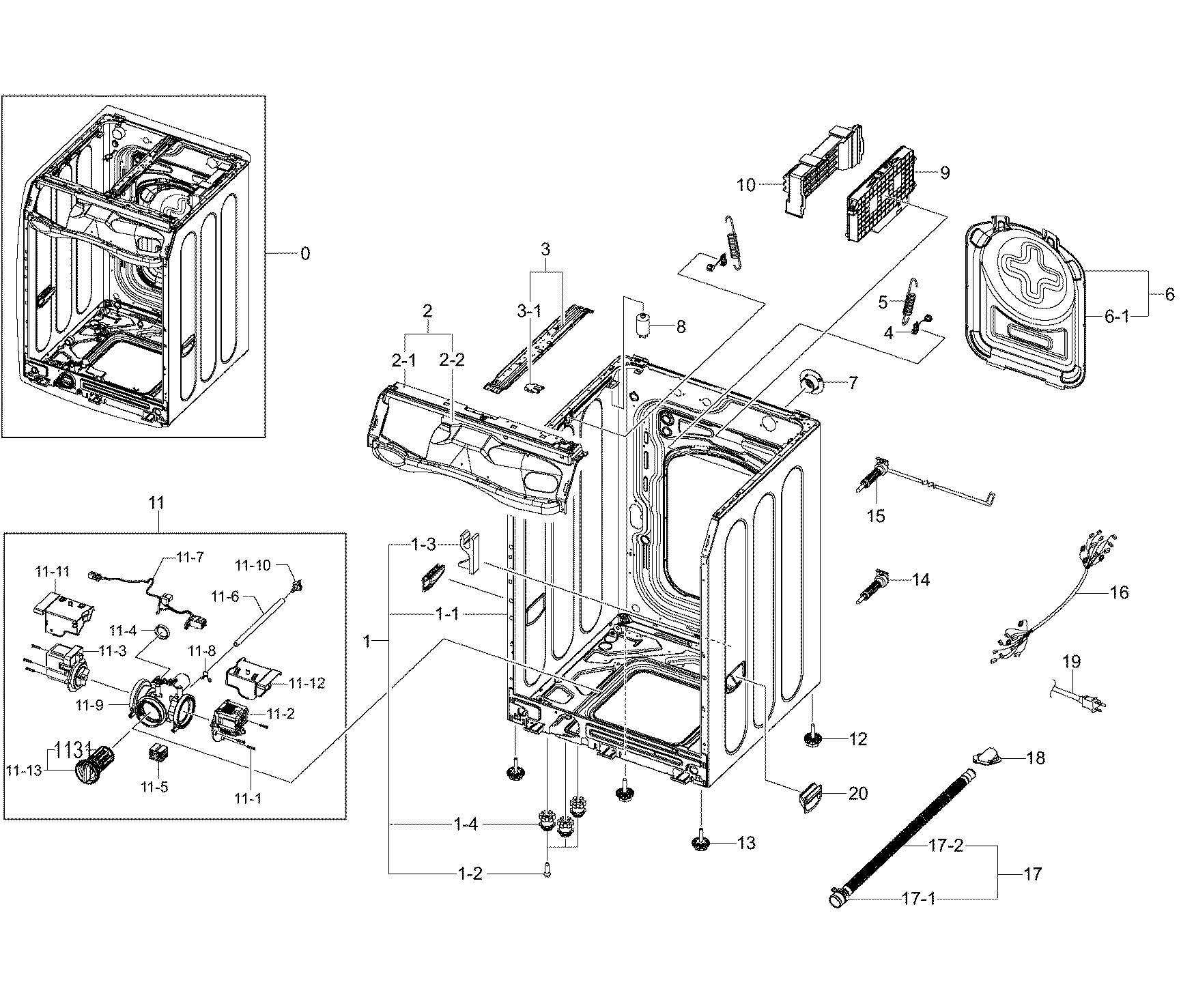

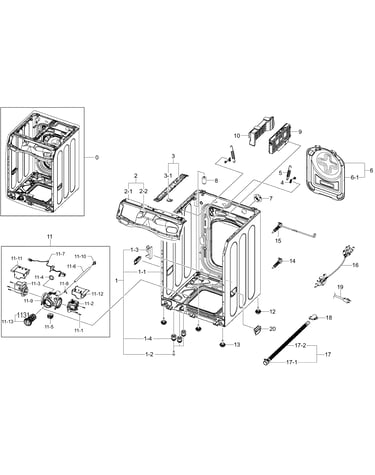

Frame & cover parts diagram

Washer drain pump

Part #DC31-00054D

BEST SELLER
$55.64 |
10% OFF Was : $61.82
In Stock
Washer Suspension Spring DC61-01257N
#5

Frame & cover parts diagram

Washer suspension spring

Part #DC61-01257N

BEST SELLER
$31.70 |
16% OFF Phone Price : $37.70
In Stock
Washer Door Lock DC64-00519B
#7

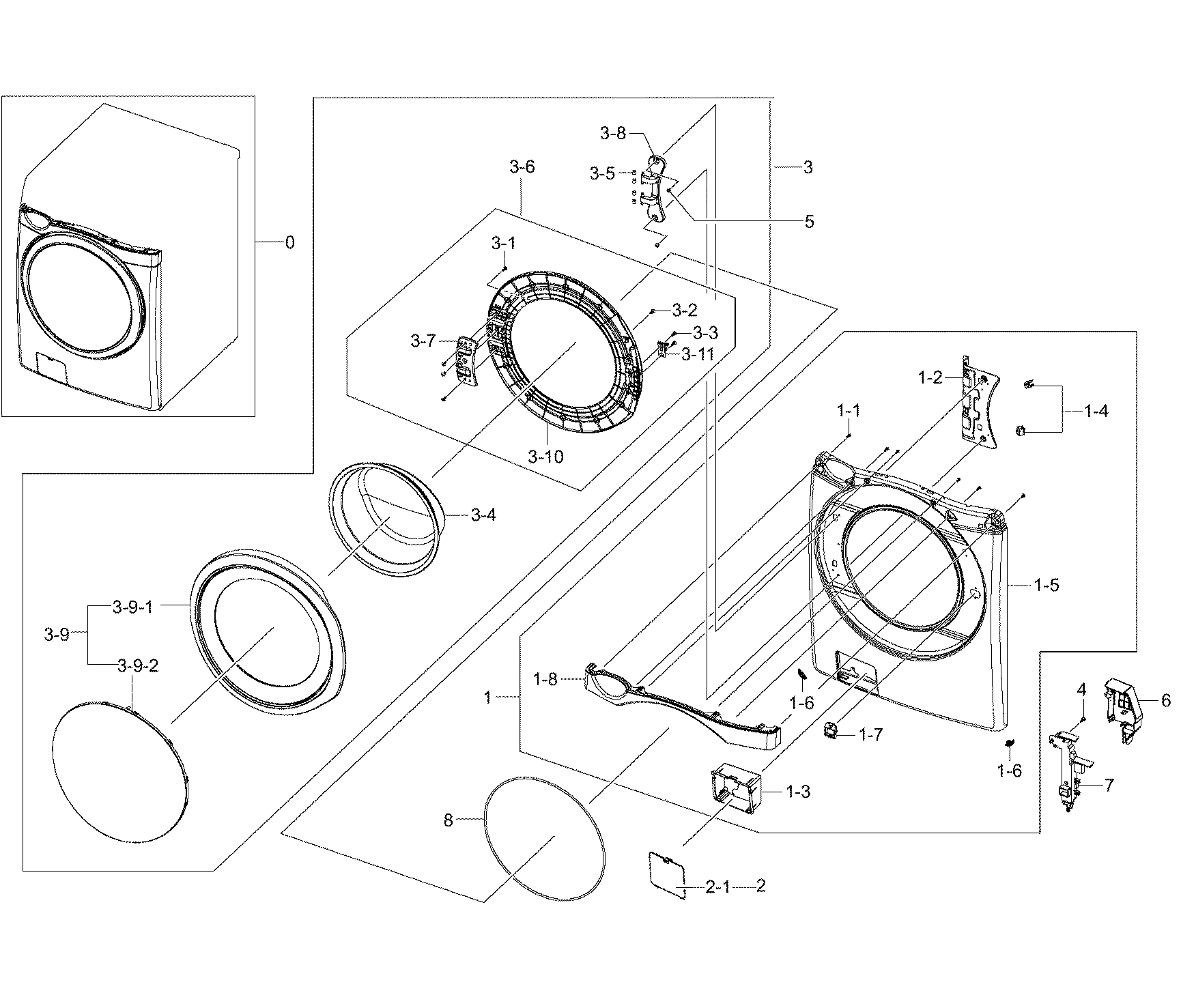

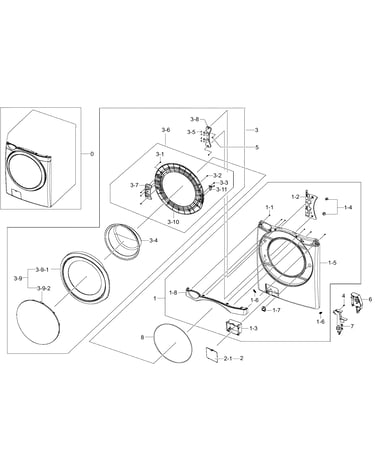

Frame front & door diagram

Washer door lock

Part #DC64-00519B

BEST SELLER
$28.89 |
17% OFF Phone Price : $34.89
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#7-1

Tub & drum diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Drum DC66-00736A
#7-32

Tub & drum diagram

Drum

Part #DC66-00736A

Replaced by #DC97-17037E

?
Manufacturer substitution
This part replaces DC66-00736A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$264.84 |
$12.00 OFF Phone Price : $276.84
In Stock
