Model # 2538479161 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 2538479161 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Refrigerator Drier 177375
#11

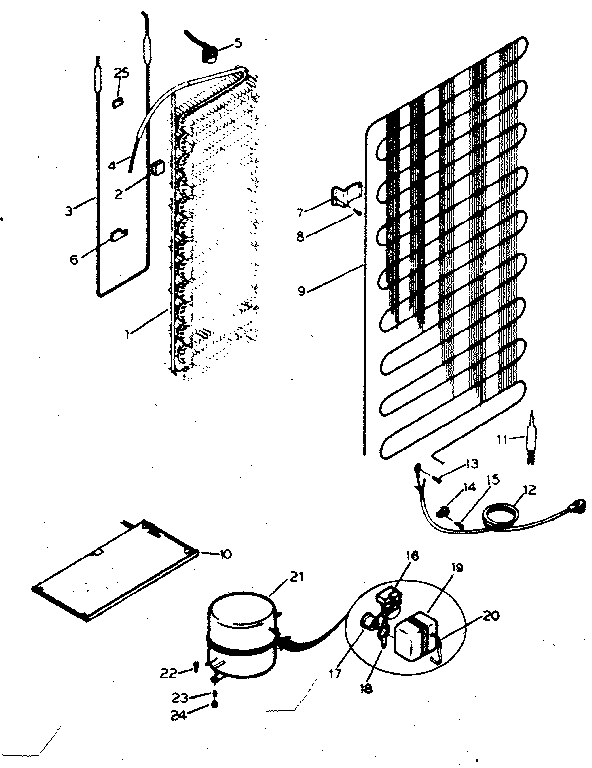

System and automatic defrost parts diagram

Refrigerator drier

Part #177375

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 177375. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Fan 174705
#30

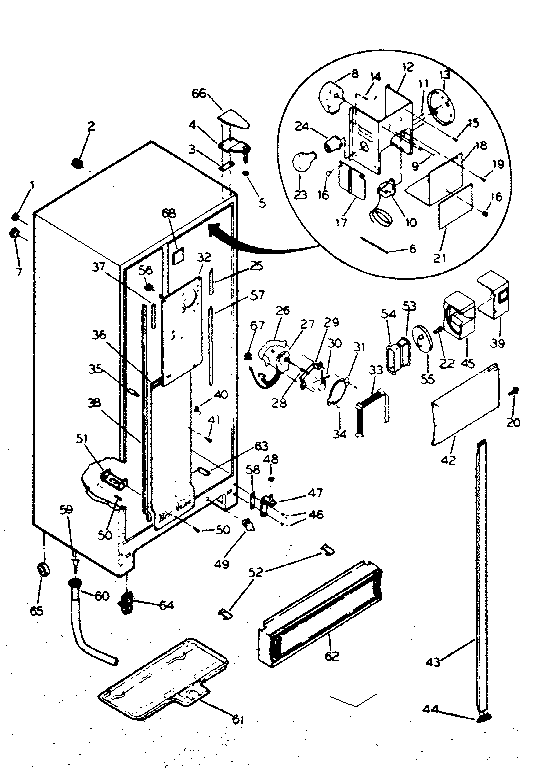

Cabinet parts diagram

Refrigerator fan

Part #174705

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 174705. Substitute parts can look different from the original.
BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Refrigerator Timer 173814
#8

Cabinet parts diagram

Refrigerator timer

Part #173814

Replaced by #215846604

?
Manufacturer substitution
This part replaces 173814. Substitute parts can look different from the original.
BEST SELLER
$27.89 |
18% OFF Phone Price : $33.89
In Stock
Refrigerator Strap 165546
#25

System and automatic defrost parts diagram

Refrigerator strap

Part #165546

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 165546. Substitute parts can look different from the original.
BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Refrigerator Thermostat 166153
#5

System and automatic defrost parts diagram

Refrigerator thermostat

Part #166153

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 166153. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Refrigerator Tube 142176-11
#6

Cabinet parts diagram

Refrigerator tube

Part #142176-11

Replaced by #5303916855

?
Manufacturer substitution
This part replaces 142176-11. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Refrigerator Drain 171192
#60

Cabinet parts diagram

Refrigerator drain

Part #171192

Replaced by #241957901

?
Manufacturer substitution
This part replaces 171192. Substitute parts can look different from the original.
$49.59 |
11% OFF Phone Price : $55.59
In Stock
Refrigerator Ice Tray 156376-01
#4

Shelves diagram

Refrigerator ice tray

Part #156376-01

Replaced by #215667501

?
Manufacturer substitution
This part replaces 156376-01. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Refrigerator Tube 143688-05
#18

Ice maker installation parts diagram

Refrigerator tube

Part #143688-05

Replaced by #5308010366

?
Manufacturer substitution
This part replaces 143688-05. Substitute parts can look different from the original.
$17.97 |
10% OFF Phone Price : $19.97
In Stock
Refrigerator Screw 162585
Refrigerator screw

Part #162585

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 162585. Substitute parts can look different from the original.
$13.26
In Stock
