Model # JB258DM2WW Official GE electric range

Here are the diagrams and repair parts for Official GE JB258DM2WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Range Oven Light Bulb WX12X1510
#257

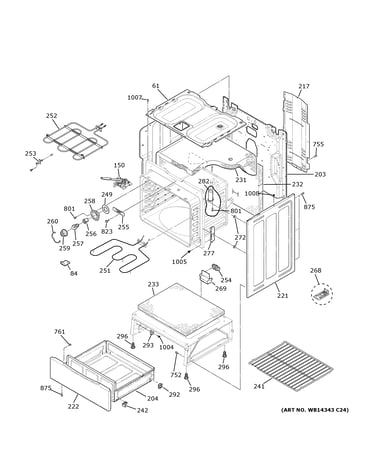

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Element Control Switch, 2,600-watt WB24T10025
#19

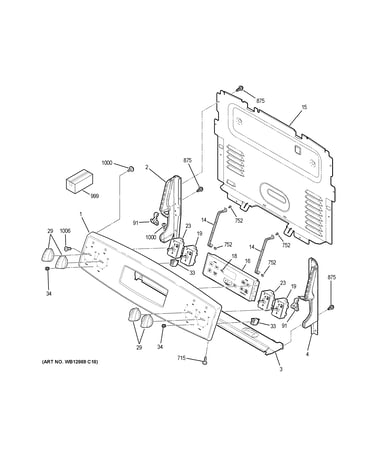

Control panel diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$36.13 |
14% OFF Phone Price : $42.13
In Stock
Range Led Oven Control Board (white) WB27X29091
#16

Control panel diagram

Range led oven control board (white)

Part #WB27X29091

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27X29091. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$142.37 |
8% OFF Phone Price : $154.37
In Stock
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Surface Element Control Switch, 1,250-watt WB24T10022
#23

Control panel diagram

Range surface element control switch, 1,250-watt

Part #WB24T10022

BEST SELLER
$76.69 |
7% OFF Phone Price : $82.69
In Stock
Range Drip Pan (replaces Wb32x10014) WB31T10011
#60

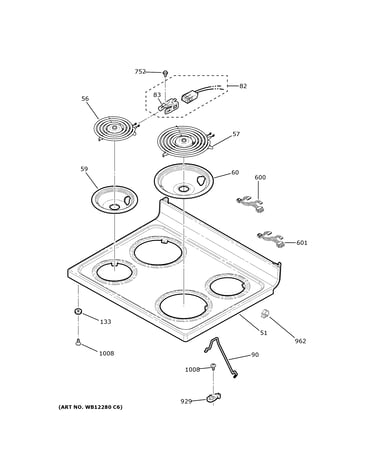

Cooktop diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011

BEST SELLER
$15.02 |
12% OFF Phone Price : $17.02
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#59

Cooktop diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

BEST SELLER
$17.64 |
10% OFF Phone Price : $19.64
In Stock
Range Coil Element, 6-in WB30X31058
#56

Cooktop diagram

Range coil element, 6-in

Part #WB30X31058

BEST SELLER
$107.12 |
10% OFF Phone Price : $119.12
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#256

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lens WB25X24023
#34

Control panel diagram

Lens

Part #WB25X24023

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
