Franklin Chef
Freestanding Ice Maker

Model # FIM200 Official Franklin Chef ice maker

Here are the diagrams and repair parts for Official Franklin Chef FIM200 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Slideway 1861701801
#33

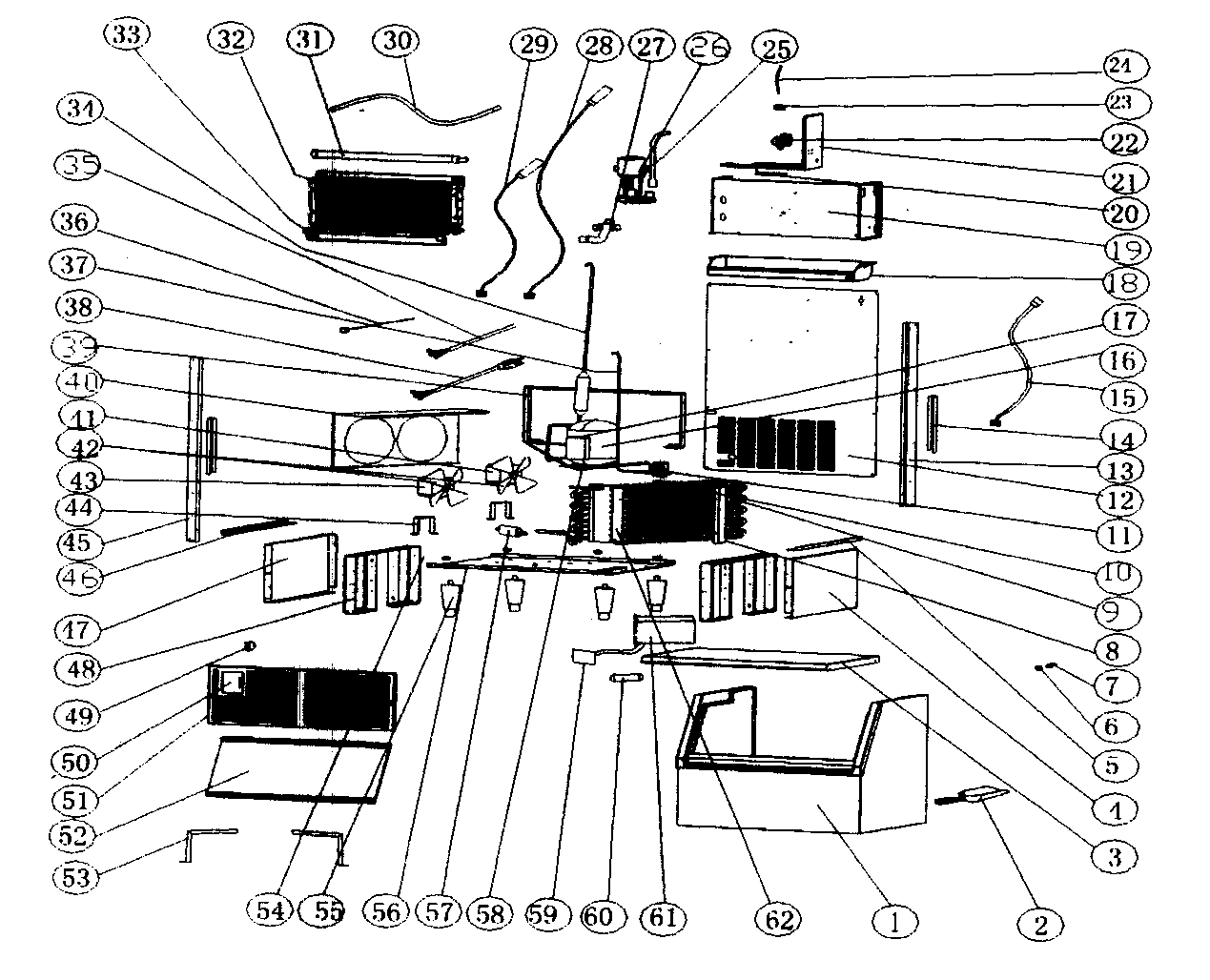

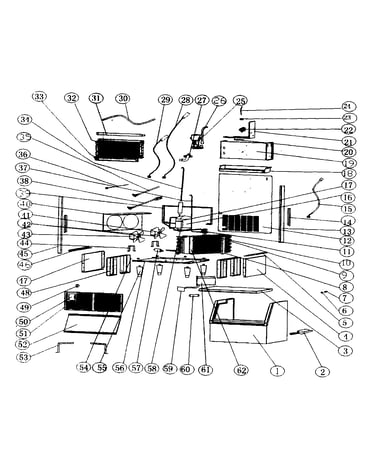

Cabinet parts diagram

Slideway

Part #1861701801

The manufacturer no longer makes this part, and there's no substitute part

Switch 1854000500
#49

Cabinet parts diagram

Switch

Part #1854000500

The manufacturer no longer makes this part, and there's no substitute part

Ice Scoop 1864800100
#2

Cabinet parts diagram

Ice scoop

Part #1864800100

The manufacturer no longer makes this part, and there's no substitute part

Compressor 1858420900
#16

Cabinet parts diagram

Compressor

Part #1858420900

The manufacturer no longer makes this part, and there's no substitute part

Valve Coil 1854701210
#10

Cabinet parts diagram

Valve coil

Part #1854701210

The manufacturer no longer makes this part, and there's no substitute part

Out Tube 1864512100
#25

Cabinet parts diagram

Out tube

Part #1864512100

The manufacturer no longer makes this part, and there's no substitute part

Drain Pipe 1864532701
#30

Cabinet parts diagram

Drain pipe

Part #1864532701

The manufacturer no longer makes this part, and there's no substitute part

Water Pump 1858904000
#26

Cabinet parts diagram

Water pump

Part #1858904000

The manufacturer no longer makes this part, and there's no substitute part

Drain Nut 1864514100
#6

Cabinet parts diagram

Drain nut

Part #1864514100

The manufacturer no longer makes this part, and there's no substitute part

Harness 1853701903
#35

Cabinet parts diagram

Harness

Part #1853701903

The manufacturer no longer makes this part, and there's no substitute part
