Maytag
Bottom-Mount Refrigerator

Model # MBR1957VES10 Official Maytag bottom-mount refrigerator

Here are the diagrams and repair parts for Official Maytag MBR1957VES10 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

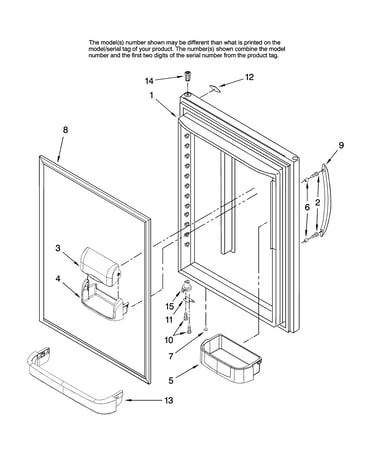

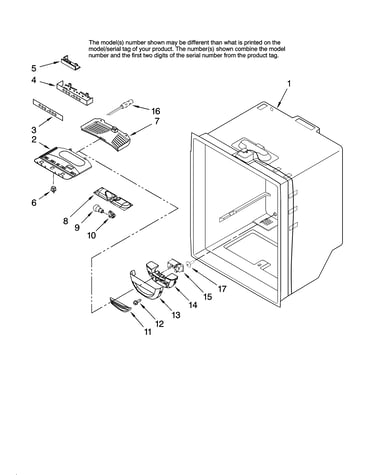

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |

Refrigerator Uv Filter Dryer W10143759
#27

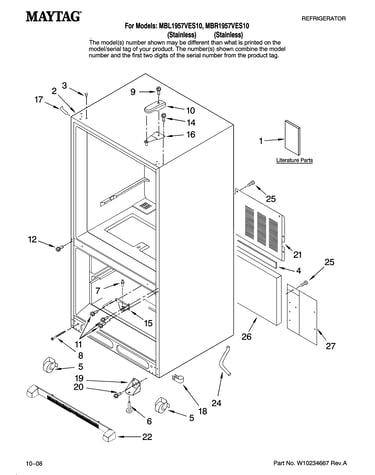

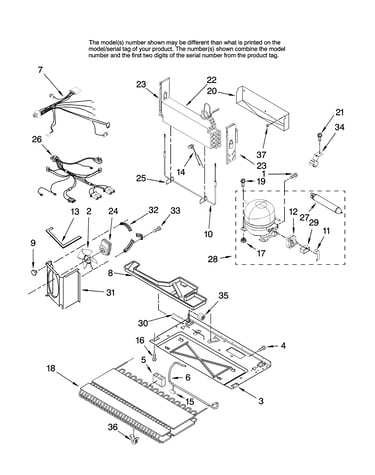

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb A0282812
Refrigerator light bulb

Part #A0282812

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Fan Blade 2169142
#24

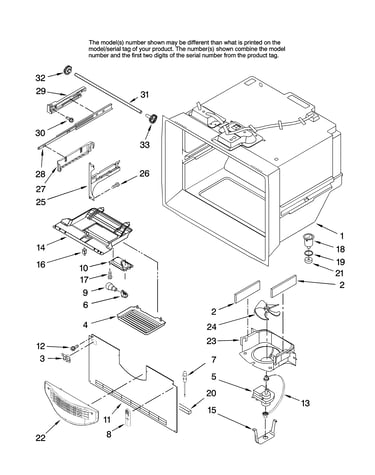

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22
14% OFF Phone Price : $44.22
In Stock
Capacitor W/ 67005562
#29

Unit parts diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$56.27
10% OFF Phone Price : $62.27
In Stock
Refrigerator Freezer Slide Rail W10120018
#28

Freezer liner parts diagram

Refrigerator freezer slide rail

Part #W10120018

Replaced by #WPW10120018

?
Manufacturer substitution
This part replaces W10120018. Substitute parts can look different from the original.
BEST SELLER
$112.89
10% OFF Phone Price : $124.89
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

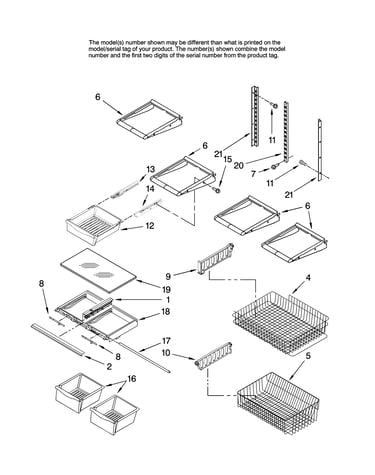

Shelf parts, optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12
19% OFF Phone Price : $32.12
In Stock
Refrigerator Fan Blade 12825802
#2

Unit parts diagram

Refrigerator fan blade

Part #12825802

Replaced by #W10156818

?
Manufacturer substitution
This part replaces 12825802. Substitute parts can look different from the original.
BEST SELLER
$42.67
12% OFF Phone Price : $48.67
In Stock
Refrigerator Grille W10175909
#22

Freezer liner parts diagram

Refrigerator grille

Part #W10175909

Replaced by #WPW10175909

?
Manufacturer substitution
This part replaces W10175909. Substitute parts can look different from the original.
BEST SELLER
$33.88
15% OFF Phone Price : $39.88
In Stock
Spray Paint (white) 350930
#NI

Shelf parts, optional parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
