LG
Canister Vacuum

Model # LCV900B Official LG canister vacuum

Here are the diagrams and repair parts for Official LG LCV900B canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Vacuum Extension Wand AGR73194501
#1020

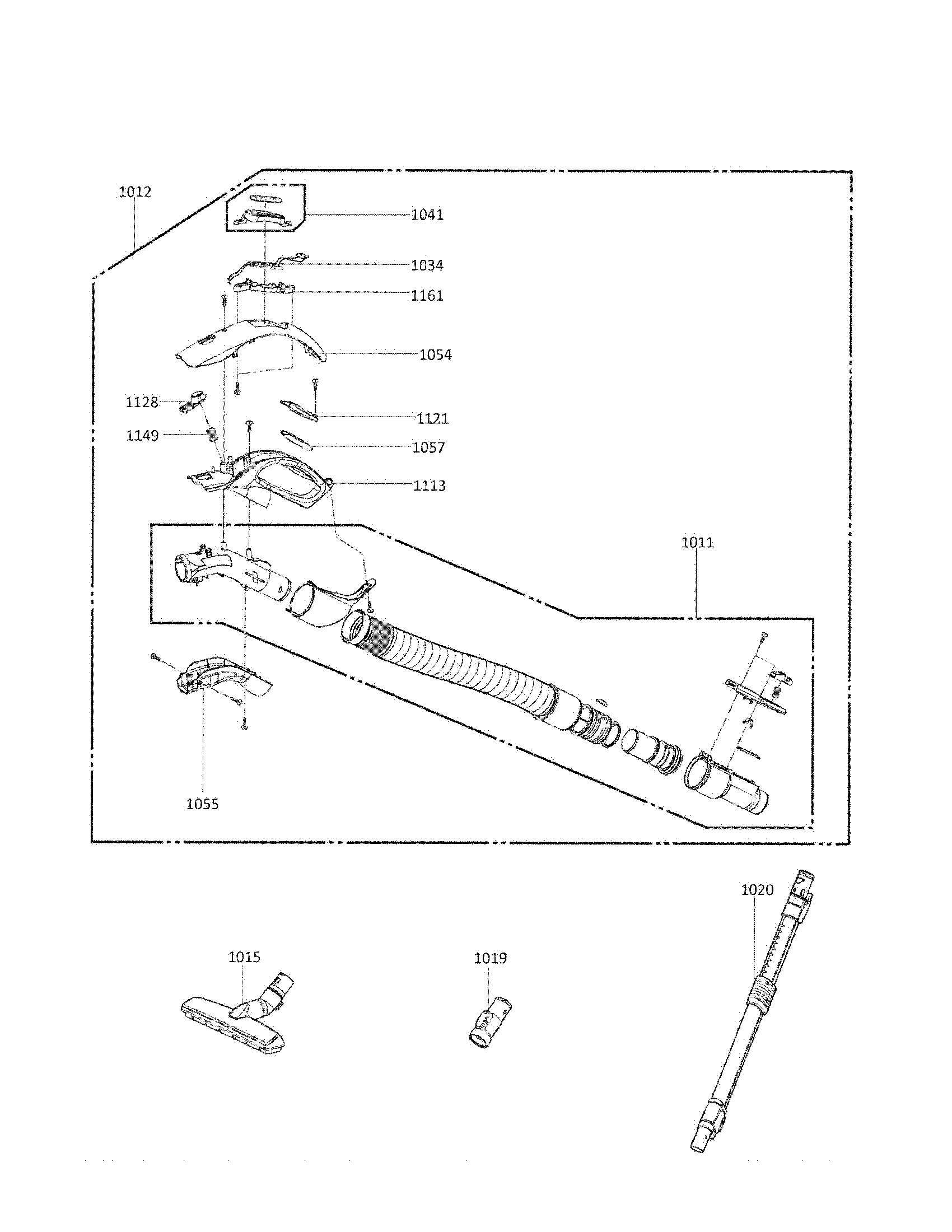

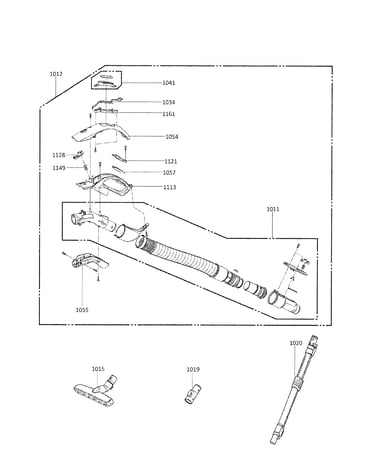

Accessory parts diagram

Vacuum extension wand

Part #AGR73194501

Replaced by #AGR56250809

?
Manufacturer substitution
This part replaces AGR73194501. Substitute parts can look different from the original.
$35.33
In Stock
Lg Vacuum Exhaust Filter MDJ62824801
#1083

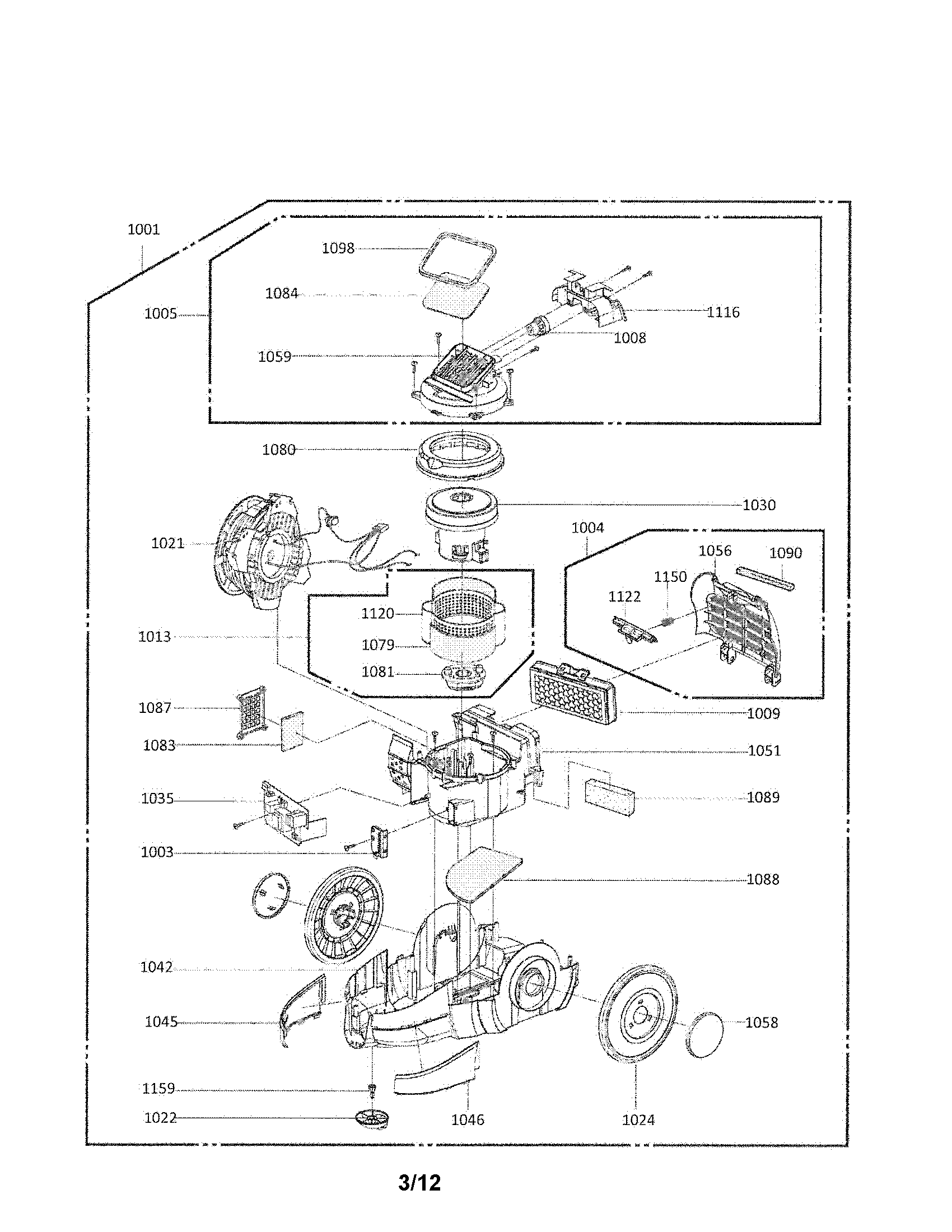

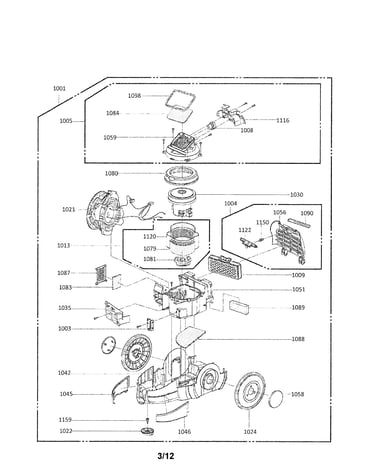

Base assembly parts diagram

Lg vacuum exhaust filter

Part #MDJ62824801

This item is not returnable

Get free shipping with Automatic Reorder

$2.16
In Stock
Lg Vacuum Motor Safety Filter MDJ54988501
#1085

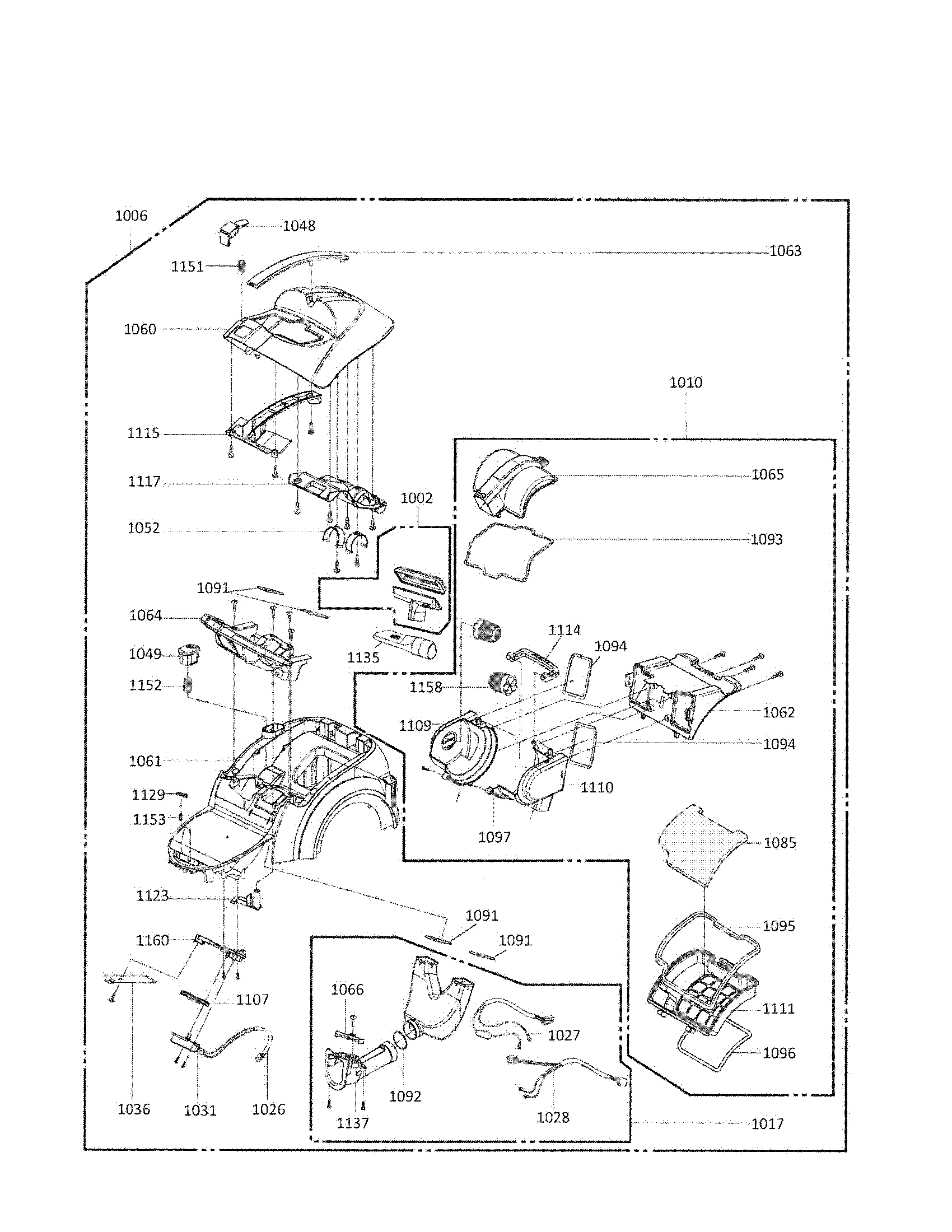

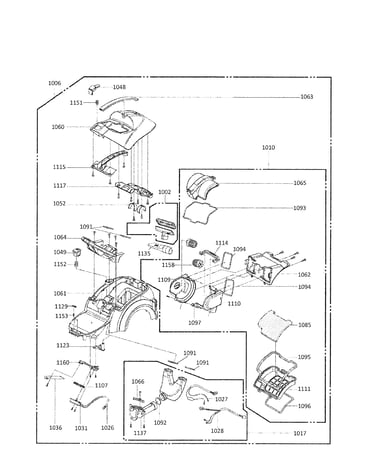

Cover assembly parts diagram

Lg vacuum motor safety filter

Part #MDJ54988501

This item is not returnable
$5.66
In Stock
Lg Vacuum Beater Bar Housing MAM62245901
#1043

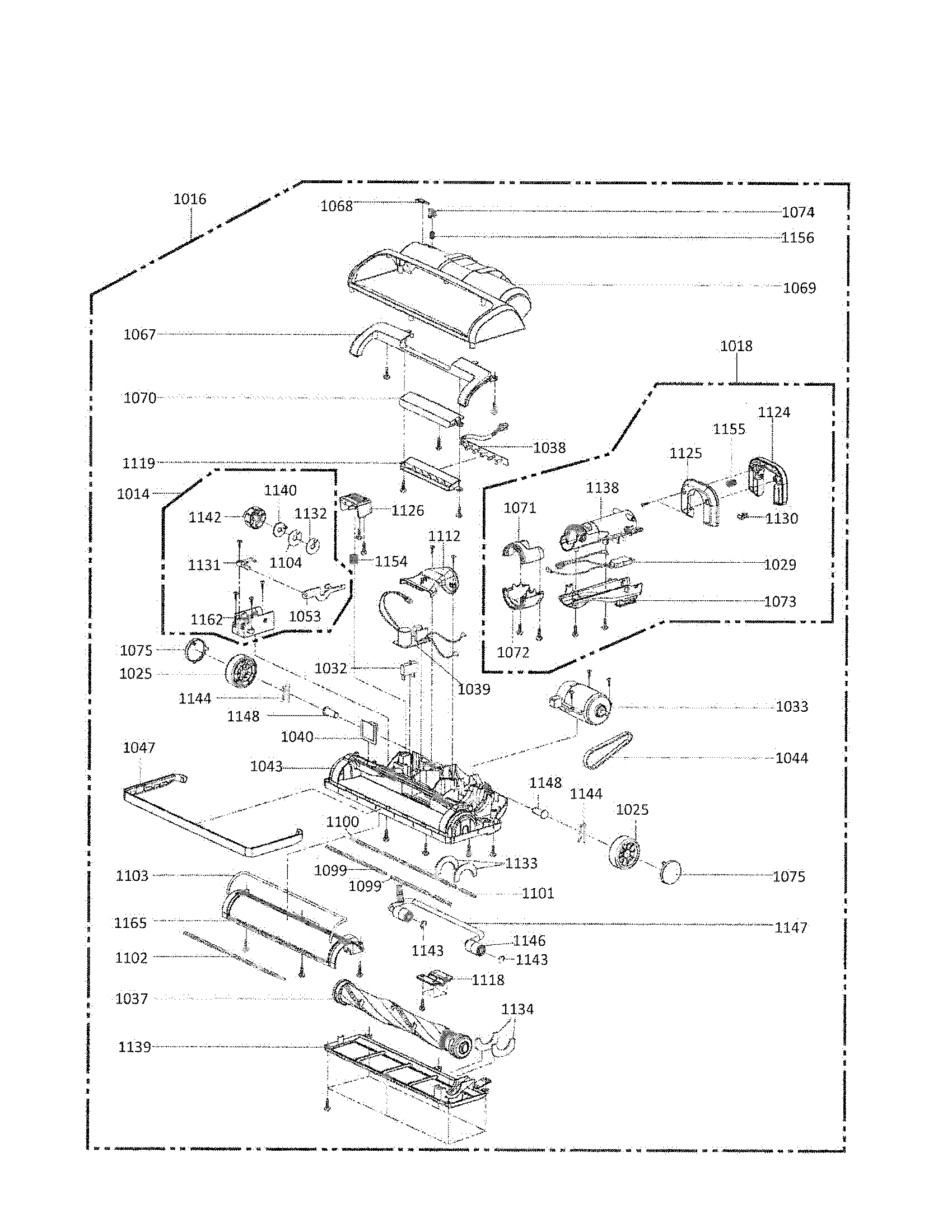

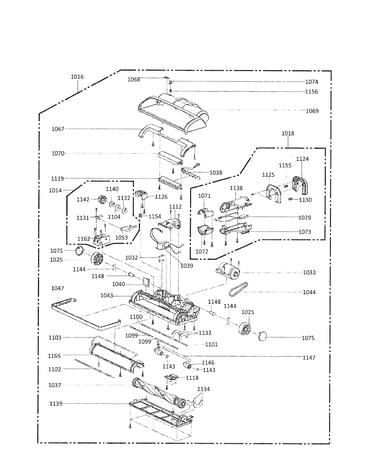

Nozzel assembly parts diagram

Lg vacuum beater bar housing

Part #MAM62245901

$8.89
In Stock
Lg Damper Assembly ACV73010003
#1008

Base assembly parts diagram

Lg damper assembly

Part #ACV73010003

This item is not returnable
$3.17
In Stock
Lg Locker MFG62438801
#1130

Nozzel assembly parts diagram

Lg locker

Part #MFG62438801

This item is not returnable
$2.16
In Stock
Lg Clip MBV62082001
#1052

Cover assembly parts diagram

Lg clip

Part #MBV62082001

This item is not returnable
$2.16
In Stock
Lg Cover Assembly ACQ65888521
#1007

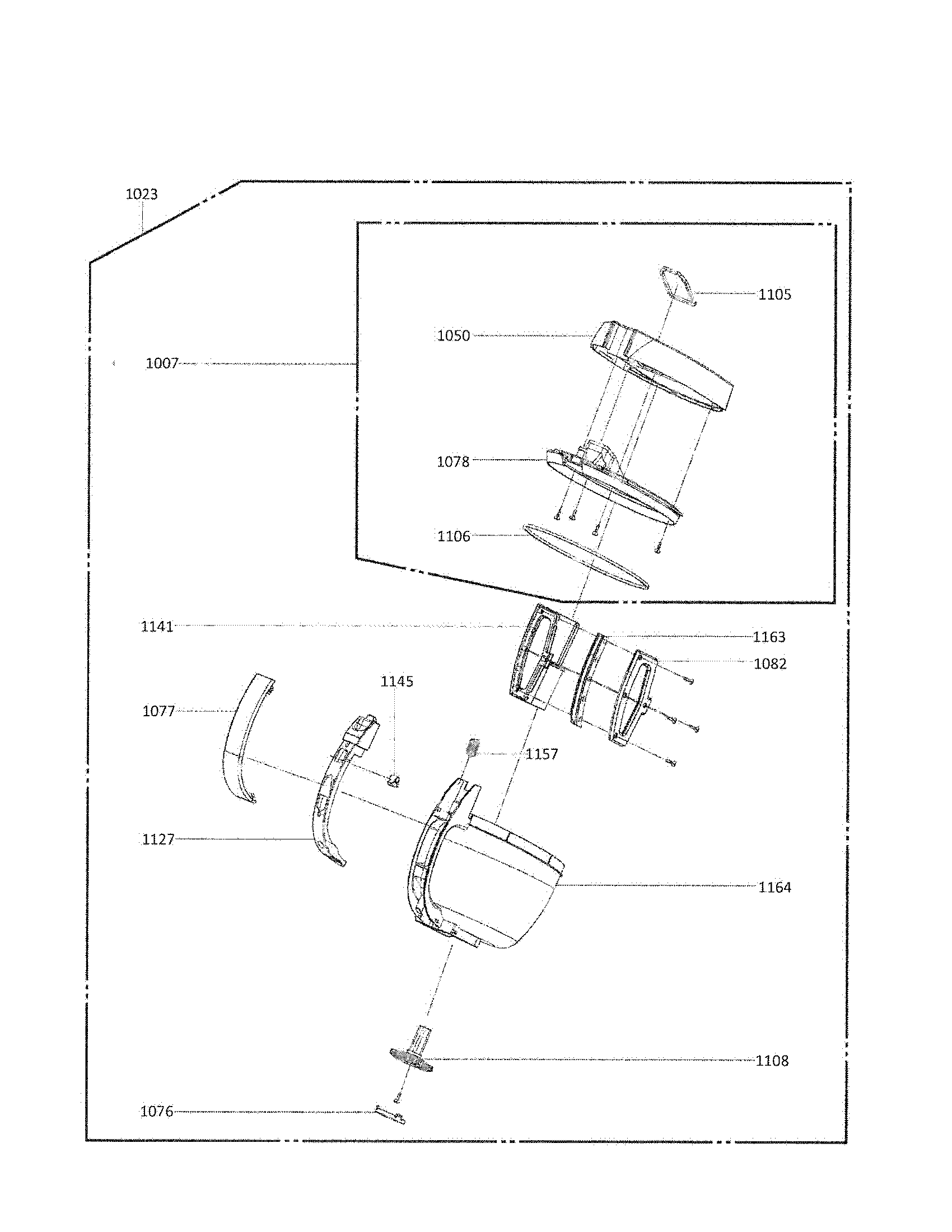

Dust tank assembly parts diagram

Lg cover assembly

Part #ACQ65888521

$46.49
In Stock
Lg Front Decor MCR63871201
#1082

Dust tank assembly parts diagram

Lg front decor

Part #MCR63871201

This item is not returnable
$2.16
In Stock
Lg Vacuum Secondary Filter MDJ50005201
#1084

Base assembly parts diagram

Lg vacuum secondary filter

Part #MDJ50005201

This item is not returnable
$4.37
In Stock
