Bottom-Mount Refrigerator

Model # PDS18SBMARBS Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE PDS18SBMARBS refrigerator - m series, as well as links to manuals and error code tables, if available.

By Schematic
By Part

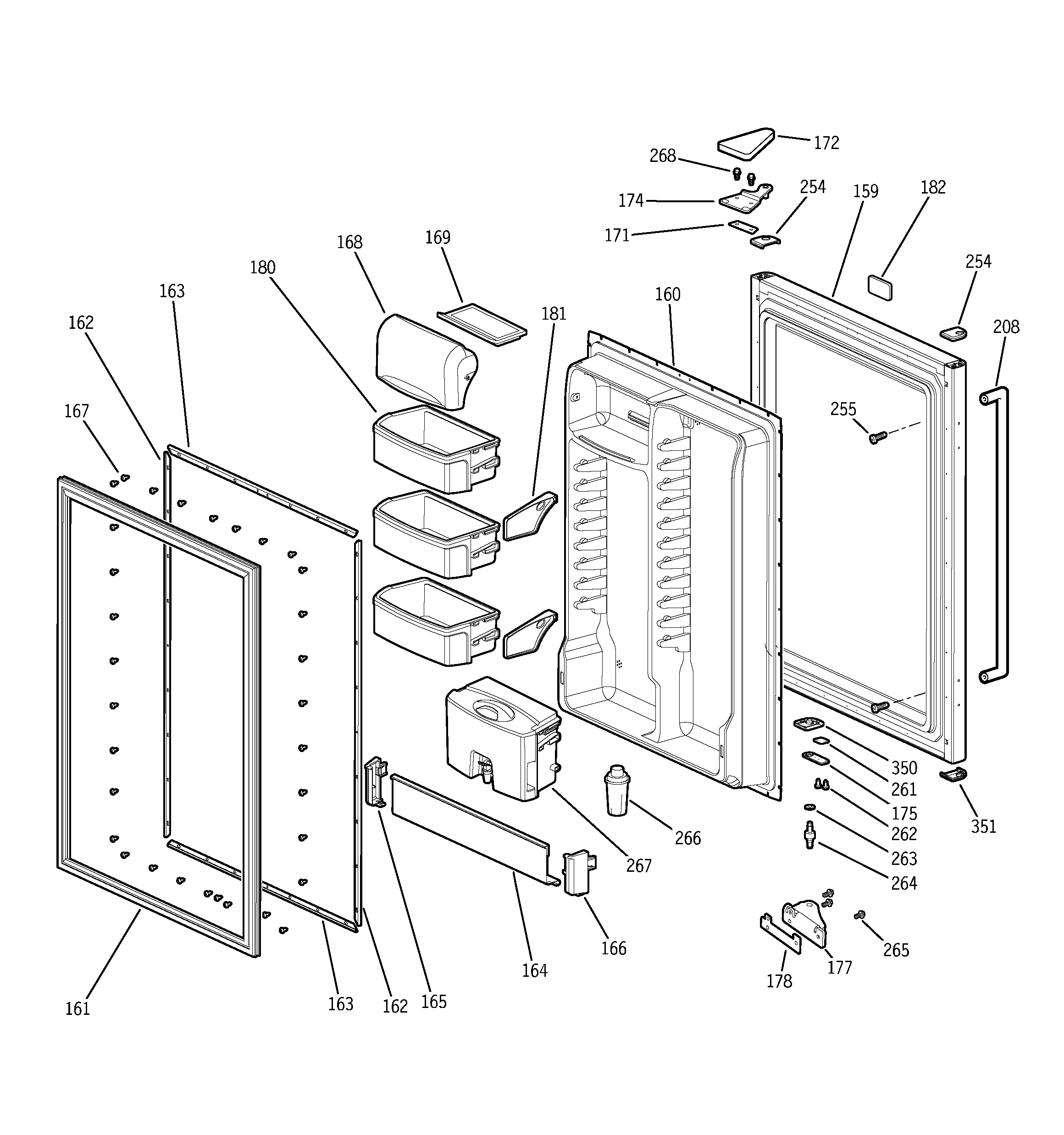

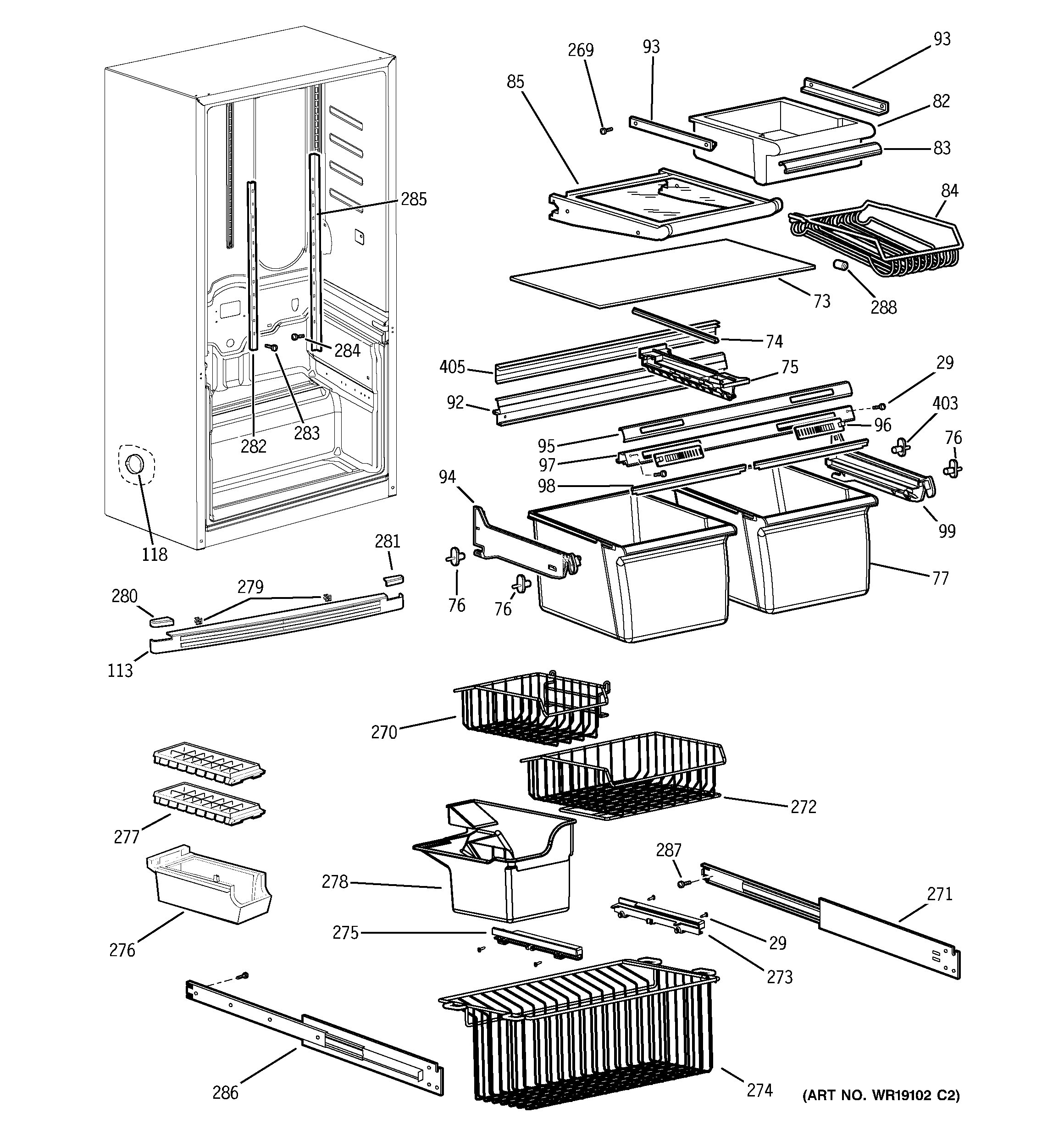

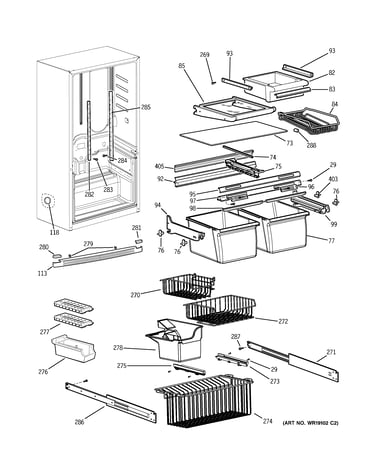

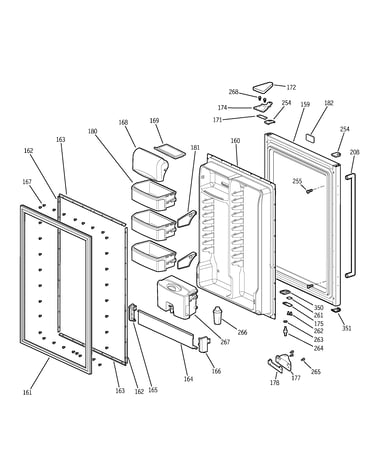

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
PDS18SBMARBS Refrigerators
G.e. Appliance Light Bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#25

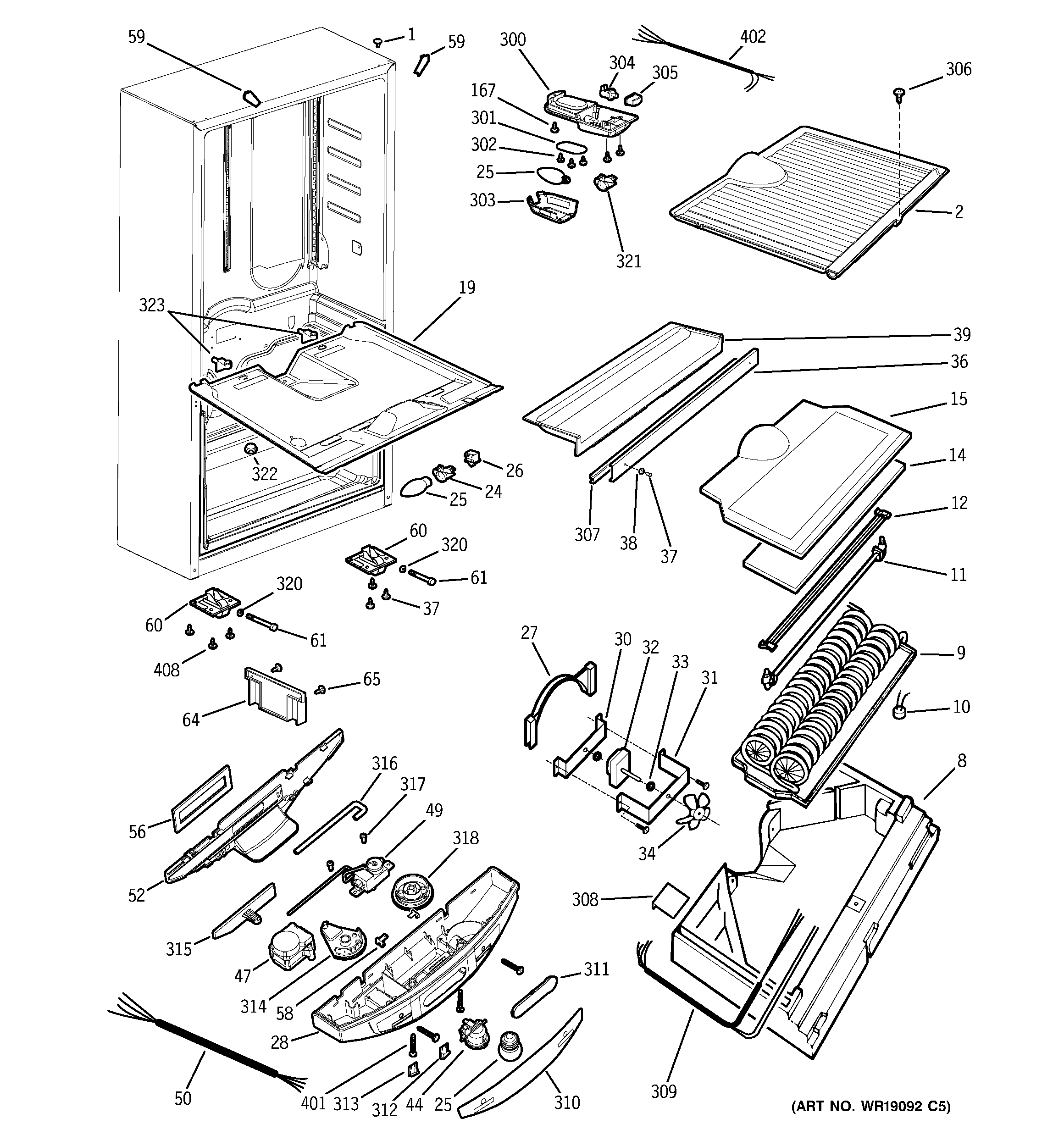

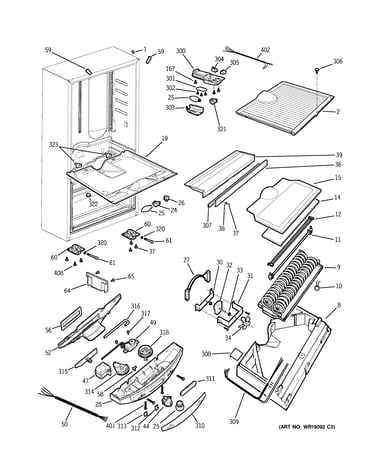

Cabinet diagram

G.e. appliance light bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.29
19% OFF Phone Price : $18.80
In Stock
Refrigerator Compressor WR87X10060
#130

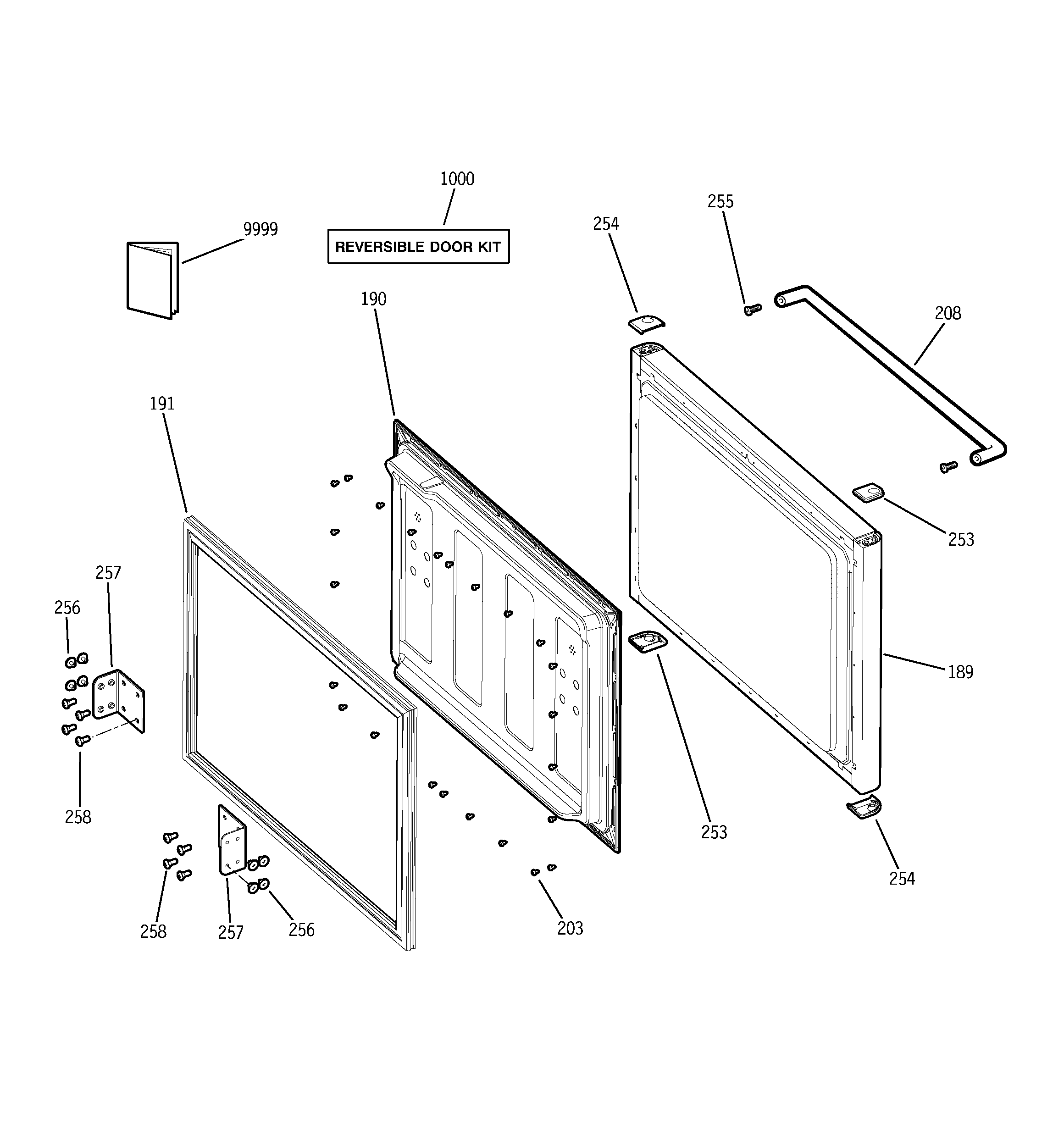

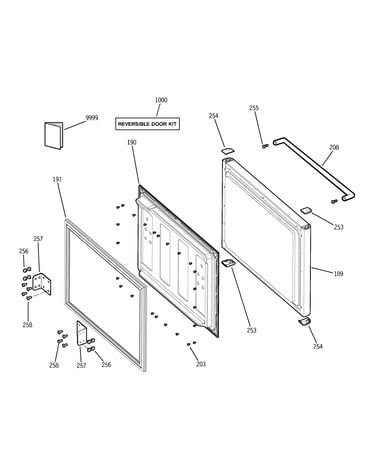

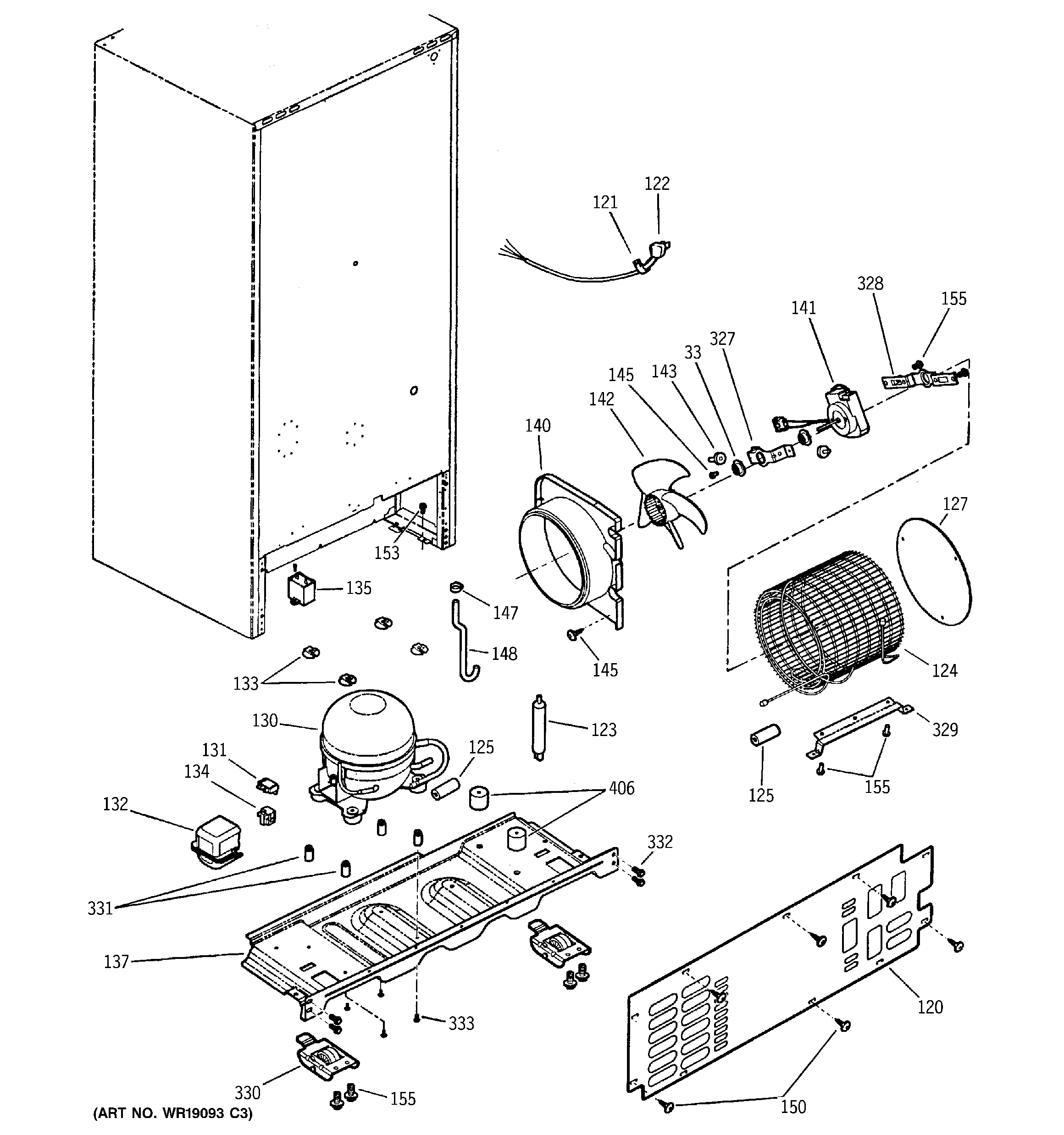

Freezer door diagram

Refrigerator compressor

Part #WR87X10060

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10060. Substitute parts can look different from the original.
BEST SELLER
$390.47
$12.00 OFF Phone Price : $402.47
In Stock
Ge Profile Refrigerator Compressor Overload Protector (replaces Wr8x168) WR08X10025
#134

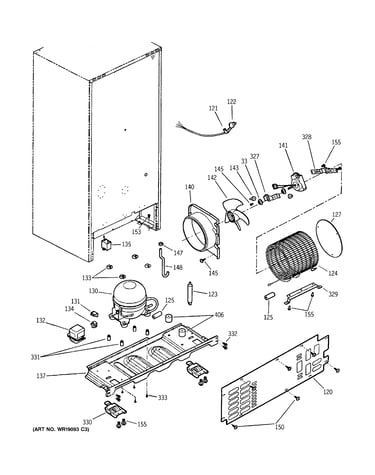

Freezer door diagram

Ge profile refrigerator compressor overload protector (replaces wr8x168)

Part #WR08X10025

BEST SELLER
$25.20
19% OFF Phone Price : $31.20
In Stock
Terminal Socket WR02X9391
#24

Cabinet diagram

Terminal socket

Part #WR02X9391

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X9391. Substitute parts can look different from the original.
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
Refrigerator Screw WR1M478
#65

Cabinet diagram

Refrigerator screw

Part #WR1M478

Replaced by #WE2M174

?
Manufacturer substitution
This part replaces WR1M478. Substitute parts can look different from the original.
$10.24
16% OFF Phone Price : $12.24
In Stock
Refrigerator Defrost Thermostat WR50X0133
#10

Cabinet diagram

Refrigerator defrost thermostat

Part #WR50X0133

Replaced by #WR50X133

?
Manufacturer substitution
This part replaces WR50X0133. Substitute parts can look different from the original.
$49.91
11% OFF Phone Price : $55.91
In Stock
Evaporator Motor WR60M132
#32

Cabinet diagram

Evaporator motor

Part #WR60M132

Replaced by #WR60X10300

?
Manufacturer substitution
This part replaces WR60M132. Substitute parts can look different from the original.
$111.62
10% OFF Phone Price : $123.62
In Stock
Refrigerator Condenser Fan Motor Bracket WR02X10521
#327

Freezer door diagram

Refrigerator condenser fan motor bracket

Part #WR02X10521

Replaced by #WR02X11863

?
Manufacturer substitution
This part replaces WR02X10521. Substitute parts can look different from the original.
This item is not returnable
$7.90
11% OFF Phone Price : $8.90
In Stock
Ge Profile Refrigerator Evaporator Fan Motor Grommet WR02X10520
Ge profile refrigerator evaporator fan motor grommet

Part #WR02X10520

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Owner Manaul 49-60135
#9999

Freezer door diagram

Owner manaul

Part #49-60135

$8.59
10% OFF Phone Price : $9.59
In Stock
