Samsung
Bottom-Mount Refrigerator

Model # RB195BSBB/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RB195BSBB-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

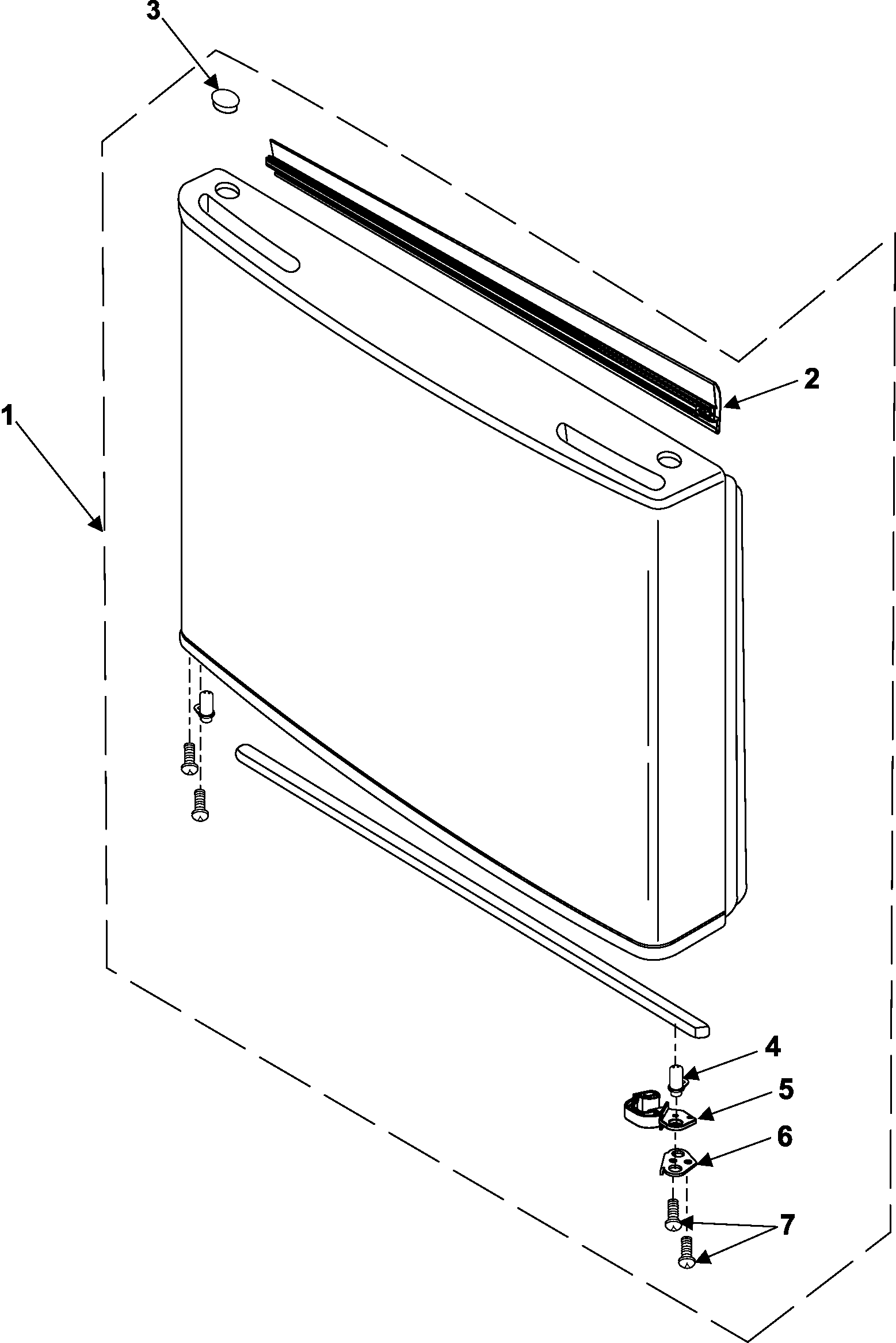

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Refrigerator Compressor MK172CL2U/E08
#20

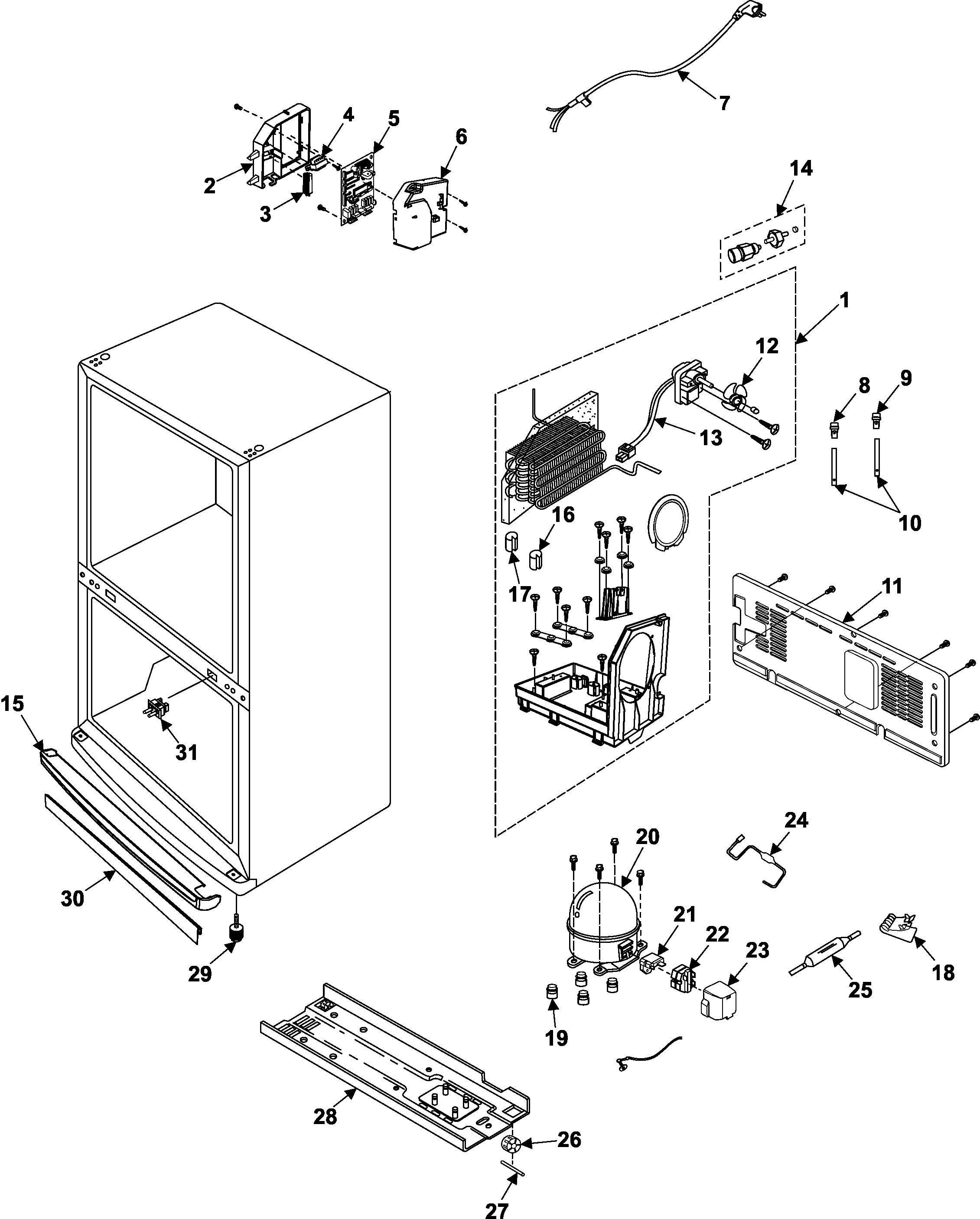

Machine compartment and cabinet back diagram

Refrigerator compressor

Part #MK172CL2U/E08

Replaced by #MSE166CL1H/ASH

?
Manufacturer substitution
This part replaces MK172CL2U/E08. Substitute parts can look different from the original.
BEST SELLER
$265.82 |
$12.00 OFF Phone Price : $277.82
In Stock
Refrigerator Screw (replaces 6002-000231, 6002-000494) 6002-000213
#10

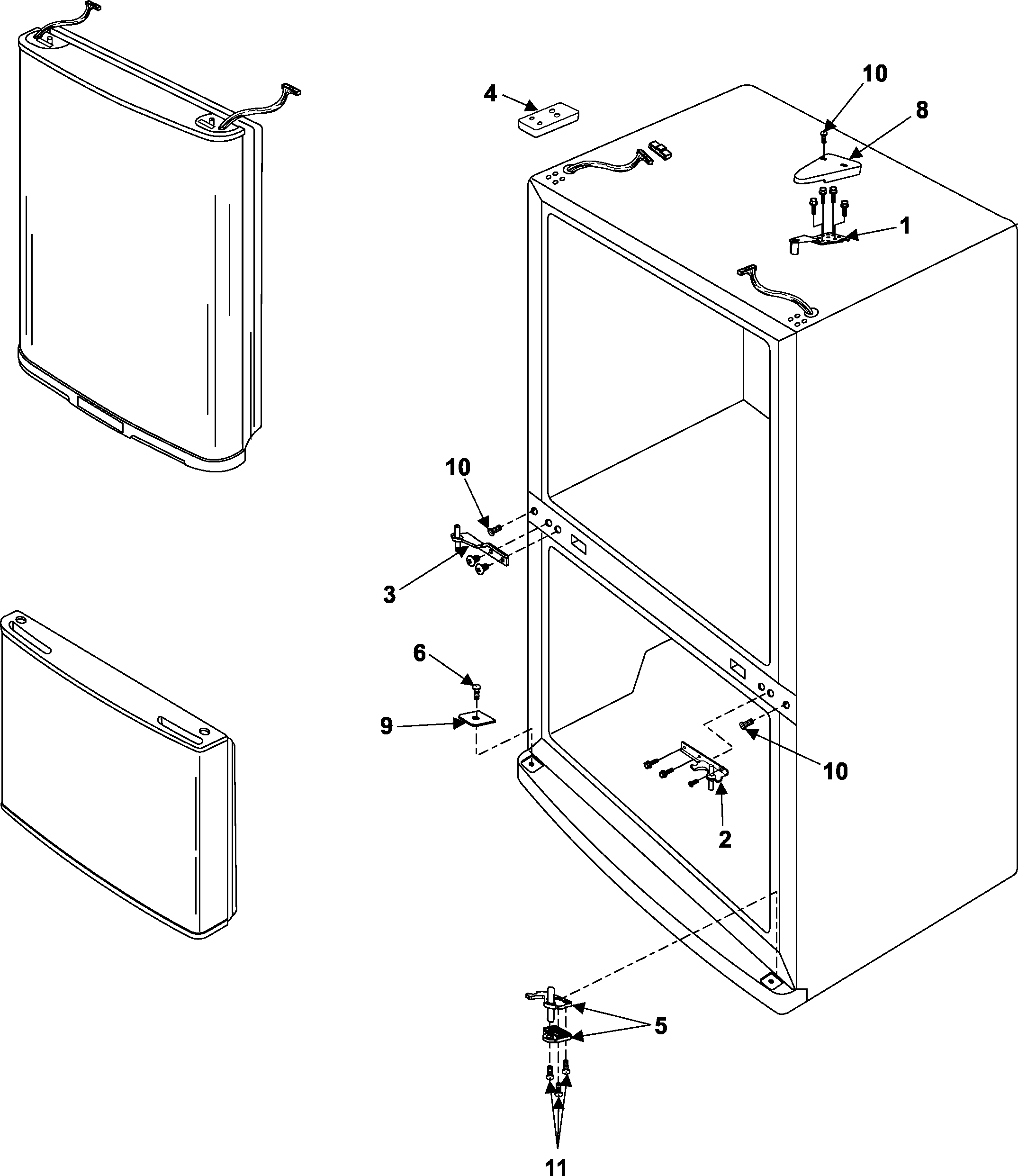

Hinges diagram

Refrigerator screw (replaces 6002-000231, 6002-000494)

Part #6002-000213

BEST SELLER
This item is not returnable
$2.26
In Stock
Refrigerator Temperature Sensor Assembly DA32-00006C
Refrigerator temperature sensor assembly

Part #DA32-00006C

Replaced by #DA32-10105R

?
Manufacturer substitution
This part replaces DA32-00006C. Substitute parts can look different from the original.
$24.47 |
20% OFF Phone Price : $30.47
In Stock
Refrigerator Ice Bin DA63-02284A
#4

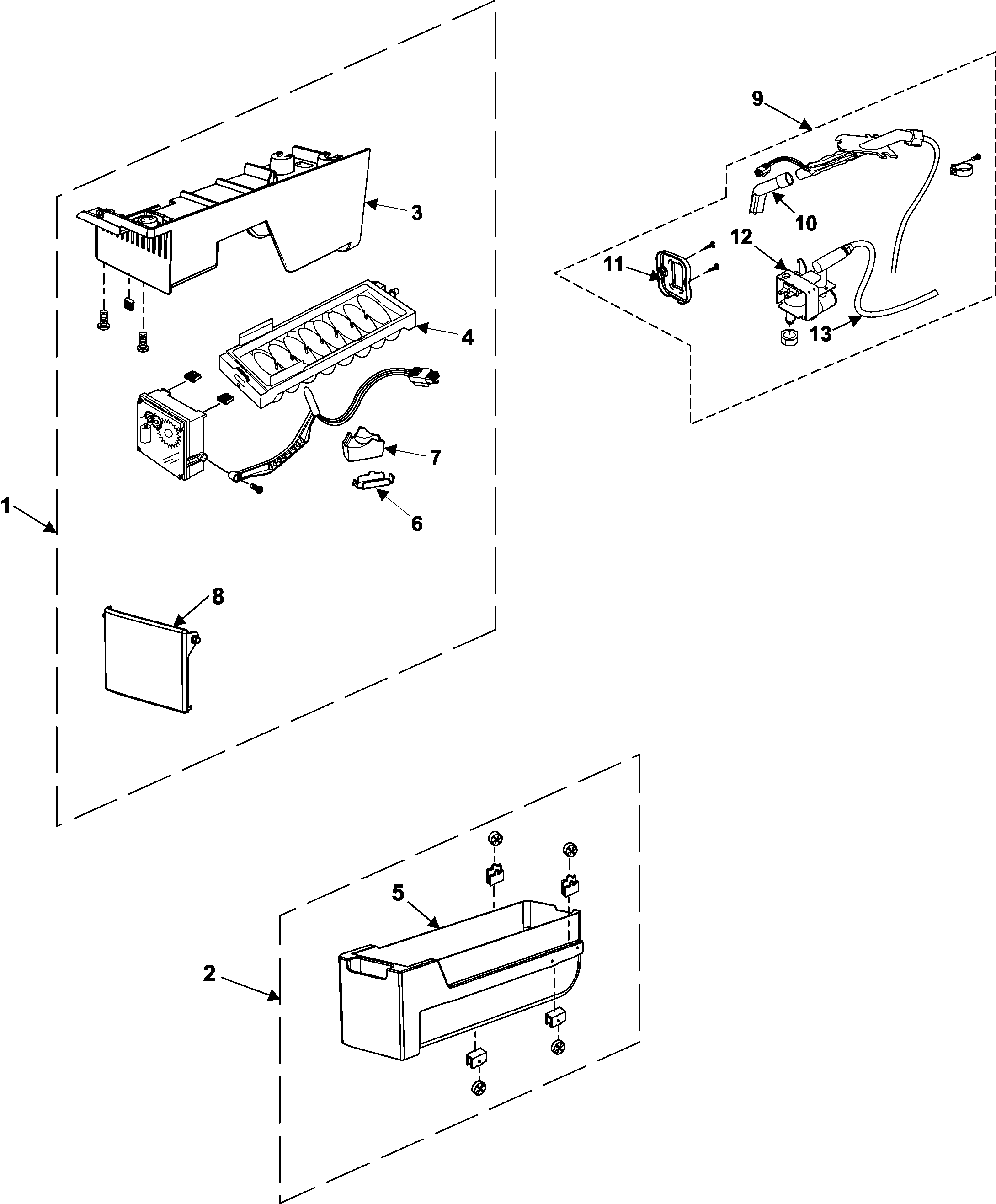

Ice maker diagram

Refrigerator ice bin

Part #DA63-02284A

Replaced by #DA63-02284B

?
Manufacturer substitution
This part replaces DA63-02284A. Substitute parts can look different from the original.
$36.88 |
14% OFF Phone Price : $42.88
In Stock
Refrigerator Defrost Thermal Fuse (replaces Da47-10115a, Da47-10148q, Da47-10148s, Da47-10148w) DA47-00095E
#3

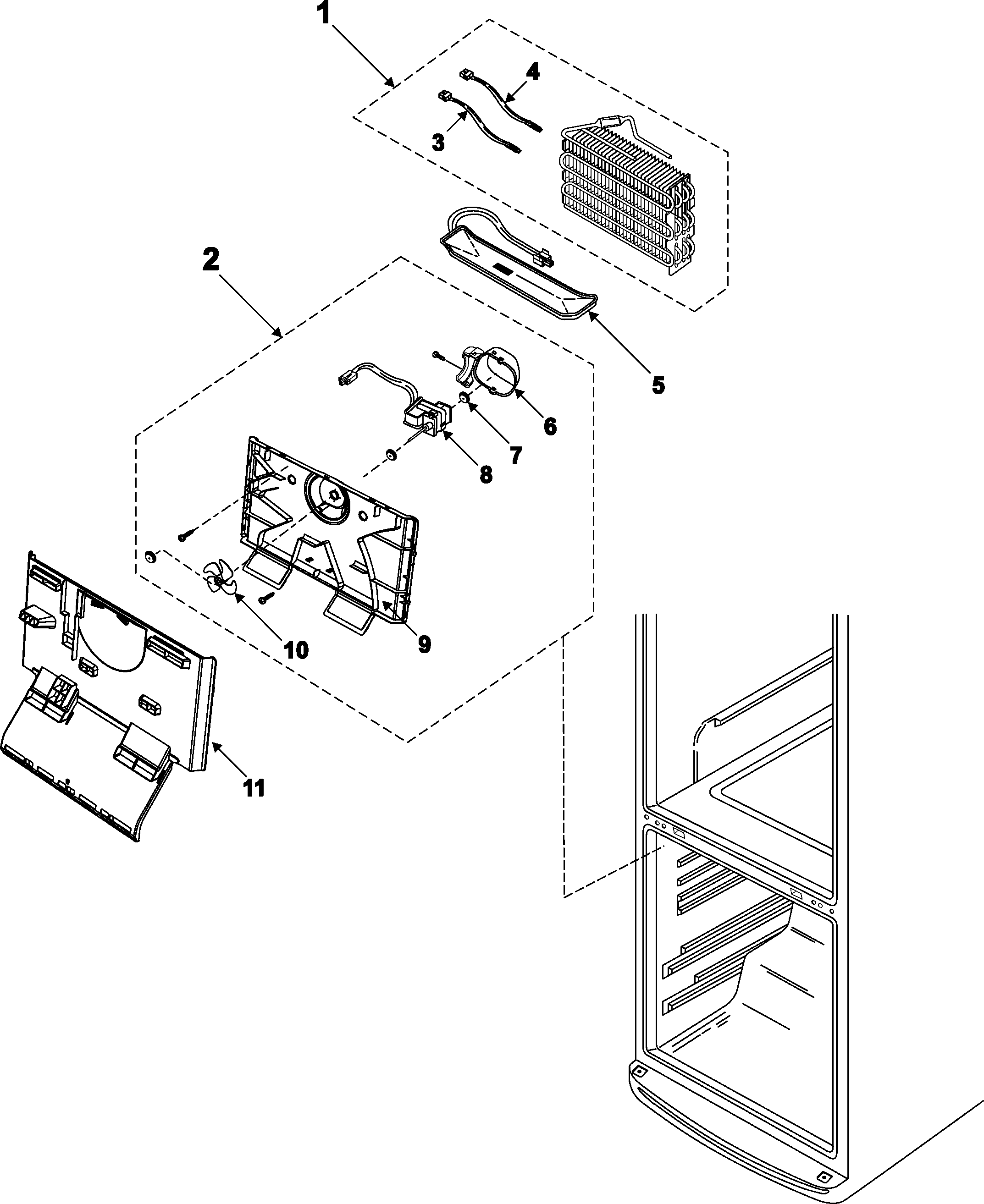

Freezer compartment diagram

Refrigerator defrost thermal fuse (replaces da47-10115a, da47-10148q, da47-10148s, da47-10148w)

Part #DA47-00095E

$32.71 |
15% OFF Phone Price : $38.71
In Stock
Refrigerator Drain Tube Grommet DA63-00951B
#9

Machine compartment and cabinet back diagram

Refrigerator drain tube grommet

Part #DA63-00951B

Replaced by #DA63-00951C

?
Manufacturer substitution
This part replaces DA63-00951B. Substitute parts can look different from the original.
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Refrigerator Thermal Fuse DA47-00095D
#7

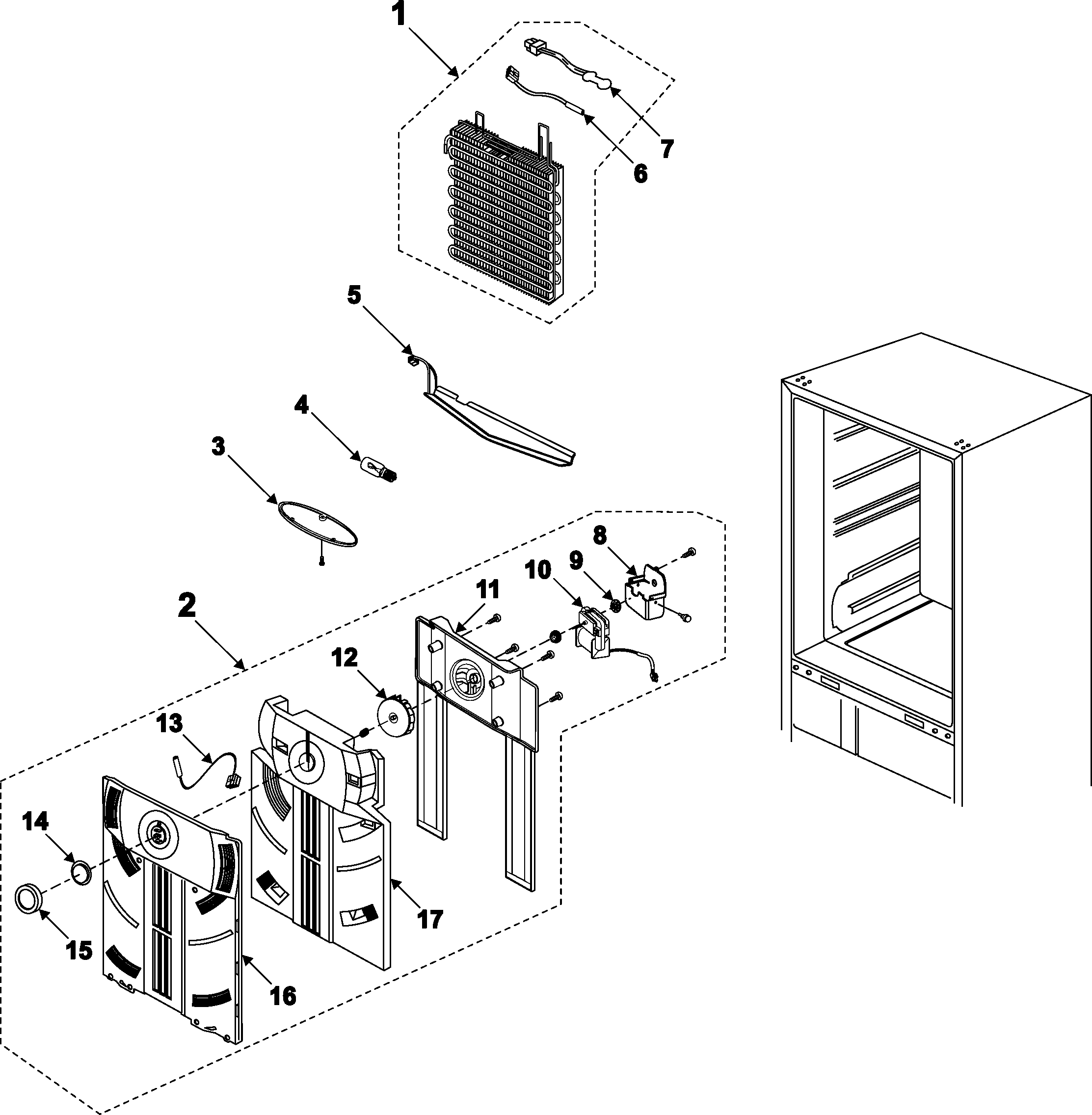

Refrigerator compartment diagram

Refrigerator thermal fuse

Part #DA47-00095D

Replaced by #DA47-00095E

?
Manufacturer substitution
This part replaces DA47-00095D. Substitute parts can look different from the original.
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Refrigerator Ice Maker Thermostat Cover DA63-02183A
#6

Ice maker diagram

Refrigerator ice maker thermostat cover

Part #DA63-02183A

This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
In Stock
Refrigerator Freezer Roller DA66-10104A
#14

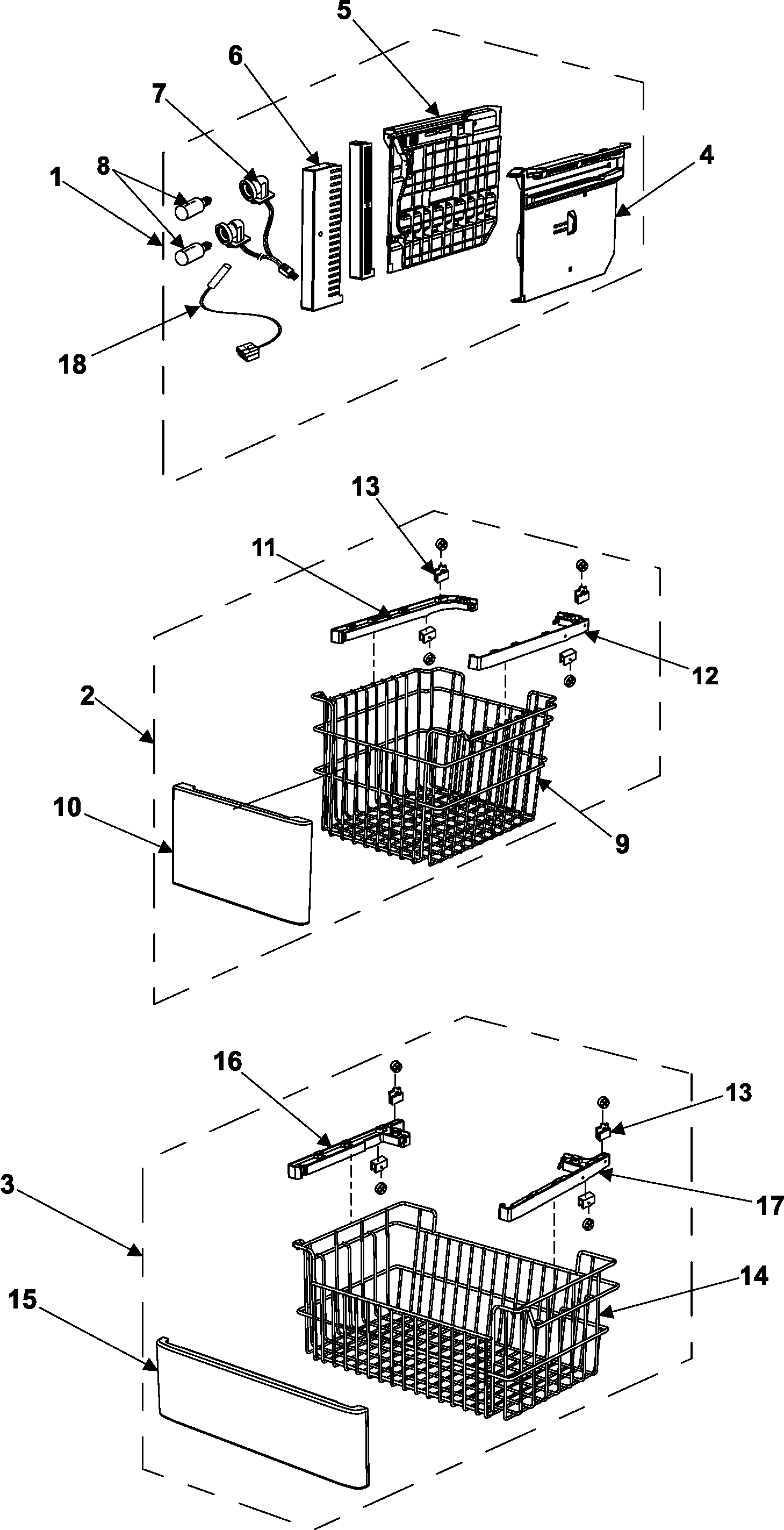

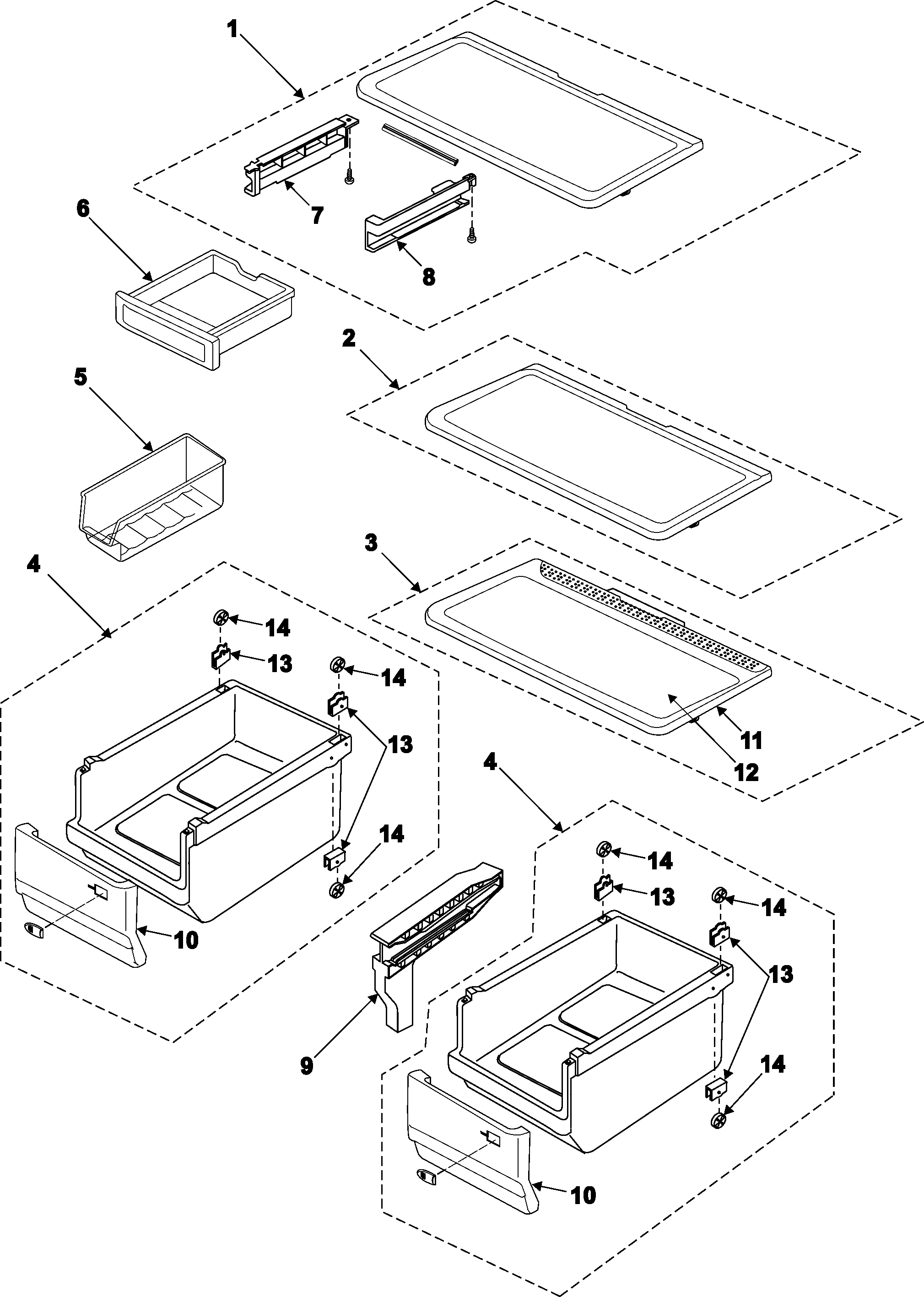

Refrigerator shelves diagram

Refrigerator freezer roller

Part #DA66-10104A

This item is not returnable
$4.23
In Stock
Refrigerator Dispenser Display Assembly DA41-00264A
#6

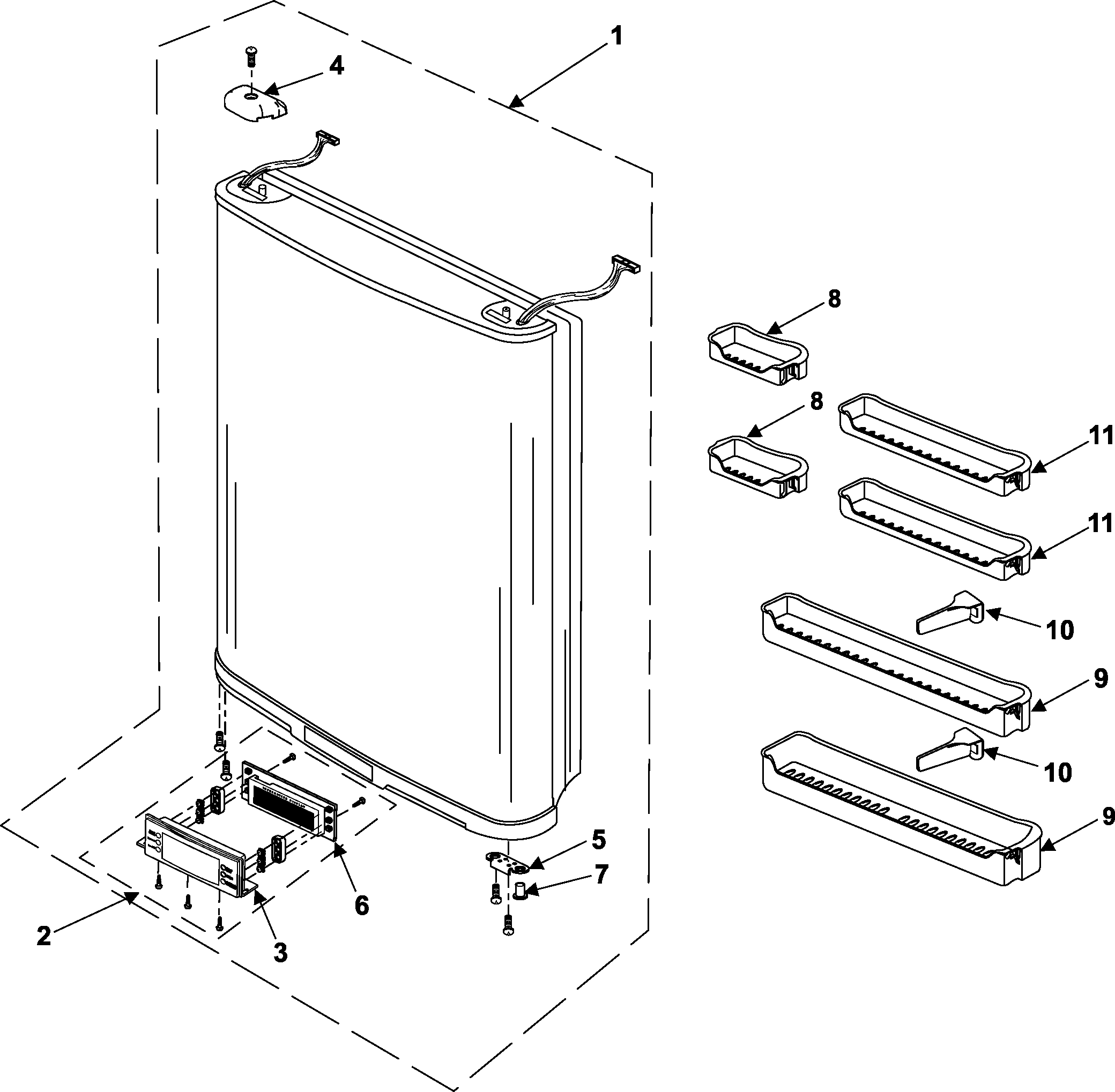

Refrigerator door diagram

Refrigerator dispenser display assembly

Part #DA41-00264A

$137.08 |
8% OFF Phone Price : $149.08
In Stock
