Model # DE2000D-W1 Official Frigidaire electric dryer - lf31687010

Here are the diagrams and repair parts for Official Frigidaire DE2000D-W1 electric dryer - lf31687010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Bearing 08015223
#1

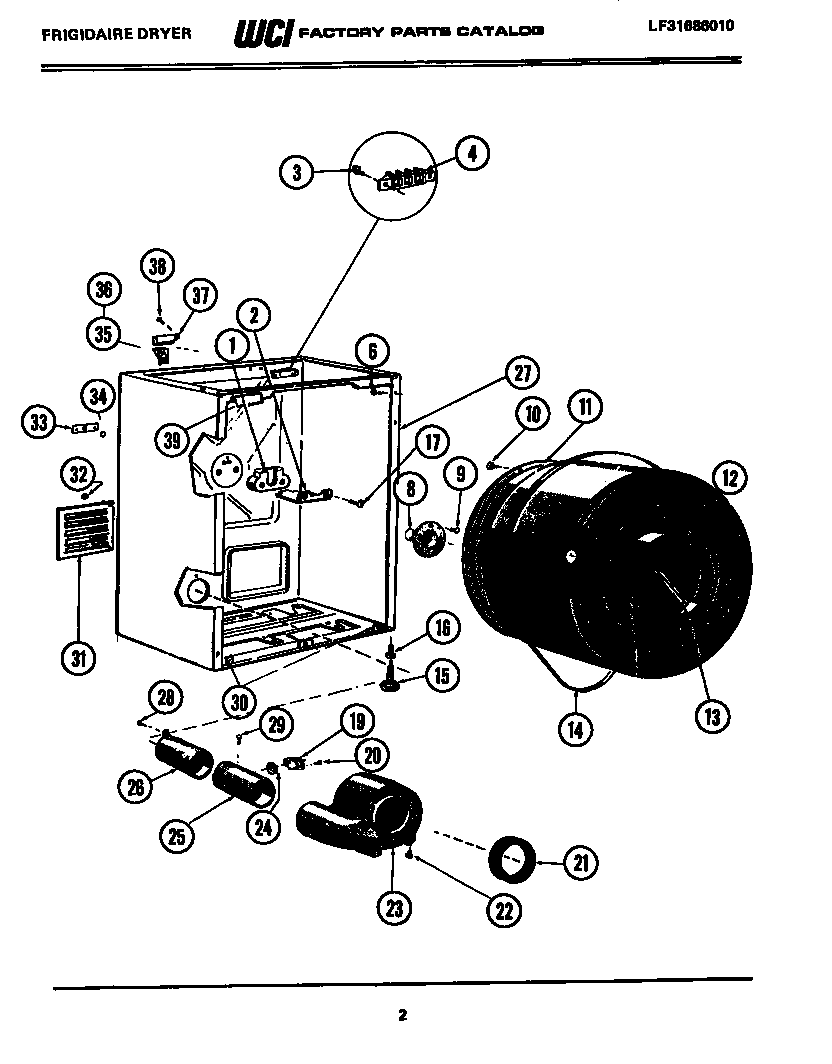

Cabinet and component parts diagram

Bearing

Part #08015223

Replaced by #131825900

?
Manufacturer substitution
This part replaces 08015223. Substitute parts can look different from the original.
BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Catch 08015370
#23

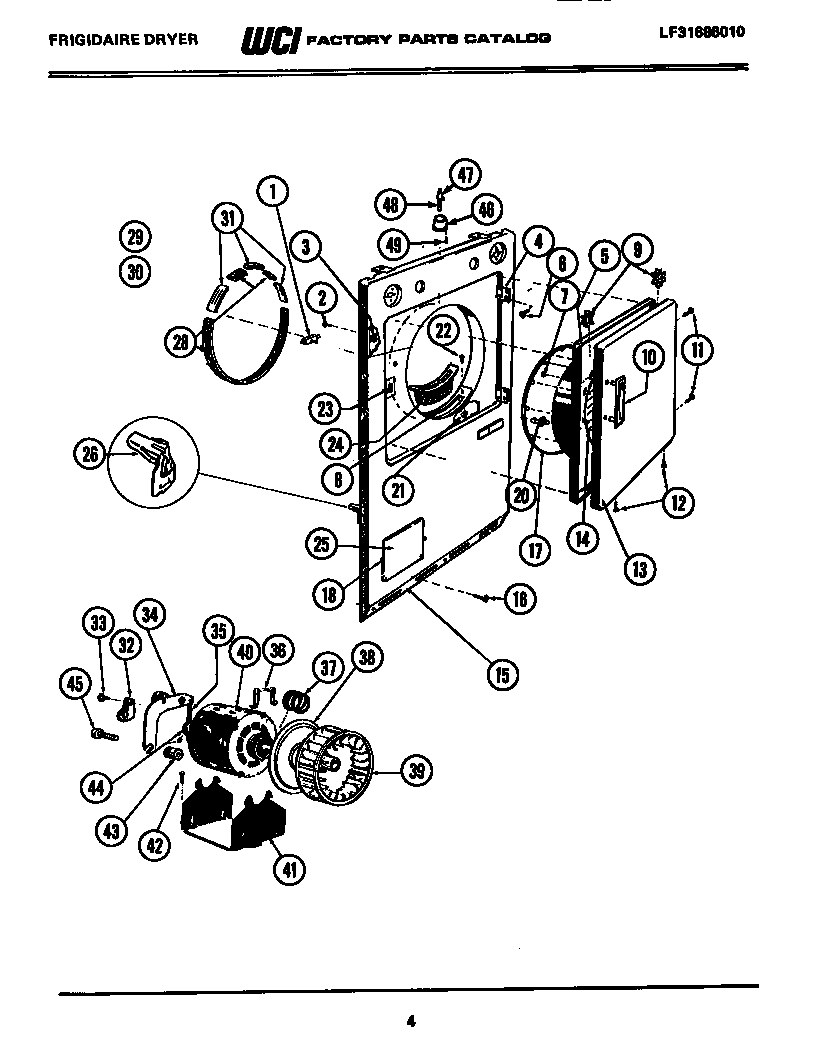

Cabinet front, motor and blower diagram

Catch

Part #08015370

Replaced by #131658800

?
Manufacturer substitution
This part replaces 08015370. Substitute parts can look different from the original.
BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Bracket 08015463
#2

Cabinet and component parts diagram

Bracket

Part #08015463

Replaced by #131724301

?
Manufacturer substitution
This part replaces 08015463. Substitute parts can look different from the original.
BEST SELLER
$13.29 |
13% OFF Phone Price : $15.29
In Stock
Block 08027445
#4

Cabinet and component parts diagram

Block

Part #08027445

Replaced by #134101400

?
Manufacturer substitution
This part replaces 08027445. Substitute parts can look different from the original.
BEST SELLER
$41.03 |
13% OFF Phone Price : $47.03
Back Order
Cement 08027429
#30

Cabinet front, motor and blower diagram

Cement

Part #08027429

Replaced by #5308027429

?
Manufacturer substitution
This part replaces 08027429. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
Gasket 08015110
#21

Cabinet and component parts diagram

Gasket

Part #08015110

Replaced by #134417000

?
Manufacturer substitution
This part replaces 08015110. Substitute parts can look different from the original.
This item is not returnable
$7.28 |
12% OFF Phone Price : $8.28
In Stock
Baffle 08015241
#11

Cabinet and component parts diagram

Baffle

Part #08015241

Replaced by #3204254

?
Manufacturer substitution
This part replaces 08015241. Substitute parts can look different from the original.
$98.30 |
11% OFF Phone Price : $110.30
In Stock
Spring 08015169
#35

Cabinet front, motor and blower diagram

Spring

Part #08015169

Replaced by #5303281085

?
Manufacturer substitution
This part replaces 08015169. Substitute parts can look different from the original.
This item is not returnable
$9.80 |
9% OFF Phone Price : $10.80
In Stock
Wheel 08015428
#39

Cabinet front, motor and blower diagram

Wheel

Part #08015428

Replaced by #5303281079

?
Manufacturer substitution
This part replaces 08015428. Substitute parts can look different from the original.
$194.76
In Stock
Heater 08015671
#6

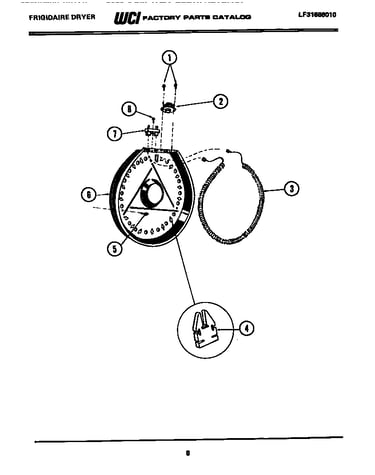

Heater and housing diagram

Heater

Part #08015671

Replaced by #3937010

?
Manufacturer substitution
This part replaces 08015671. Substitute parts can look different from the original.
$109.42 |
10% OFF Phone Price : $121.42
In Stock
