Model # RM503604 Official Broan range hood
Here are the diagrams and repair parts for Official Broan RM503604 range hood, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts forRM503604 Range Hood
- #26

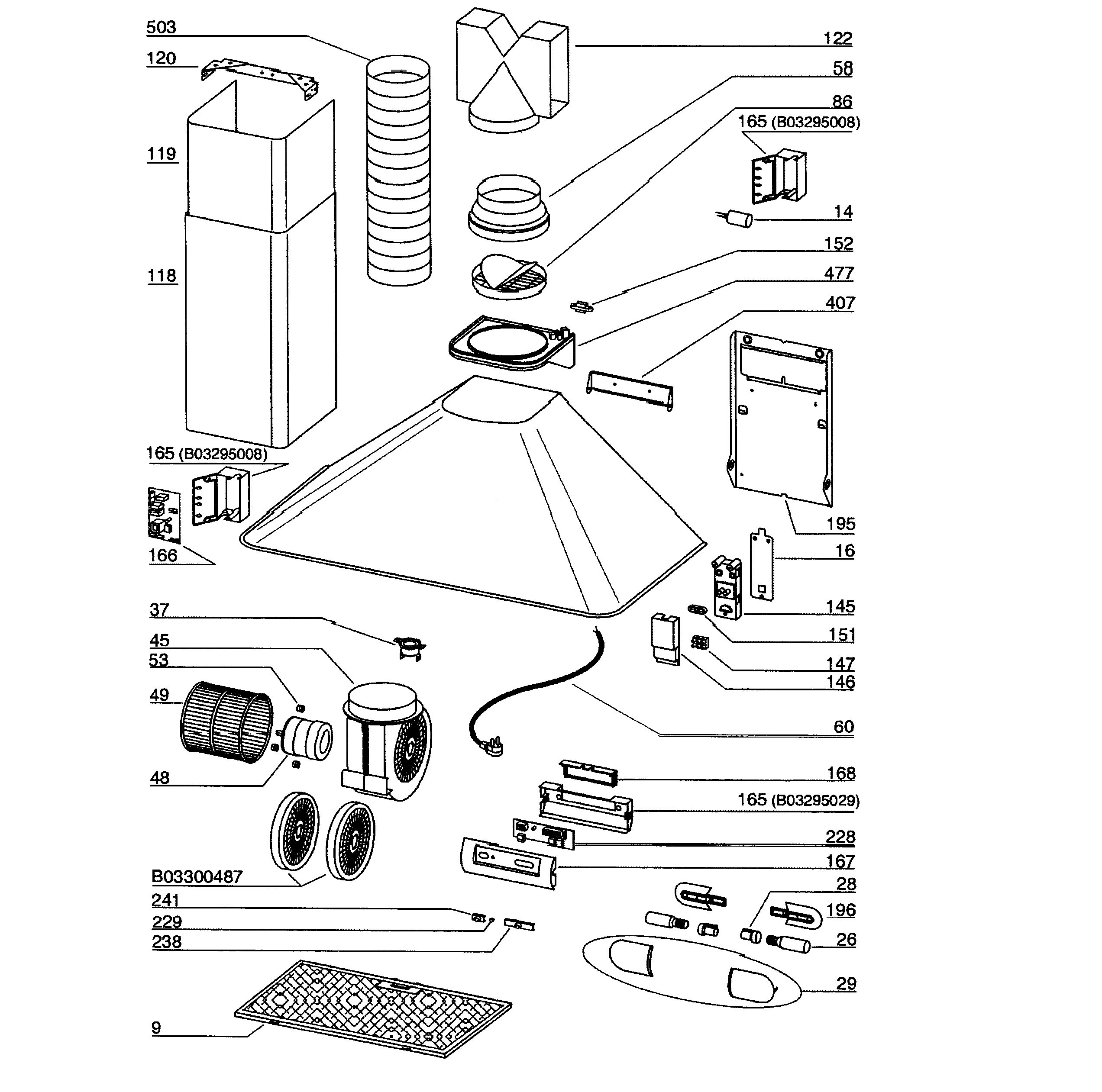

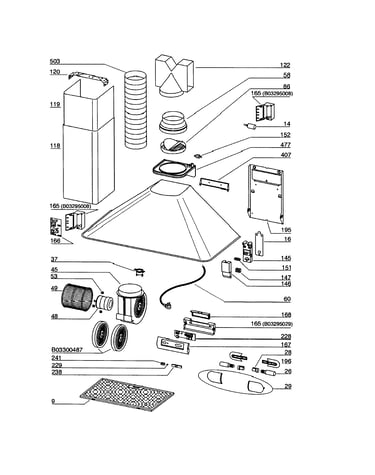

Range hood assy diagram
Range hood light bulbPart #B02300264
Replaced by #SB02300264
?Manufacturer substitutionThis part replaces B02300264. Substitute parts can look different from the original.$32.00 |16% OFF Phone Price : $38.00In Stock - #86
Range hood assy diagram
Range hood round damper, 6-inPart #B08088378
Replaced by #SB08088378
?Manufacturer substitutionThis part replaces B08088378. Substitute parts can look different from the original.This item is not returnable$32.00 |16% OFF Phone Price : $38.00In Stock - #14
Range hood assy diagram
Range hood blower motor capacitorPart #B02300233
The manufacturer no longer makes this part, and there's no substitute part
- #166
Range hood assy diagram
Range hood electronic control boardPart #B08086668
Replaced by #SB08086668
?Manufacturer substitutionThis part replaces B08086668. Substitute parts can look different from the original.This item is not returnable$103.94 |10% OFF Phone Price : $115.94In Stock - #120
Range hood assy diagram
Range hood flue mounting bracketPart #B08091367
The manufacturer no longer makes this part, and there's no substitute part
- #196
Range hood assy diagram
Range hood light reflectorPart #B02011113
Replaced by #SB02011113
?Manufacturer substitutionThis part replaces B02011113. Substitute parts can look different from the original.$28.80In Stock - #119
Range hood assy diagram
Range hood flue cover, upperPart #BE3343339
Replaced by #SBE3343339
?Manufacturer substitutionThis part replaces BE3343339. Substitute parts can look different from the original.$165.98In Stock - #48
Range hood assy diagram
Range hood fan motorPart #B02310177
Replaced by #SB02310177
?Manufacturer substitutionThis part replaces B02310177. Substitute parts can look different from the original.$157.00 |7% OFF Phone Price : $169.00In Stock - #503
Range hood assy diagram
Duct flexPart #B02011452
Replaced by #SB02011452
?Manufacturer substitutionThis part replaces B02011452. Substitute parts can look different from the original.$36.56In Stock - #165A
Range hood assy diagram
BoxPart #B03295008
Replaced by #SB03295008
?Manufacturer substitutionThis part replaces B03295008. Substitute parts can look different from the original.$36.00In Stock
Most common symptoms to help you fix your range hoods
Choose a symptom to see related range hood repairs.
Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…
Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…
Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…
Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…
Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…
Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…
Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
Most common repair guides to help fix your range hoods
These step-by-step repair guides will help you safely fix what’s broken on your range hood.
How to replace a range hood fan motor
If the fan on the range hood won’t run, it’s likely that the fan motor has failed. Follow the steps in this guide to rep…
Repair difficulty
Time required
30 minutes or less
How to replace a range hood fan switch
The fan switch activates the fan motor in the range hood. If the fan switch is defective, replace it using the detailed …
Repair difficulty
Time required
15 minutes or less
How to replace a range hood light socket
When you replace a light bulb and it still won’t work, the socket is likely defective. Use the detailed steps in this re…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your range hoods
Use the advice and tips in these articles and videos to get the most out of your range hood.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
