Model # JVX3300DJ3BB Official GE range hood

Here are the diagrams and repair parts for Official GE JVX3300DJ3BB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Appliance Light Bulb, 40-watt 40A15
#26

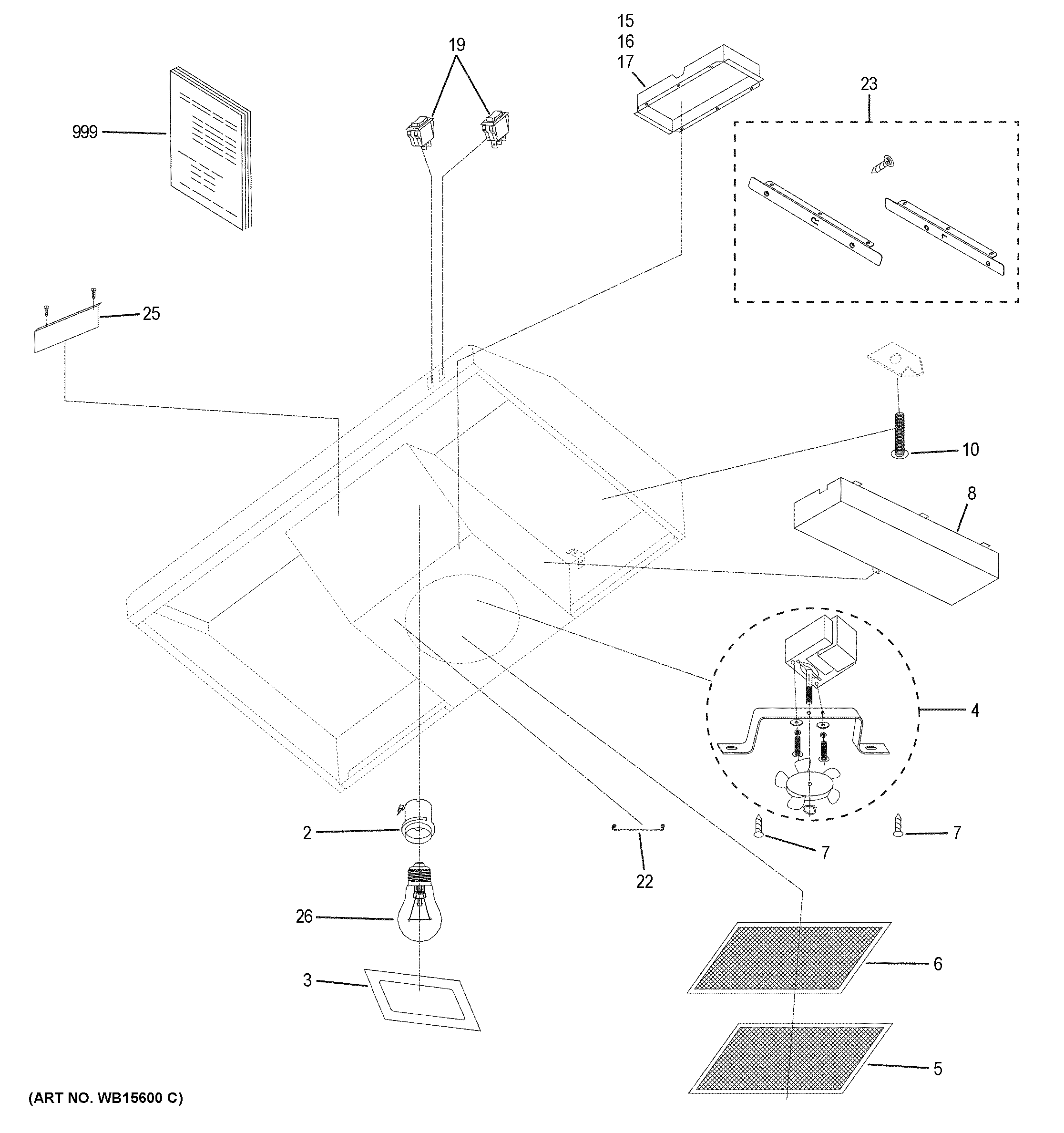

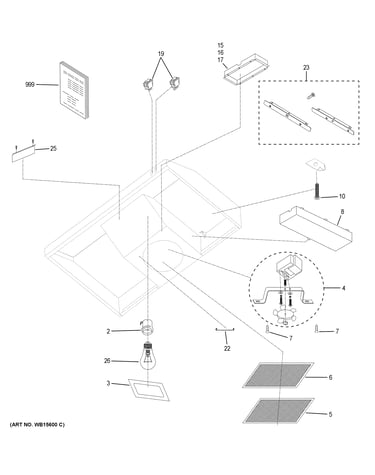

Range hood diagram

Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Charcoal Filter WB02X32266
#5

Range hood diagram

Charcoal filter

Part #WB02X32266

$25.51 |
19% OFF Phone Price : $31.51
In Stock
Motor And Bracket Asm WB26X32187
#4

Range hood diagram

Motor and bracket asm

Part #WB26X32187

Replaced by #WB27X44068

?
Manufacturer substitution
This part replaces WB26X32187. Substitute parts can look different from the original.
$64.27
In Stock
Grease Filter WB02X32269
#6

Range hood diagram

Grease filter

Part #WB02X32269

$18.75 |
10% OFF Phone Price : $20.75
In Stock
Screw WB01X32186
#7

Range hood diagram

Screw

Part #WB01X32186

$11.46
In Stock
Installation Hardware WB01X32267
#23

Range hood diagram

Installation hardware

Part #WB01X32267

$10.00
In Stock
Range Hood Cover Plate WB02X11032
#25

Range hood diagram

Range hood cover plate

Part #WB02X11032

$9.39 |
10% OFF Phone Price : $10.39
In Stock
Fan Guard WB06X10769
#22

Range hood diagram

Fan guard

Part #WB06X10769

$16.68 |
11% OFF Phone Price : $18.68
In Stock
Pivot Frame WB02X11028
#15

Range hood diagram

Pivot frame

Part #WB02X11028

$8.80 |
10% OFF Phone Price : $9.80
In Stock
Damper WB02X11029
#16

Range hood diagram

Damper

Part #WB02X11029

$16.91
In Stock
