Electric Cooktop

Model # 79040503602 Official Kenmore Pro electric cooktop

Here are the diagrams and repair parts for Official Kenmore Pro 79040503602 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

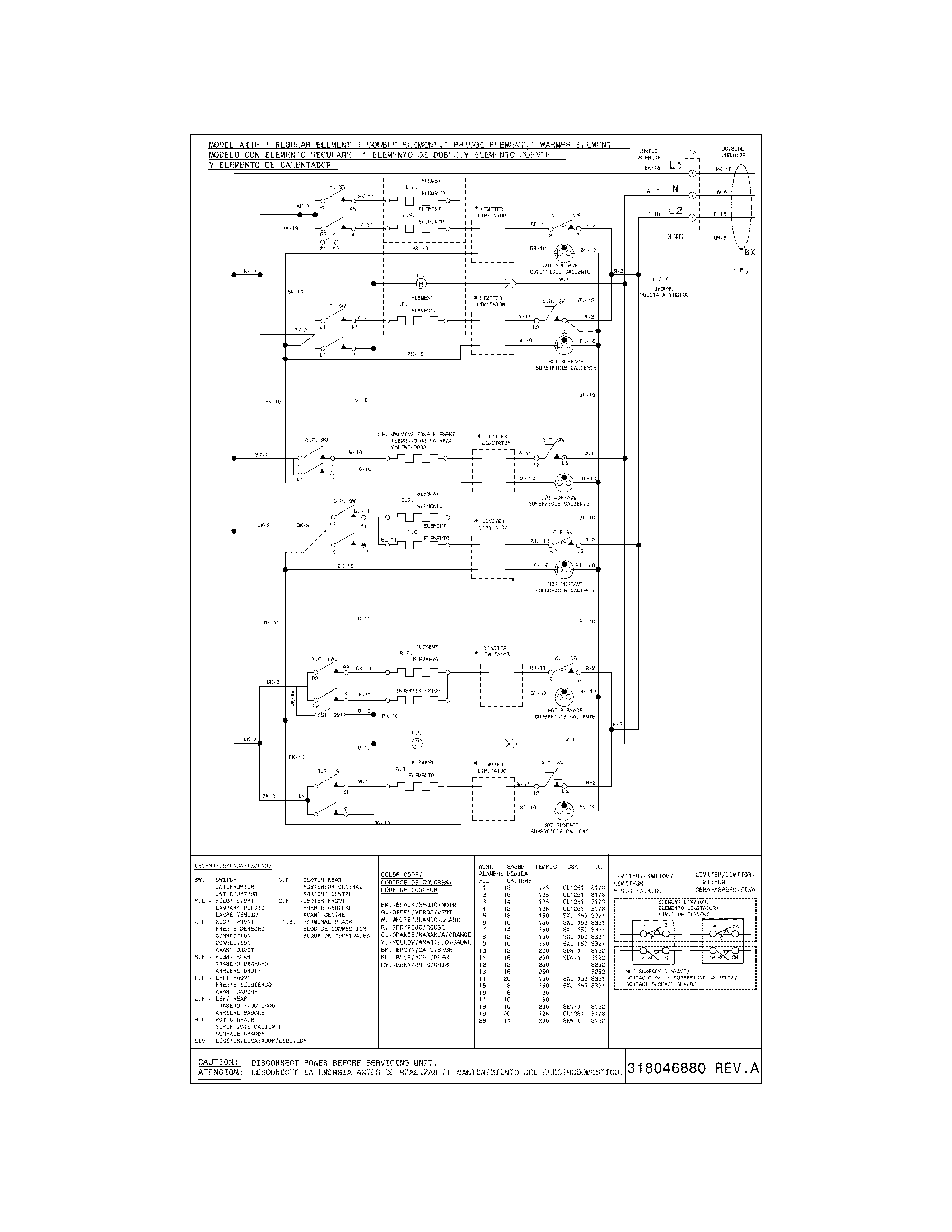

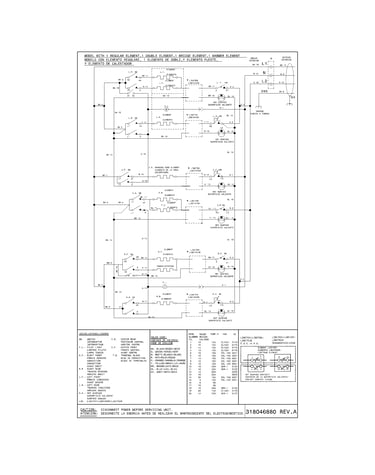

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

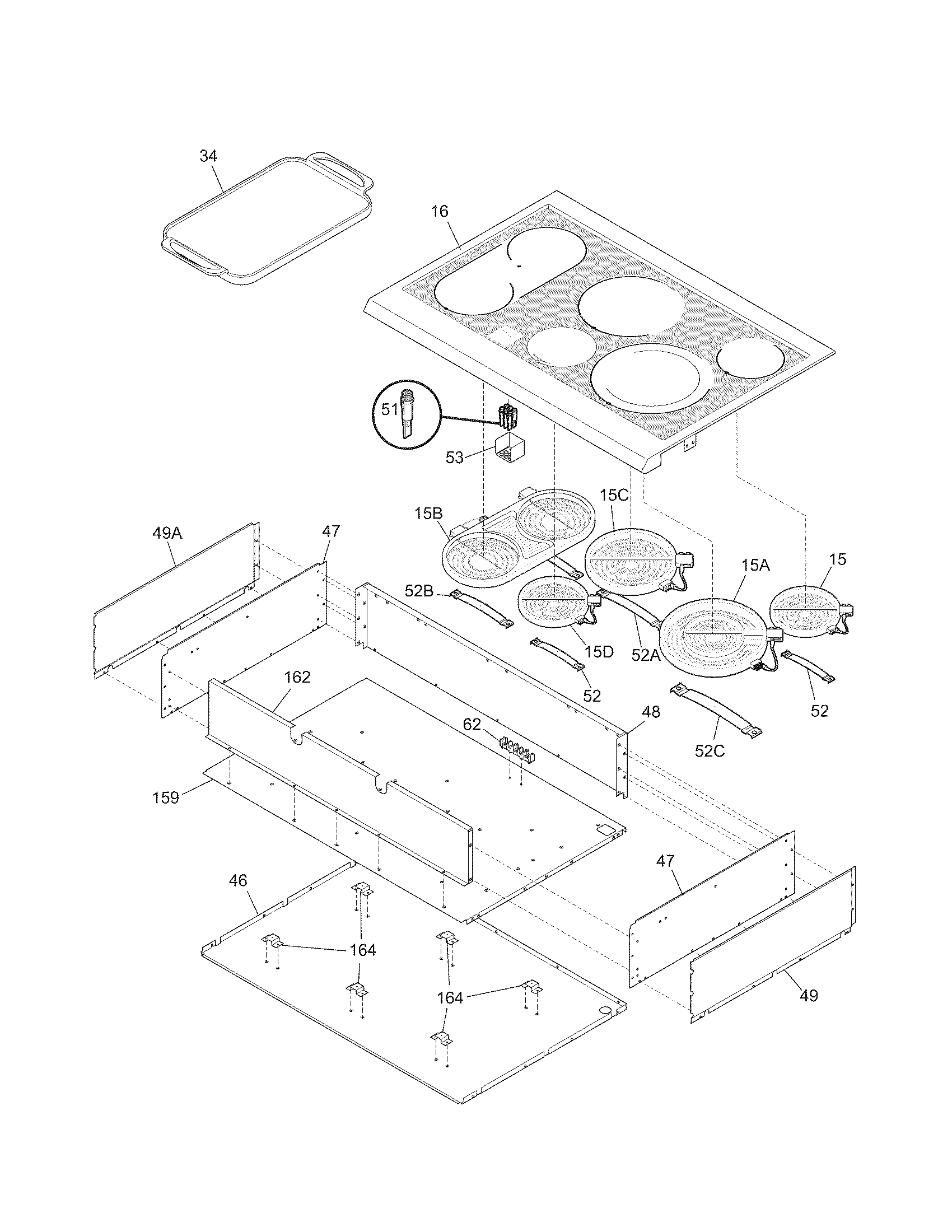

Main top/surface units diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Dual Radiant Surface Element 318198935
#15A

Main top/surface units diagram

Range dual radiant surface element

Part #318198935

Replaced by #316282101

?
Manufacturer substitution
This part replaces 318198935. Substitute parts can look different from the original.
BEST SELLER
$163.94 |
7% OFF Phone Price : $175.94
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

Main top/surface units diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Cooktop Element Control Switch (replaces 318293918, 318369612) 318293818
#54

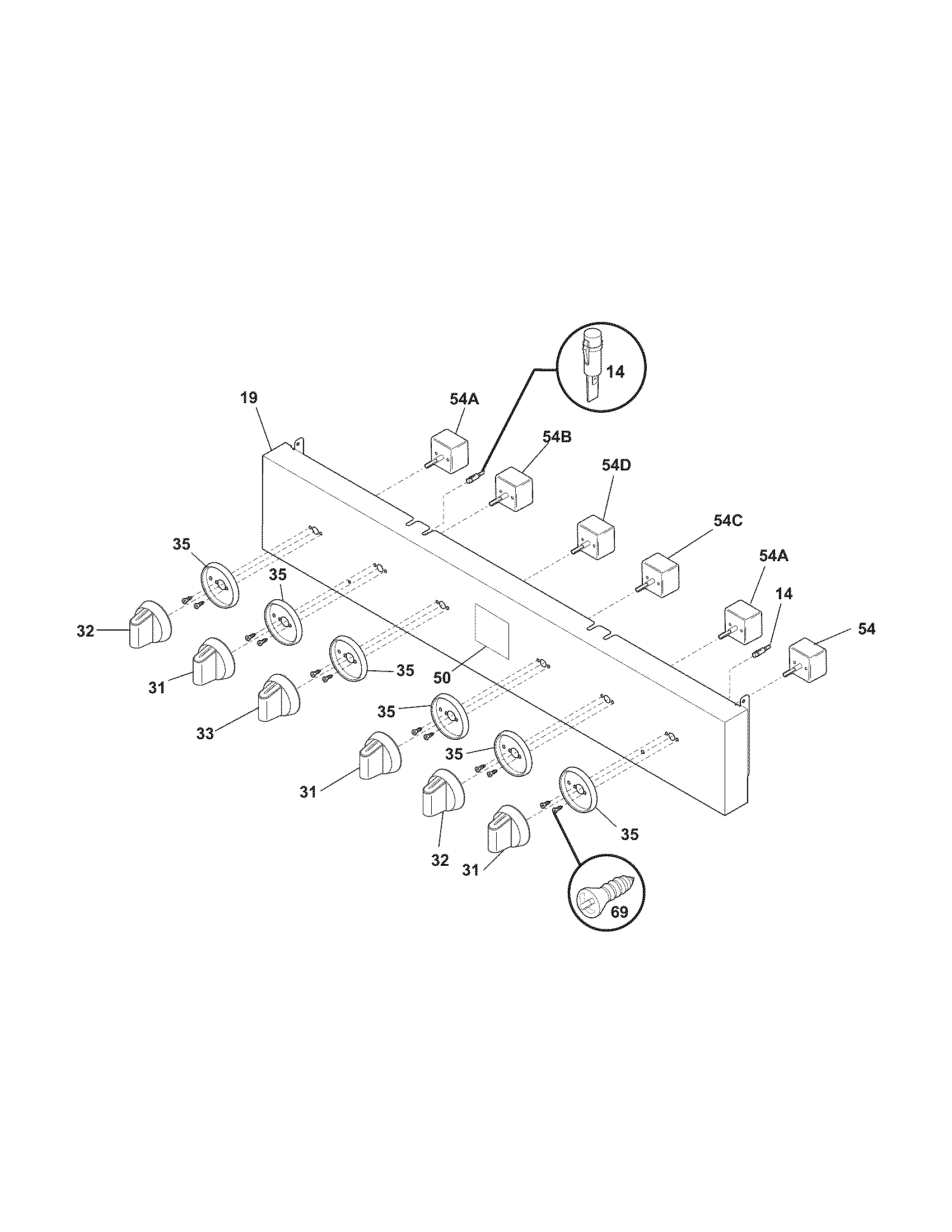

Control panel diagram

Cooktop element control switch (replaces 318293918, 318369612)

Part #318293818

$63.74 |
9% OFF Phone Price : $69.74
In Stock
Kenmore Pro Range Dual Surface Element Control Switch (replaces 318191028, 903097-9020) 318191024
#54A

Control panel diagram

Kenmore pro range dual surface element control switch (replaces 318191028, 903097-9020)

Part #318191024

$63.61 |
9% OFF Phone Price : $69.61
In Stock
Range Radiant Bridge Surface Element (replaces 7318258203) 318258203
#15B

Main top/surface units diagram

Range radiant bridge surface element (replaces 7318258203)

Part #318258203

$278.73 |
$12.00 OFF Phone Price : $290.73
In Stock
Screw Regulator 316021107
#69

Control panel diagram

Screw regulator

Part #316021107

Replaced by #316021104

?
Manufacturer substitution
This part replaces 316021107. Substitute parts can look different from the original.
This item is not returnable
$7.69
In Stock
Cooktop Element Control Switch 318293819
#54B

Control panel diagram

Cooktop element control switch

Part #318293819

$77.29 |
7% OFF Phone Price : $83.29
In Stock
Kenmore Range Griddle 316432200
#34

Main top/surface units diagram

Kenmore range griddle

Part #316432200

$92.89 |
6% OFF Phone Price : $98.89
Back Order
Range Screw 5303323140
#NI

Main top/surface units diagram

Range screw

Part #5303323140

$11.17
In Stock
