Kenmore Elite
Electric Range

Model # 79046609500 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79046609500 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

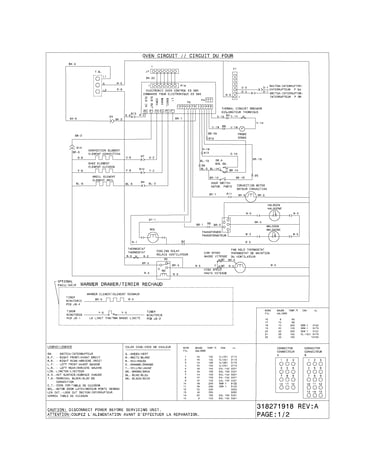

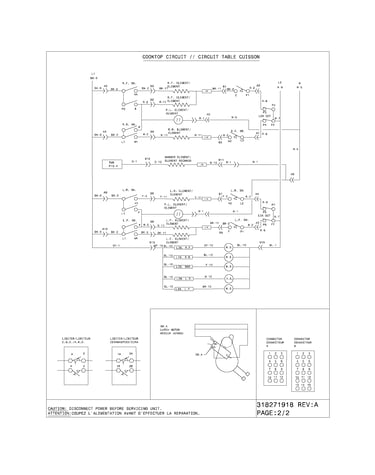

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

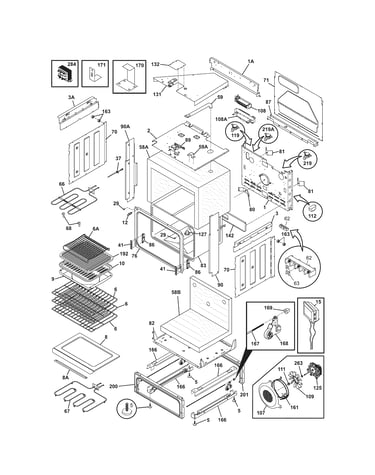

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Element 318254901
#67

Body diagram

Element

Part #318254901

Replaced by #318254906

?
Manufacturer substitution
This part replaces 318254901. Substitute parts can look different from the original.
BEST SELLER
$150.18 |
7% OFF Phone Price : $162.18
In Stock
Range Surface Element Infinite Switch (replaces 318191027, 903097-9010) 318191023
#54B

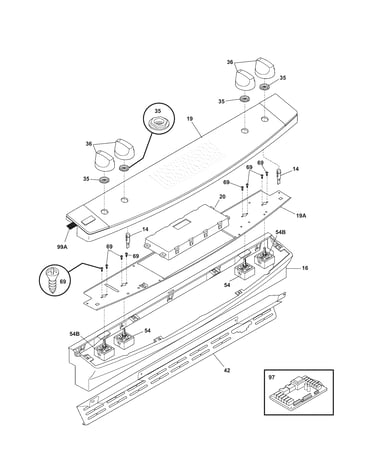

Backguard diagram

Range surface element infinite switch (replaces 318191027, 903097-9010)

Part #318191023

BEST SELLER
$62.73 |
9% OFF Phone Price : $68.73
In Stock
Range Convection Fan Blade 316136400
#109

Body diagram

Range convection fan blade

Part #316136400

The manufacturer no longer makes this part, and there's no substitute part

Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
Crosley Range High-limit Thermostat 318003614
#219

Body diagram

Crosley range high-limit thermostat

Part #318003614

BEST SELLER
$67.02 |
8% OFF Phone Price : $73.02
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Body diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Gasket 318313211
#99A

Backguard diagram

Gasket

Part #318313211

Replaced by #318313231

?
Manufacturer substitution
This part replaces 318313211. Substitute parts can look different from the original.
BEST SELLER
$67.31 |
8% OFF Phone Price : $73.31
In Stock
Range Main Top (black) 318223617
#16

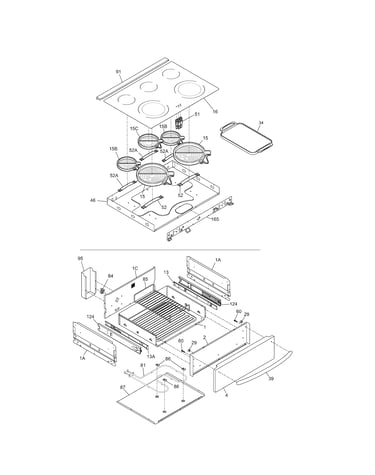

Top/drawer diagram

Range main top (black)

Part #318223617

$376.88 |
$12.00 OFF Phone Price : $388.88
In Stock
Crosley Range Oven Door Seal (replaces 318053130) 318053120
#12

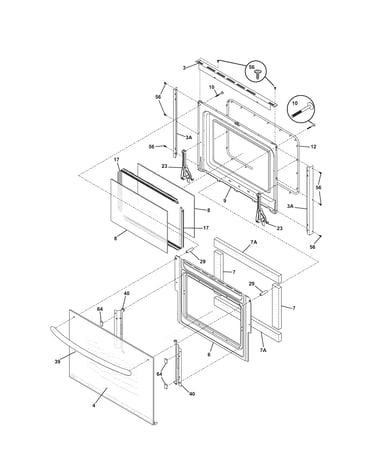

Door diagram

Crosley range oven door seal (replaces 318053130)

Part #318053120

$109.31 |
10% OFF Phone Price : $121.31
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
