Magic Chef
Dryer

Model # CYE3005AYW Official Magic Chef washer/dryer

Here are the diagrams and repair parts for Official Magic Chef CYE3005AYW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

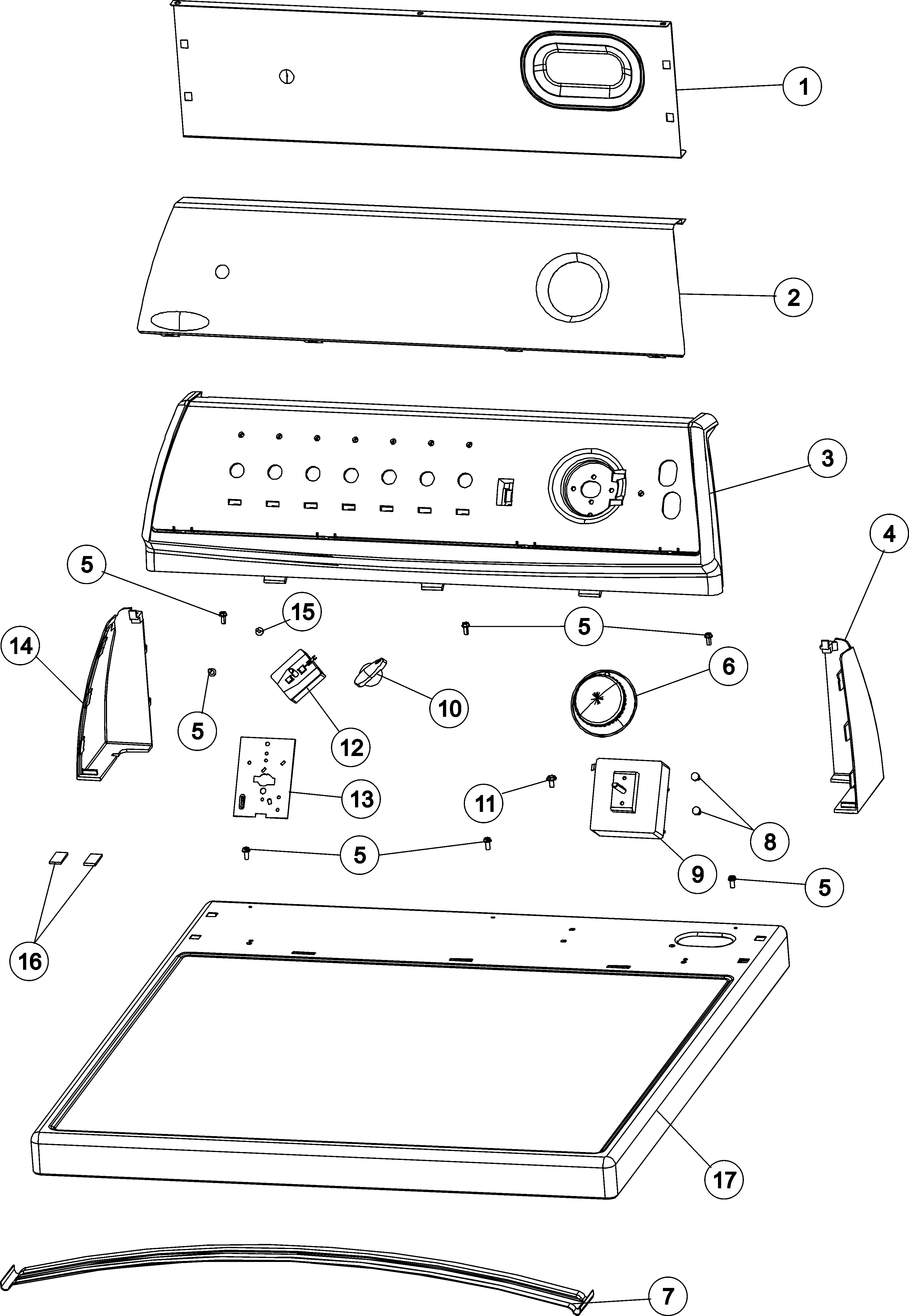

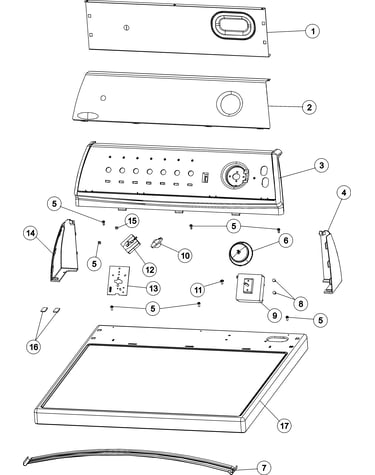

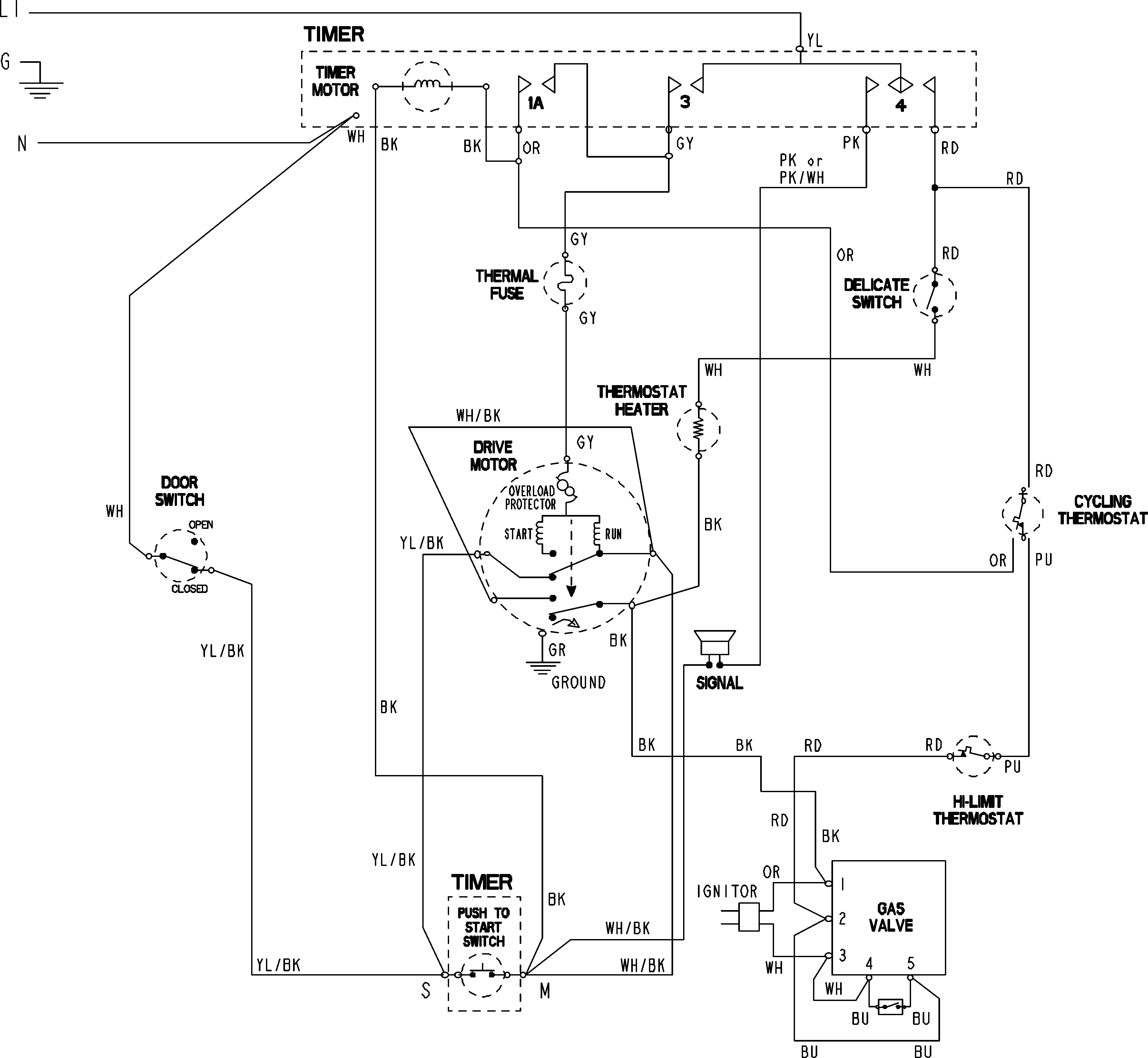

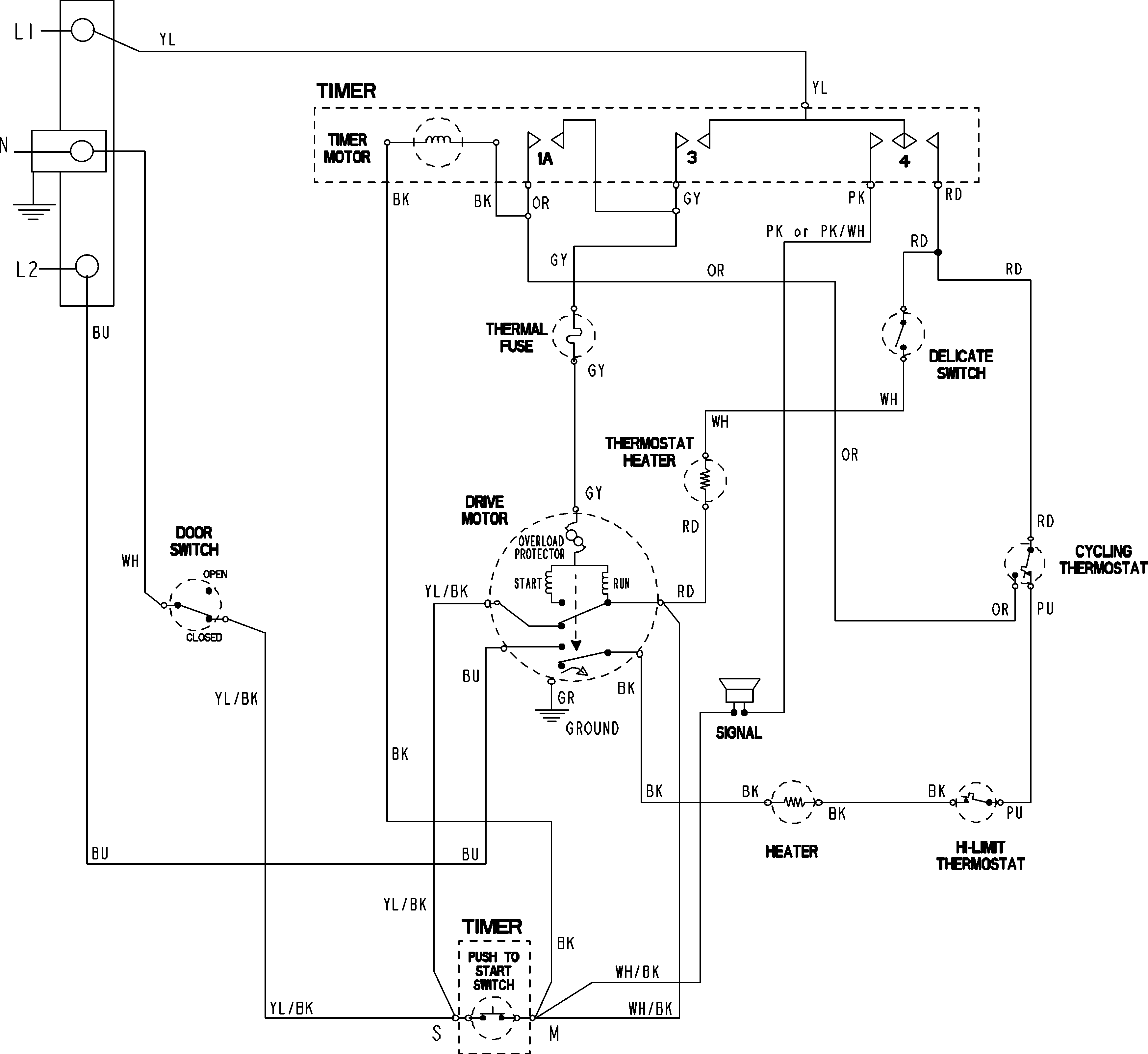

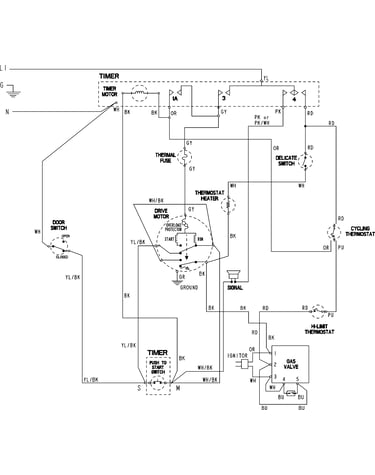

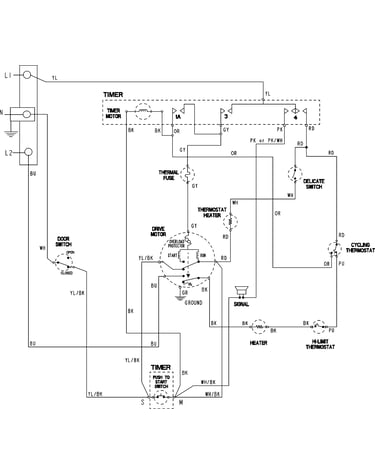

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Dryer Drum Belt 40111201
#21

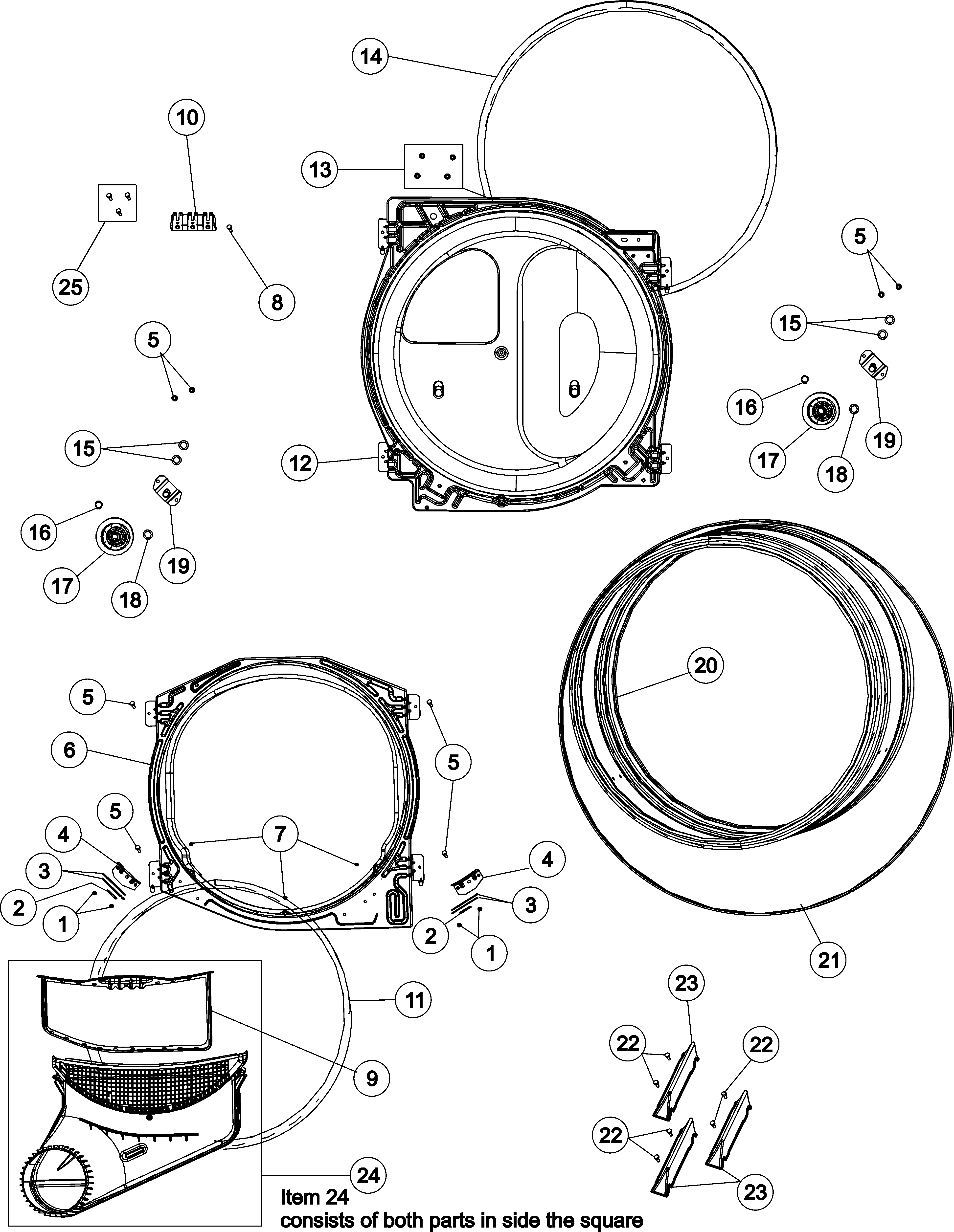

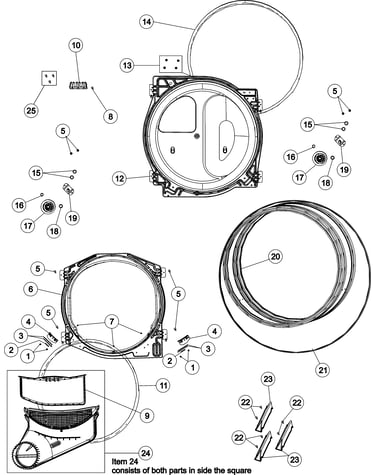

Tumbler diagram

Dryer drum belt

Part #40111201

Replaced by #WP40111201

?
Manufacturer substitution
This part replaces 40111201. Substitute parts can look different from the original.
BEST SELLER
$15.11 |
12% OFF Phone Price : $17.11
In Stock
Dryer Drum Support Roller 37001042
#17

Tumbler diagram

Dryer drum support roller

Part #37001042

Replaced by #WP37001042

?
Manufacturer substitution
This part replaces 37001042. Substitute parts can look different from the original.
BEST SELLER
$16.20 |
11% OFF Phone Price : $18.20
In Stock
Dryer Drive Motor 2200376
#7

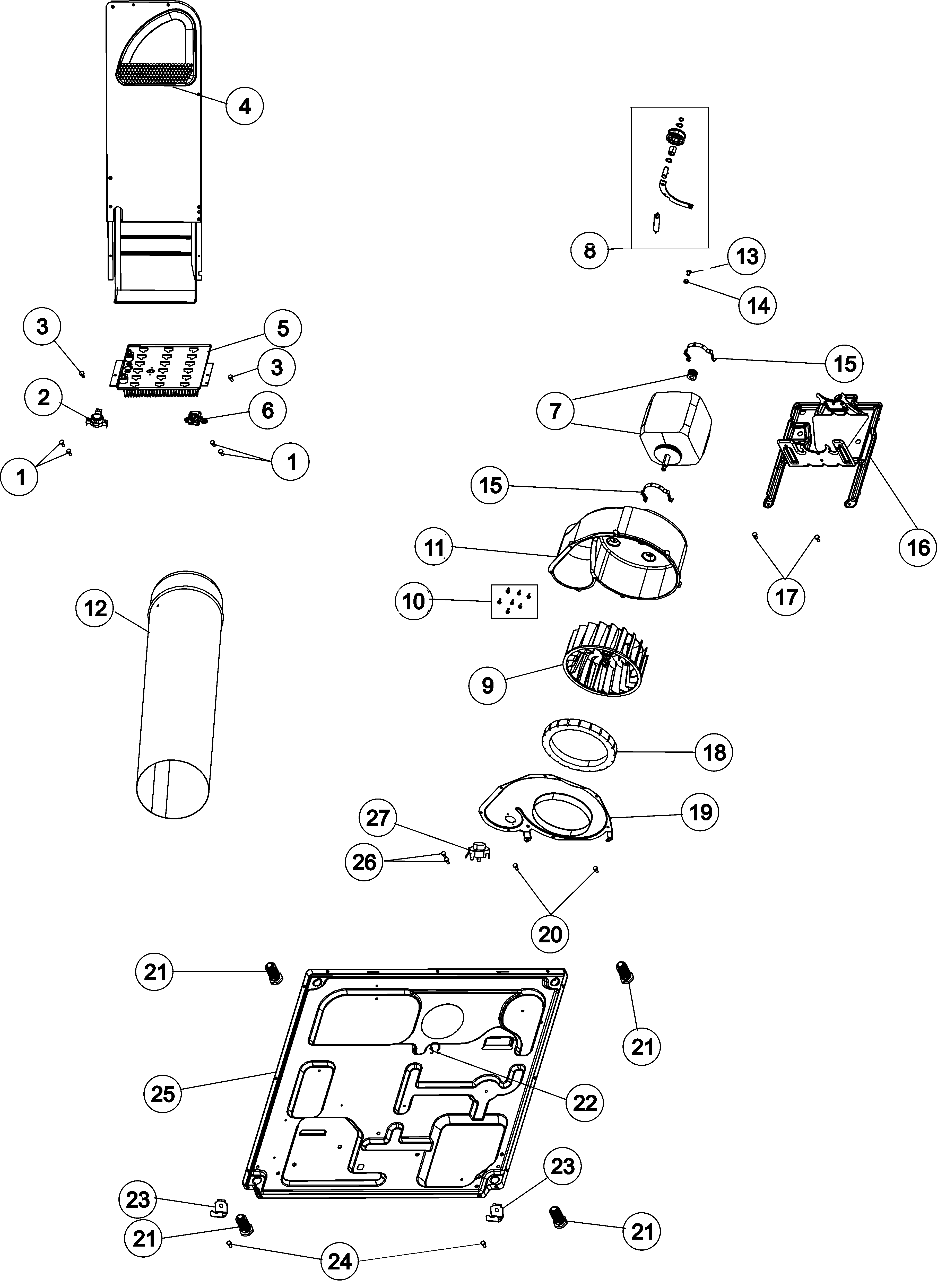

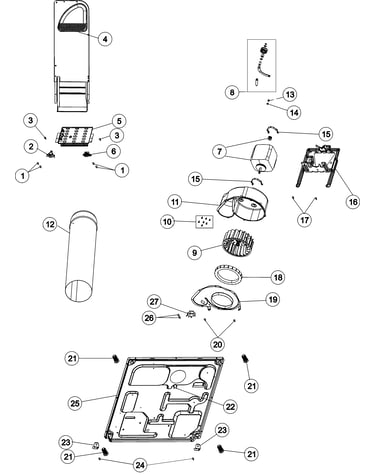

Base, heater & motor diagram

Dryer drive motor

Part #2200376

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 2200376. Substitute parts can look different from the original.
BEST SELLER
$128.05 |
9% OFF Phone Price : $140.05
In Stock
Speed Queen Dryer Blower Wheel (replaces 510139p, 56000p) 56000
#9

Base, heater & motor diagram

Speed queen dryer blower wheel (replaces 510139p, 56000p)

Part #56000

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Dryer Thermal Fuse, 352-degree F 40113801
#6

Base, heater & motor diagram

Dryer thermal fuse, 352-degree f

Part #40113801

Replaced by #WP40113801

?
Manufacturer substitution
This part replaces 40113801. Substitute parts can look different from the original.
BEST SELLER
$14.01 |
12% OFF Phone Price : $16.01
In Stock
Drive Switch 504570
#20

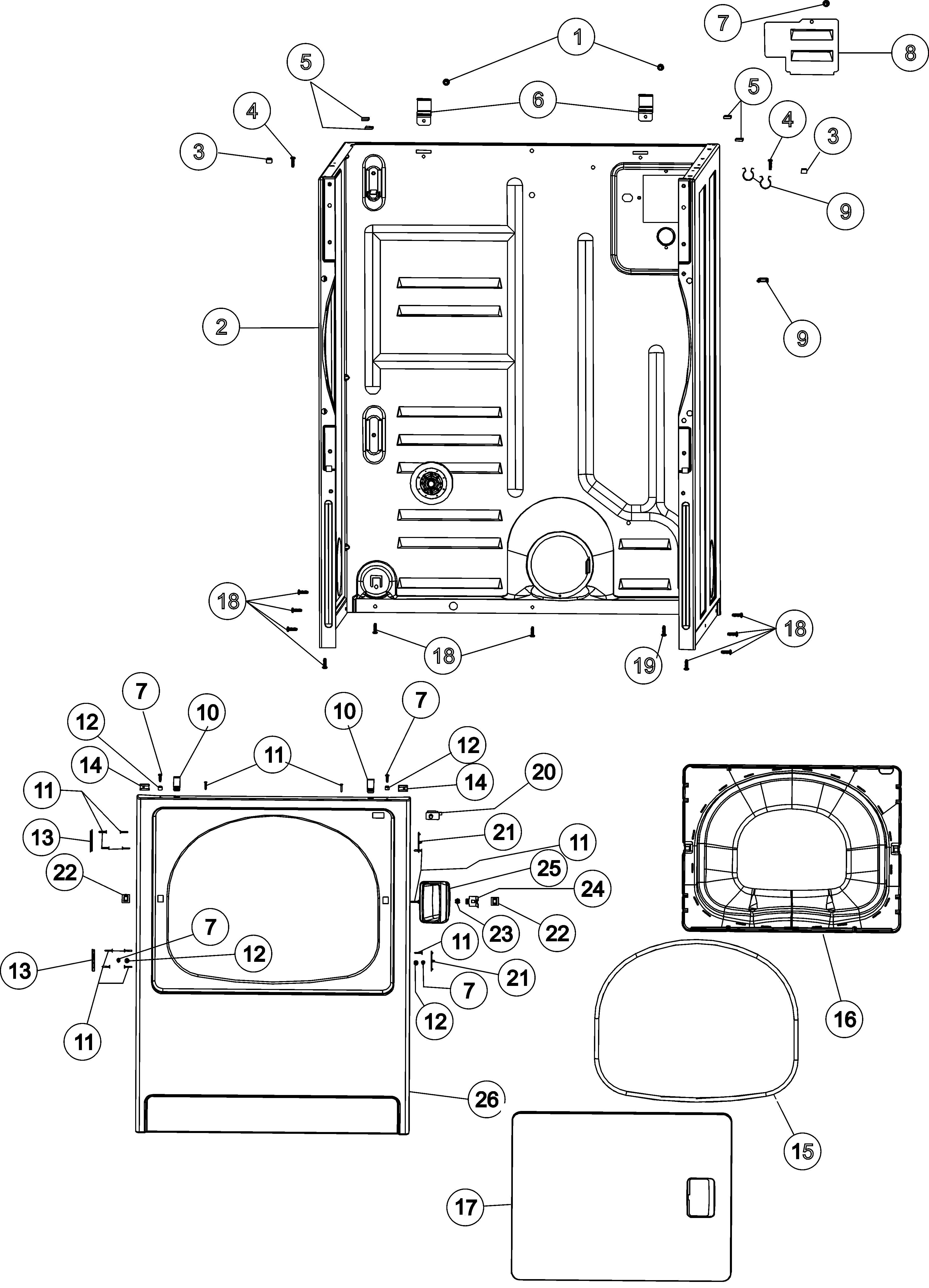

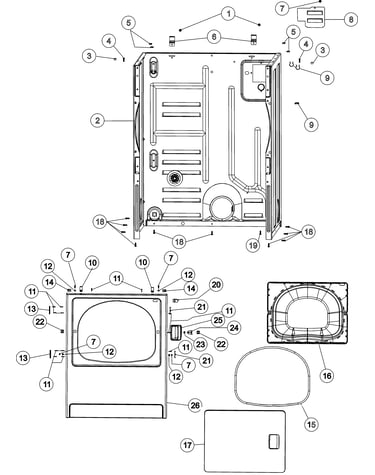

Cabinet & front panel diagram

Drive switch

Part #504570

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 504570. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Cylinder Guide 40116501
#3

Tumbler diagram

Cylinder guide

Part #40116501

Replaced by #WP37001298

?
Manufacturer substitution
This part replaces 40116501. Substitute parts can look different from the original.
BEST SELLER
$8.94 |
10% OFF Phone Price : $9.94
In Stock
Limit Thermostat 62641
#2

Base, heater & motor diagram

Limit thermostat

Part #62641

Replaced by #WPW10116735

?
Manufacturer substitution
This part replaces 62641. Substitute parts can look different from the original.
BEST SELLER
$44.72 |
12% OFF Phone Price : $50.72
In Stock
Laundry Appliance Washer 52549
#15

Tumbler diagram

Laundry appliance washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Heat Element 503978
#5

Base, heater & motor diagram

Heat element

Part #503978

Replaced by #WPY503978

?
Manufacturer substitution
This part replaces 503978. Substitute parts can look different from the original.
$55.09 |
10% OFF Phone Price : $61.09
In Stock
