Radial Arm Saw

Model # 11319751 Official Craftsman 10" electronic radial saw

Here are the diagrams and repair parts for Official Craftsman 11319751 10" electronic radial saw, as well as links to manuals and error code tables, if available.

By Schematic

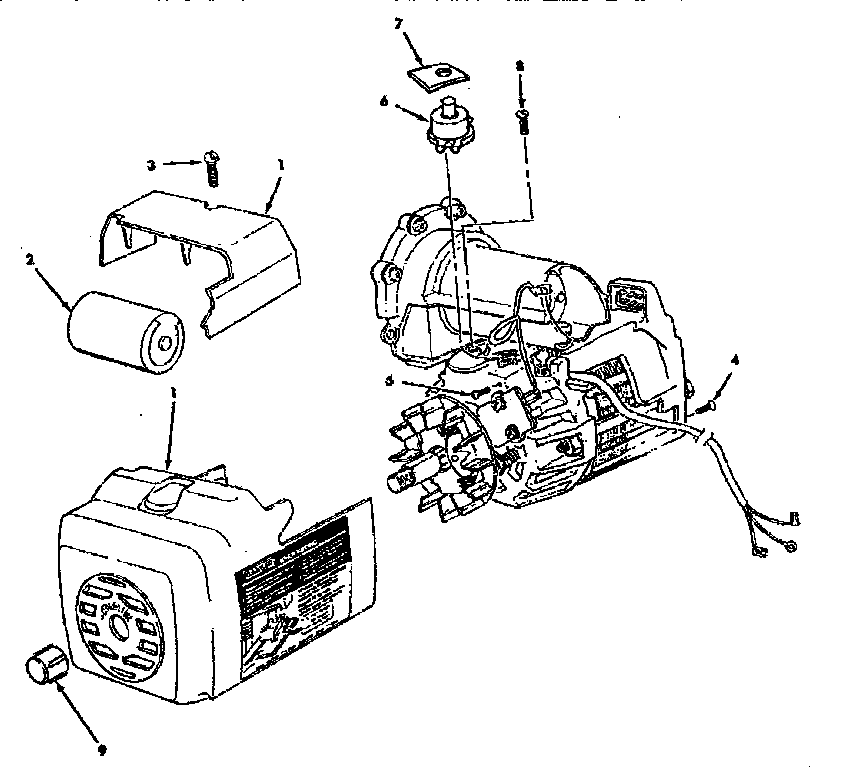

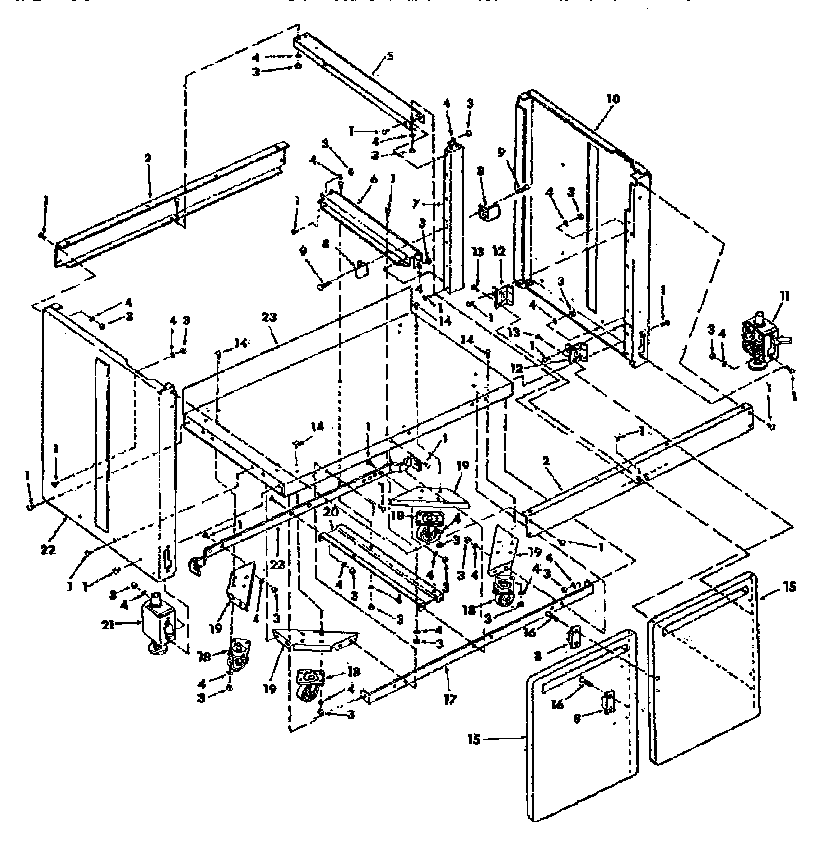

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
11319751 Power Tools
Radial Arm Saw Table, Front 818196-1
#4

Figure 6 - table assembly diagram

Radial arm saw table, front

Part #818196-1

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Eccentric Screw 810214-3
#1

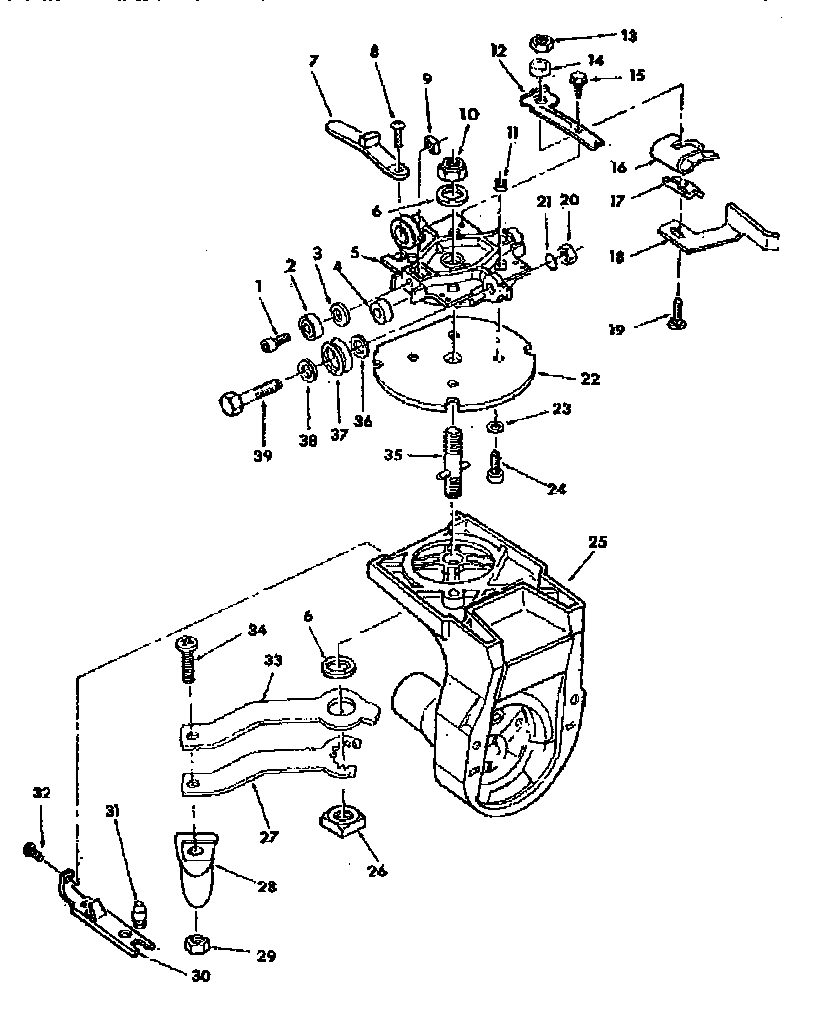

Figure 4 - yoke assembly diagram

Radial arm saw eccentric screw

Part #810214-3

The manufacturer no longer makes this part, and there's no substitute part

Nut (silver) 62636
#11

Figure 4 - yoke assembly diagram

Nut (silver)

Part #62636

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing Washer 60438
#38

Figure 4 - yoke assembly diagram

Radial arm saw carriage bearing washer

Part #60438

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#28

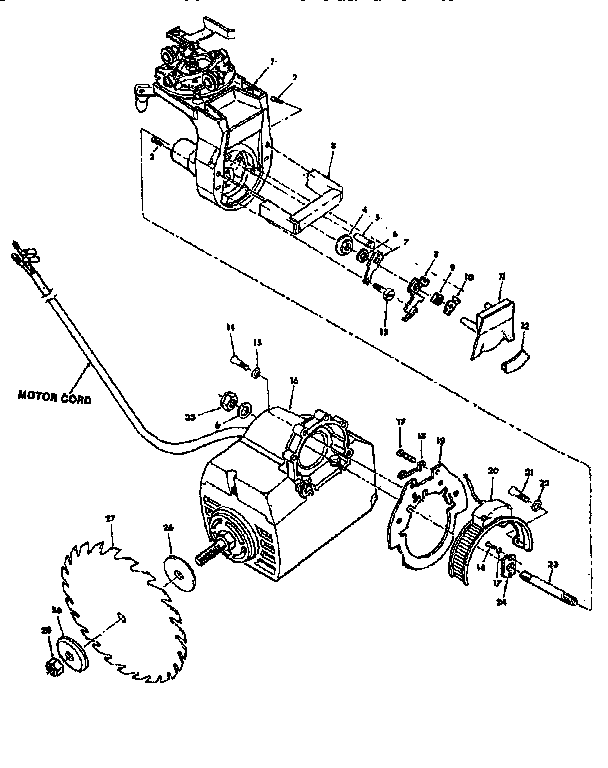

Figure 3 - yoke and motor assembly diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Washer 815875
#9

Figure 7 - foot assembly diagram

Washer

Part #815875

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Clip Nut, 1/4 X 20-in 815989
#22

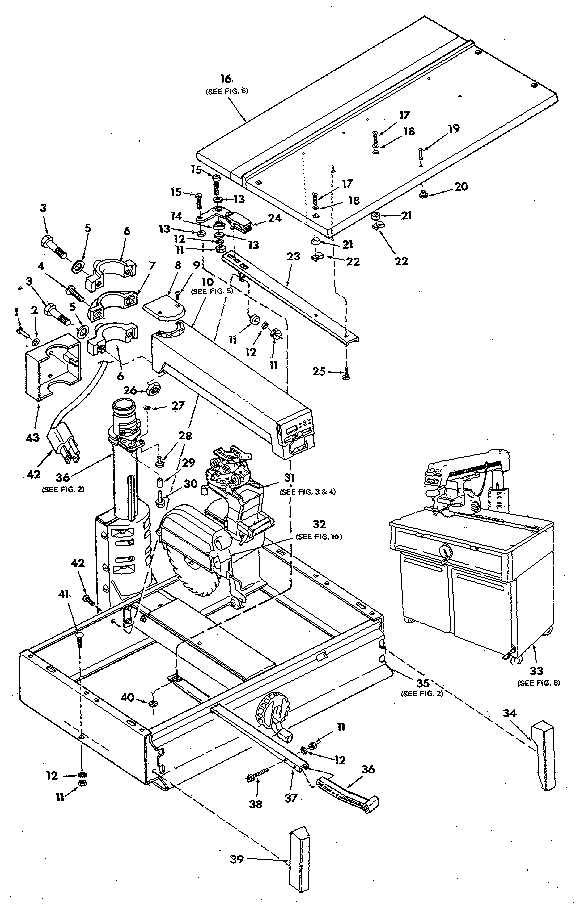

Figure 1 diagram

Radial arm saw clip nut, 1/4 x 20-in

Part #815989

The manufacturer no longer makes this part, and there's no substitute part

Screw 273229
#15

Figure 4 - yoke assembly diagram

Screw

Part #273229

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Pan Head Screw, 1/4-20 X 1-3/4-in 806828-4
#17

Figure 1 diagram

Table saw pan head screw, 1/4-20 x 1-3/4-in

Part #806828-4

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Anti-kickback Bar Bearing And Retainer 816341
#12

Figure 10 - guard assembly diagram

Radial arm saw anti-kickback bar bearing and retainer

Part #816341

The manufacturer no longer makes this part, and there's no substitute part
