Model # 11621300 Official Kenmore vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 11621300 vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11621300 Vacuum Cleaners
#61

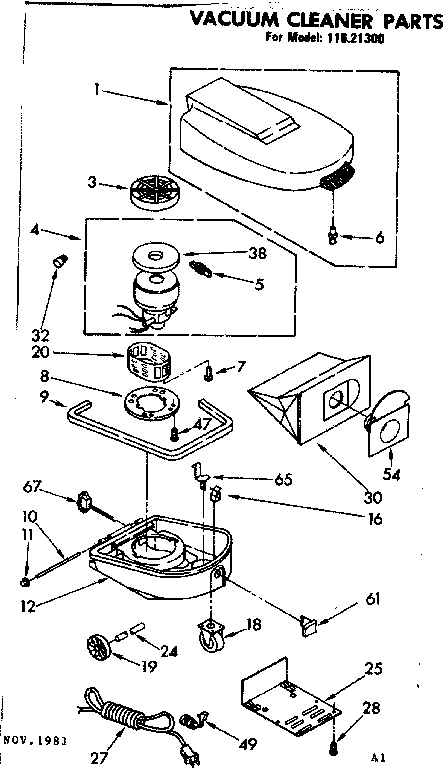

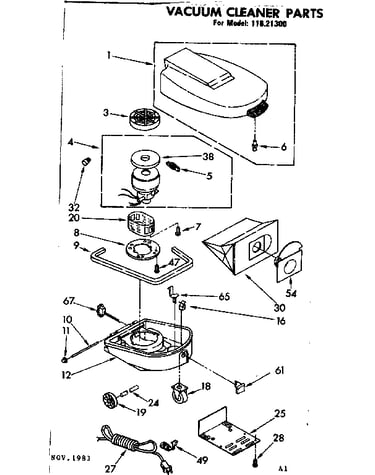

Base assembly diagram
Catch
Part #764533
The manufacturer no longer makes this part, and there's no substitute part
#9
Base assembly diagram
Gasket
Part #750523
The manufacturer no longer makes this part, and there's no substitute part
#9

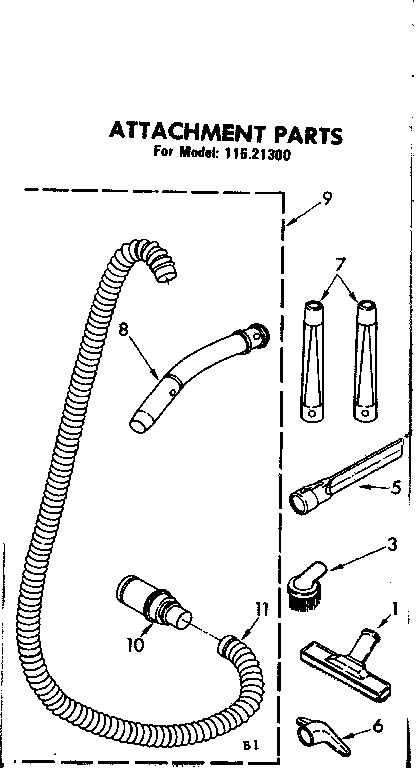

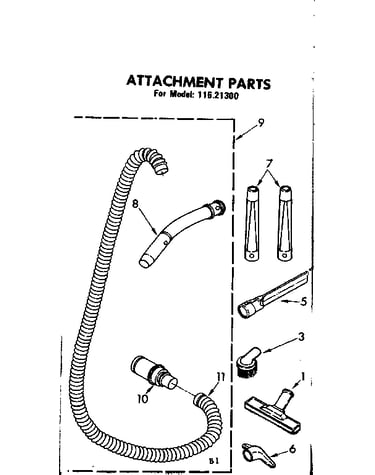

Attachment parts diagram
Hose
Part #741685
The manufacturer no longer makes this part, and there's no substitute part
#6
Attachment parts diagram
Nozzle
Part #722377
The manufacturer no longer makes this part, and there's no substitute part
#1
Attachment parts diagram
Brush
Part #741691
The manufacturer no longer makes this part, and there's no substitute part
#8
Base assembly diagram
Gasket
Part #703302
The manufacturer no longer makes this part, and there's no substitute part
#19
Base assembly diagram
Wheel
Part #764254
The manufacturer no longer makes this part, and there's no substitute part
#38
Base assembly diagram
Fan
Part #588708
The manufacturer no longer makes this part, and there's no substitute part
#54
Base assembly diagram
Insert
Part #704356
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Manual list
Part #LIT704912
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your vacuum cleaners
Choose a symptom to see related vacuum cleaner repairs.
Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor…
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose…
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring fail…
Main causes: lack of power, bad power cord, drive motor failure, wiring failure…
Repair guides for canister vacuums
How to replace a vacuum power head cogged drive belt
If the power brush isn't working well because the cogged drive belt is slipping, take a few minutes to replace the belt.…
Repair difficulty
Time required
 15 minutes or less
How to replace a vacuum beater bar
Replace the brush roll if the bristles ares worn or the cylinder is damaged.…
Repair difficulty
Time required
 30 minutes or less
How to replace a vacuum suction motor
The suction motor on a vacuum creates the draw of air at the cleaning head that picks up dirt. If the vacuum won't run, …
Repair difficulty
Time required
 15 minutes or less
Effective articles & videos to help repair your vacuum cleaners
Use the advice and tips in these articles and videos to get the most out of your vacuum.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
Find the answers to frequently asked questions about vacuum cleaners.…
