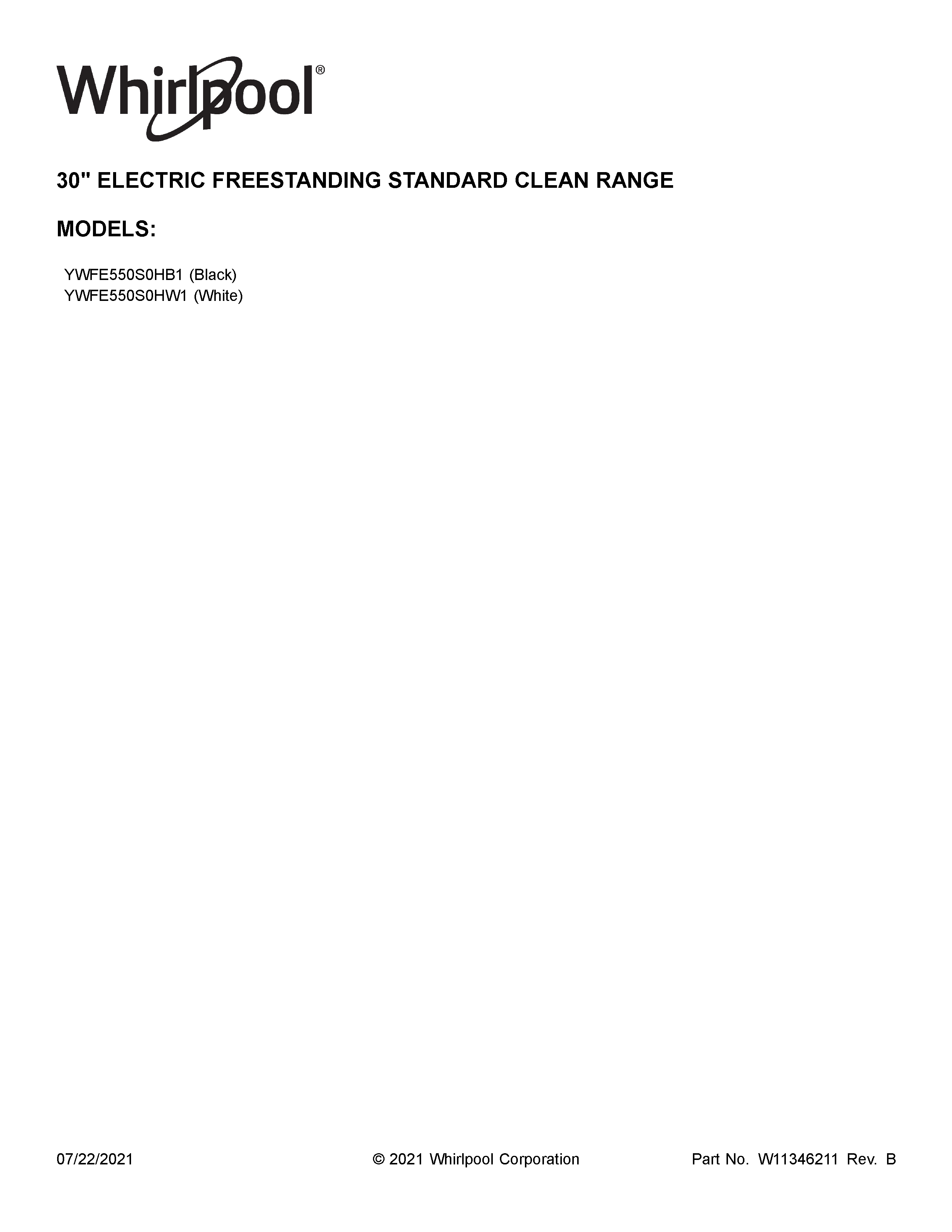

Model # YWFE550S0HW1 Official Whirlpool free standing electric range
Here are the diagrams and repair parts for Official Whirlpool YWFE550S0HW1 free standing electric range, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part
SELECT DIAGRAM

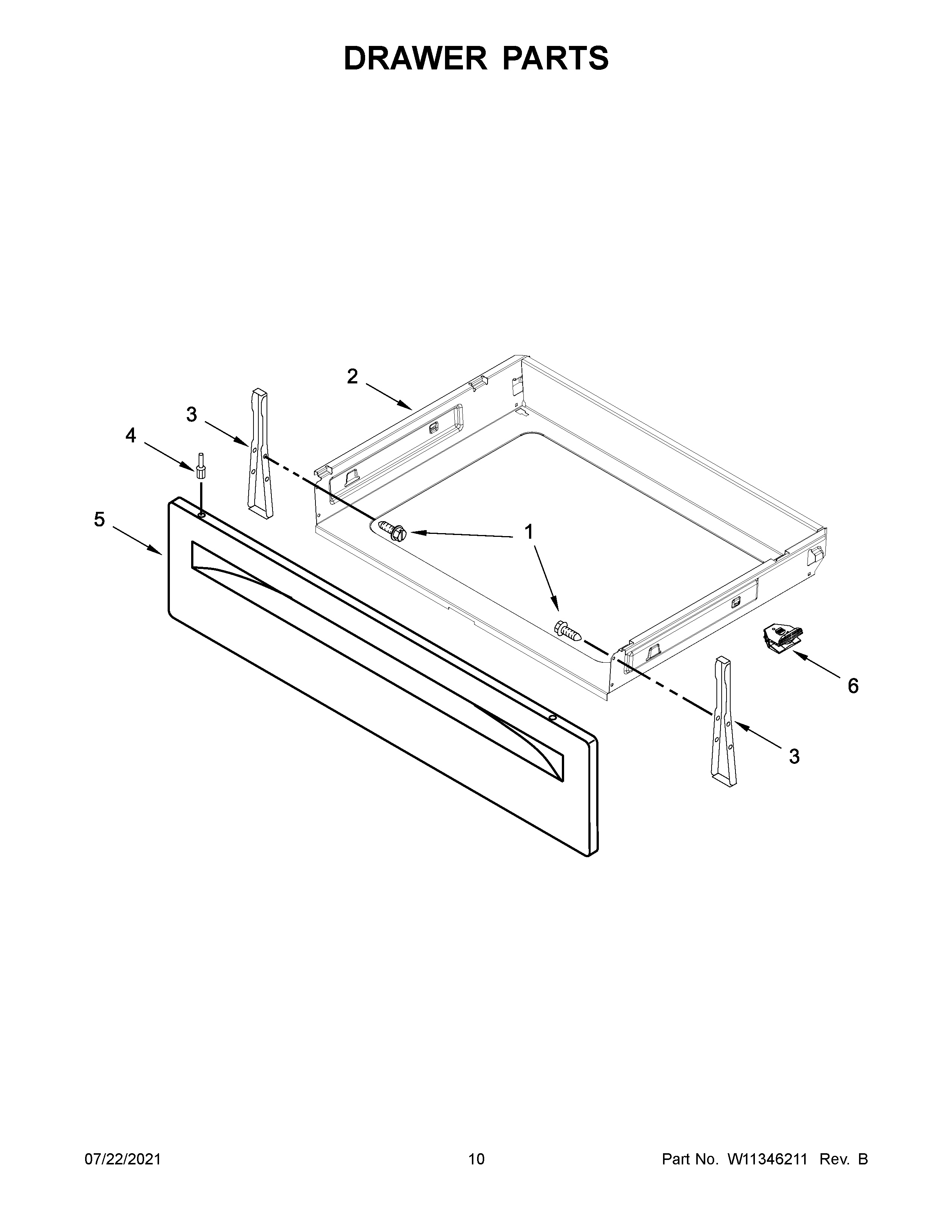

Browse Parts forYWFE550S0HW1 Ranges
- #4
Control panel parts diagram
Range dual surface element control switchPart #W10434452
Replaced by #WPW10434452
?Manufacturer substitutionThis part replaces W10434452. Substitute parts can look different from the original.$74.14 |7% OFF Phone Price : $80.14In Stock - #27

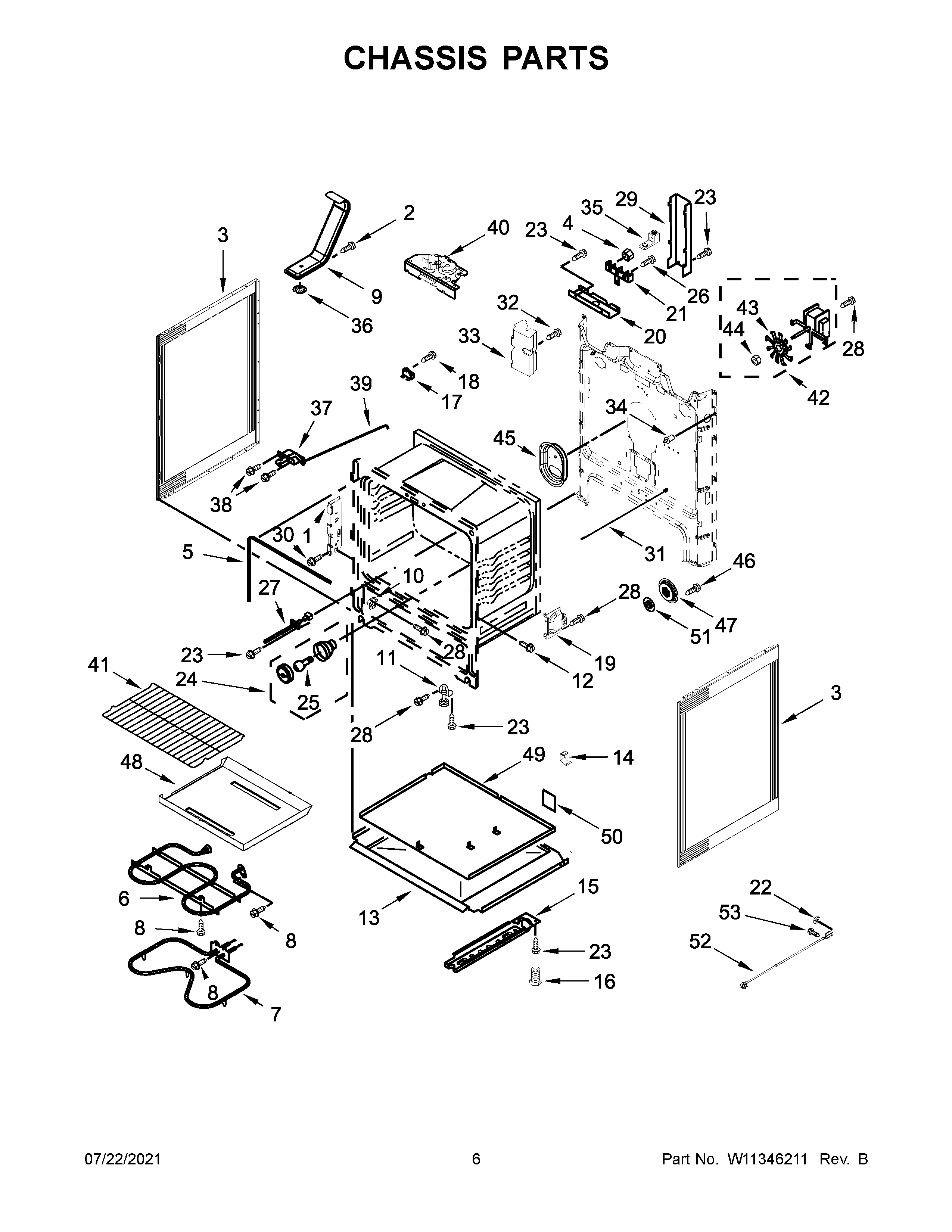

Chassis parts diagram
Range oven temperature sensorPart #W10181986
Replaced by #WPW10181986
?Manufacturer substitutionThis part replaces W10181986. Substitute parts can look different from the original.$58.66 |9% OFF Phone Price : $64.66In Stock - #2
Control panel parts diagram
Control assyPart #W11428374
Replaced by #W11528249
?Manufacturer substitutionThis part replaces W11428374. Substitute parts can look different from the original.$179.82 |6% OFF Phone Price : $191.82In Stock - #5A

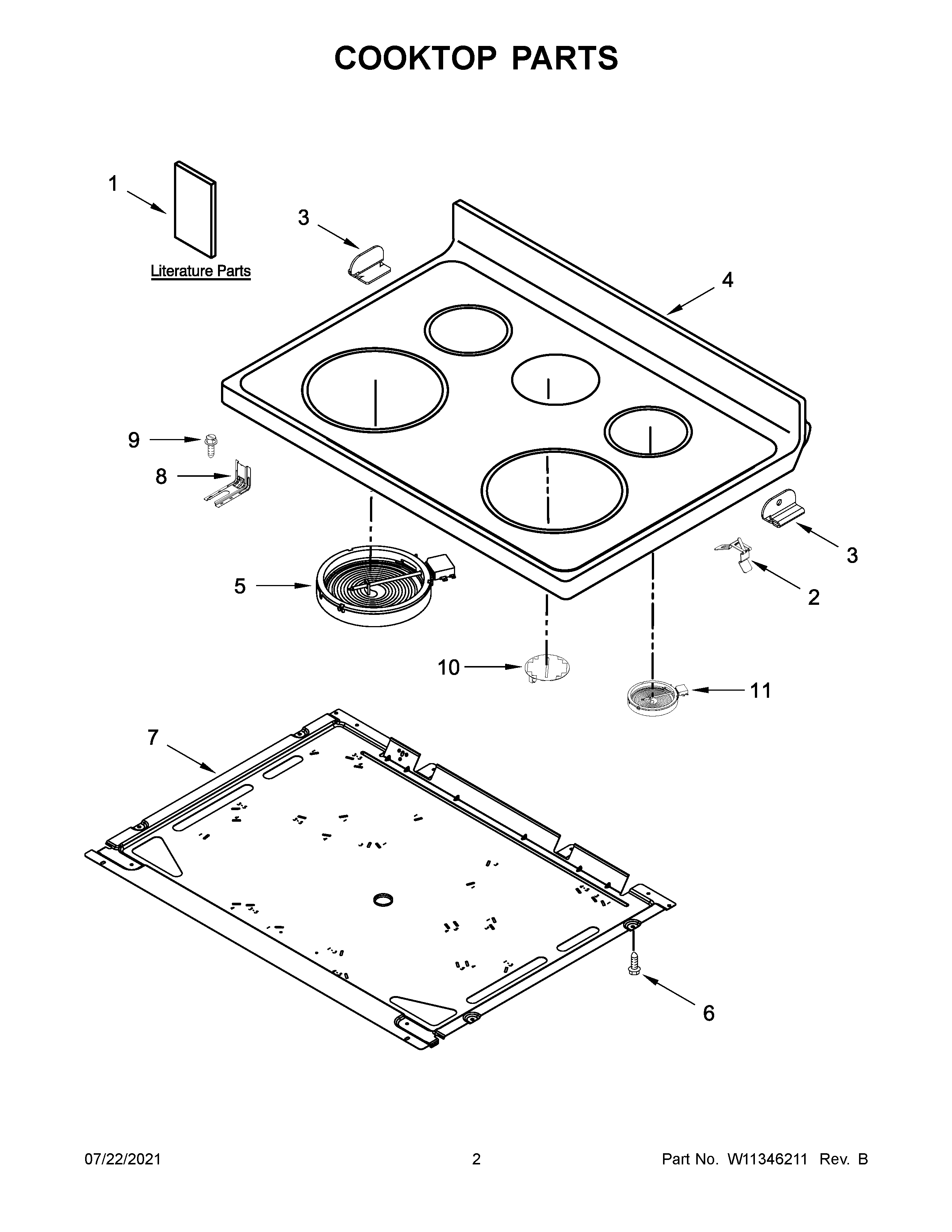

Cooktop parts diagram
Range dual radiant surface elementPart #W10275048
Replaced by #W11517959
?Manufacturer substitutionThis part replaces W10275048. Substitute parts can look different from the original.$70.82 |8% OFF Phone Price : $76.82In Stock - #17
Chassis parts diagram
Range safety thermostatPart #3196548
Replaced by #WP3196548
?Manufacturer substitutionThis part replaces 3196548. Substitute parts can look different from the original.$23.07 |21% OFF Phone Price : $29.07In Stock - #10A

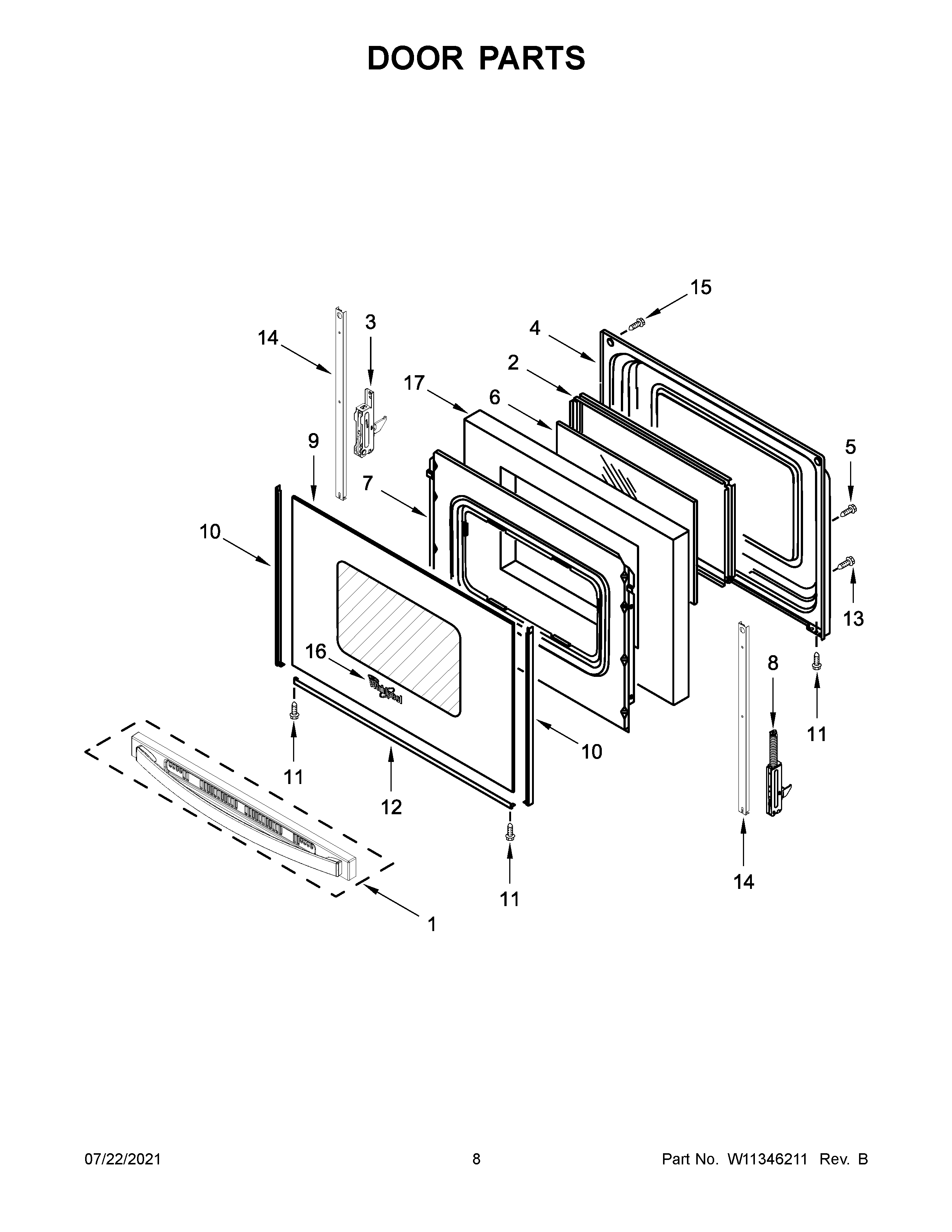

Door parts diagram
Oven door trimPart #W10746435
Replaced by #W10761014
?Manufacturer substitutionThis part replaces W10746435. Substitute parts can look different from the original.$36.21 |14% OFF Phone Price : $42.21In Stock - #15
Door parts diagram
Range screwPart #W10200660
Replaced by #WPW10200660
?Manufacturer substitutionThis part replaces W10200660. Substitute parts can look different from the original.This item is not returnable$6.00 |14% OFF Phone Price : $7.00In Stock - #10
Door parts diagram
Door trimPart #W10746436
Replaced by #W10761018
?Manufacturer substitutionThis part replaces W10746436. Substitute parts can look different from the original.$31.47 |16% OFF Phone Price : $37.47In Stock - #3
Door parts diagram
Range oven door hingePart #W10299227
Replaced by #WPW10299227
?Manufacturer substitutionThis part replaces W10299227. Substitute parts can look different from the original.$40.37 |13% OFF Phone Price : $46.37In Stock - #5
Cooktop parts diagram
Element,surfPart #W10711900
Replaced by #W10823727
?Manufacturer substitutionThis part replaces W10711900. Substitute parts can look different from the original.$123.67 |9% OFF Phone Price : $135.67In Stock
