Model # WFMC220RUC/15 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC220RUC-15 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

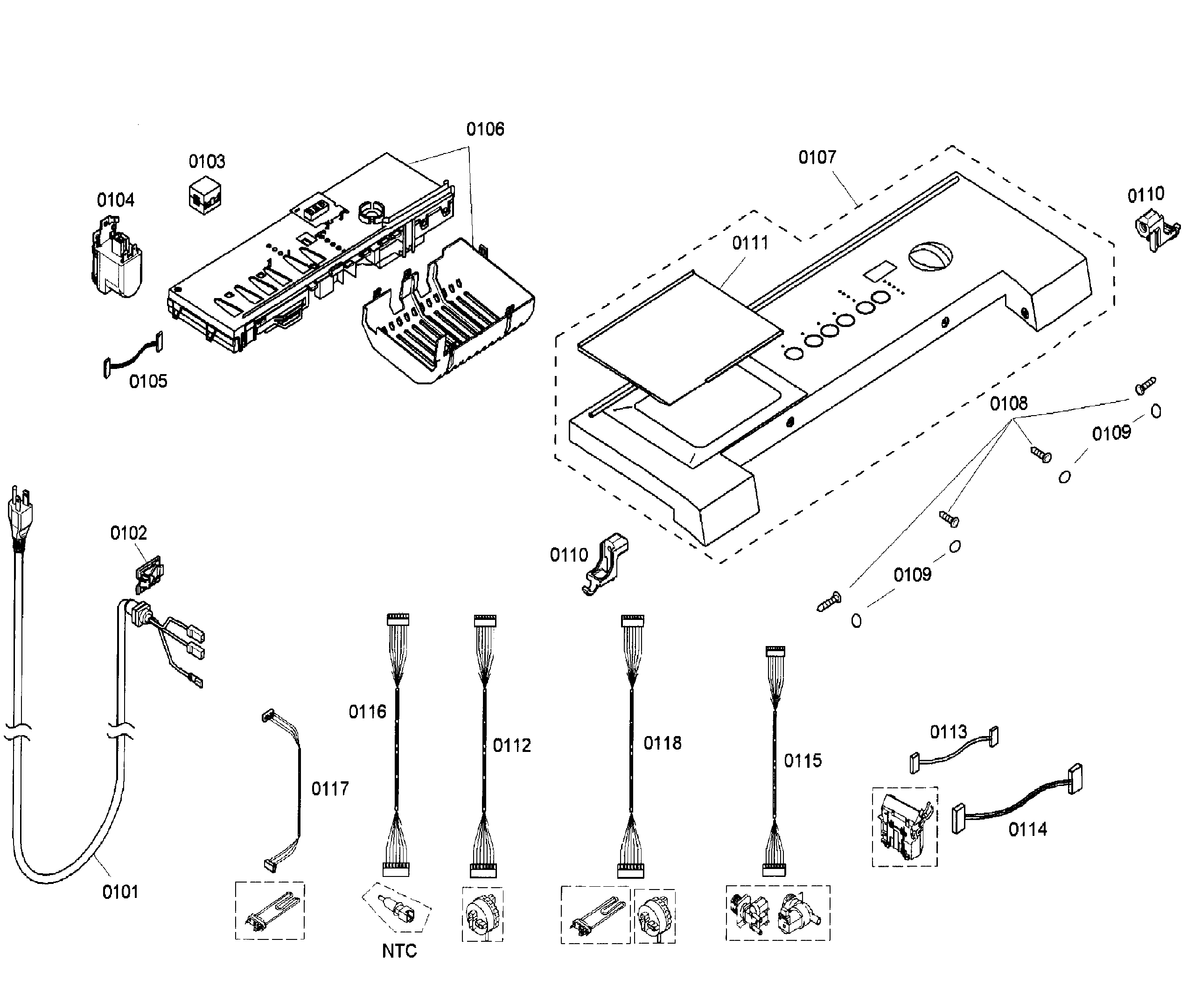

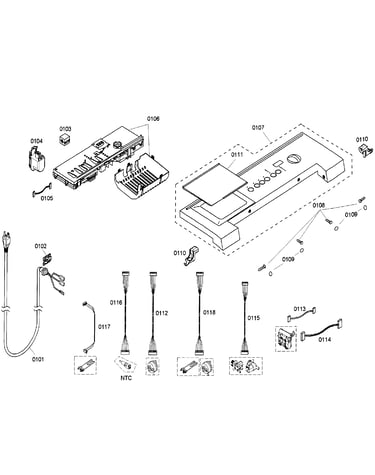

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Washer Damper 00642112
#329

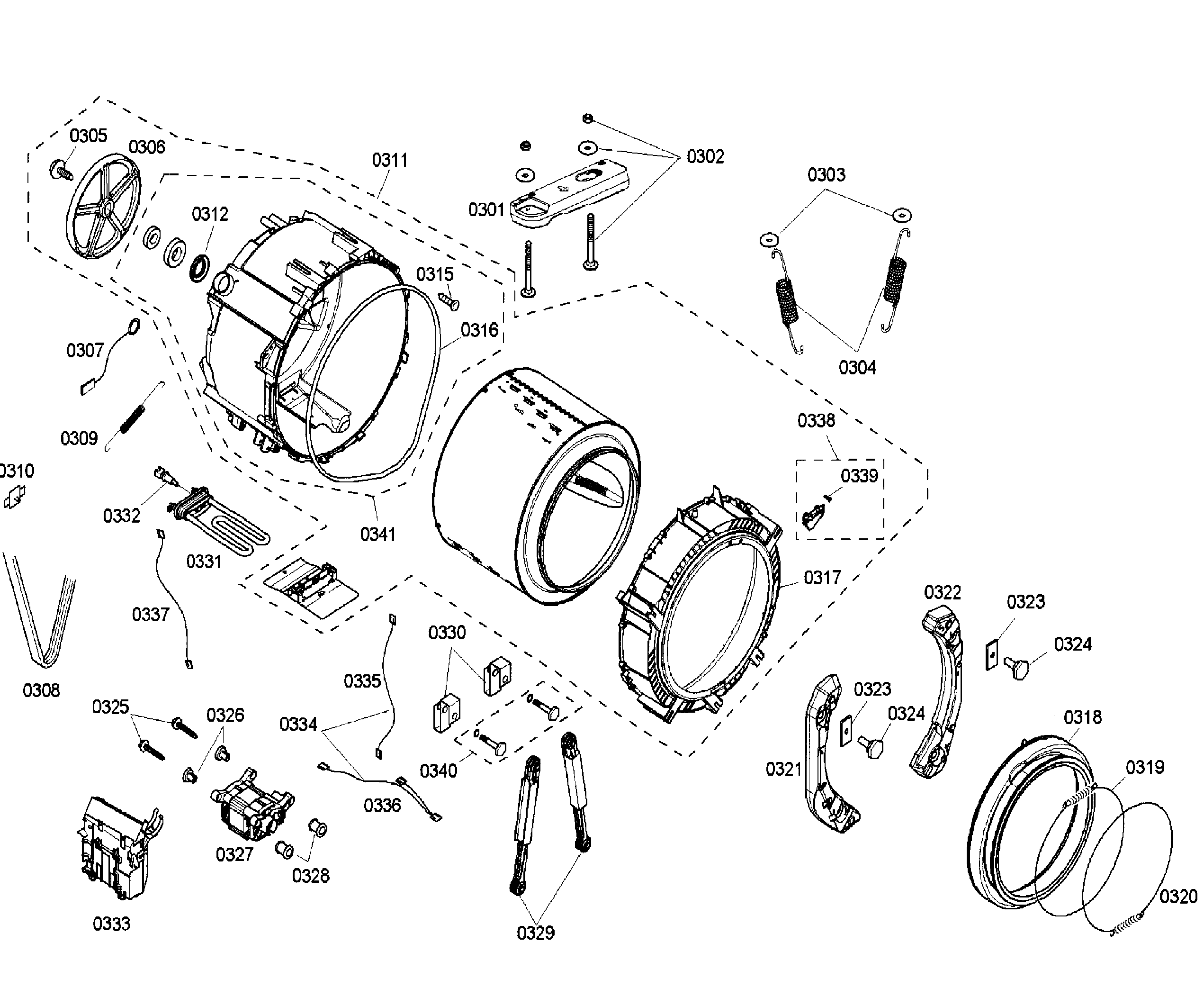

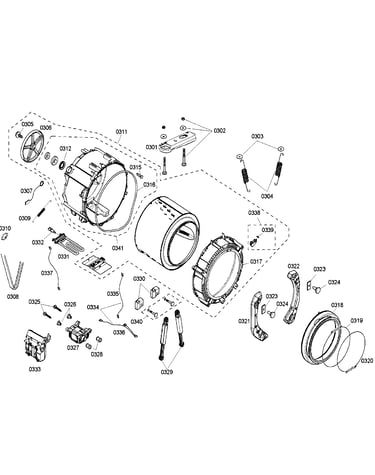

Drum diagram

Washer damper

Part #00642112

$68.79 |
8% OFF Phone Price : $74.79
In Stock
Washer Drive Motor (replaces 660487) 00660487
#327

Drum diagram

Washer drive motor (replaces 660487)

Part #00660487

$255.29 |
$12.00 OFF Phone Price : $267.29
In Stock
Washer Electronic Control Board 00668952
#333

Drum diagram

Washer electronic control board

Part #00668952

Replaced by #00668952R

?
Manufacturer substitution
This part replaces 00668952. Substitute parts can look different from the original.
This item is not returnable
$115.72
In Stock
Washer Outer Tub And Basket Assembly 00245703
#311

Drum diagram

Washer outer tub and basket assembly

Part #00245703

The manufacturer no longer makes this part, and there's no substitute part

Washer Door Hinge Bushing 00422204
#221

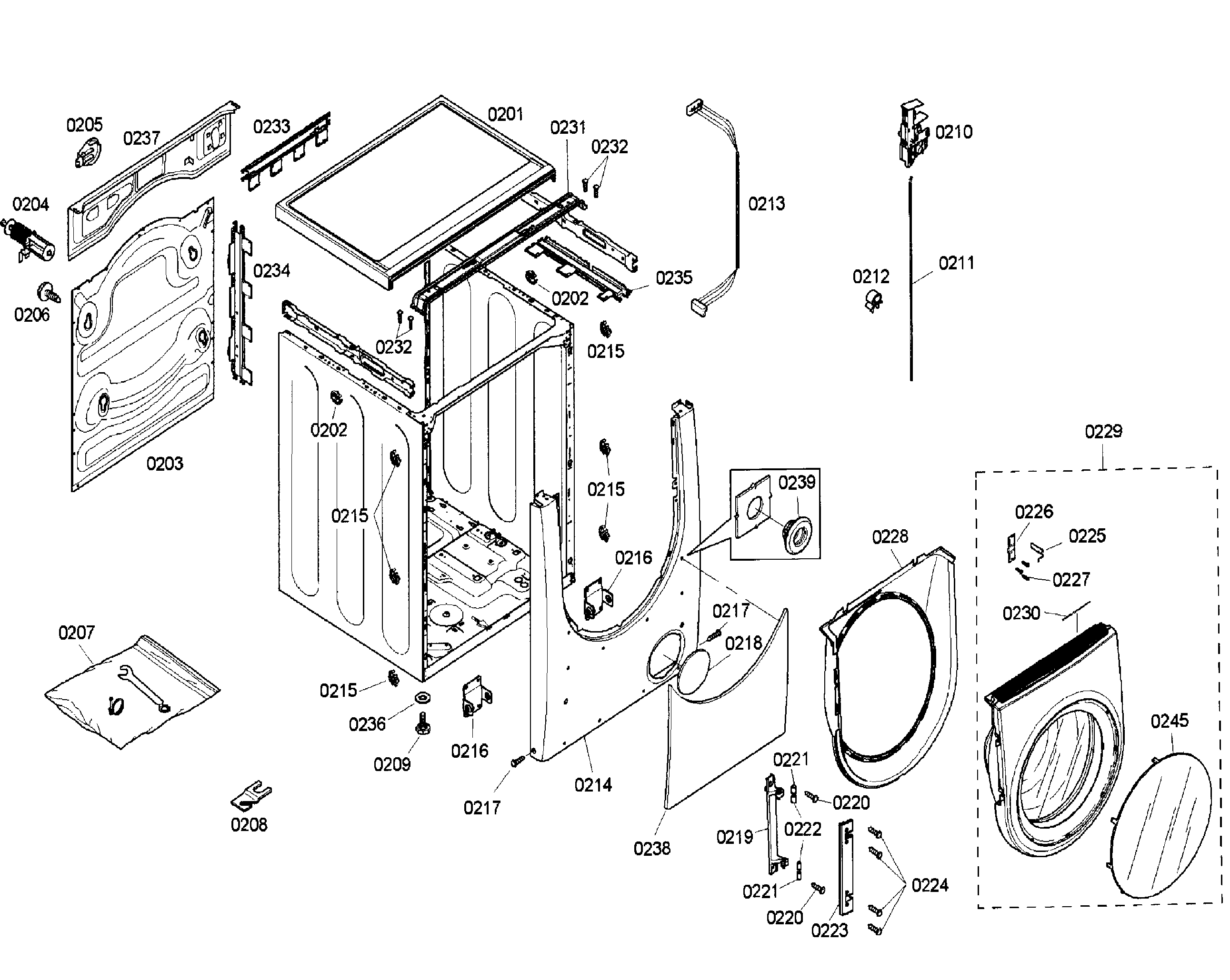

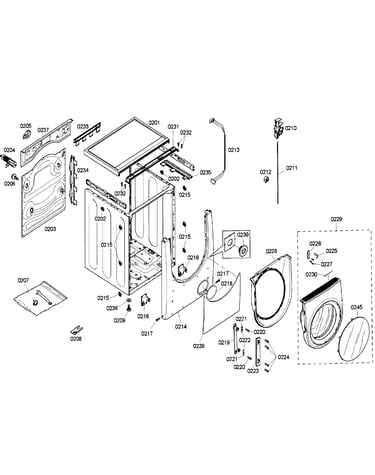

Cabinet diagram

Washer door hinge bushing

Part #00422204

This item is not returnable
$6.63
In Stock
Clamp 00644645
#319

Drum diagram

Clamp

Part #00644645

Replaced by #00648264

?
Manufacturer substitution
This part replaces 00644645. Substitute parts can look different from the original.
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Washer Water-level Pressure Switch 00491681
#420

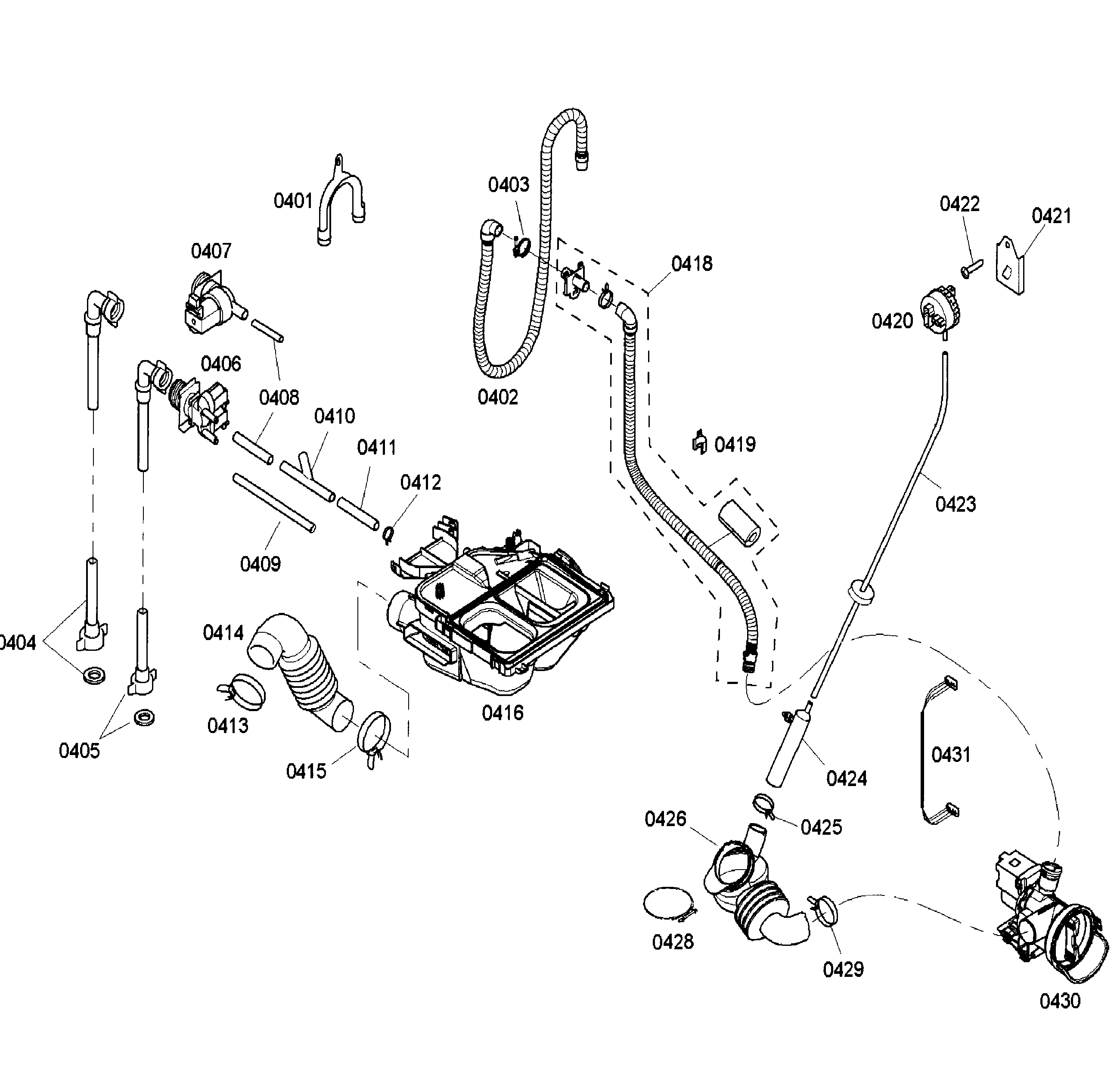

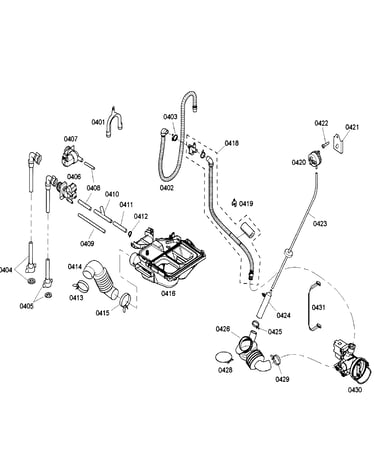

Pump diagram

Washer water-level pressure switch

Part #00491681

$67.79 |
8% OFF Phone Price : $73.79
In Stock
Washer Shock Absorber Mounting Bracket 00491695
#330

Drum diagram

Washer shock absorber mounting bracket

Part #00491695

$45.07
In Stock
Washer Leveling Leg 00610643
#209

Cabinet diagram

Washer leveling leg

Part #00610643

This item is not returnable
$19.89
In Stock
Washer Counterweight, Left 00143681
#321

Drum diagram

Washer counterweight, left

Part #00143681

$100.05 |
11% OFF Phone Price : $112.05
In Stock
