Model # SHU43C02UC/14 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHU43C02UC-14 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

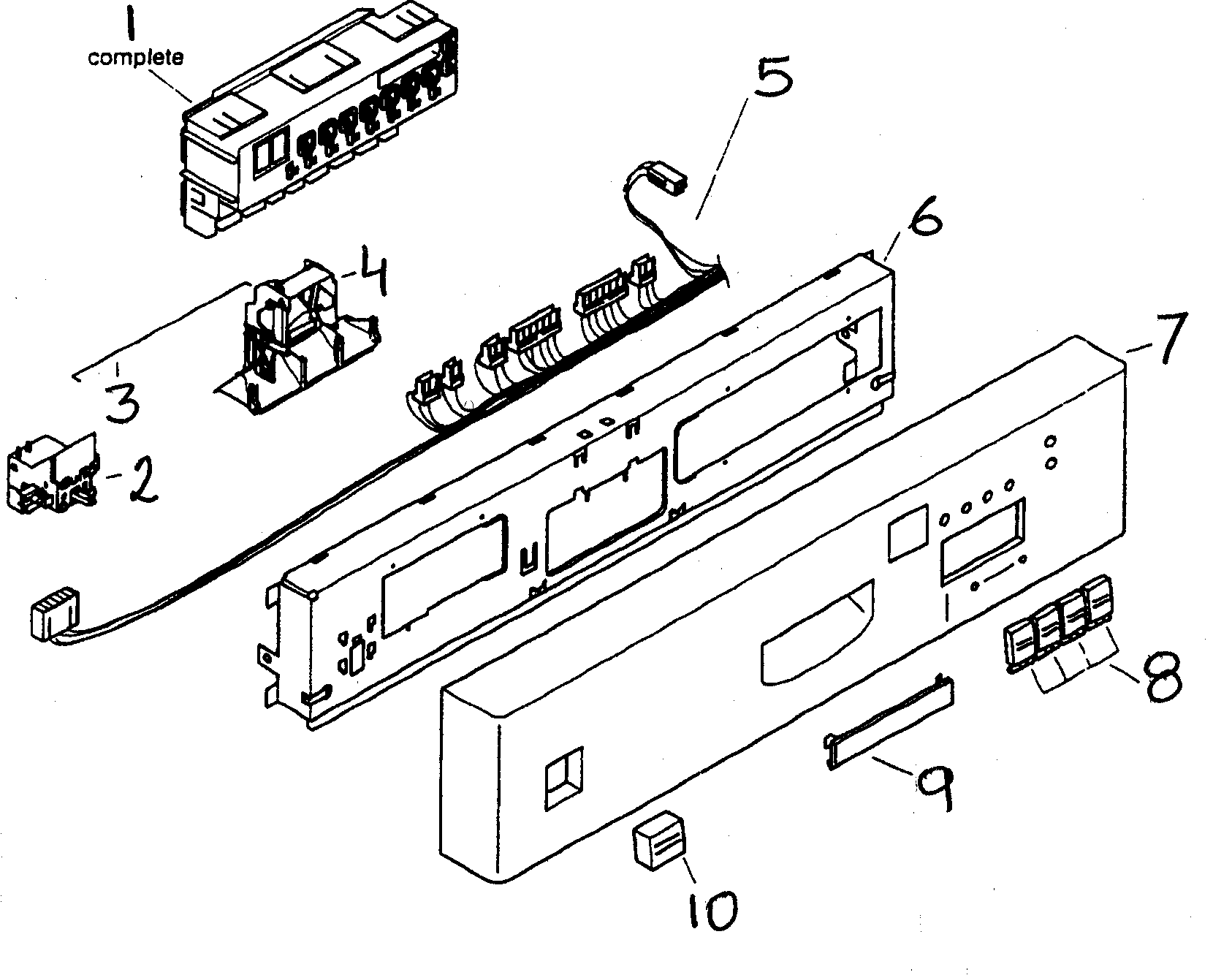

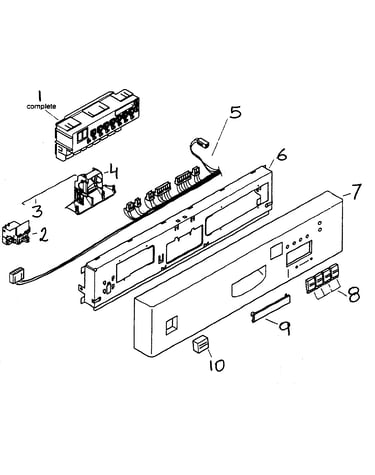

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Motor 167082
#15

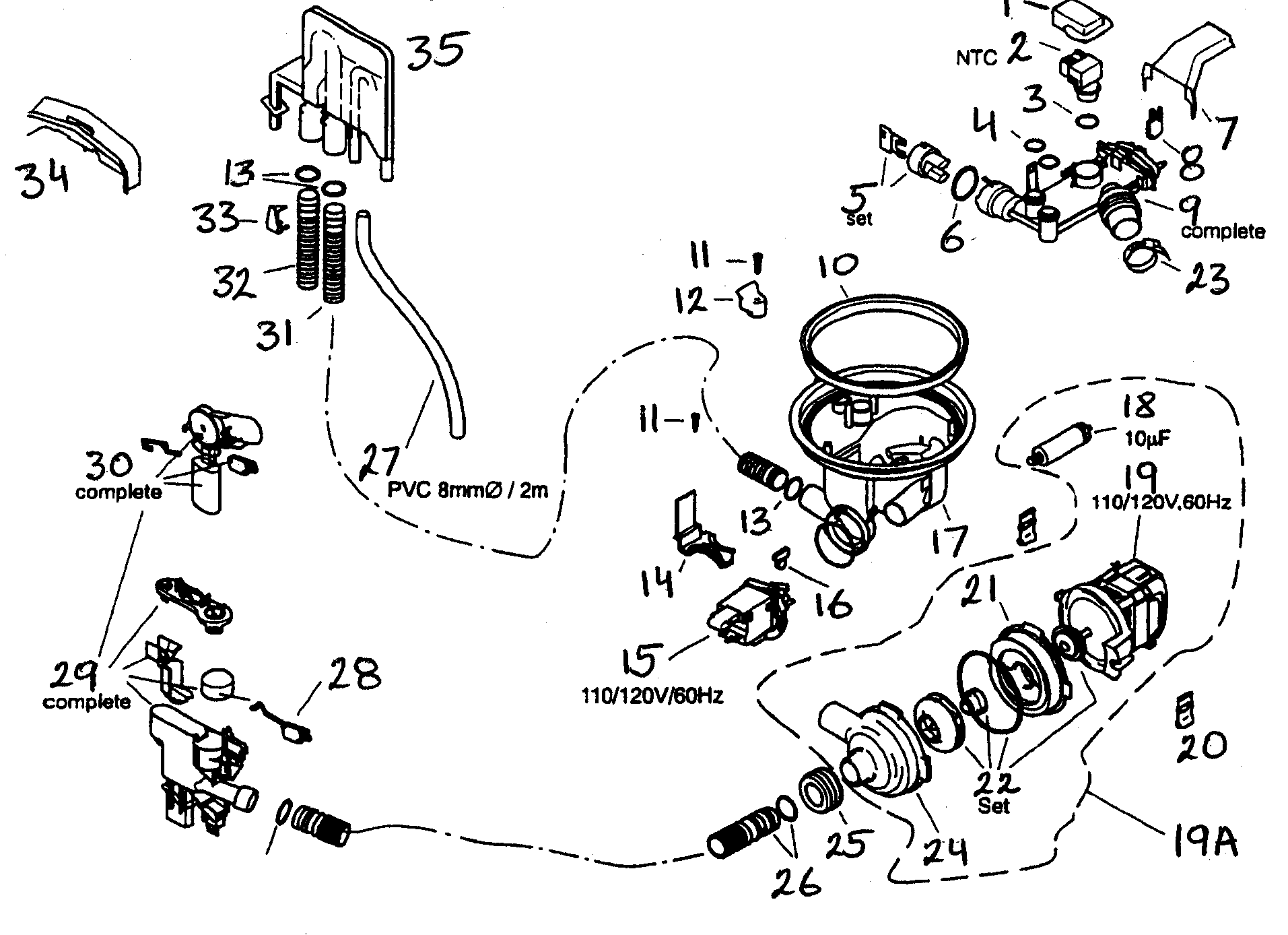

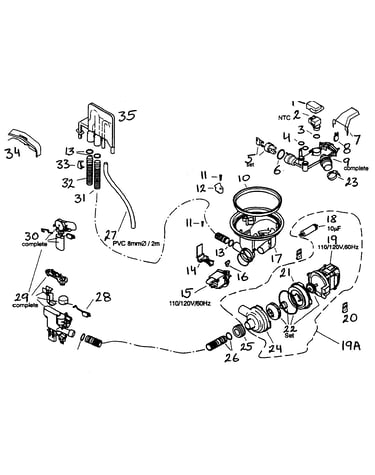

Component assy diagram

Motor

Part #167082

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 172272
#23

Component assy diagram

Hose clamp

Part #172272

Replaced by #00172272

?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Door Seal 432490
#3

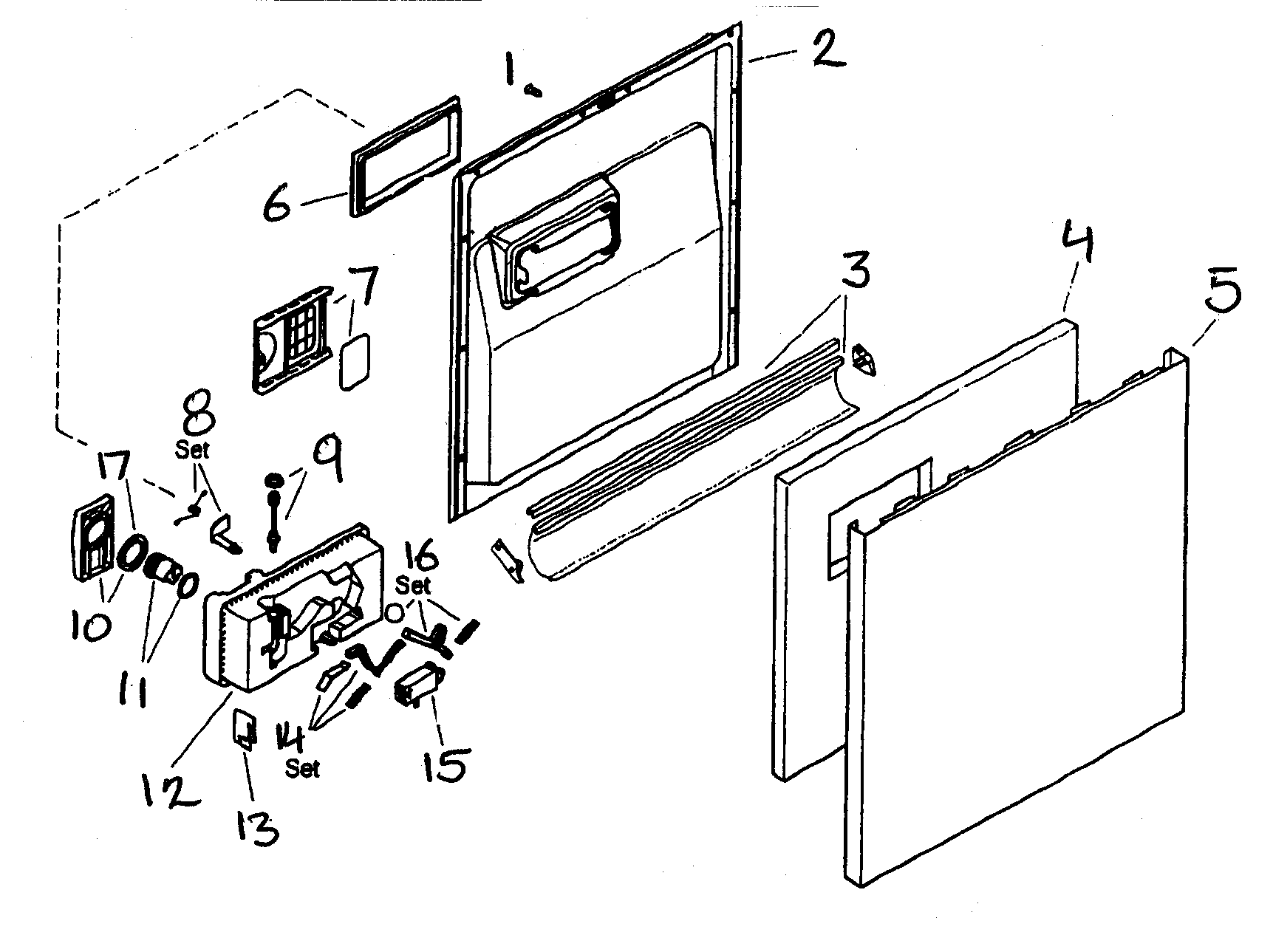

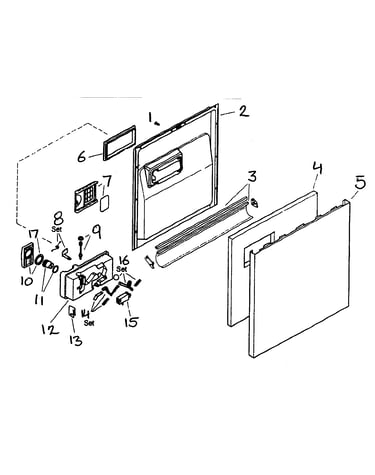

Door assy diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Lower Rack 213967
#6

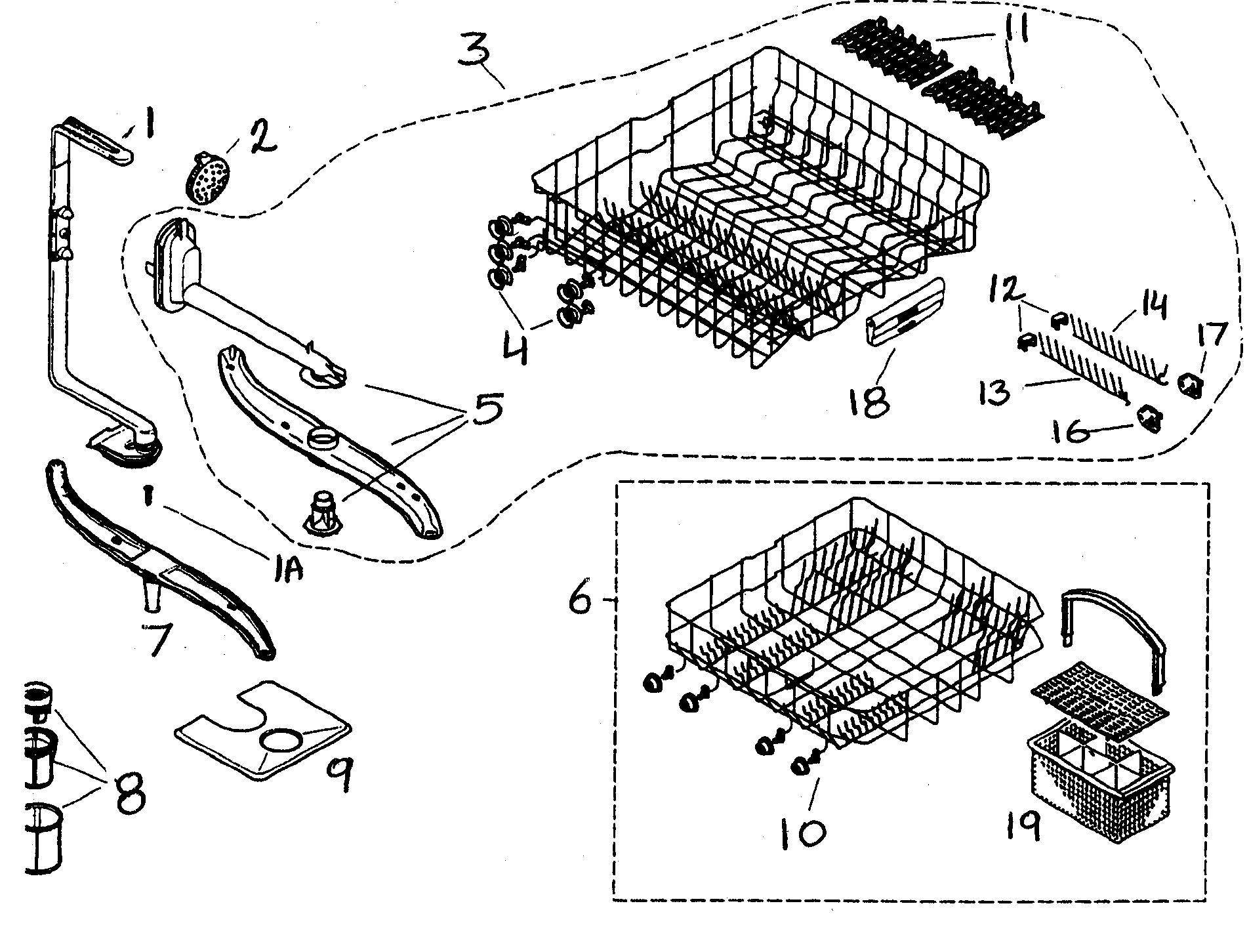

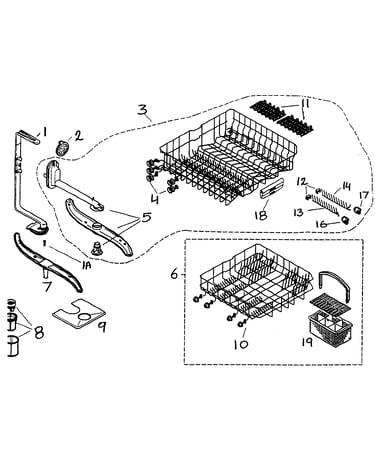

Racks diagram

Lower rack

Part #213967

Replaced by #00249276

?
Manufacturer substitution
This part replaces 213967. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
Back Order
Dishwasher Water Inlet Valve 263833
#35

Component assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Snap Lock 421781
#4A

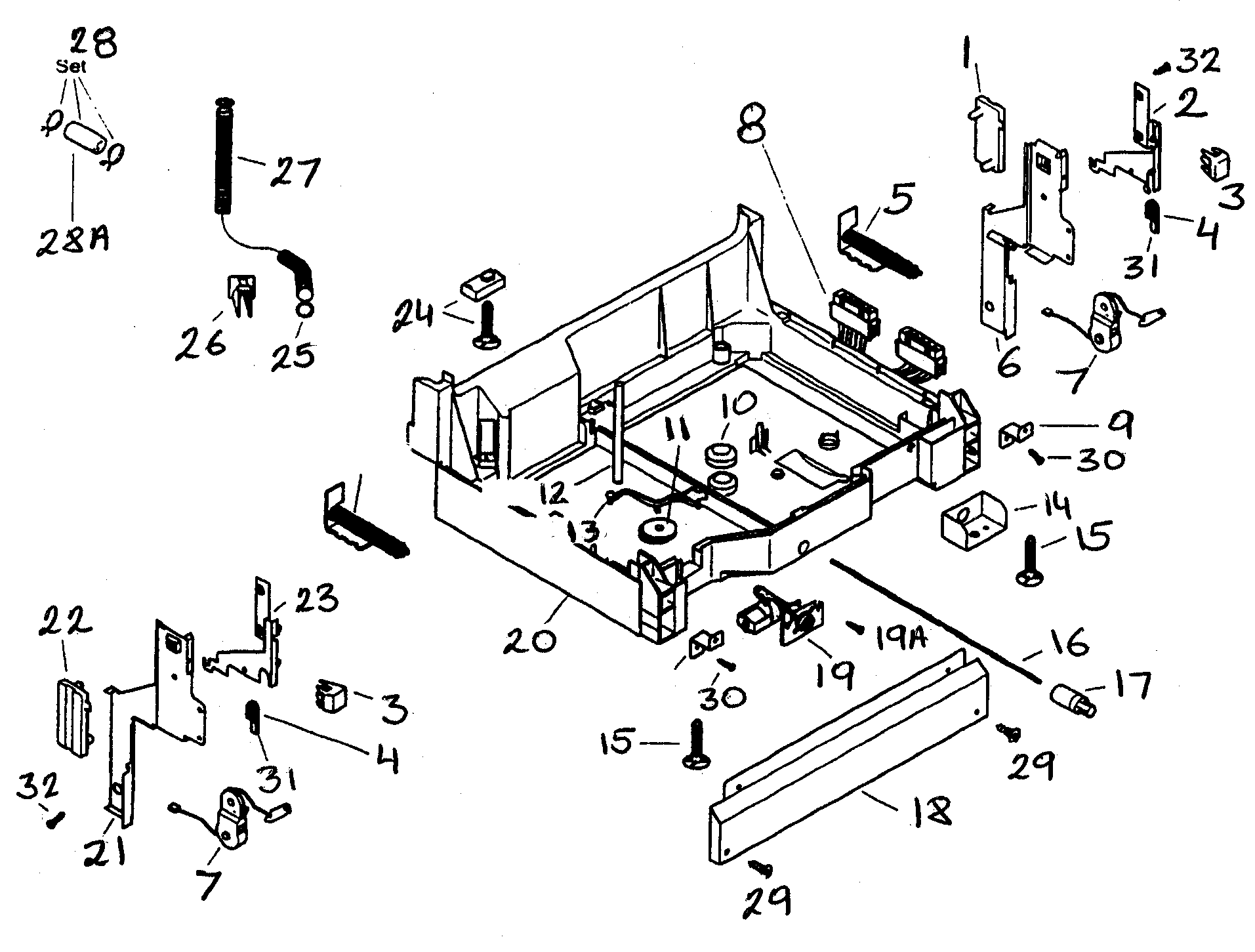

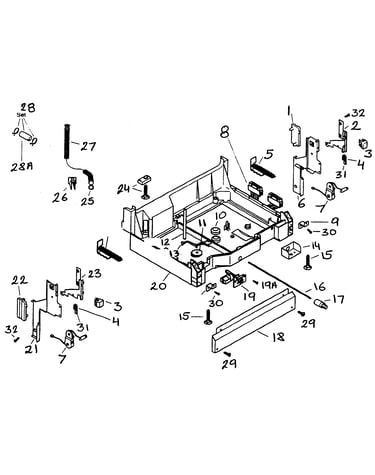

Base diagram

Snap lock

Part #421781

Replaced by #00165296

?
Manufacturer substitution
This part replaces 421781. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Bearing 165296
#4

Base diagram

Bearing

Part #165296

Replaced by #00165296

?
Manufacturer substitution
This part replaces 165296. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Dishwasher Dishrack Slide Rail Stop, Upper 165254
#7

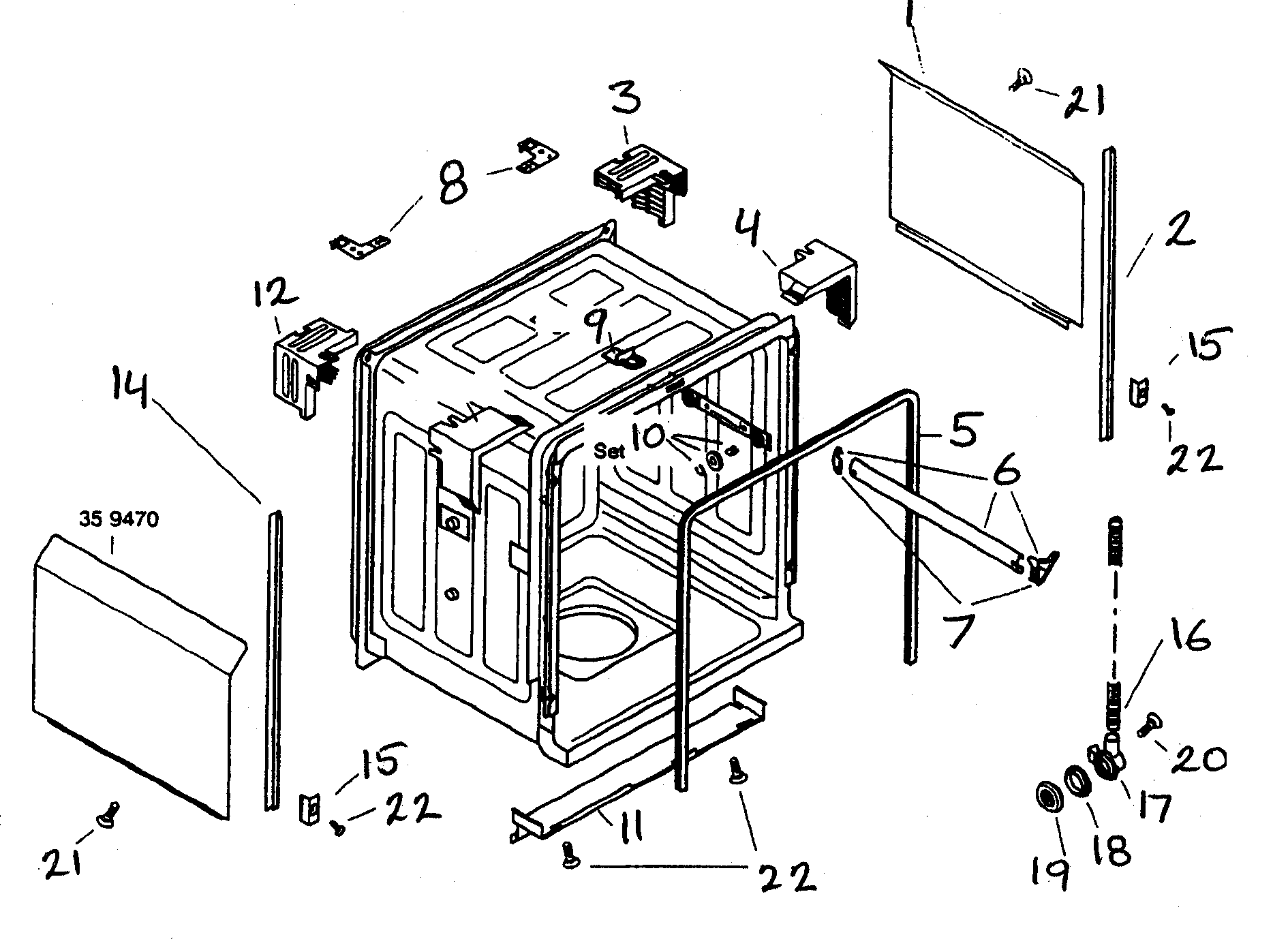

Tank assy diagram

Dishwasher dishrack slide rail stop, upper

Part #165254

Replaced by #00165254

?
Manufacturer substitution
This part replaces 165254. Substitute parts can look different from the original.
This item is not returnable
$15.56 |
11% OFF Phone Price : $17.56
In Stock
Door Gasket 263096
#5

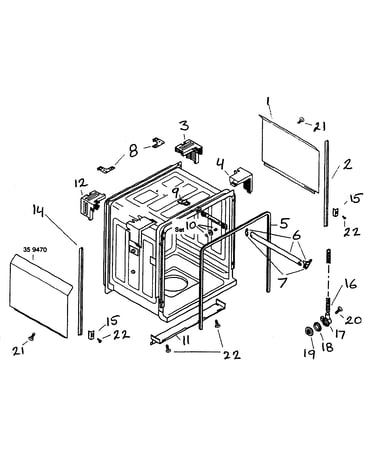

Tank assy diagram

Door gasket

Part #263096

Replaced by #00263096

?
Manufacturer substitution
This part replaces 263096. Substitute parts can look different from the original.
$77.20 |
7% OFF Phone Price : $83.20
In Stock
Sensor 165279
#5

Component assy diagram

Sensor

Part #165279

Replaced by #00165279

?
Manufacturer substitution
This part replaces 165279. Substitute parts can look different from the original.
$54.79 |
10% OFF Phone Price : $60.79
In Stock
