Model # RBS305PRQ00 Official Whirlpool electric built-in oven
Here are the diagrams and repair parts for Official Whirlpool RBS305PRQ00 electric built-in oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

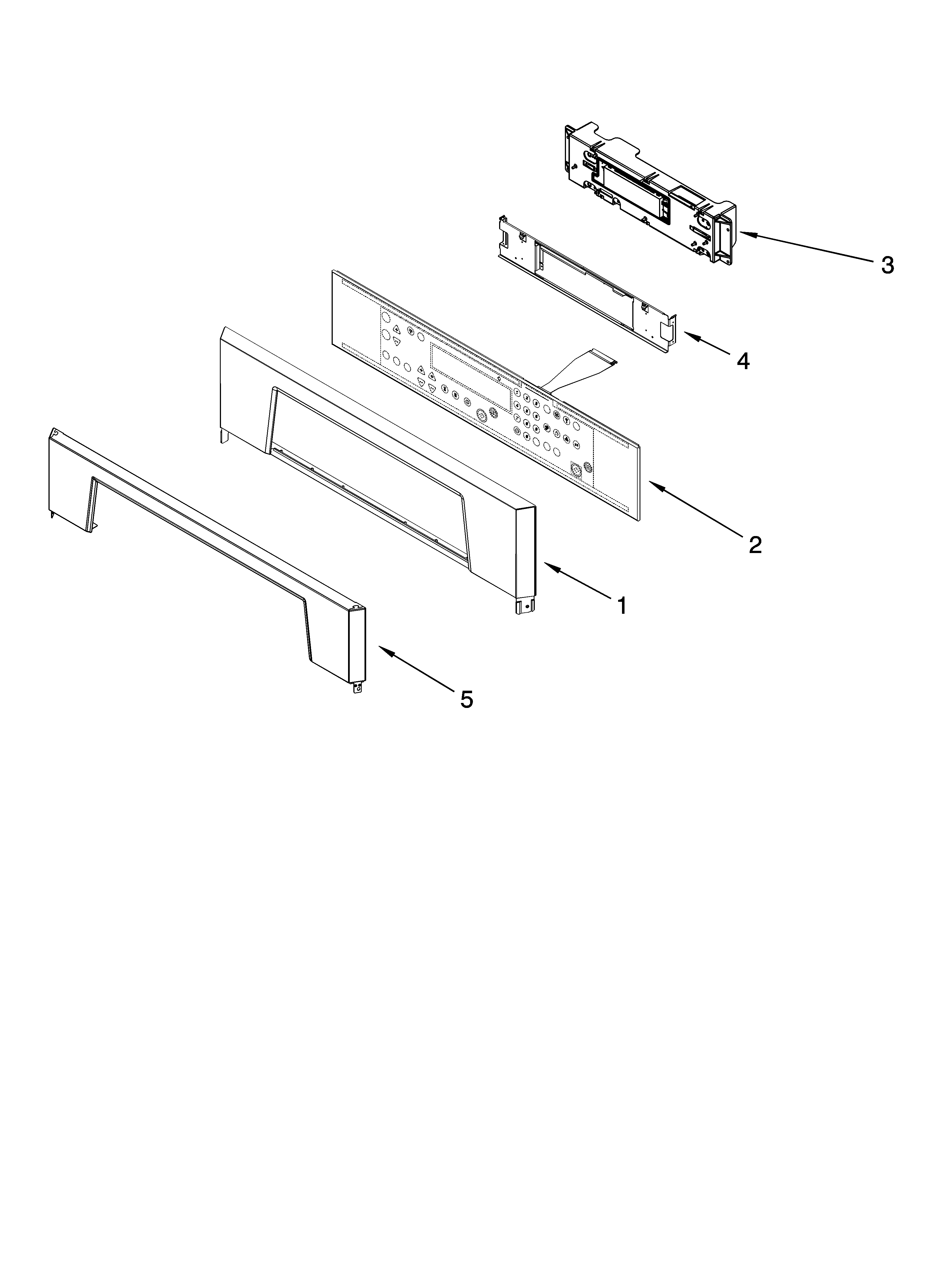

SELECT DIAGRAM
Browse Parts forRBS305PRQ00 Wall Ovens
- #7

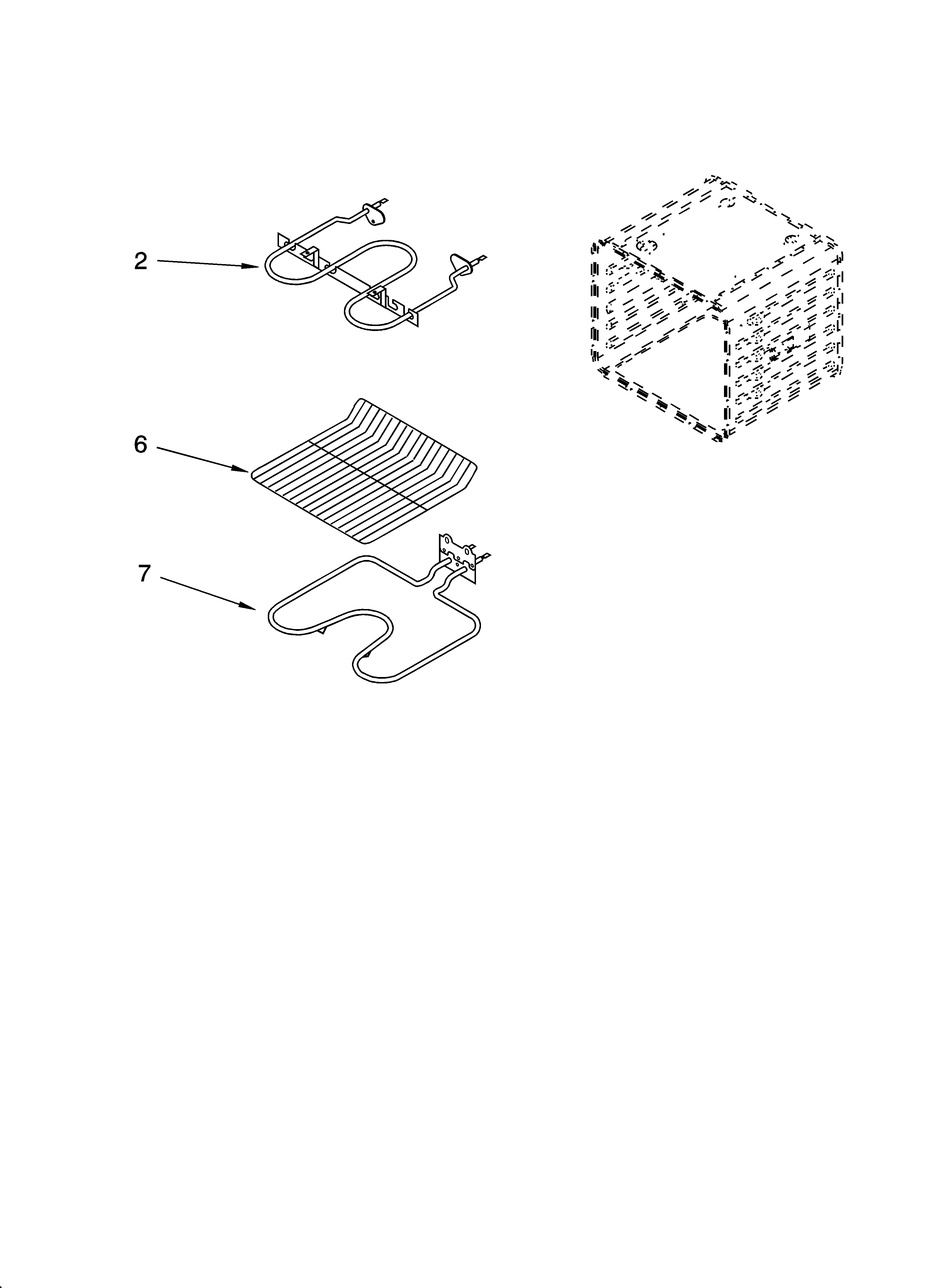

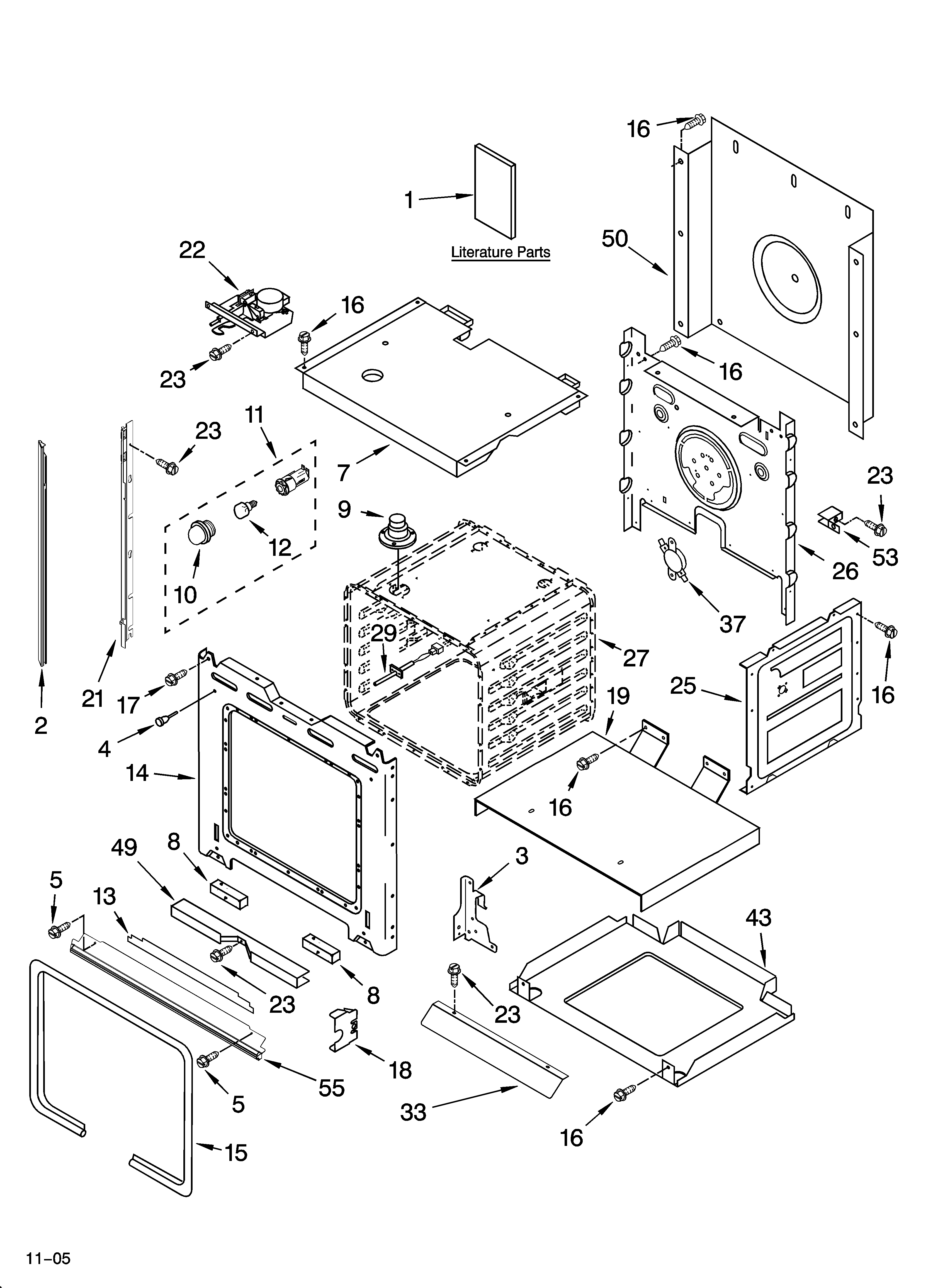

Internal oven parts diagram
Bake elementPart #4452153
Replaced by #WPW10207397
?Manufacturer substitutionThis part replaces 4452153. Substitute parts can look different from the original.$48.85 |11% OFF Phone Price : $54.85In Stock - #29
Oven parts diagram
Wall oven temperature sensorPart #4455636
Replaced by #WPW10131825
?Manufacturer substitutionThis part replaces 4455636. Substitute parts can look different from the original.$54.69 |10% OFF Phone Price : $60.69In Stock - #2
Internal oven parts diagram
Broiler elementPart #4456103
Replaced by #WP9760771
?Manufacturer substitutionThis part replaces 4456103. Substitute parts can look different from the original.$71.05 |8% OFF Phone Price : $77.05In Stock - #37
Oven parts diagram
Range high-limit thermostatPart #9759243
Replaced by #WP9759243
?Manufacturer substitutionThis part replaces 9759243. Substitute parts can look different from the original.$43.16 |12% OFF Phone Price : $49.16In Stock - #NI
Top venting parts, optional parts diagram
AdhesivePart #482338
Replaced by #WP482338
?Manufacturer substitutionThis part replaces 482338. Substitute parts can look different from the original.$29.41 |17% OFF Phone Price : $35.41In Stock - #6
Internal oven parts diagram
Oven rackPart #4448717
Replaced by #WPW10179152
?Manufacturer substitutionThis part replaces 4448717. Substitute parts can look different from the original.$58.22 |9% OFF Phone Price : $64.22In Stock - #15
Oven parts diagram
Door gasketPart #4455382
Replaced by #W11675844
?Manufacturer substitutionThis part replaces 4455382. Substitute parts can look different from the original.$32.60 |16% OFF Phone Price : $38.60In Stock - #2C

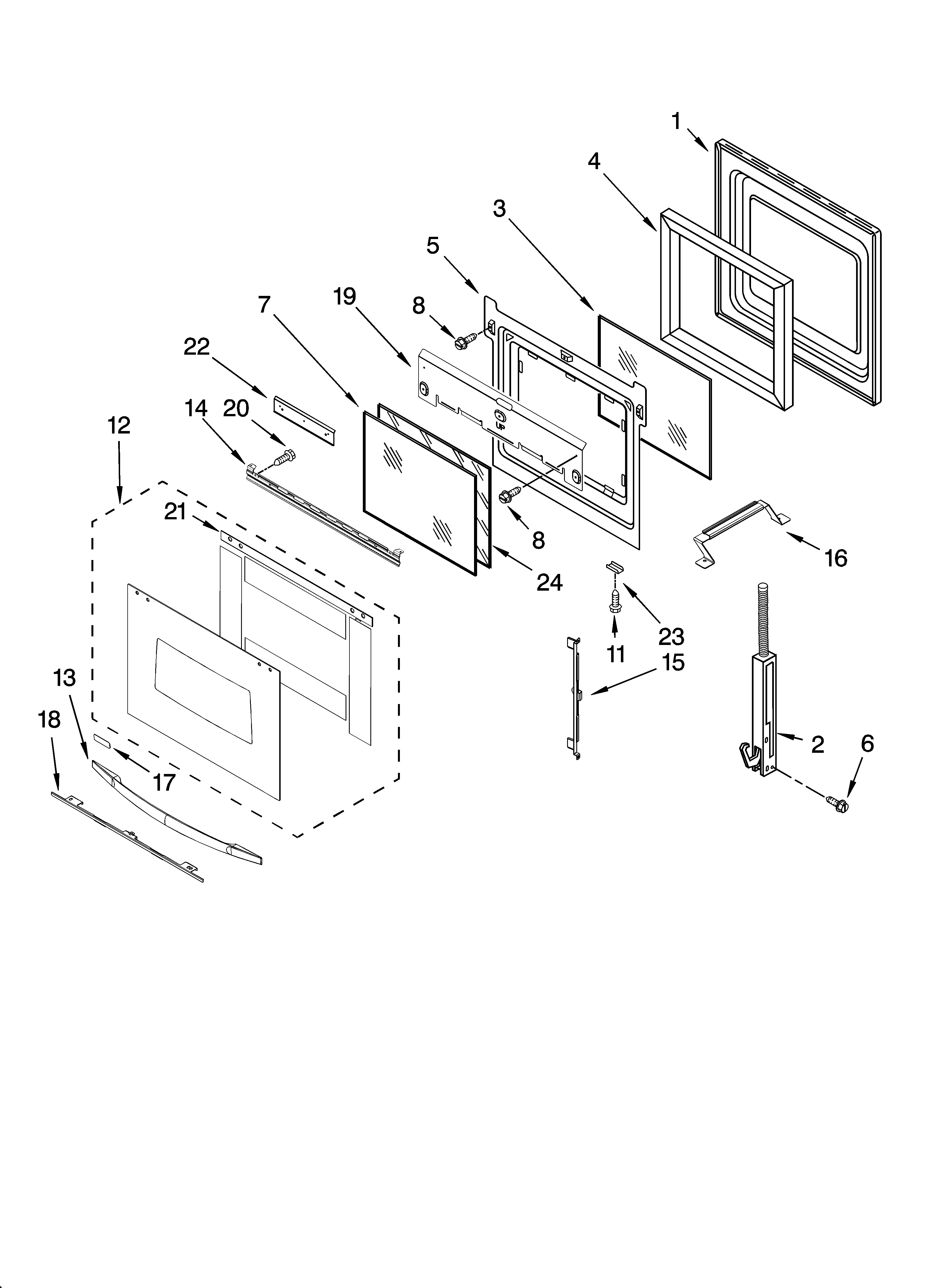

Oven door parts diagram
Oven door hinge (blue)Part #9760574
Replaced by #WP9760574
?Manufacturer substitutionThis part replaces 9760574. Substitute parts can look different from the original.$48.57 |11% OFF Phone Price : $54.57In Stock - #4
Oven door parts diagram
Wall oven door insulationPart #4451722
Replaced by #WP4451722
?Manufacturer substitutionThis part replaces 4451722. Substitute parts can look different from the original.$79.19 |7% OFF Phone Price : $85.19In Stock - Range screw
Part #4449154
Replaced by #WP4449154
?Manufacturer substitutionThis part replaces 4449154. Substitute parts can look different from the original.This item is not returnable$3.89 |20% OFF Phone Price : $4.89In Stock
