Frigidaire
Side-By-Side Refrigerator

Model # FRS23LH5DSA Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRS23LH5DSA refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

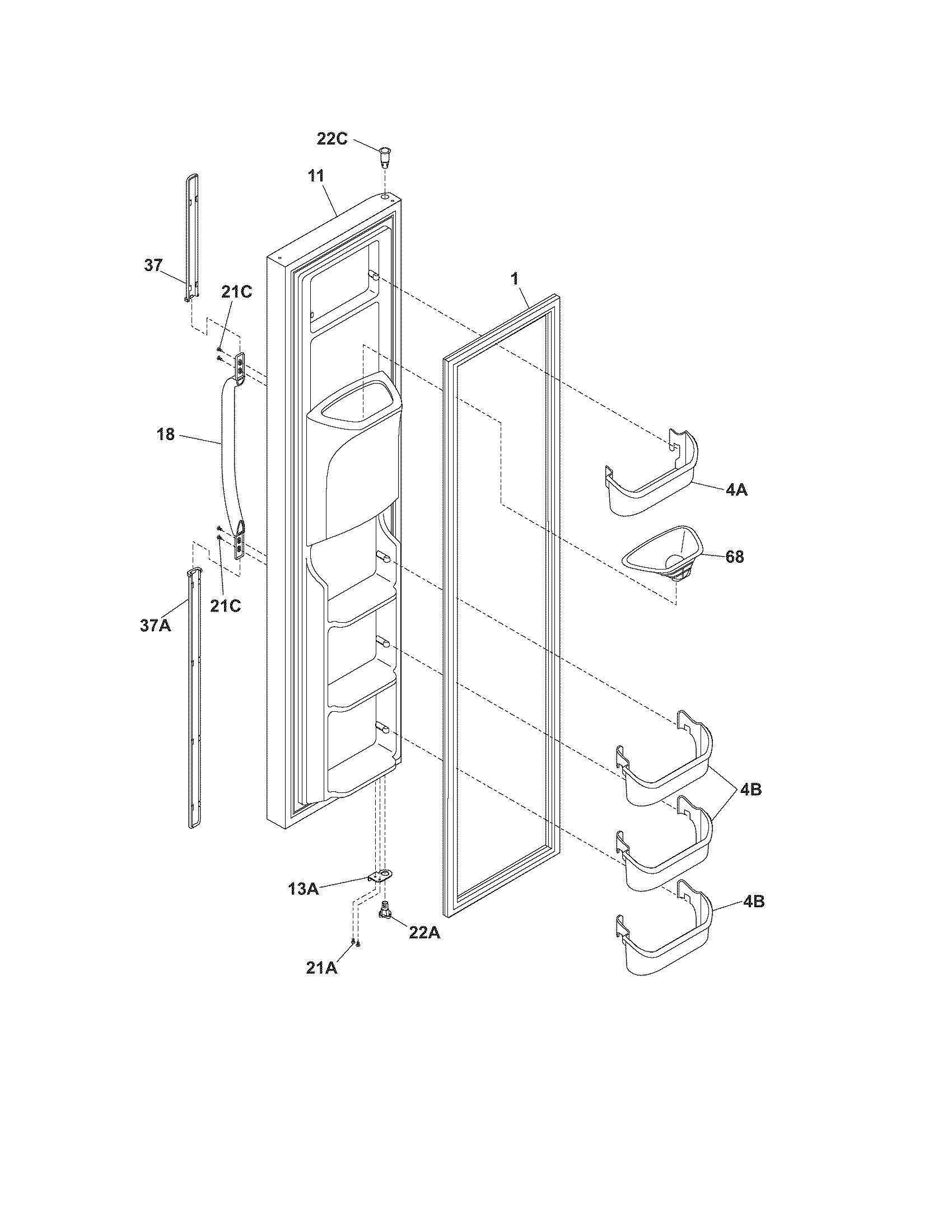

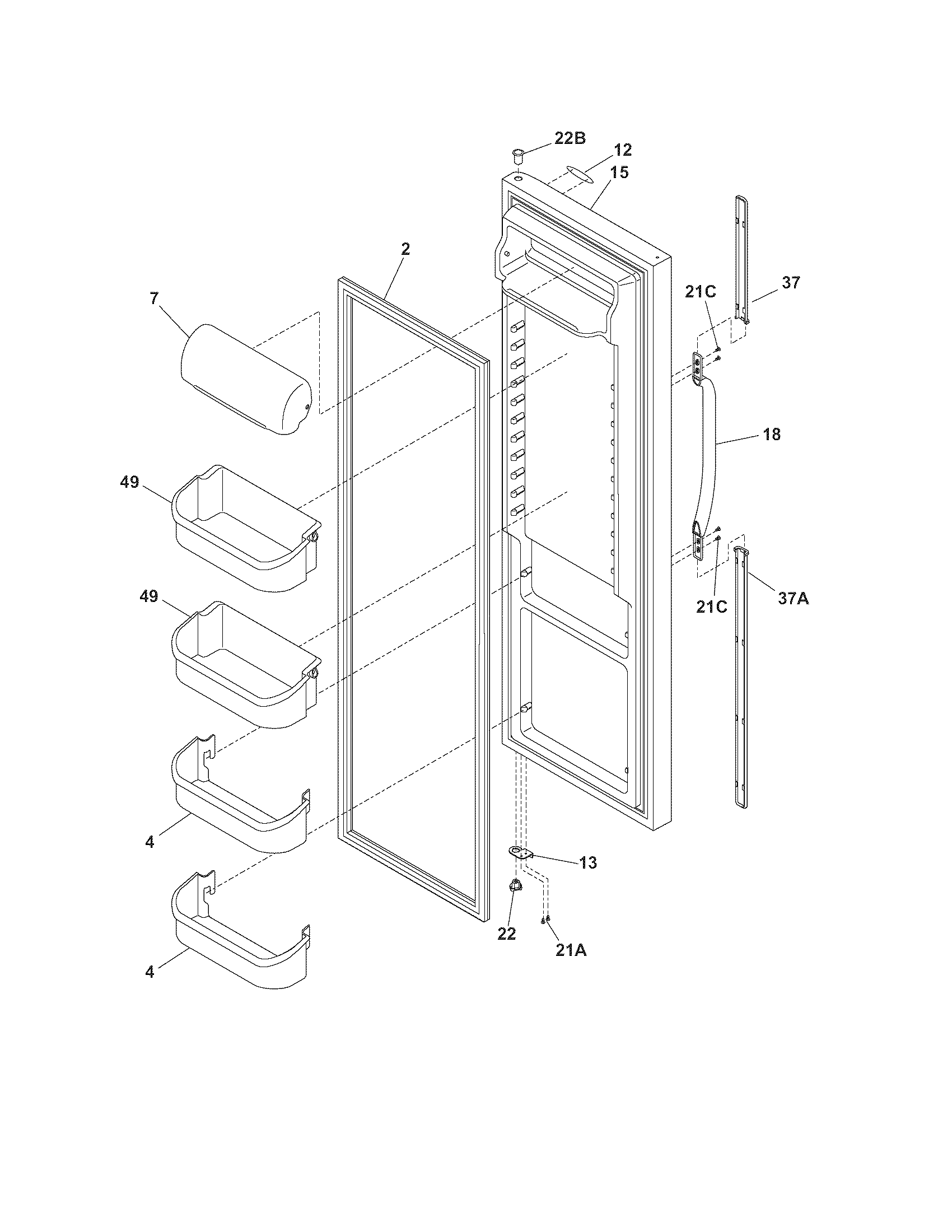

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

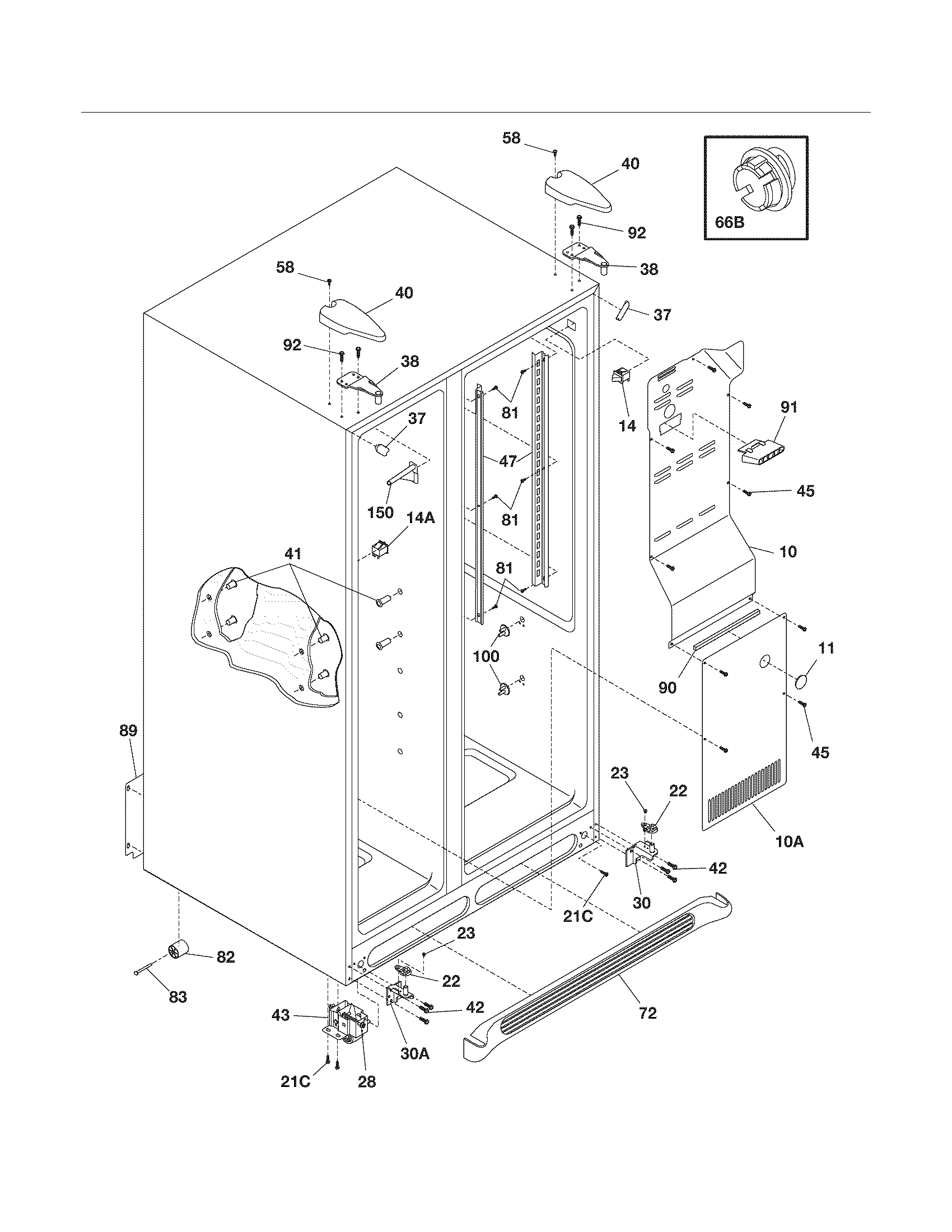

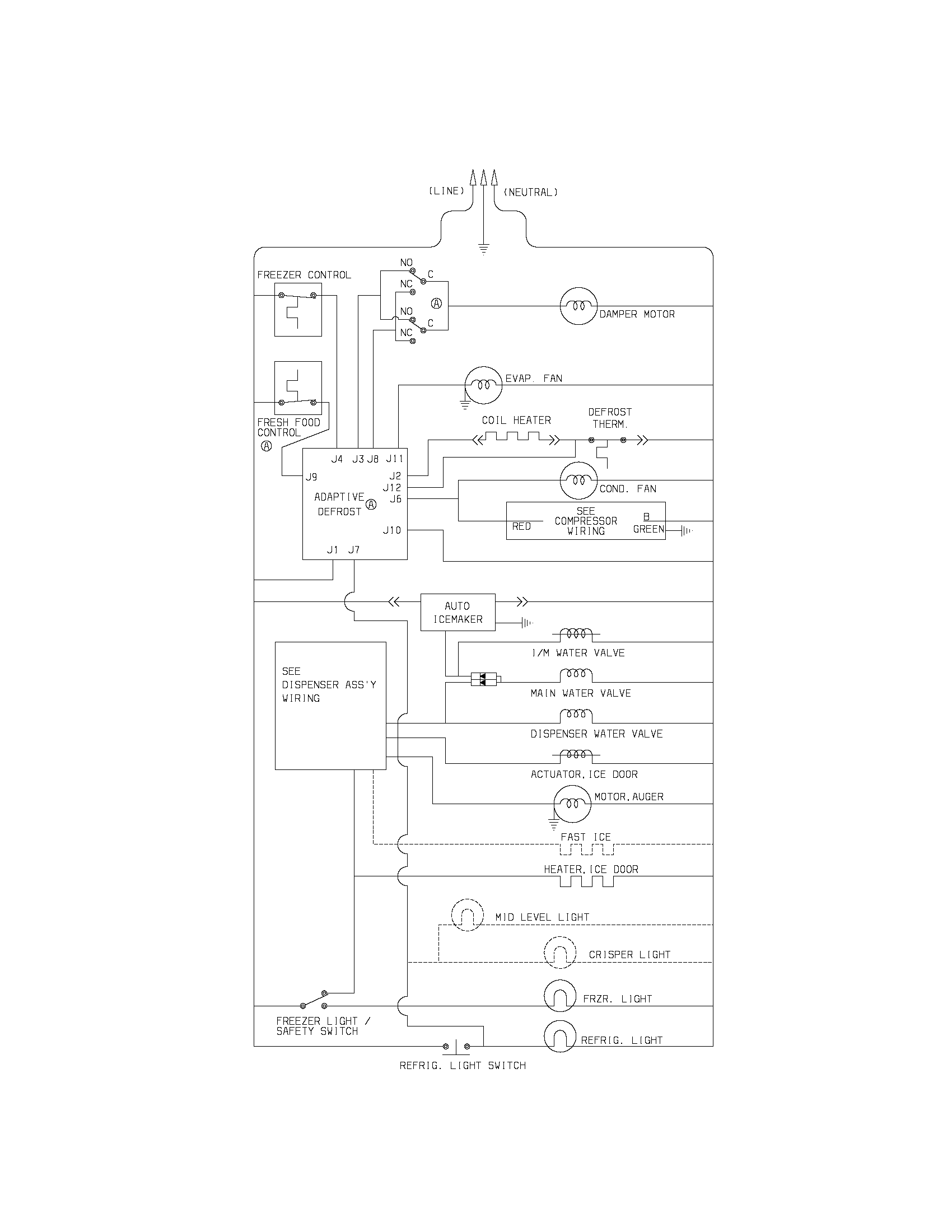

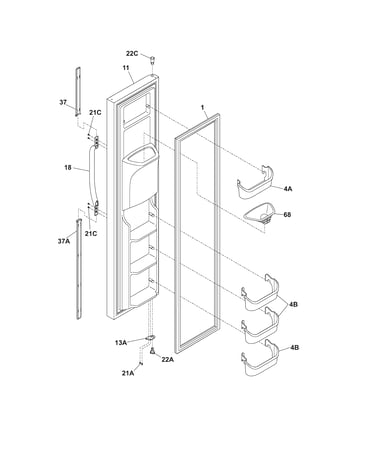

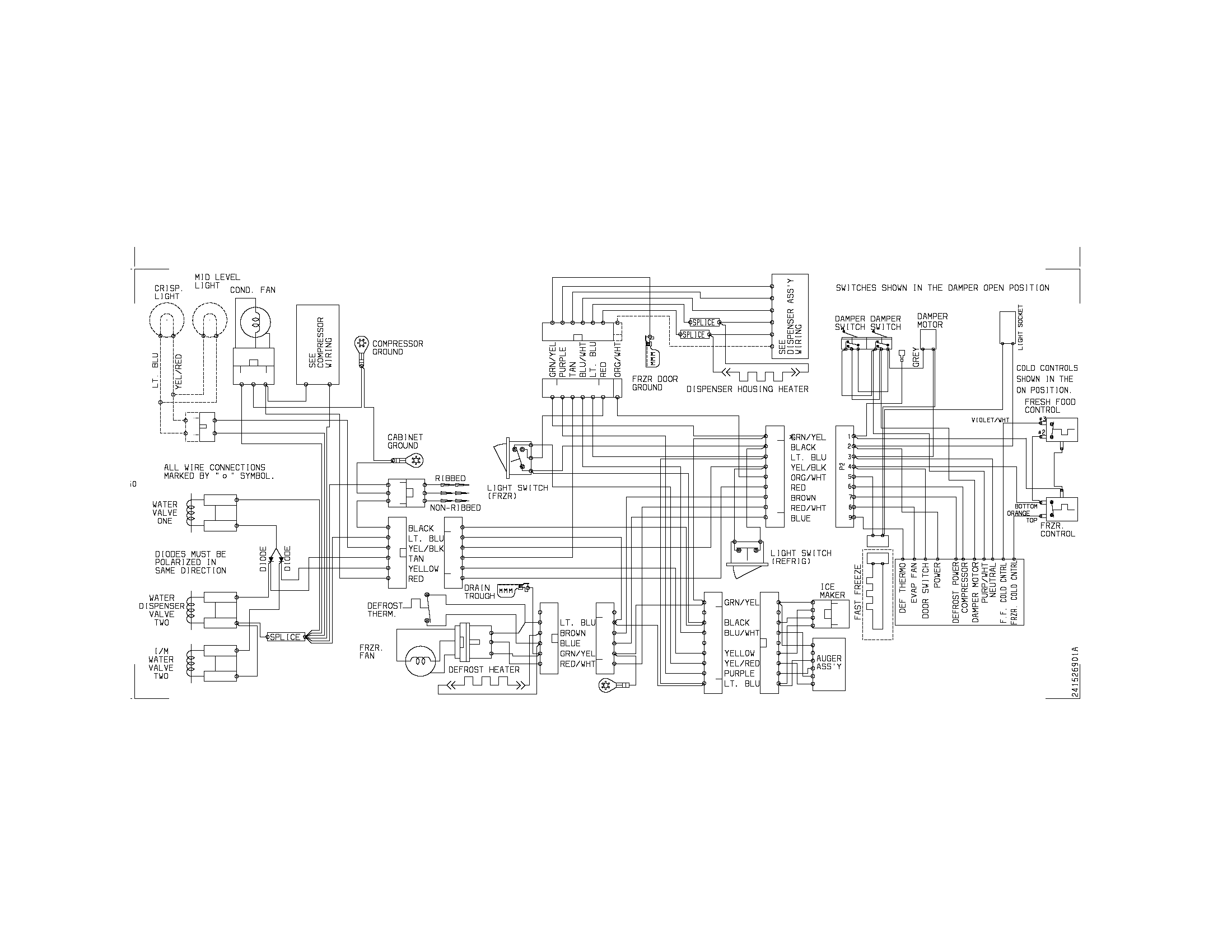

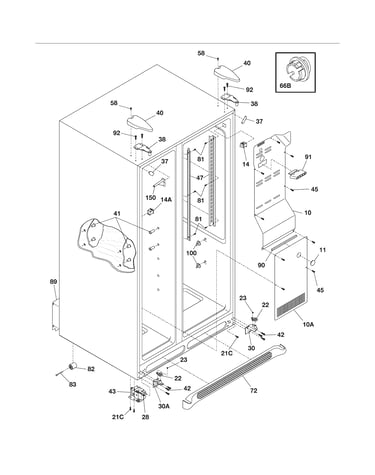

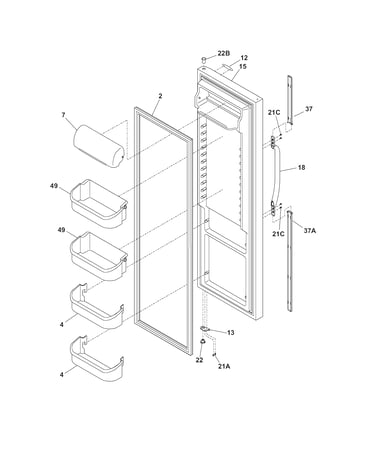

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |
Refrigerator Filter Drier 218944001
#4

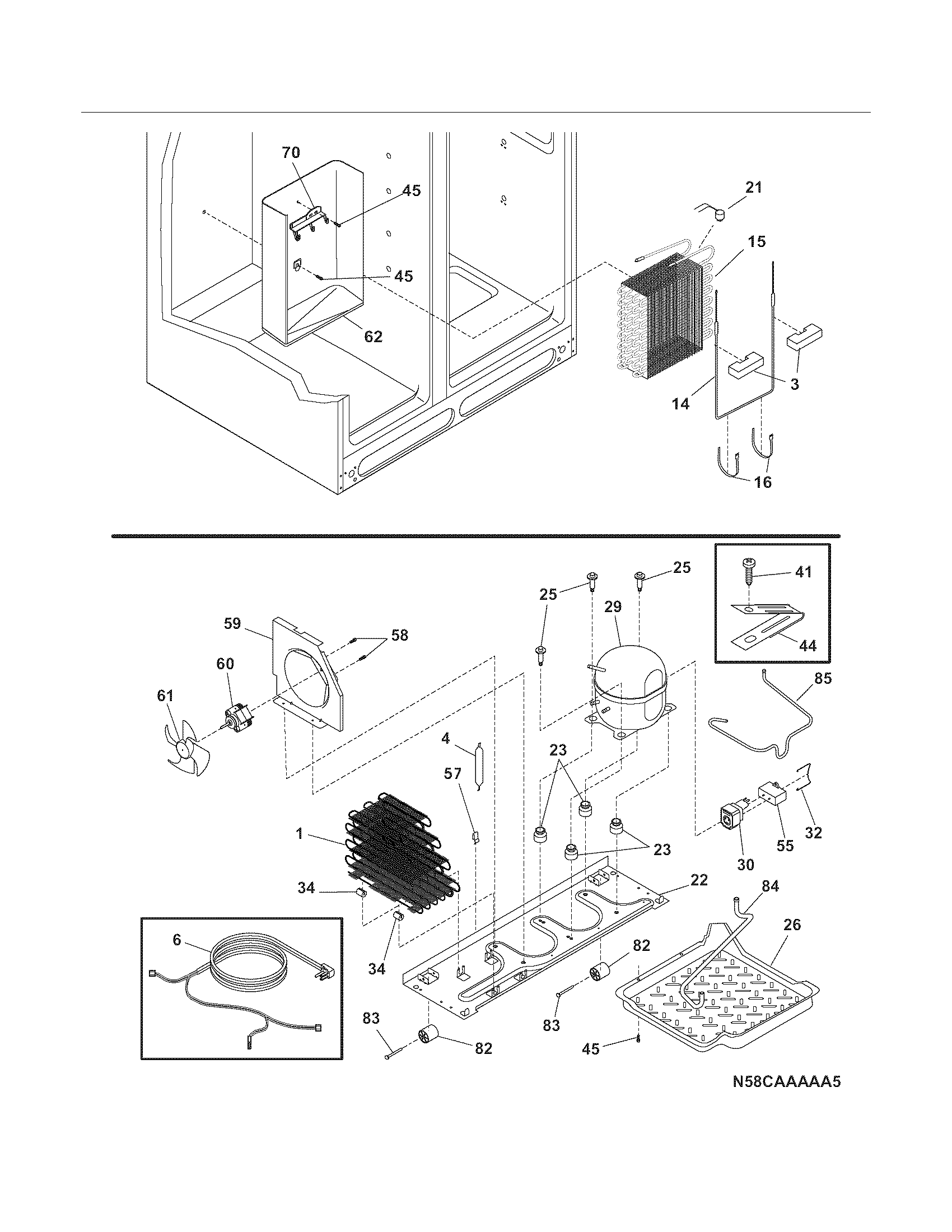

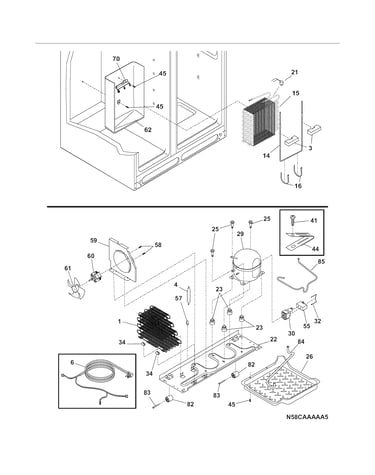

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly 240531101
#55

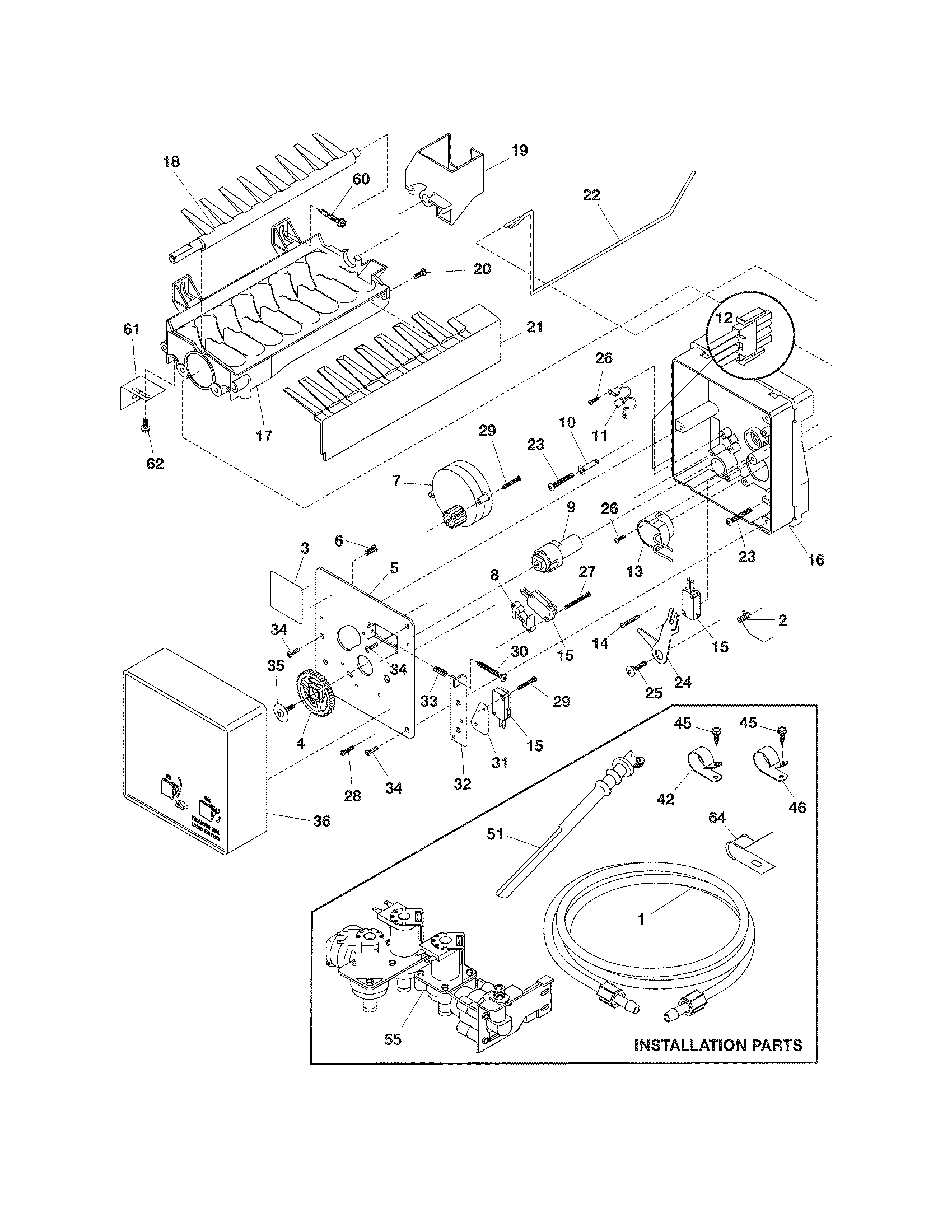

Ice maker diagram

Refrigerator water inlet valve assembly

Part #240531101

Replaced by #242252702

?
Manufacturer substitution
This part replaces 240531101. Substitute parts can look different from the original.
BEST SELLER
$76.44 |
7% OFF Phone Price : $82.44
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 75303918214) 5303918214
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 75303918214)

Part #5303918214

BEST SELLER
$22.75 |
21% OFF Phone Price : $28.75
In Stock
Frigidaire Puresource Plus Refrigerator Water Filter (replaces Wf1cb) WFCB
#137

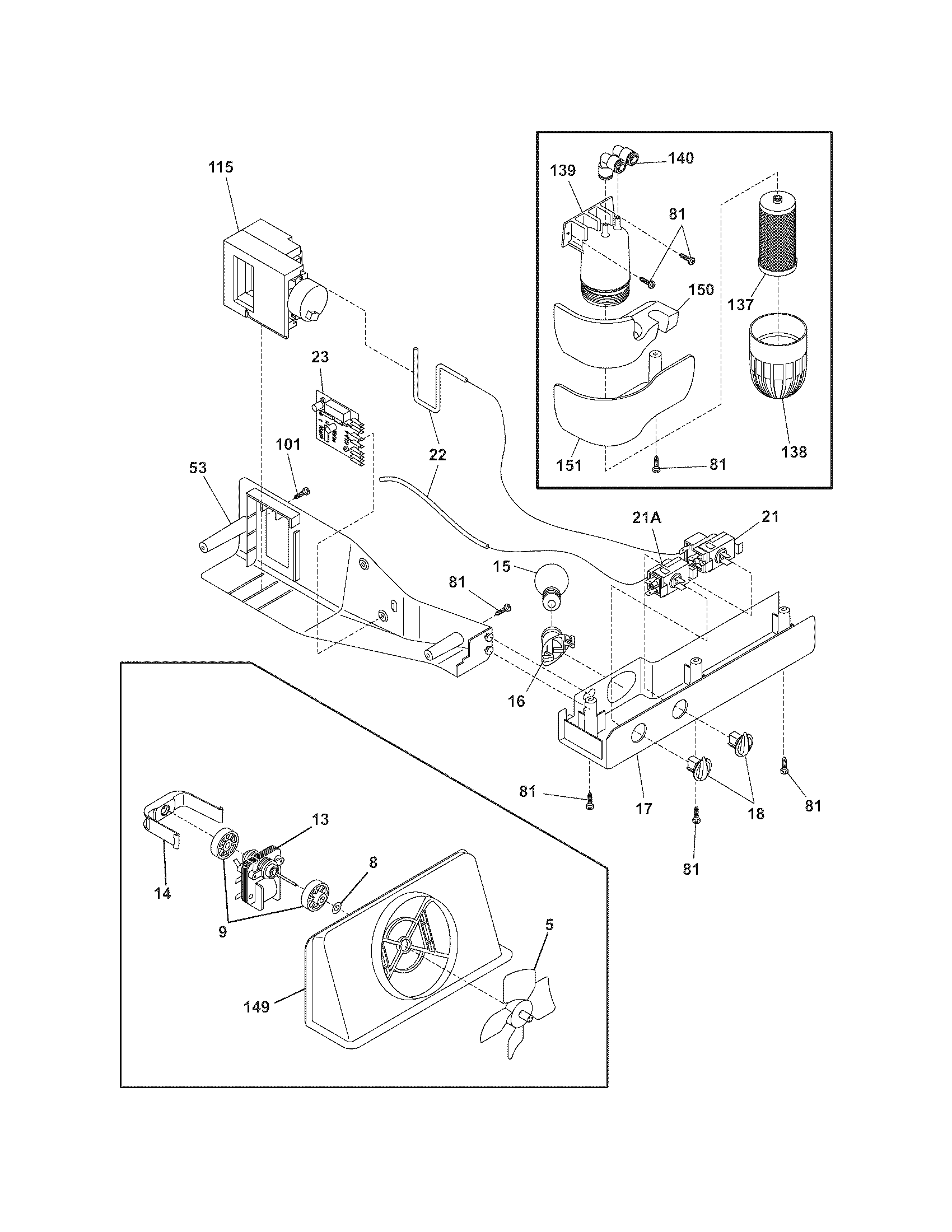

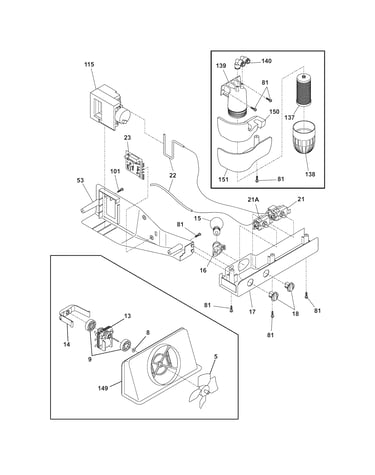

Controls diagram

Frigidaire puresource plus refrigerator water filter (replaces wf1cb)

Part #WFCB

BEST SELLER

Get free shipping with Automatic Reorder

$34.98
In Stock
Ice Container 240323808
#NI

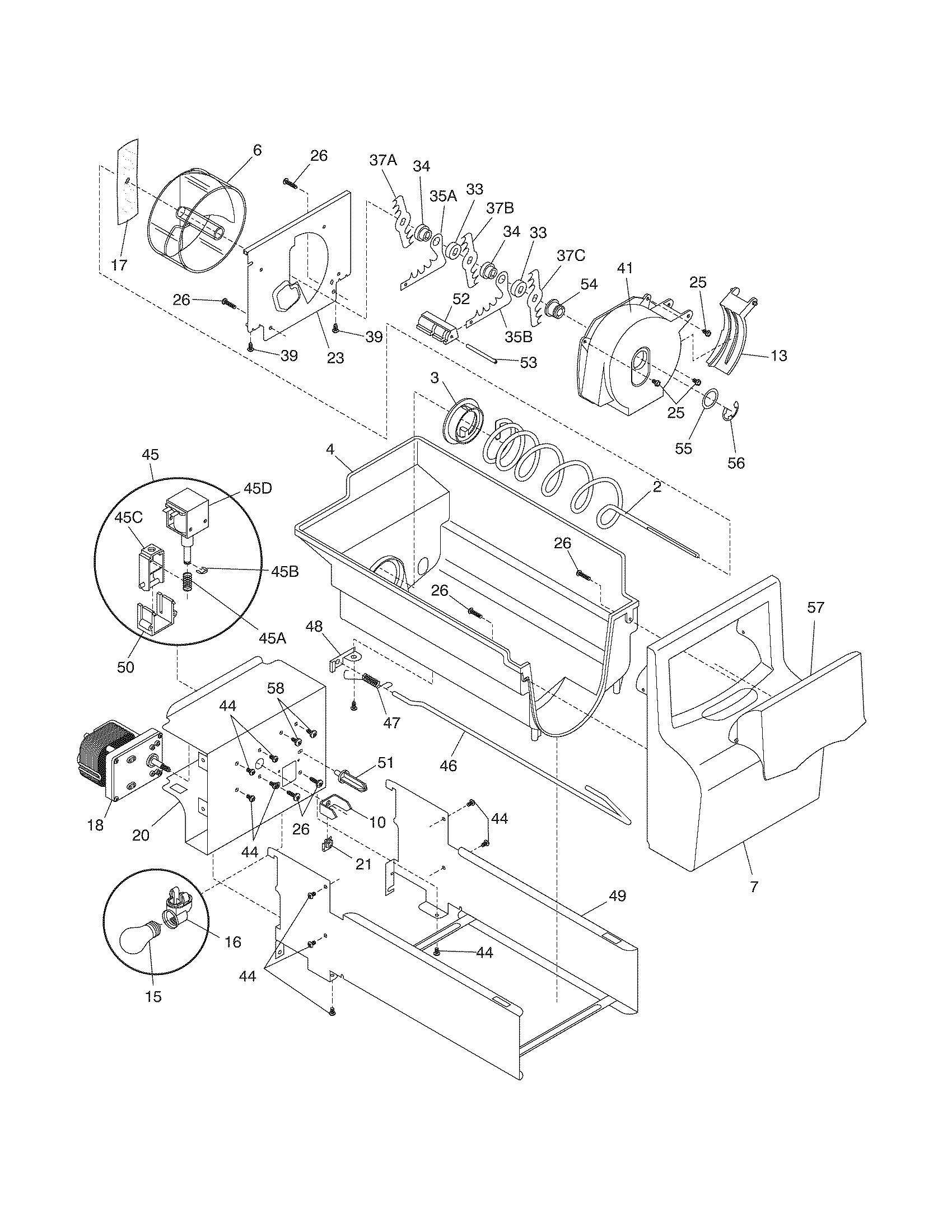

Ice container diagram

Ice container

Part #240323808

Replaced by #241860803

?
Manufacturer substitution
This part replaces 240323808. Substitute parts can look different from the original.
BEST SELLER
$162.71 |
7% OFF Phone Price : $174.71
In Stock
Refrigerator Solenoid 5304404333
#45

Ice container diagram

Refrigerator solenoid

Part #5304404333

Replaced by #241675704

?
Manufacturer substitution
This part replaces 5304404333. Substitute parts can look different from the original.
BEST SELLER
$75.50 |
7% OFF Phone Price : $81.50
In Stock
Refrigerator Deli Drawer Hanger, Right 240356501
#42

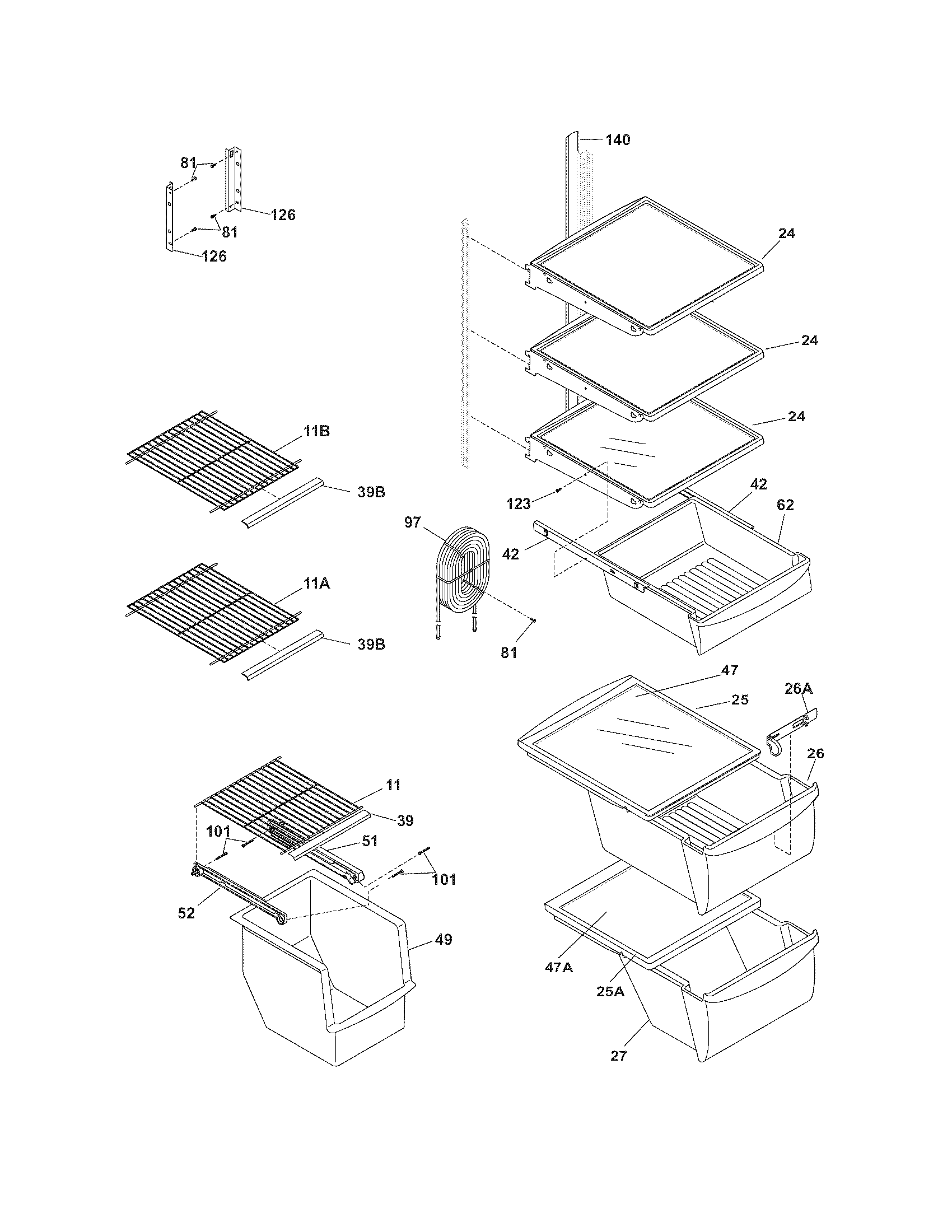

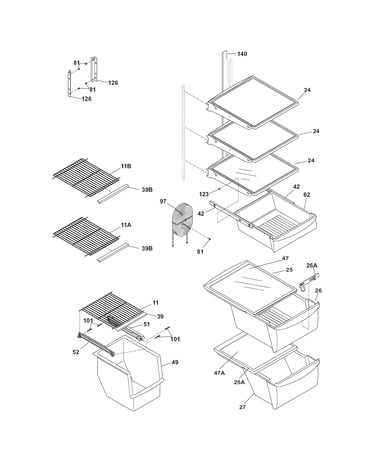

Shelves diagram

Refrigerator deli drawer hanger, right

Part #240356501

BEST SELLER
$41.78 |
13% OFF Phone Price : $47.78
In Stock
Refrigerator Ice Maker 240352411
#NI

Ice maker diagram

Refrigerator ice maker

Part #240352411

Replaced by #5304458371

?
Manufacturer substitution
This part replaces 240352411. Substitute parts can look different from the original.
BEST SELLER
$122.02 |
9% OFF Phone Price : $134.02
In Stock
Refrigerator Door Assembly 5304421628
#30

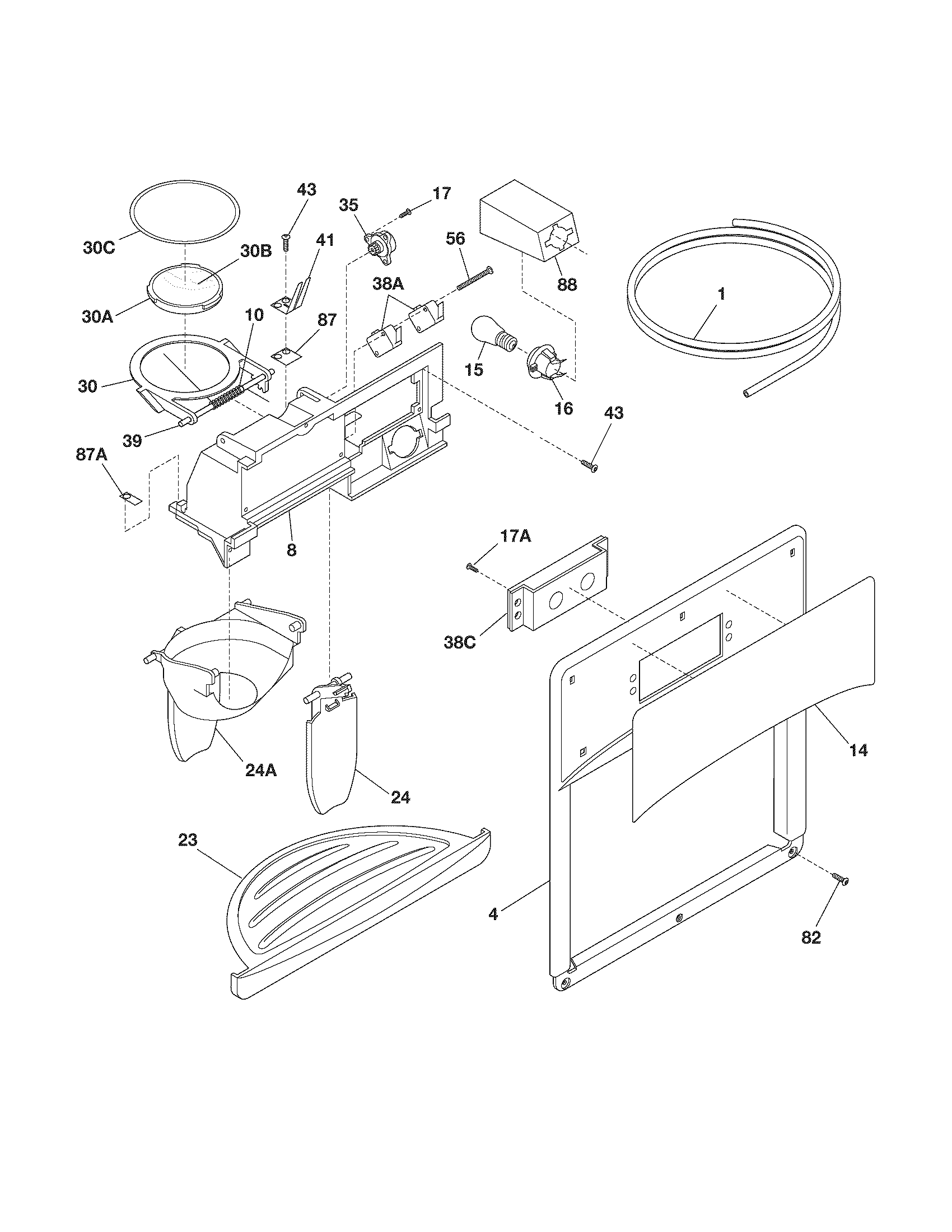

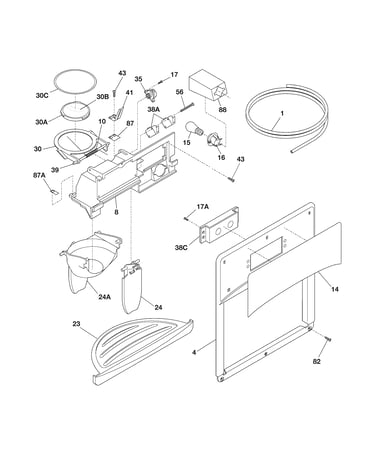

Ice & water dispenser diagram

Refrigerator door assembly

Part #5304421628

Replaced by #241688401

?
Manufacturer substitution
This part replaces 5304421628. Substitute parts can look different from the original.
BEST SELLER
$41.69 |
13% OFF Phone Price : $47.69
