Amana
Top-Mount Refrigerator

Model # TM16G-P75535-7W Official Amana top-mount stor-mor free-o-frost refrigerator

Here are the diagrams and repair parts for Official Amana TM16G-P75535-7W top-mount stor-mor free-o-frost refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

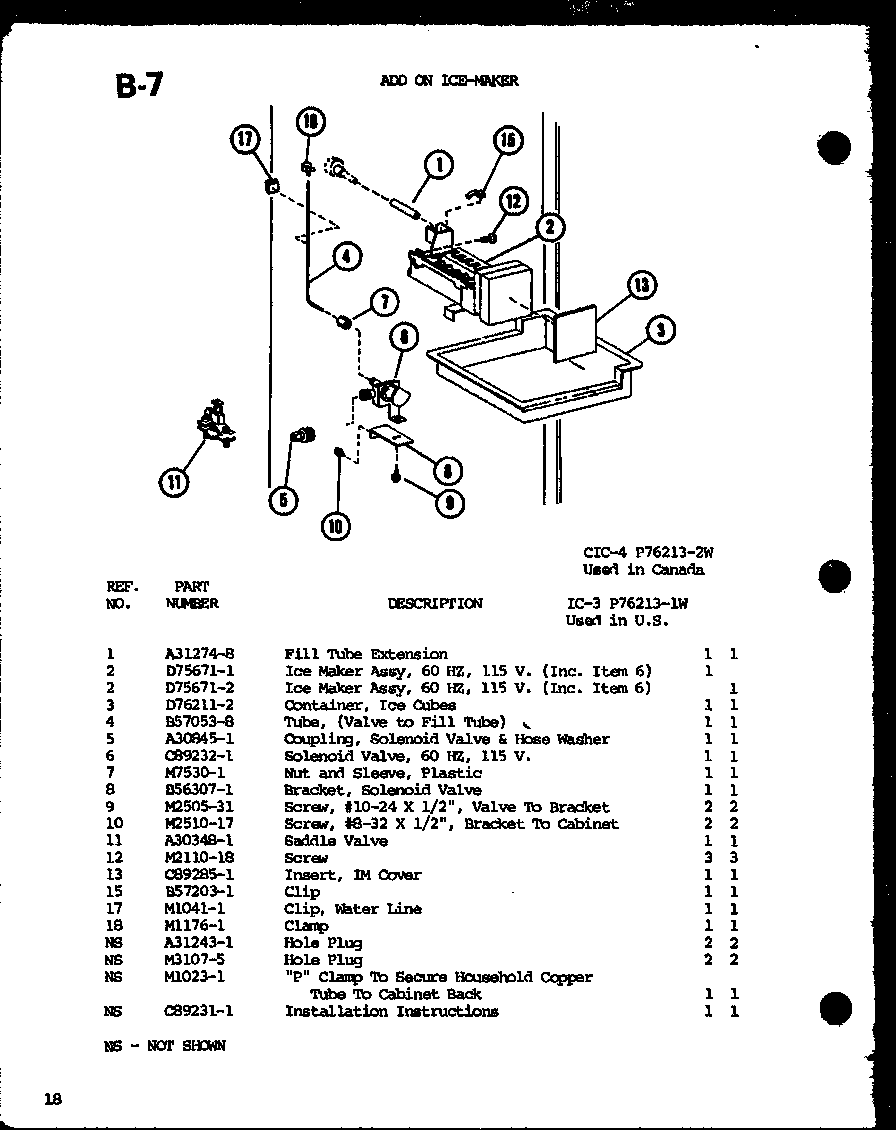

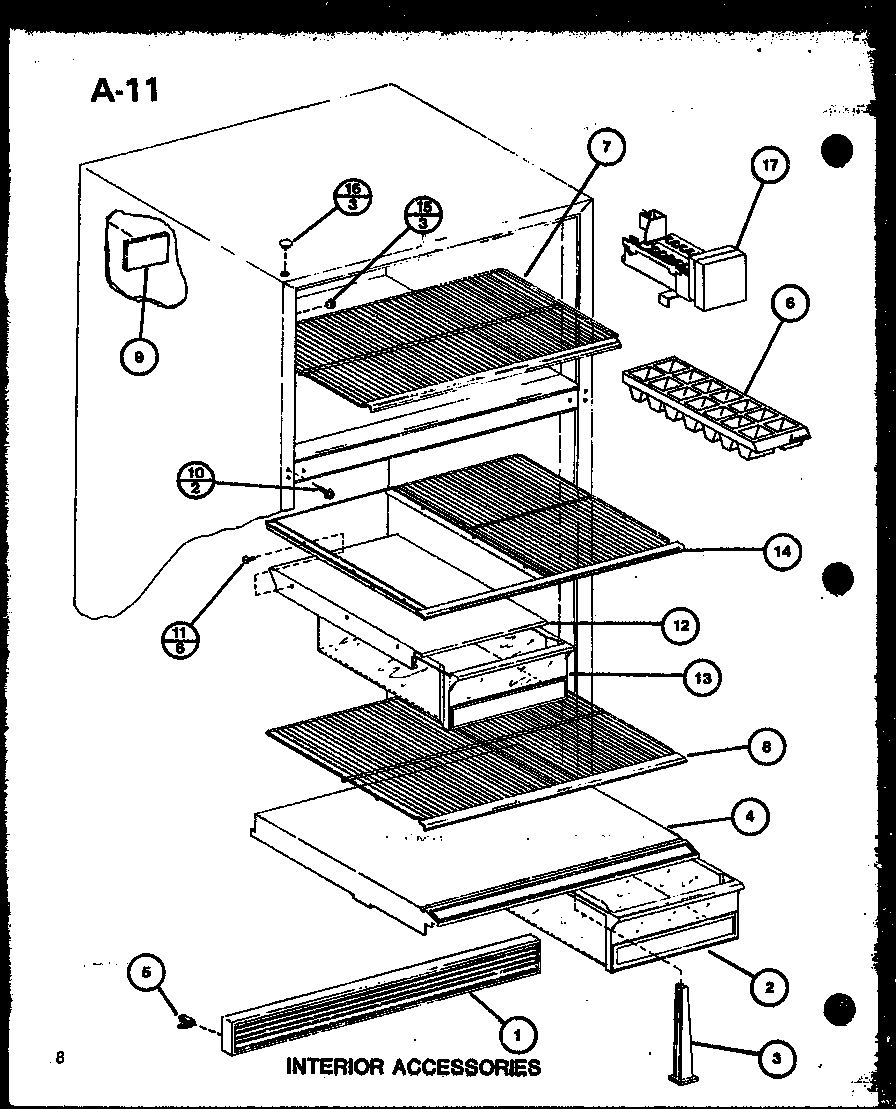

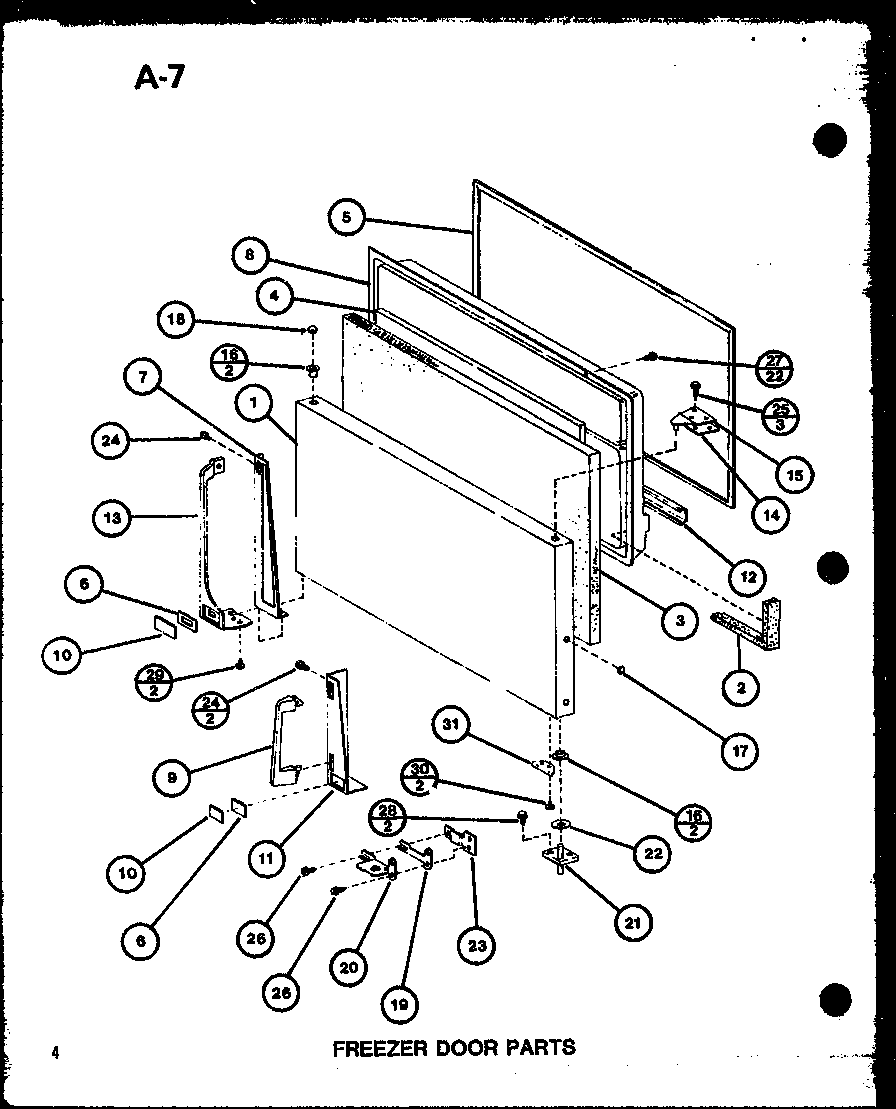

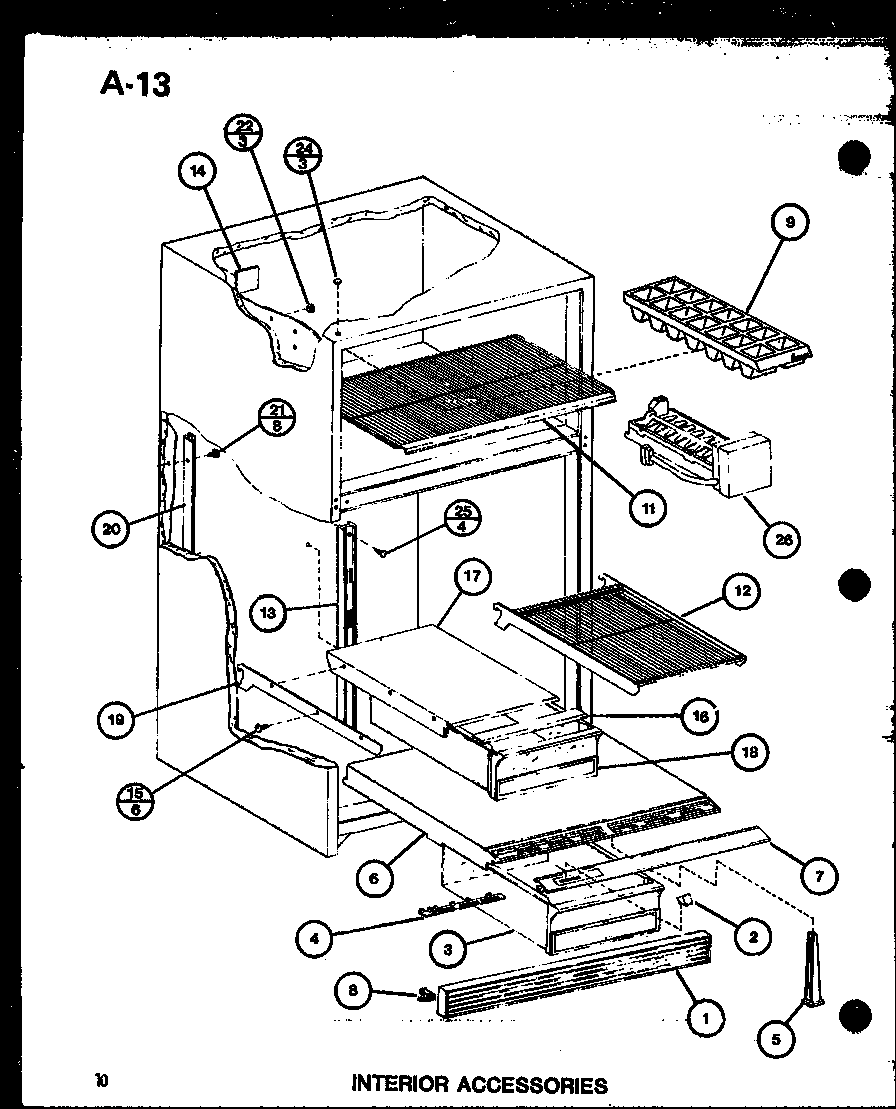

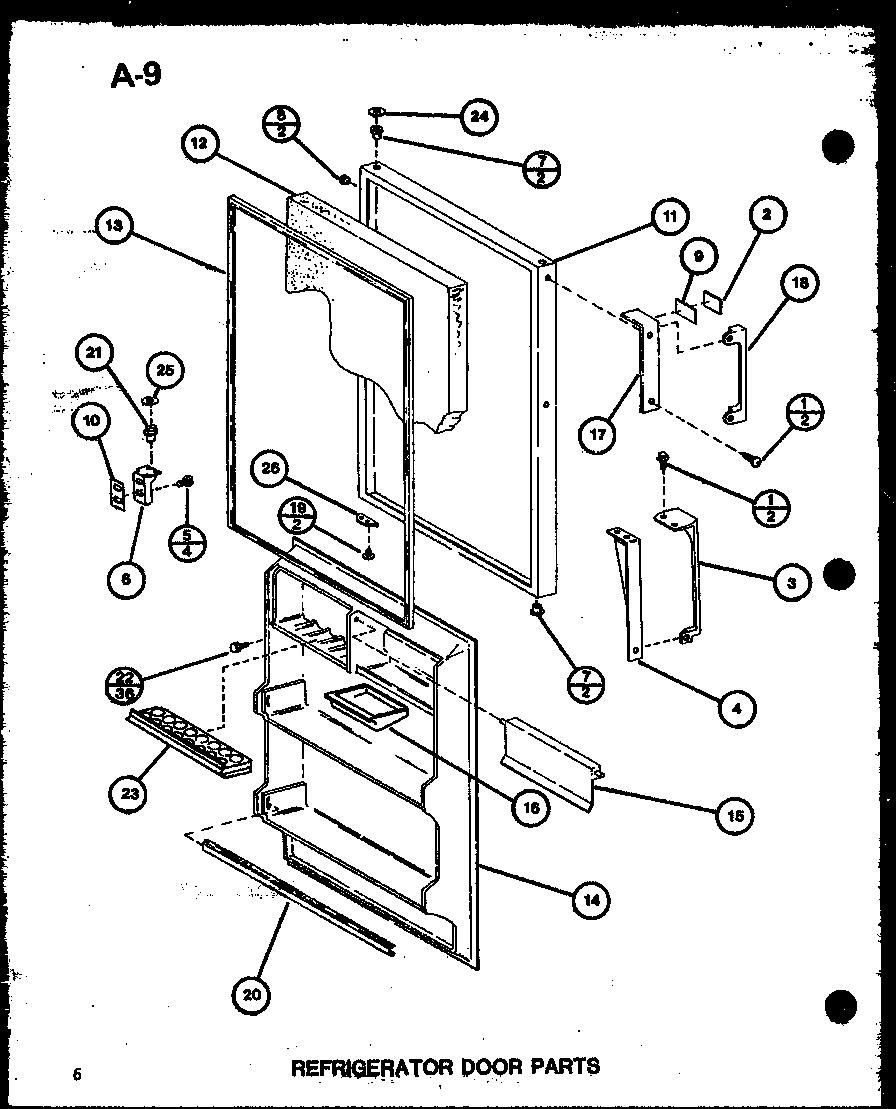

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |
Screw M0230917
#31

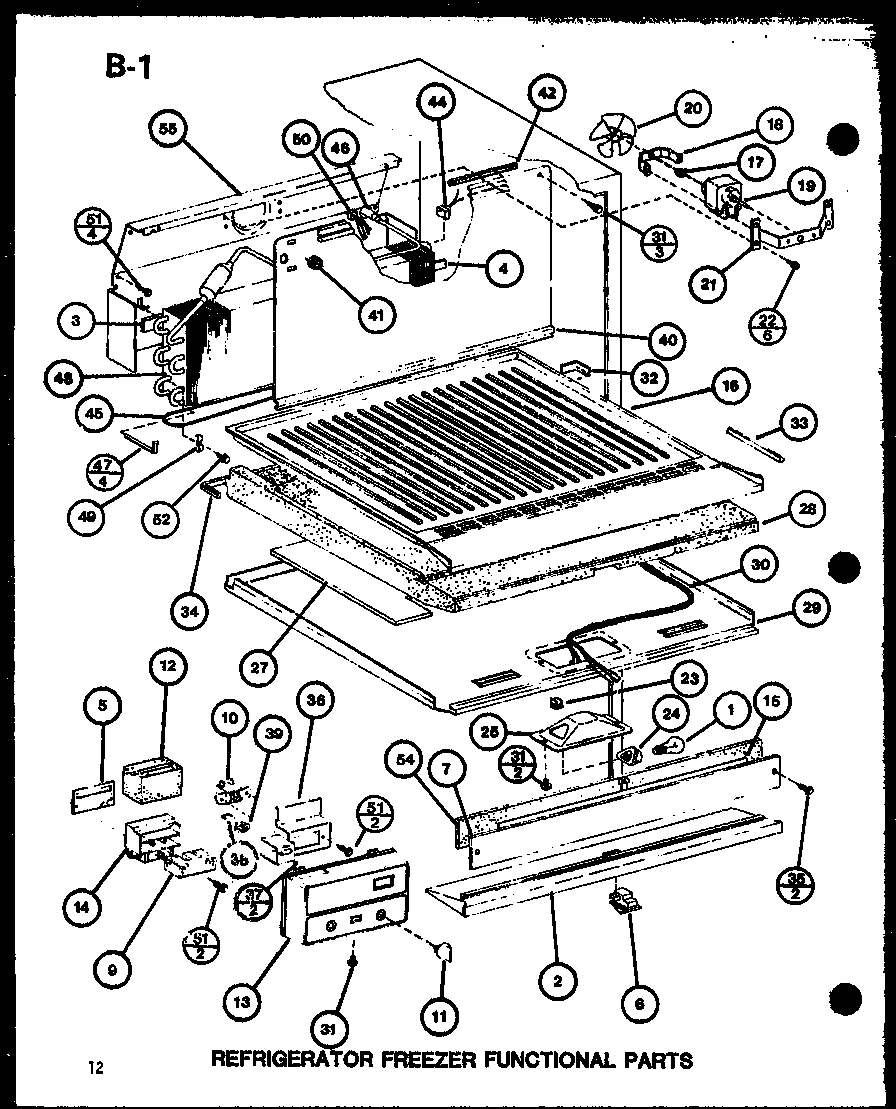

Refrigerator freezer functional parts (tm16g/p75535-7w) (tr16g/p75535-8w) diagram

Screw

Part #M0230917

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0230917. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Clip M0117301
Clip

Part #M0117301

Replaced by #WPM0117303

?
Manufacturer substitution
This part replaces M0117301. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Roller M0520102
#20

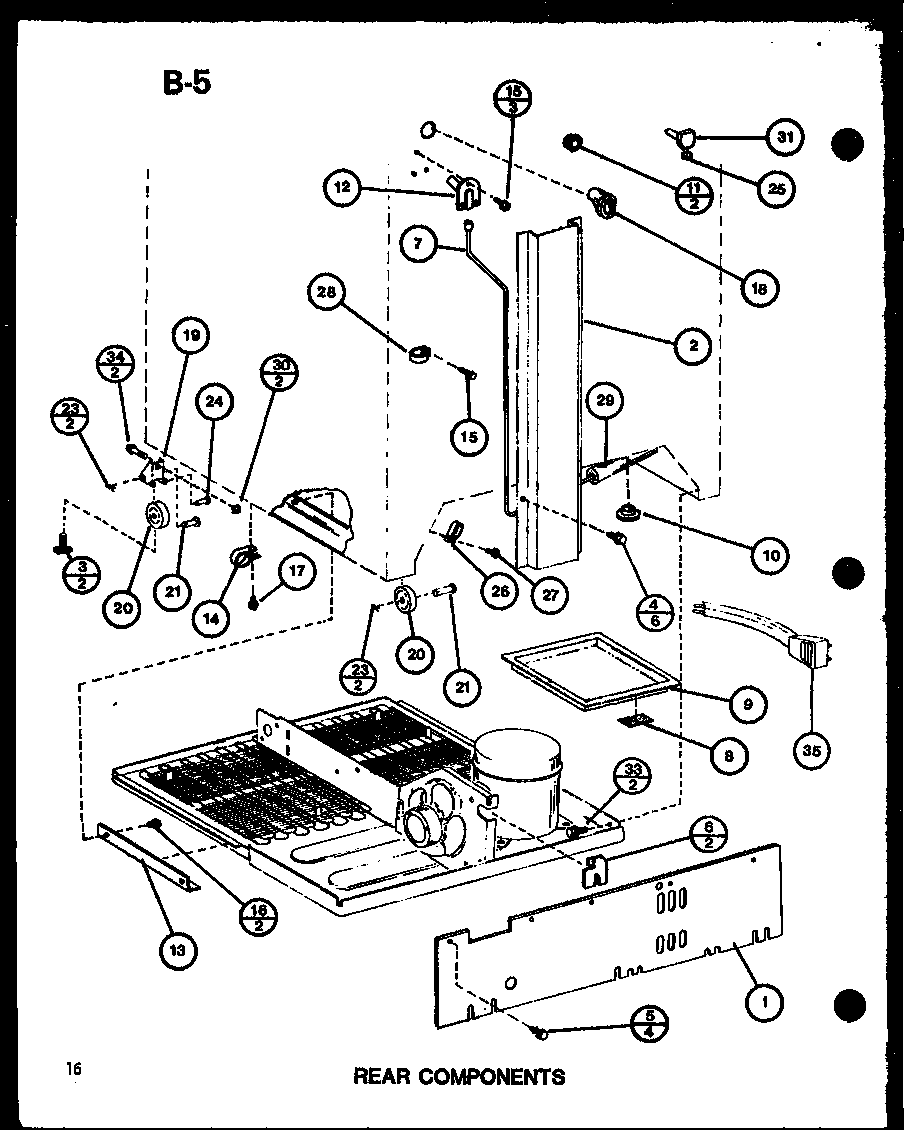

Rear components (tm16g/p75535-7w) (tr16g/p75535-8w) diagram

Refrigerator roller

Part #M0520102

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw M0257244
Machine screw

Part #M0257244

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0257244. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
Refrigerator Grille D7520502
Refrigerator grille

Part #D7520502

Replaced by #D7520510

?
Manufacturer substitution
This part replaces D7520502. Substitute parts can look different from the original.
$40.76
In Stock
Refrigerator Grommet B8333401
#9

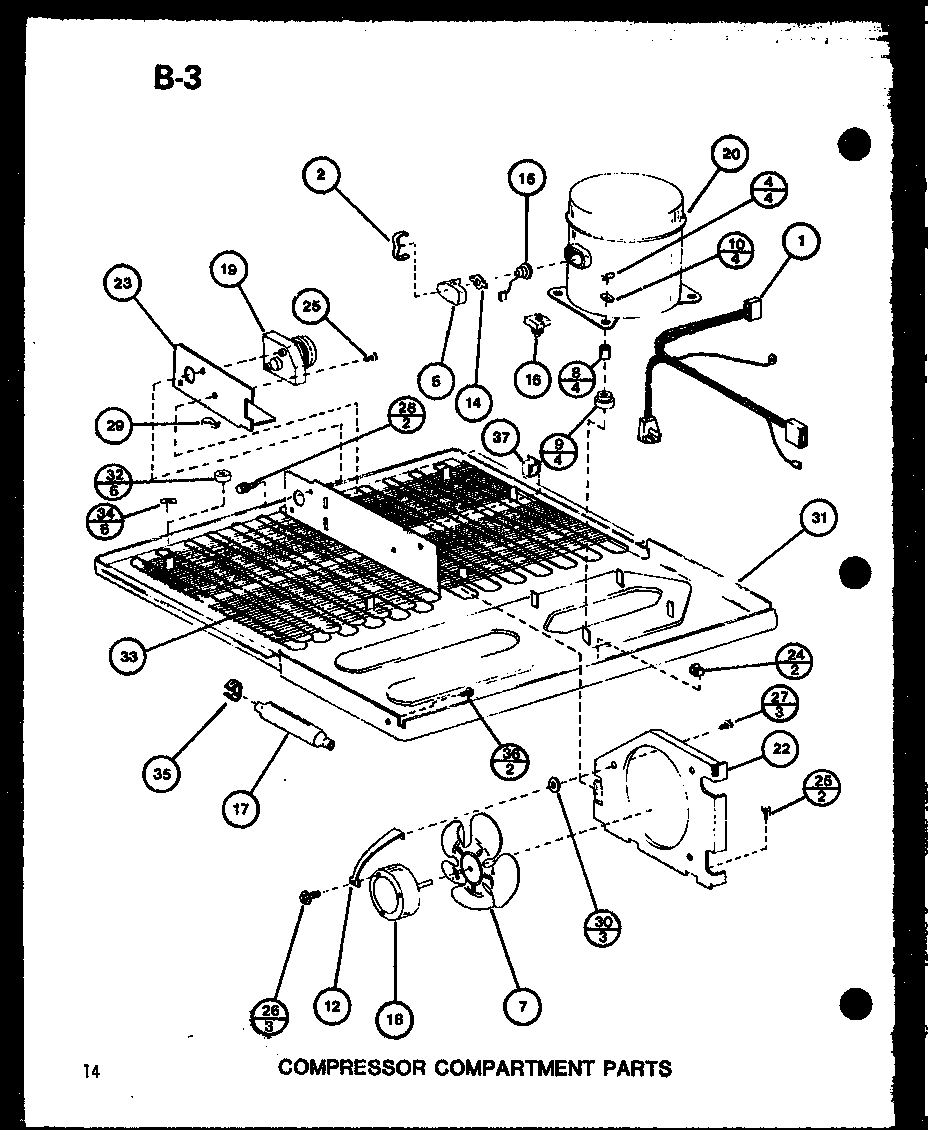

Compressor compartment parts (tm16g/p75535-7w) (tr16g/p75535-8w) diagram

Refrigerator grommet

Part #B8333401

Replaced by #67003493

?
Manufacturer substitution
This part replaces B8333401. Substitute parts can look different from the original.
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Imperial Refrigerator Insulation Fill Hole Plug A3076901
#10

Rear components (tm16g/p75535-7w) (tr16g/p75535-8w) diagram

Imperial refrigerator insulation fill hole plug

Part #A3076901

This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Refrigerator Nut Clip M0286708
#30

Rear components (tm16g/p75535-7w) (tr16g/p75535-8w) diagram

Refrigerator nut clip

Part #M0286708

Replaced by #M0286708

?
Manufacturer substitution
This part replaces M0286708. Substitute parts can look different from the original.
$30.49
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#1

Refrigerator freezer functional parts (tm16g/p75535-7w) (tr16g/p75535-8w) diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Plug M0310705
Refrigerator plug

Part #M0310705

Replaced by #WP67001130

?
Manufacturer substitution
This part replaces M0310705. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
