Model # 23352549590 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 23352549590 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Cook Top Side Trim Kit Range Hood Grease Filter, 2-pack (replaces 970007894) 97007894
#27

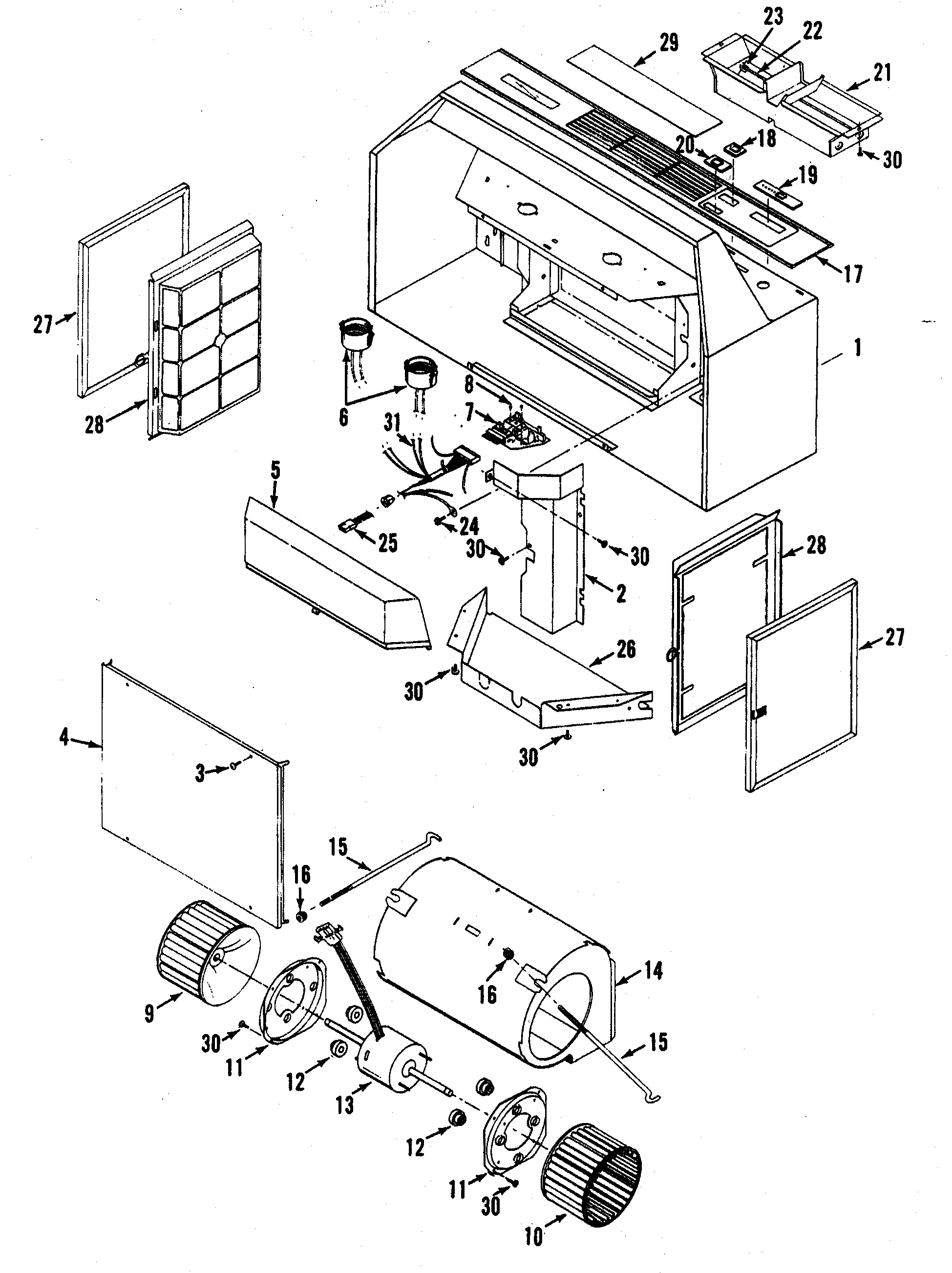

Hood assy diagram

Cook top side trim kit range hood grease filter, 2-pack (replaces 970007894)

Part #97007894

BEST SELLER
$30.81 |
16% OFF Phone Price : $36.81
In Stock
Range Hood Light Lens 99110605
#5

Hood assy diagram

Range hood light lens

Part #99110605

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Clockwise Blower Wheel Assembly 99020138
#9

Hood assy diagram

Range hood clockwise blower wheel assembly

Part #99020138

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Light Switch Slide Button 99111124
#20A

Hood assy diagram

Range hood light switch slide button

Part #99111124

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Knob 95000924
#18

Hood assy diagram

Range hood blower knob

Part #95000924

This item is not returnable
$25.71
In Stock
Range Hood Motor Retainer Ring 98005212
#11

Hood assy diagram

Range hood motor retainer ring

Part #98005212

Replaced by #S98005212

?
Manufacturer substitution
This part replaces 98005212. Substitute parts can look different from the original.
This item is not returnable
$4.72
In Stock
Range Hood Fan Motor Mount 99100491
#12

Hood assy diagram

Range hood fan motor mount

Part #99100491

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel 99020139
#10

Hood assy diagram

Range hood blower wheel

Part #99020139

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 97005680
#25

Hood assy diagram

Receptacle

Part #97005680

Replaced by #S97007570

?
Manufacturer substitution
This part replaces 97005680. Substitute parts can look different from the original.
$36.59 |
14% OFF Phone Price : $42.59
In Stock
Range Hood Fan Speed Control Knob (white) 99111128
#19A

Hood assy diagram

Range hood fan speed control knob (white)

Part #99111128

Replaced by #S99111128

?
Manufacturer substitution
This part replaces 99111128. Substitute parts can look different from the original.
This item is not returnable
$5.50
In Stock
