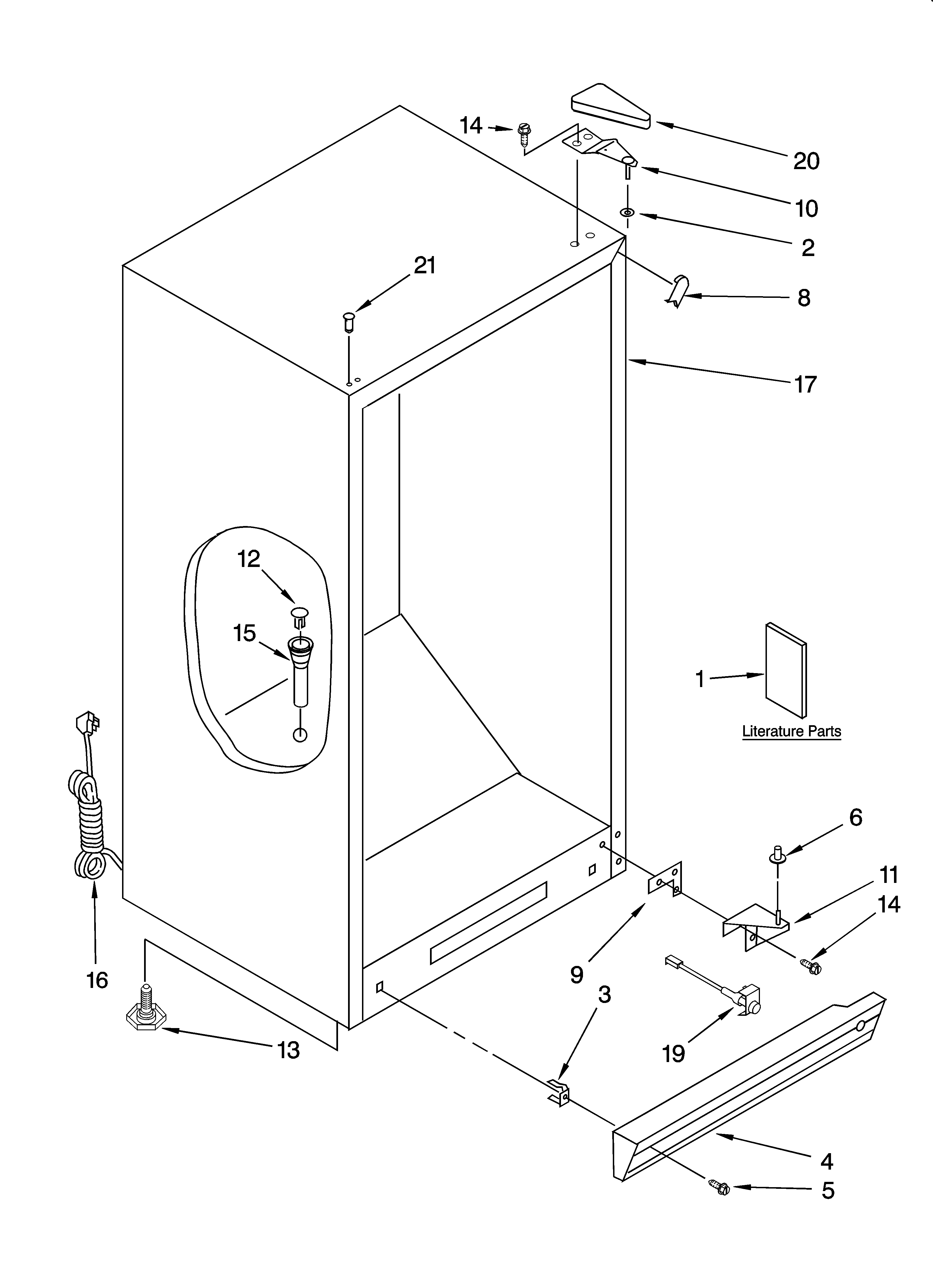

Model # EV200FZRQ00 Official Whirlpool upright freezer
Here are the diagrams and repair parts for Official Whirlpool EV200FZRQ00 upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forEV200FZRQ00 Freestanding Freezers
- #8

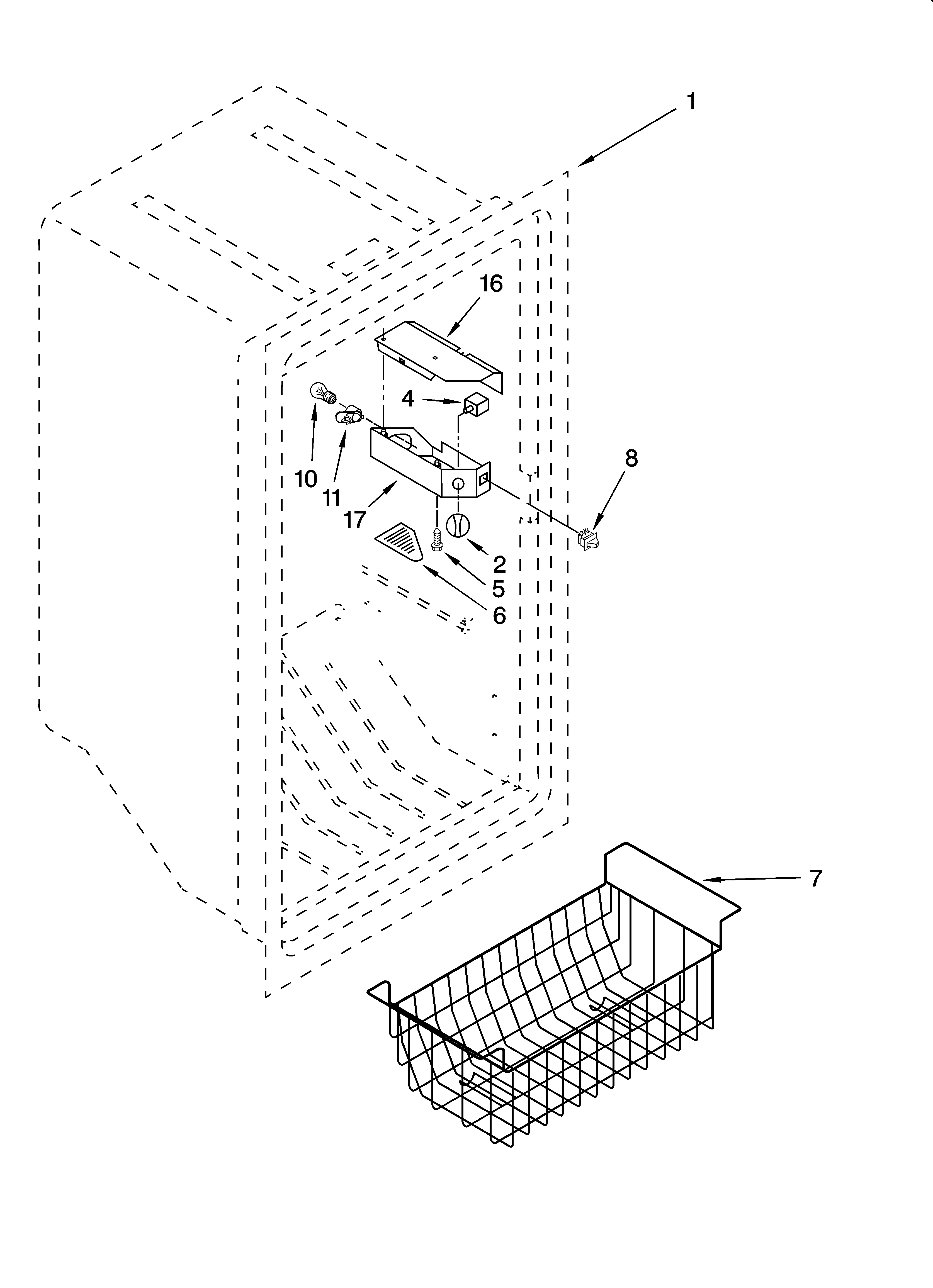

Liner parts diagram
SwitchPart #4390513
Replaced by #W11384469
?Manufacturer substitutionThis part replaces 4390513. Substitute parts can look different from the original.$19.89 |9% OFF Phone Price : $21.89In Stock - #2

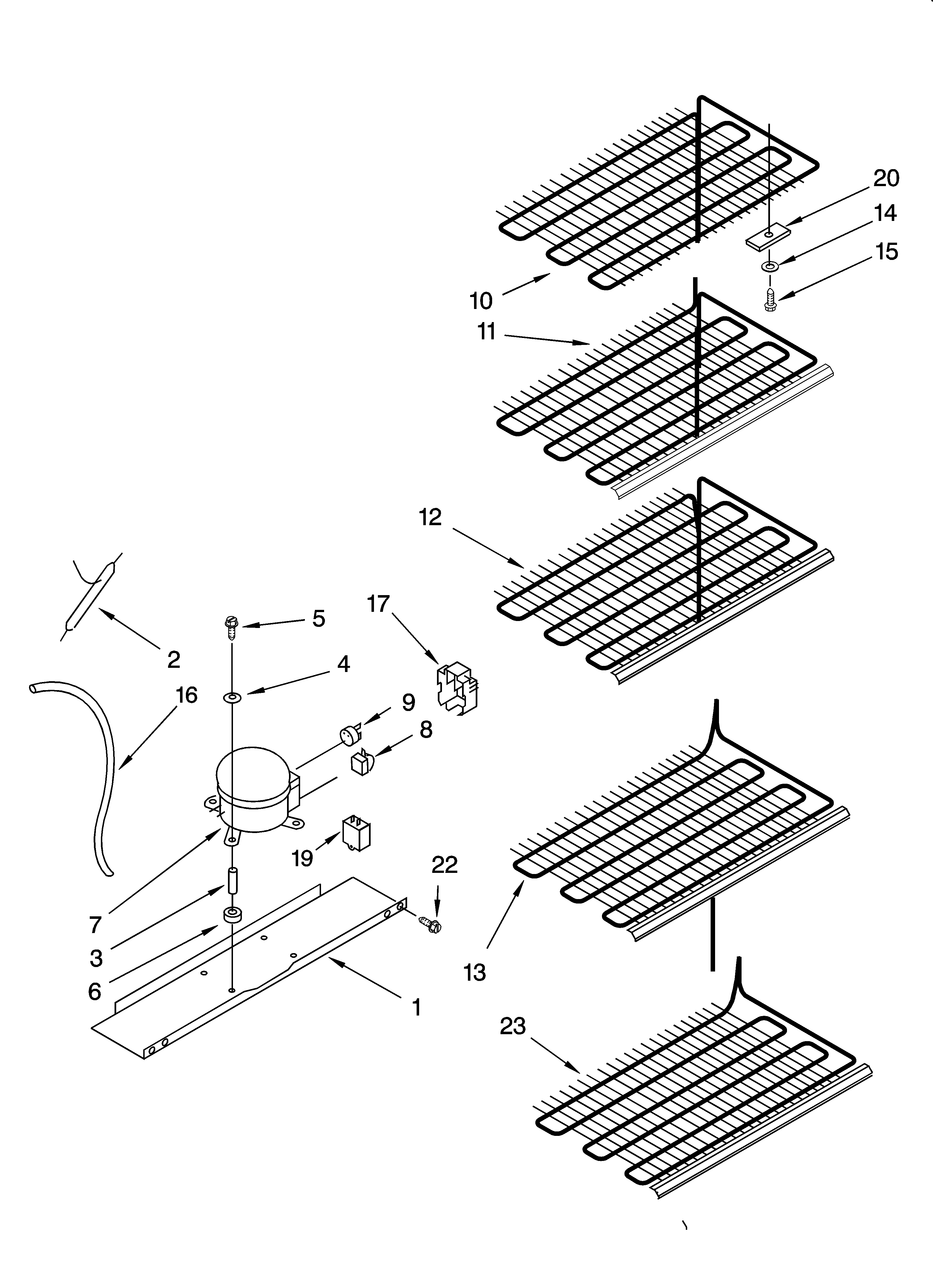

Unit parts diagram
Drier tubePart #4357299
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 4357299. Substitute parts can look different from the original.$30.82 |16% OFF Phone Price : $36.82In Stock - #7
Unit parts diagram
Upright freezer compressorPart #4356775
Replaced by #W10309994
?Manufacturer substitutionThis part replaces 4356775. Substitute parts can look different from the original.$475.80 |$12.00 OFF Phone Price : $487.80In Stock - #NI

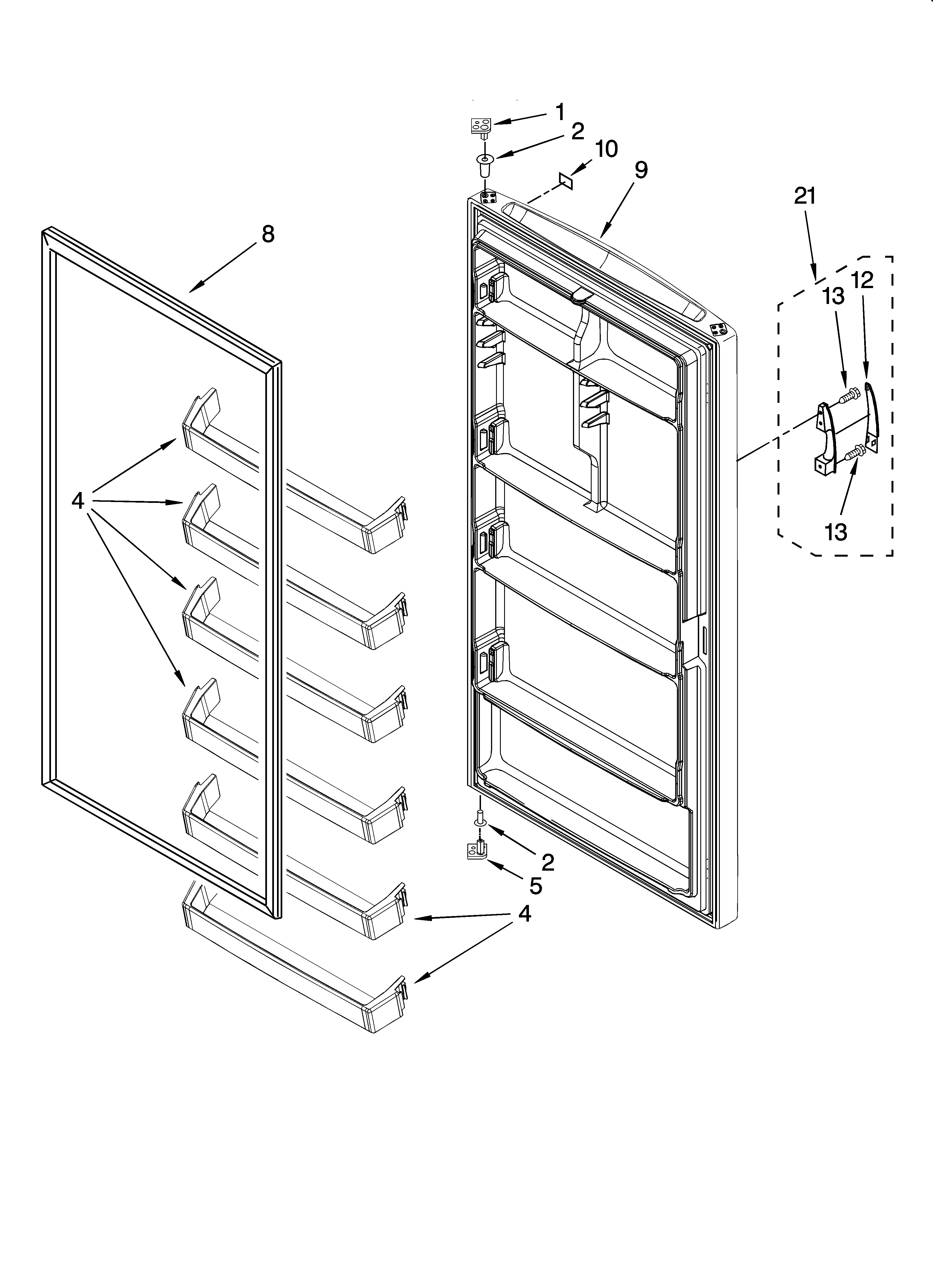

Door parts, optional parts (not included) diagram
Spray paint (white)Part #350930
Replaced by #350930
?Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnable$15.69 |11% OFF Phone Price : $17.69In Stock - #NI
Door parts, optional parts (not included) diagram
Sears refrigerator permagum sealerPart #212643
This item is not returnable$47.59 |11% OFF Phone Price : $53.59In Stock - #NI
Door parts, optional parts (not included) diagram
Touch upPart #72107
Replaced by #WP72107
?Manufacturer substitutionThis part replaces 72107. Substitute parts can look different from the original.This item is not returnable$8.07 |11% OFF Phone Price : $9.07In Stock - #NI
Door parts, optional parts (not included) diagram
Appliance porcelain touch-up paint, 1-qt (white)Part #799344
$109.53 |10% OFF Phone Price : $121.53In Stock - #4
Door parts, optional parts (not included) diagram
RailPart #8210404
Replaced by #WP4-65451-001
?Manufacturer substitutionThis part replaces 8210404. Substitute parts can look different from the original.$47.96 |11% OFF Phone Price : $53.96In Stock - #8
Door parts, optional parts (not included) diagram
Freezer door gasketPart #8210341
Replaced by #WP4-65151-004
?Manufacturer substitutionThis part replaces 8210341. Substitute parts can look different from the original.$280.68 |$12.00 OFF Phone Price : $292.68In Stock - #4
Liner parts diagram
ThermostatPart #8210395
Replaced by #WP4-83053-001
?Manufacturer substitutionThis part replaces 8210395. Substitute parts can look different from the original.$95.61 |11% OFF Phone Price : $107.61In Stock
