Front-Engine Lawn Tractor

Model # 917276230 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917276230 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

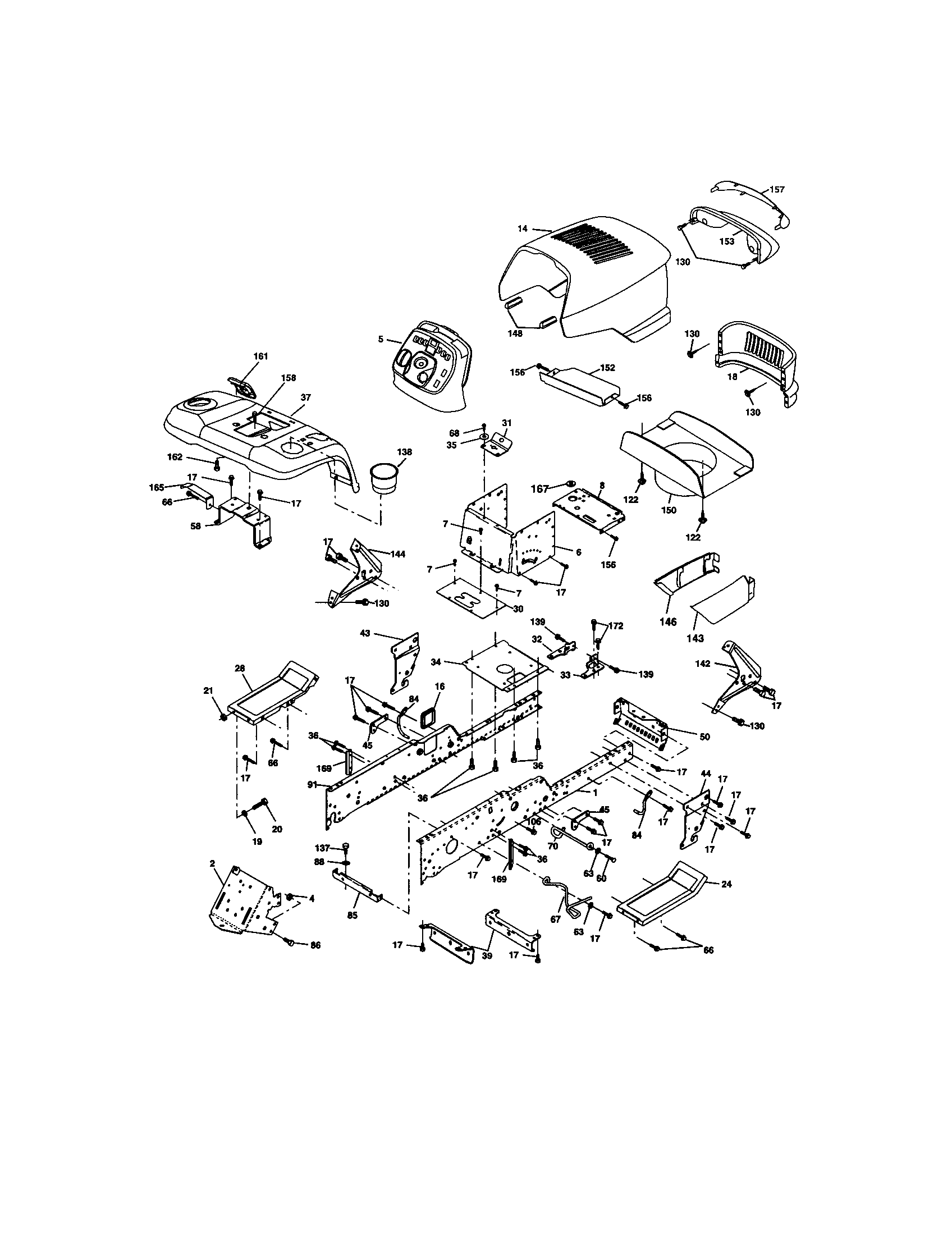

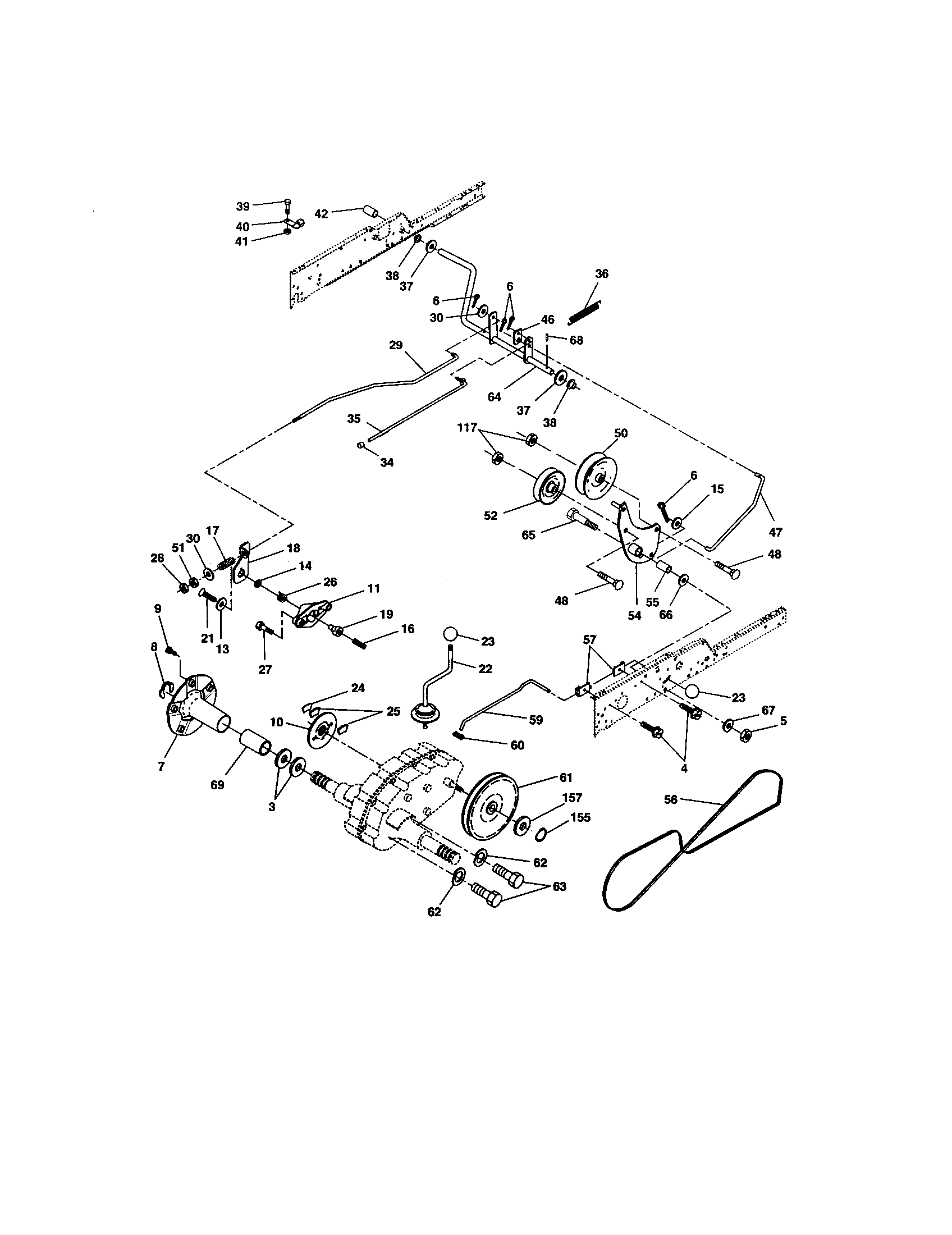

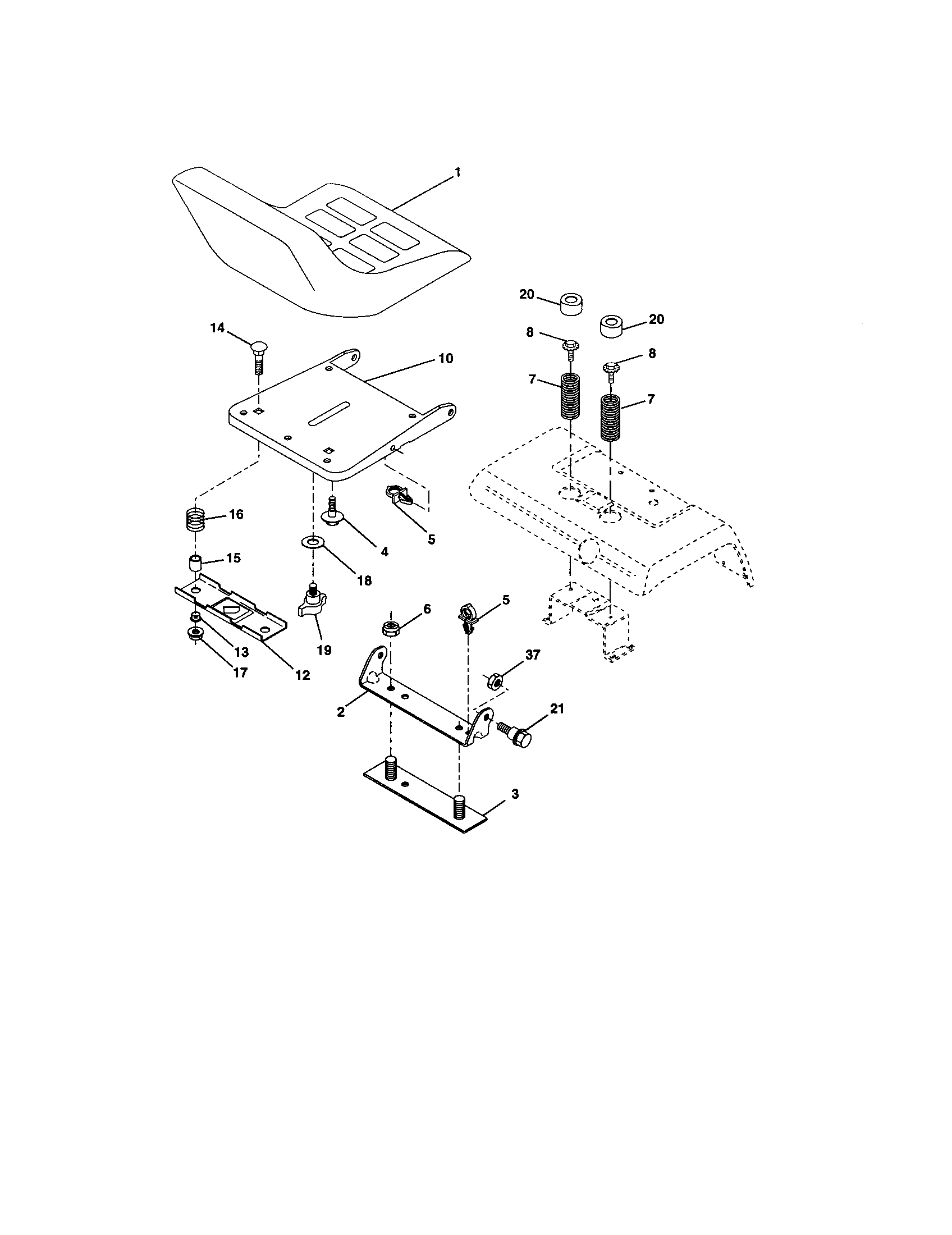

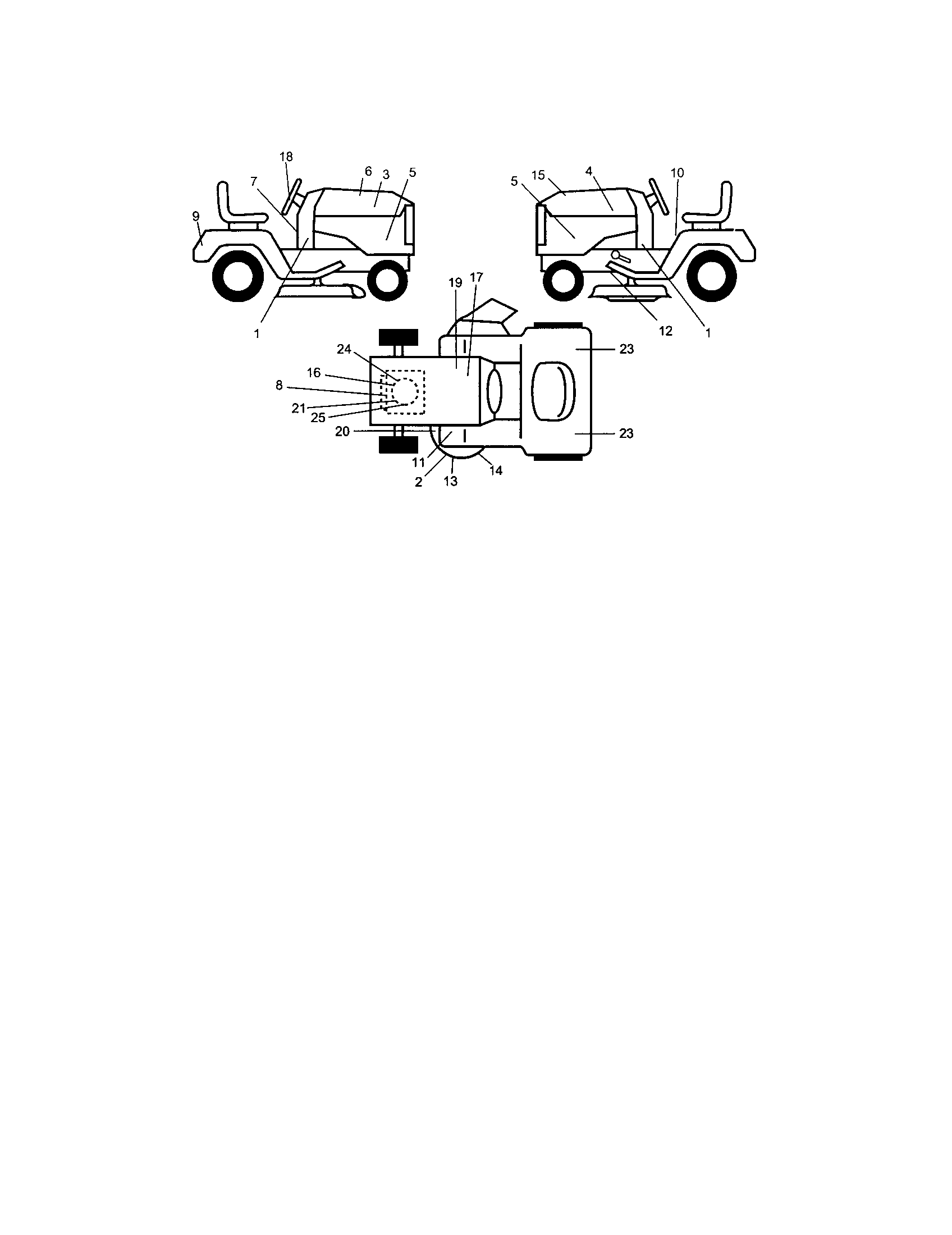

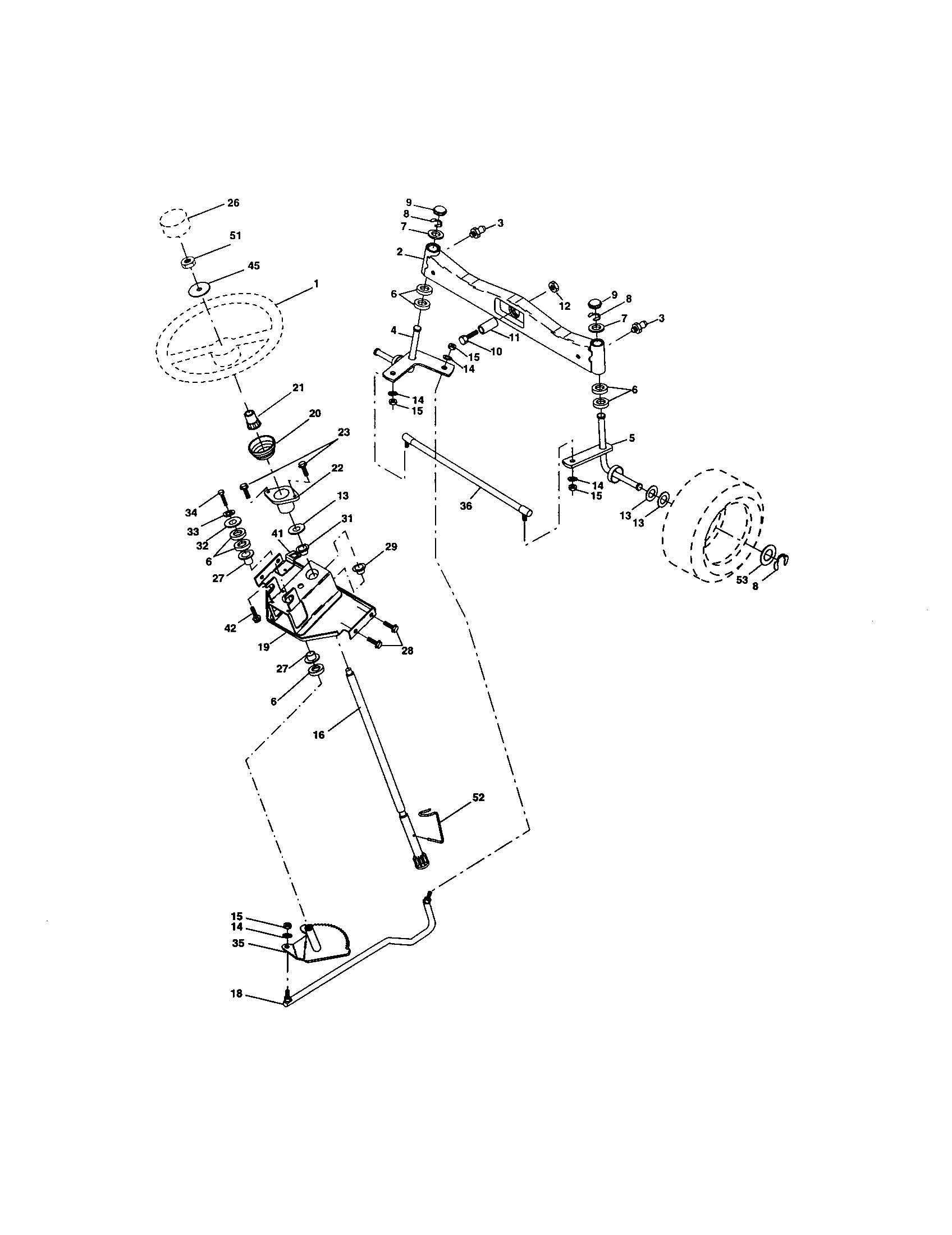

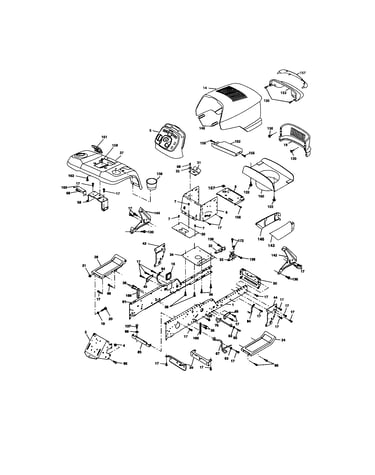

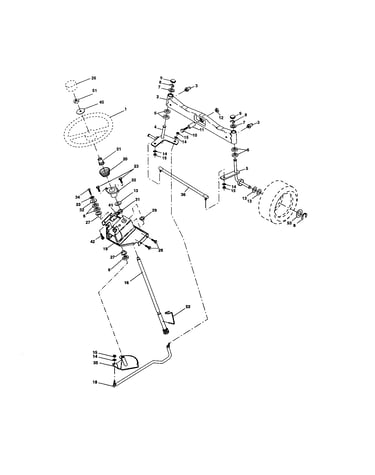

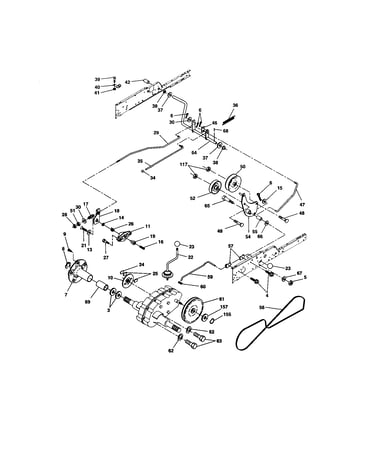

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 639 parts  |
Lawn Tractor Mandrel Housing 187281
#14

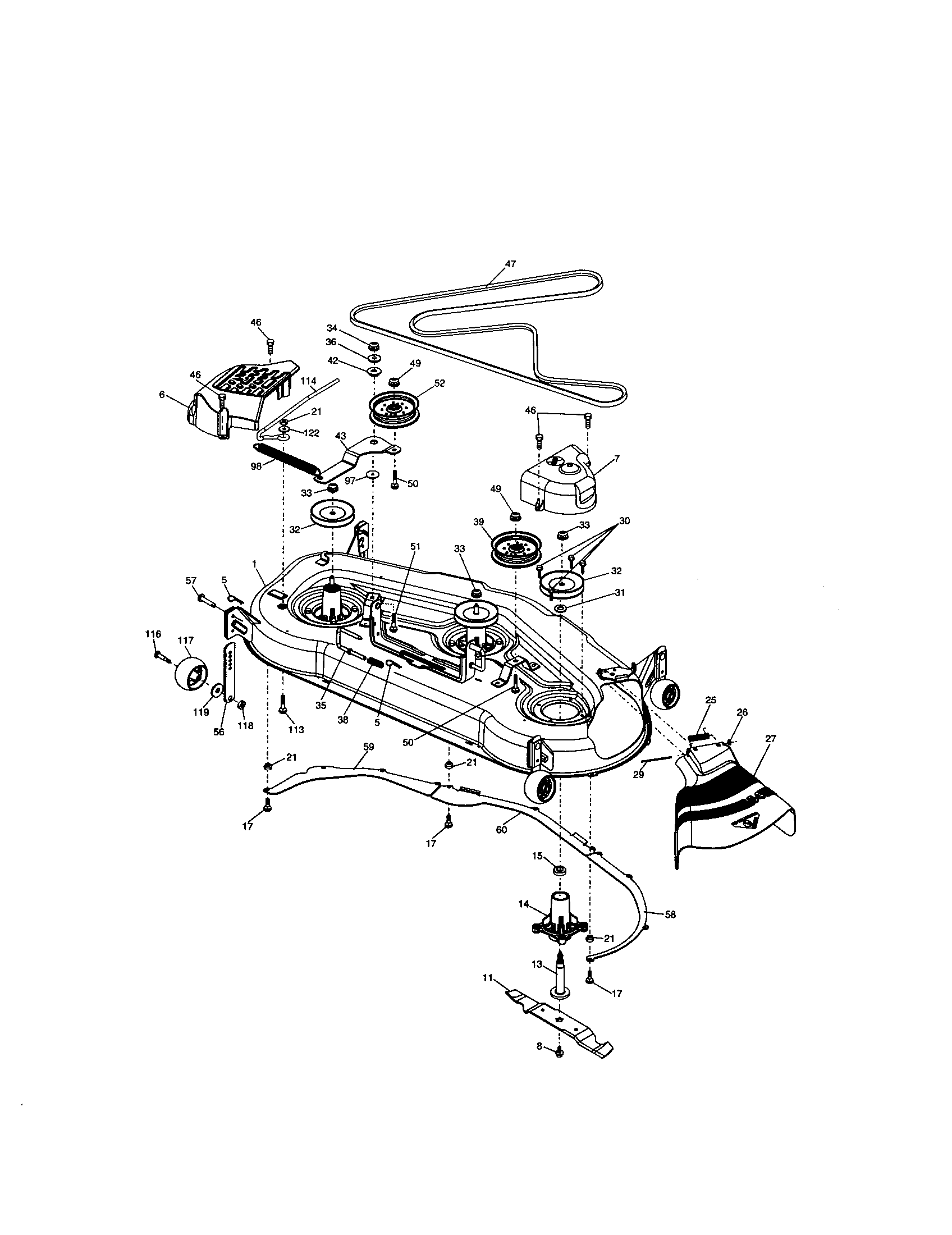

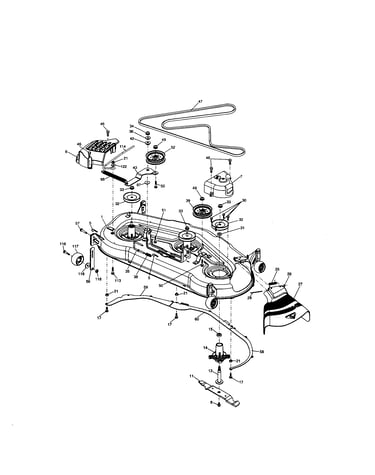

Mower deck diagram

Lawn tractor mandrel housing

Part #187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
BEST SELLER
$48.44 |
11% OFF Phone Price : $54.44
In Stock
Lawn Tractor Axle Cap 104757X428
#8

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#70

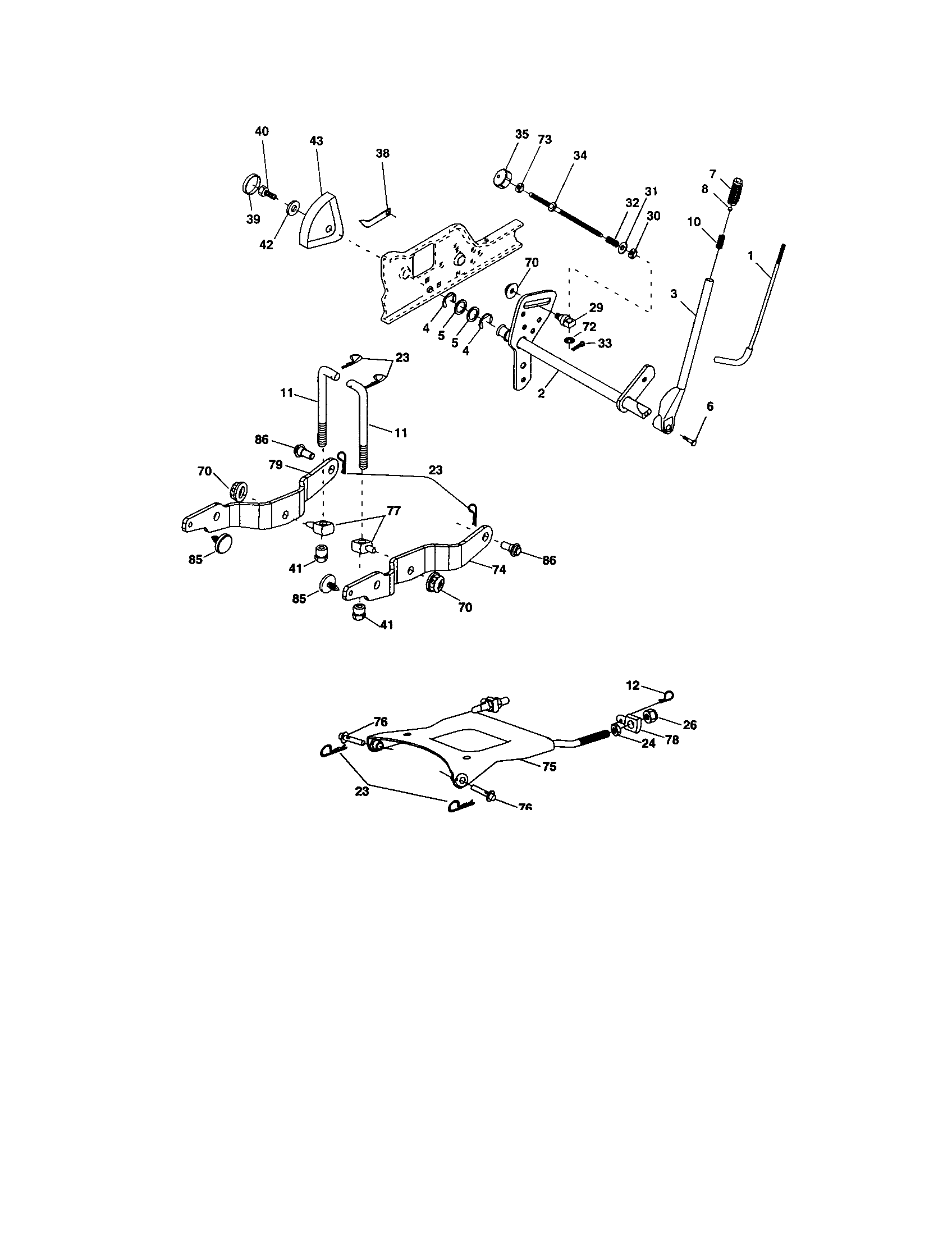

Lift assembly diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Ignition Switch 193350
#30

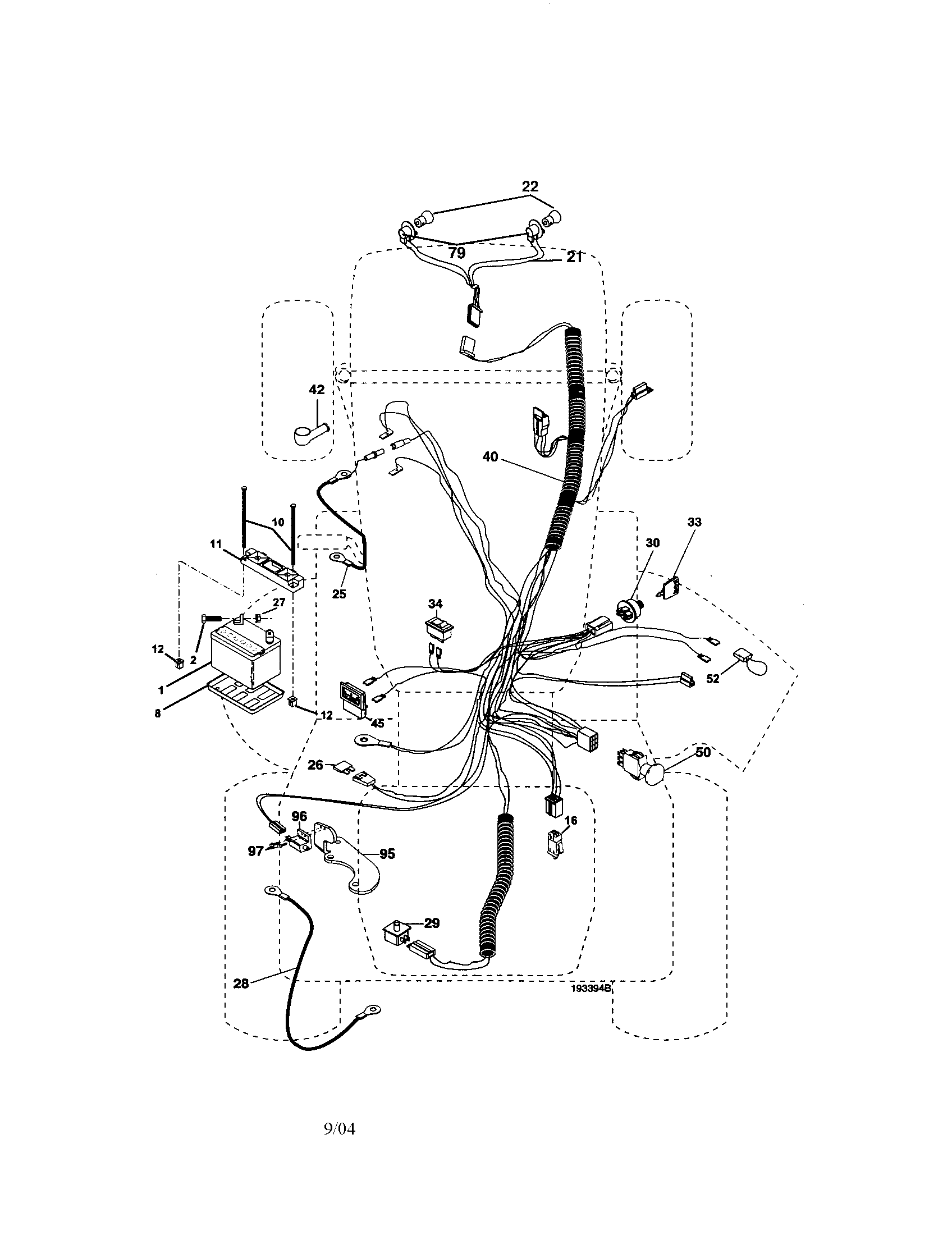

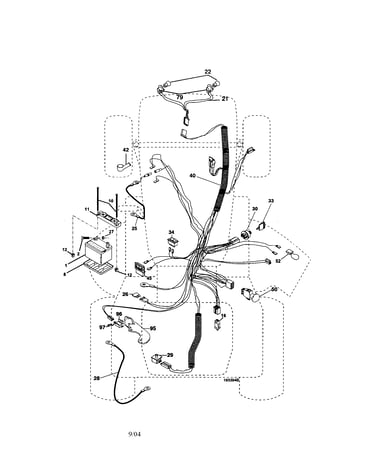

Electrical diagram

Lawn tractor ignition switch

Part #193350

Replaced by #532193350

?
Manufacturer substitution
This part replaces 193350. Substitute parts can look different from the original.
BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Molded Ignition Key 140403
#33

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Flanged Toplock Nut 178342
#33

Mower deck diagram

Flanged toplock nut

Part #178342

Replaced by #596134801

?
Manufacturer substitution
This part replaces 178342. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Washer 19121414
#119

Mower deck diagram

Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
