Model # DD2015 Official Craftsman cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman DD2015 cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Data Label 941121327
#3

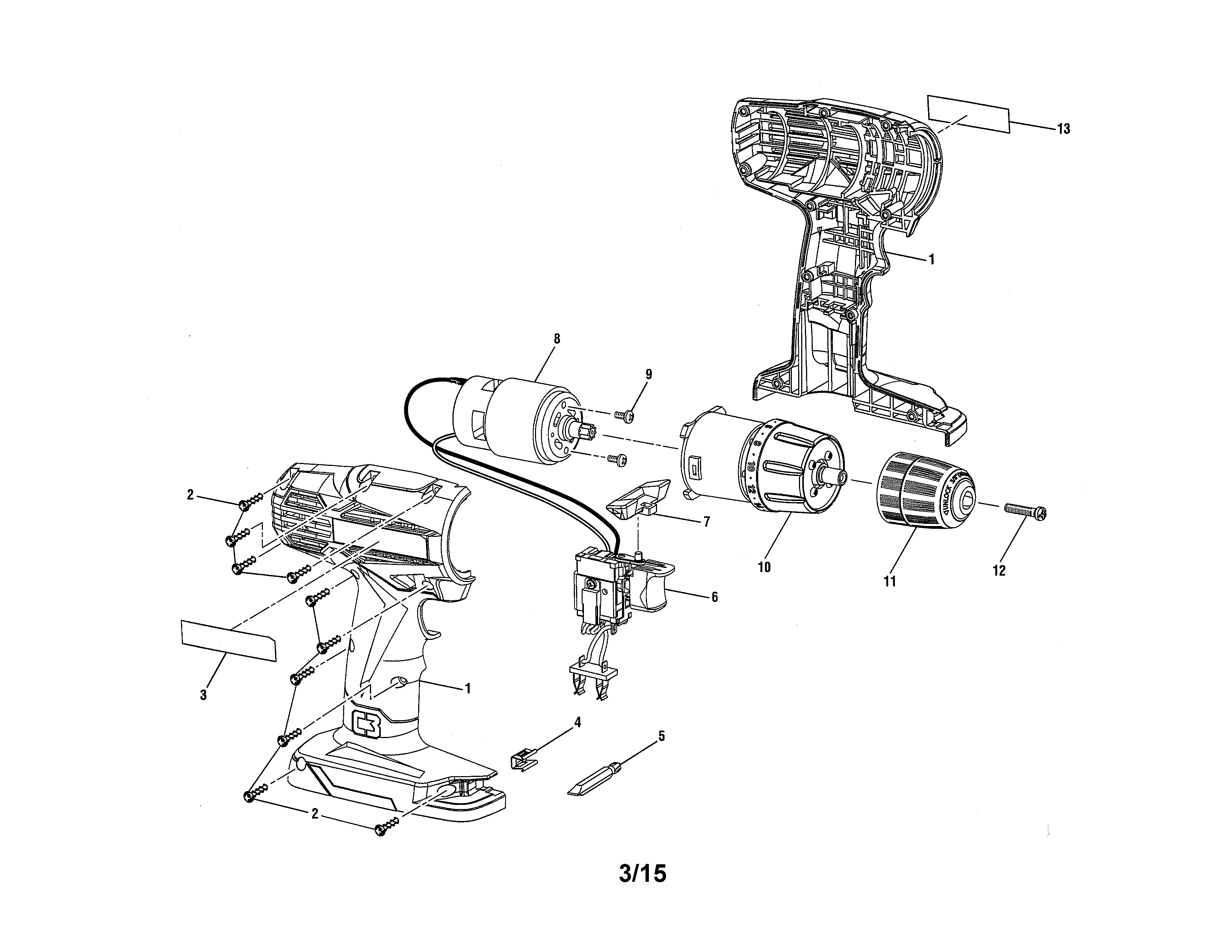

Cordless drill driver diagram

Data label

Part #941121327

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 202975001
#1

Cordless drill driver diagram

Housing assembly

Part #202975001

The manufacturer no longer makes this part, and there's no substitute part

Chuck Screw (m5 X 26 Mm, Special Left Hand Threads) 660120006
#12

Cordless drill driver diagram

Chuck screw (m5 x 26 mm, special left hand threads)

Part #660120006

The manufacturer no longer makes this part, and there's no substitute part

Screw (m4 X 8mm, Pan Hd.) (2) T662103001
#9

Cordless drill driver diagram

Screw (m4 x 8mm, pan hd.) (2)

Part #T662103001

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap W/gear Train Assembly 206212001
#10

Cordless drill driver diagram

Clutch cap w/gear train assembly

Part #206212001

The manufacturer no longer makes this part, and there's no substitute part

Bit Clip (2) 630206007
#4

Cordless drill driver diagram

Bit clip (2)

Part #630206007

The manufacturer no longer makes this part, and there's no substitute part

Forward And Reverse Selector 523104001
#7

Cordless drill driver diagram

Forward and reverse selector

Part #523104001

The manufacturer no longer makes this part, and there's no substitute part

Chuck 670743002
#11

Cordless drill driver diagram

Chuck

Part #670743002

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 206196001
#8

Cordless drill driver diagram

Motor assembly

Part #206196001

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 202976001
#6

Cordless drill driver diagram

Switch assembly

Part #202976001

The manufacturer no longer makes this part, and there's no substitute part
