Model # 934201010 Official Craftsman mig welder - 1999

Here are the diagrams and repair parts for Official Craftsman 934201010 mig welder - 1999, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

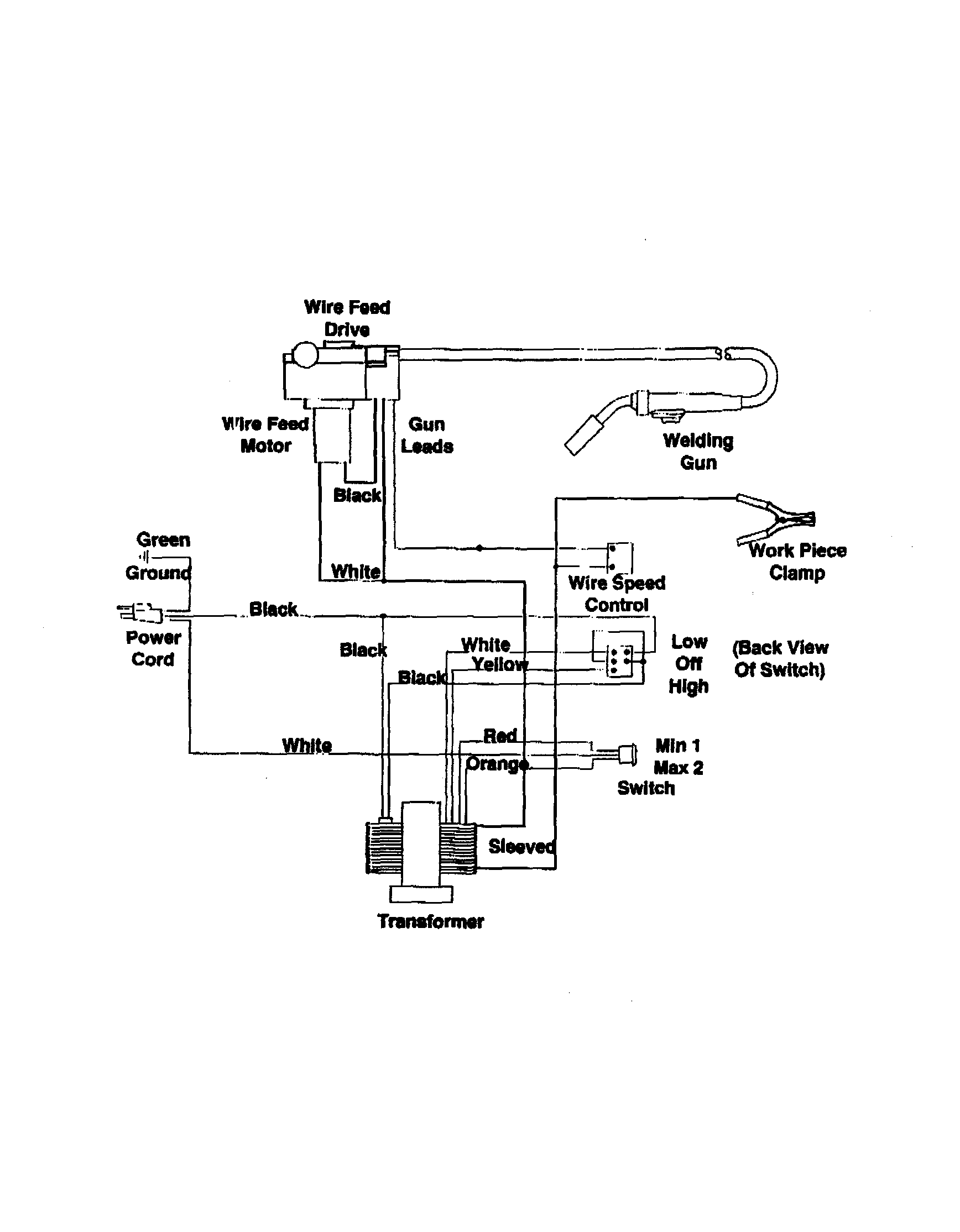

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Power Cord 248-311-000
#12

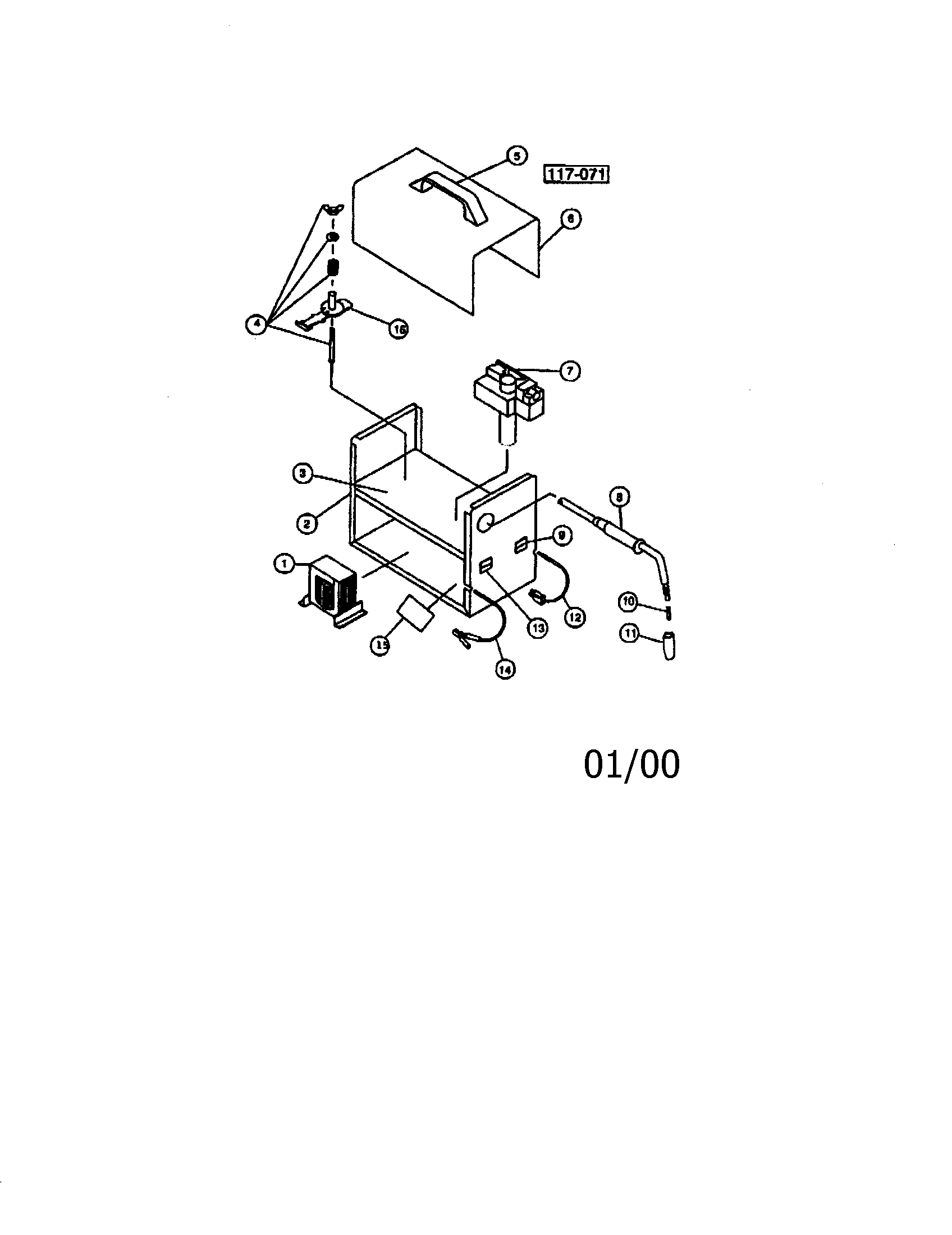

Base diagram

Power cord

Part #248-311-000

The manufacturer no longer makes this part, and there's no substitute part

Spindle 312-076-000
#16

Base diagram

Spindle

Part #312-076-000

The manufacturer no longer makes this part, and there's no substitute part

Therm Prot 880-397-000
#1A

Base diagram

Therm prot

Part #880-397-000

The manufacturer no longer makes this part, and there's no substitute part

Handle 312-264-000
#5

Base diagram

Handle

Part #312-264-000

The manufacturer no longer makes this part, and there's no substitute part

Right And Left Side Panel (not Shown In Drawing) 410-834-020
#16A

Base diagram

Right and left side panel (not shown in drawing)

Part #410-834-020

The manufacturer no longer makes this part, and there's no substitute part

Switch 246-404-000
#13

Base diagram

Switch

Part #246-404-000

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 880-395-000
#14

Base diagram

Cable assembly

Part #880-395-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb 880-391-000
#15

Base diagram

Pcb

Part #880-391-000

The manufacturer no longer makes this part, and there's no substitute part

Wire 131-350-002
#4

Base diagram

Wire

Part #131-350-002

The manufacturer no longer makes this part, and there's no substitute part

Wire Weld Tp 4310
#10

Base diagram

Wire weld tp

Part #4310

The manufacturer no longer makes this part, and there's no substitute part
