Model # 20861200 Official Kenmore handheld vacuum
Here are the diagrams and repair parts for Official Kenmore 20861200 handheld vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
20861200 Vacuum Cleaners
#1

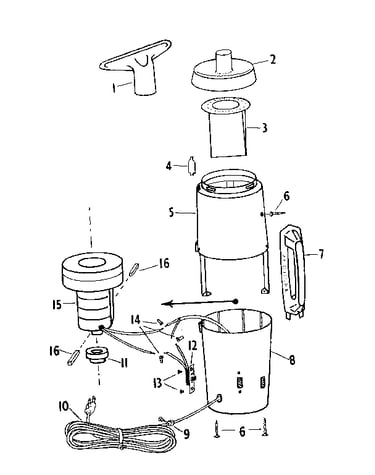

Unit parts diagram
Upholstery t
Part #60816-D
The manufacturer no longer makes this part, and there's no substitute part
#9
Unit parts diagram
Strn relief
Part #61577
The manufacturer no longer makes this part, and there's no substitute part
#7
Unit parts diagram
Handle
Part #61515-D
The manufacturer no longer makes this part, and there's no substitute part
#2
Unit parts diagram
Inlet end
Part #61516-C
The manufacturer no longer makes this part, and there's no substitute part
#12
Unit parts diagram
Switch
Part #61494
The manufacturer no longer makes this part, and there's no substitute part
#11
Unit parts diagram
Adapter
Part #61423
The manufacturer no longer makes this part, and there's no substitute part
#3
Unit parts diagram
Dust bags
Part #20-5017
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
P.l./ins.
Part #61518-E
The manufacturer no longer makes this part, and there's no substitute part
#15
Unit parts diagram
Motor kit
Part #61551
The manufacturer no longer makes this part, and there's no substitute part
#4
Unit parts diagram
Spring
Part #61301
The manufacturer no longer makes this part, and there's no substitute part
