Model # FUM21DRBRWH Official GE freezer - b series

Here are the diagrams and repair parts for Official GE FUM21DRBRWH freezer - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Freezer Door Gasket WR24X10010
#8

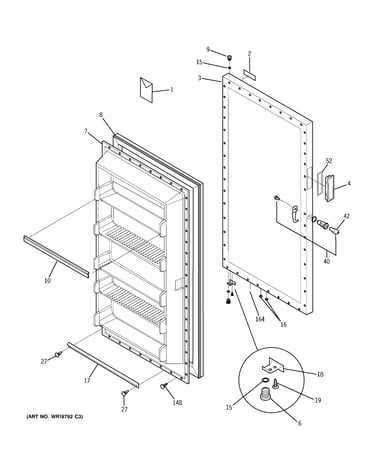

Freezer door diagram

Freezer door gasket

Part #WR24X10010

$186.70 |
6% OFF Phone Price : $198.70
In Stock
Glide Basket WR02X11444
#56

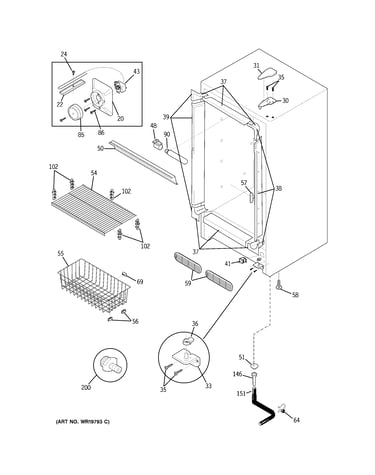

Cabinet diagram

Glide basket

Part #WR02X11444

$81.57 |
7% OFF Phone Price : $87.57
In Stock
Condenser WR84X5007
#100

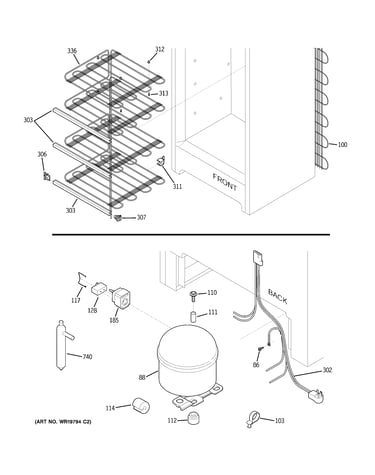

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Temperature Complete Knob WR02X10860
#85

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Freezer Door Switch WR23X10303
#41

Cabinet diagram

Freezer door switch

Part #WR23X10303

$64.46 |
9% OFF Phone Price : $70.46
In Stock
Clamp Capillary Tube WR02X11441
#22

Cabinet diagram

Clamp capillary tube

Part #WR02X11441

$8.11
In Stock
Inner Panel WR77X10060
#7

Freezer door diagram

Inner panel

Part #WR77X10060

This item is not returnable
$152.49 |
24% OFF Was : $199.39
In Stock
Mounting Sleeve WR02X9497
#111

Unit parts diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
Bumper WR02X6361
#69

Cabinet diagram

Bumper

Part #WR02X6361

Replaced by #WR2X6361

?
Manufacturer substitution
This part replaces WR02X6361. Substitute parts can look different from the original.
$17.11
In Stock
Screw WR01X5450
#148

Freezer door diagram

Screw

Part #WR01X5450

Replaced by #WR02X13481

?
Manufacturer substitution
This part replaces WR01X5450. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
