Model # D26456 TYPE1 Official DeWalt sander

Here are the diagrams and repair parts for Official DeWalt D26456-TYPE1 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Receptacle 445964-00
#3

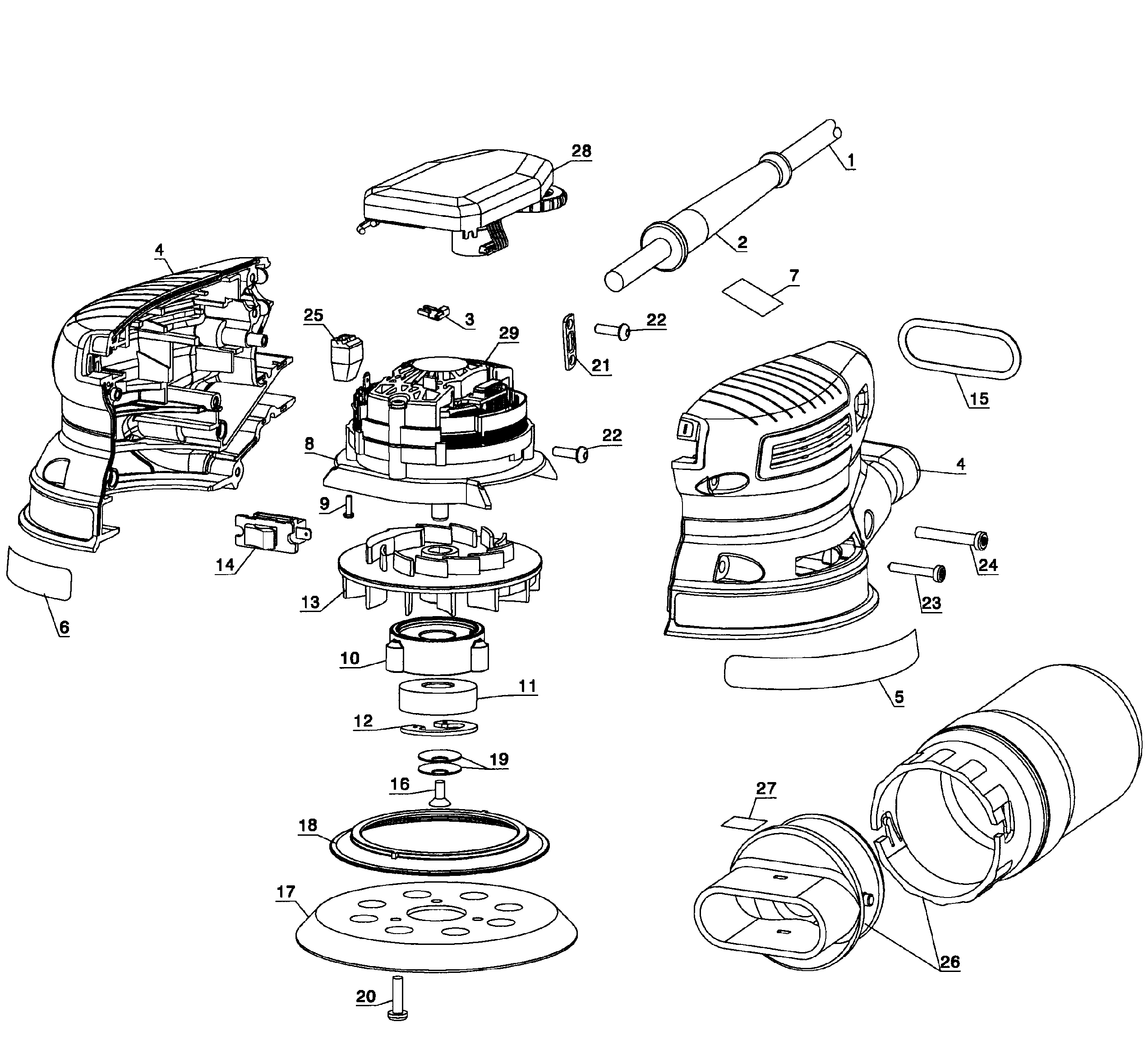

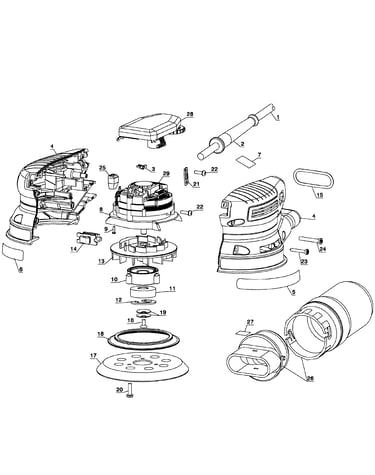

Sander diagram

Receptacle

Part #445964-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-42
#24

Sander diagram

Screw

Part #330019-42

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Switch N079596
#14

Sander diagram

Dewalt switch

Part #N079596

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Control Mo N079623
#28

Sander diagram

Dewalt control mo

Part #N079623

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Twist-on Wire Connector 650974-00
#25

Sander diagram

Dewalt twist-on wire connector

Part #650974-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 151652-00
#19

Sander diagram

Washer

Part #151652-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp 329301-00
#21

Sander diagram

Clamp

Part #329301-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Clamshell N080854
#4

Sander diagram

Dewalt clamshell

Part #N080854

The manufacturer no longer makes this part, and there's no substitute part

Warning La 624299-00
#27

Sander diagram

Warning la

Part #624299-00

The manufacturer no longer makes this part, and there's no substitute part

Retainer 56194-00
#15

Sander diagram

Retainer

Part #56194-00

The manufacturer no longer makes this part, and there's no substitute part
