Kenmore Elite
Electric Range

Model # 79042569310 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79042569310 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

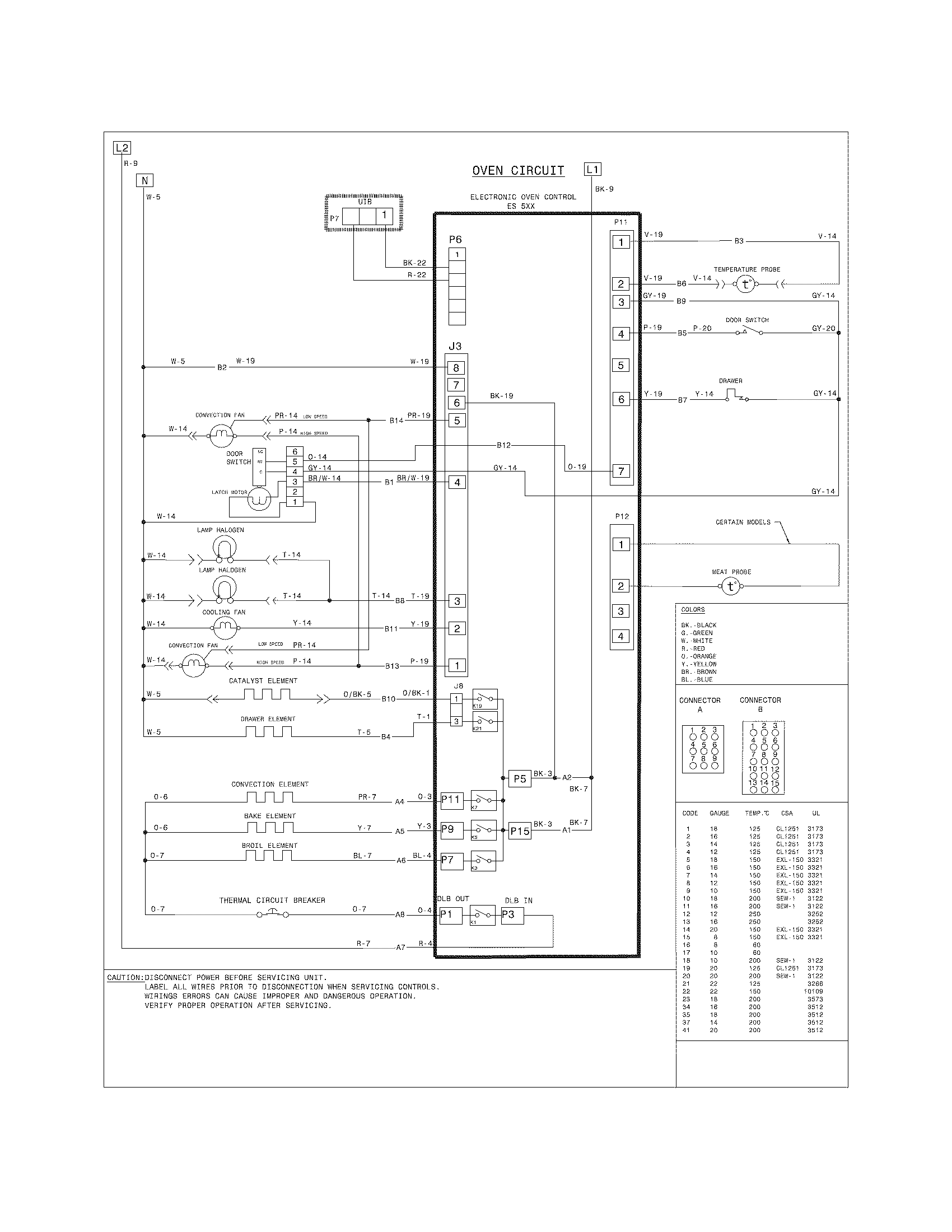

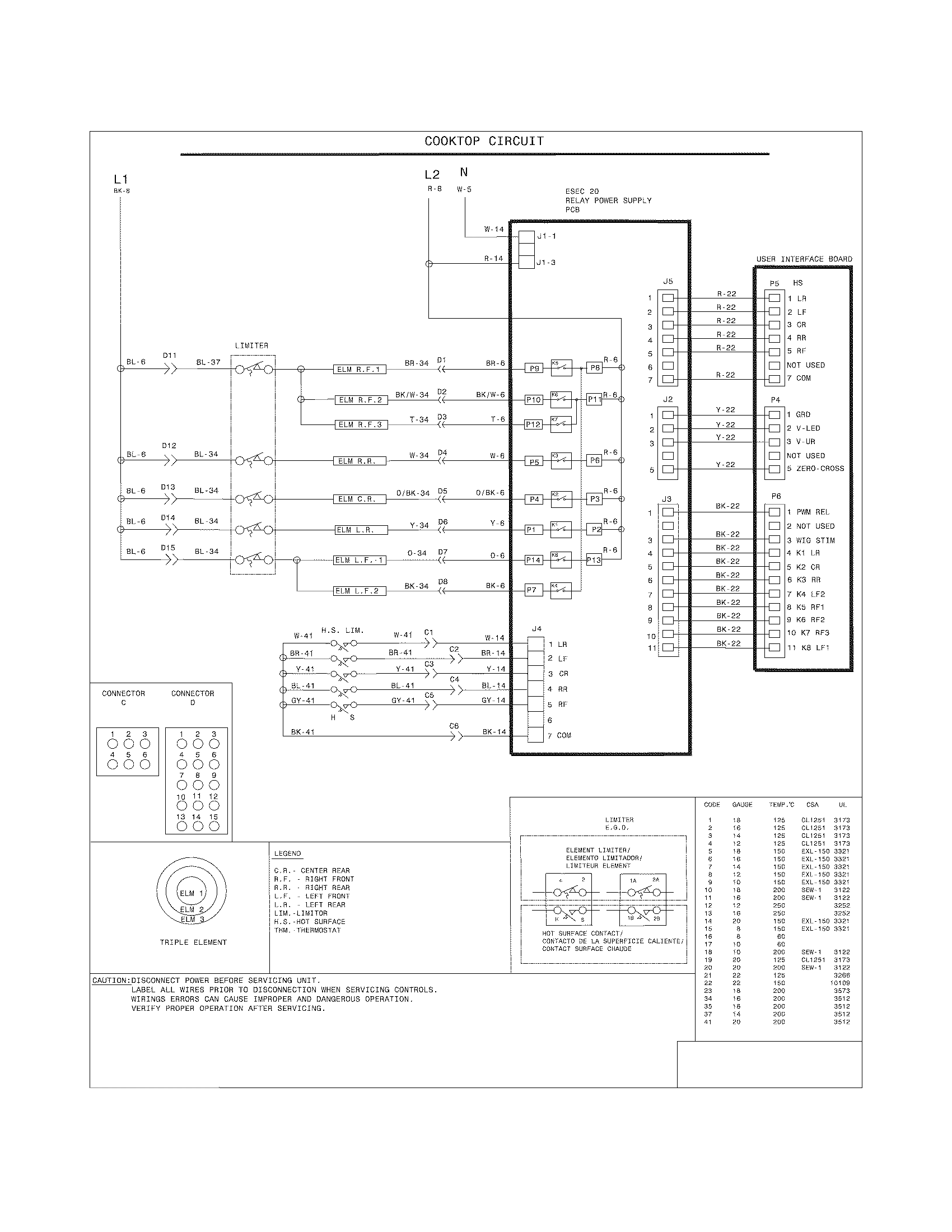

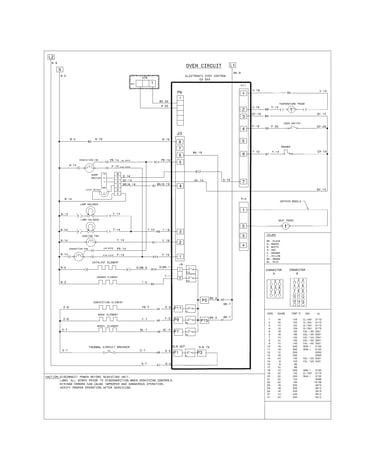

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Range Oven Temperature Sensor 318562500
#37

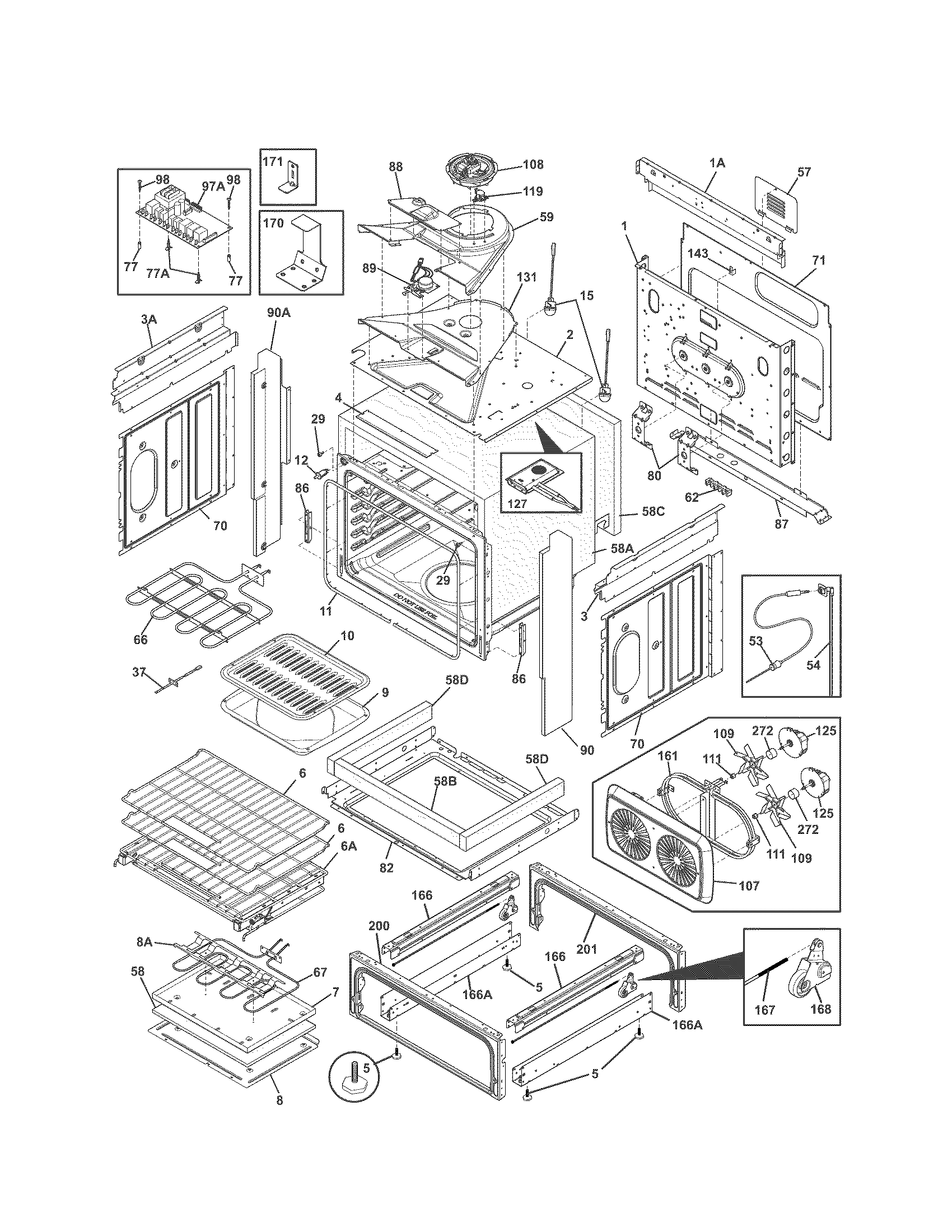

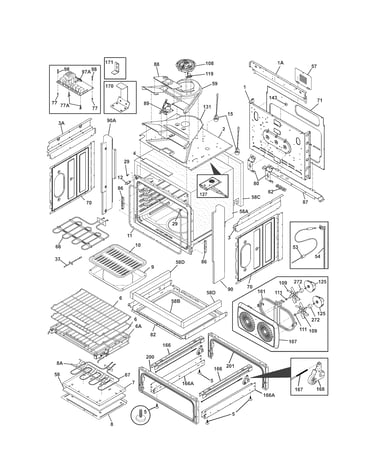

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

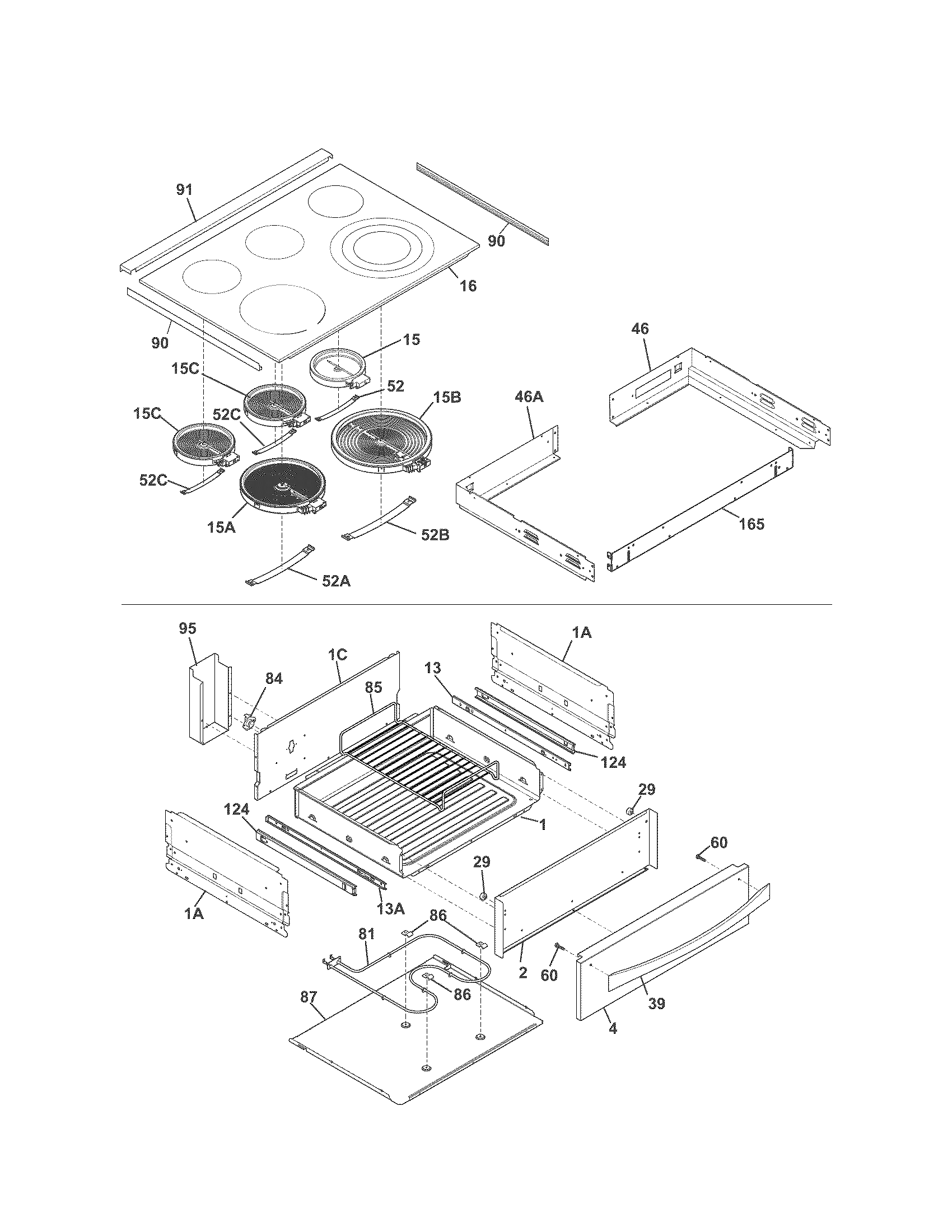

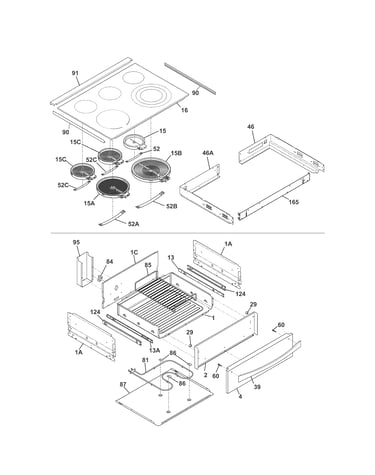

Top/drawer diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Oven Door Inner Glass 316117502
#8

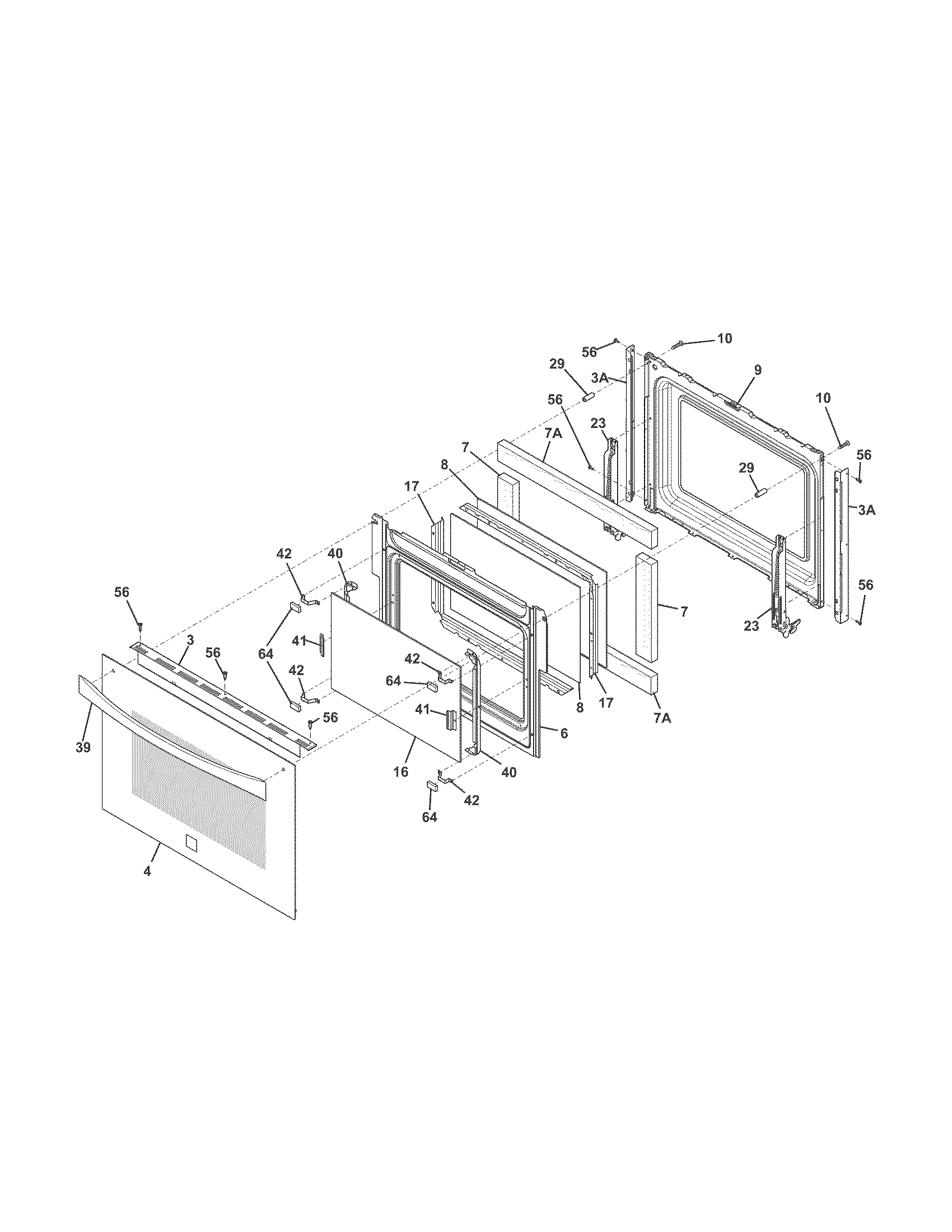

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Triple Radiant Surface Element (replaces 318297809) 318297810
#15B

Top/drawer diagram

Range triple radiant surface element (replaces 318297809)

Part #318297810

BEST SELLER
$245.54 |
5% OFF Phone Price : $257.54
In Stock
Range Oven Door Outer Glass 316446400
#16

Door diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$51.96 |
10% OFF Phone Price : $57.96
In Stock
Range Control Panel Cooling Fan 318575612
#108

Body diagram

Range control panel cooling fan

Part #318575612

$167.94 |
7% OFF Phone Price : $179.94
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47 |
9% OFF Phone Price : $69.47
In Stock
Range Oven Meat Probe Sensor 318601302
#53

Body diagram

Range oven meat probe sensor

Part #318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 318601302. Substitute parts can look different from the original.
$89.51 |
6% OFF Phone Price : $95.51
In Stock
Controller 316577061
#20

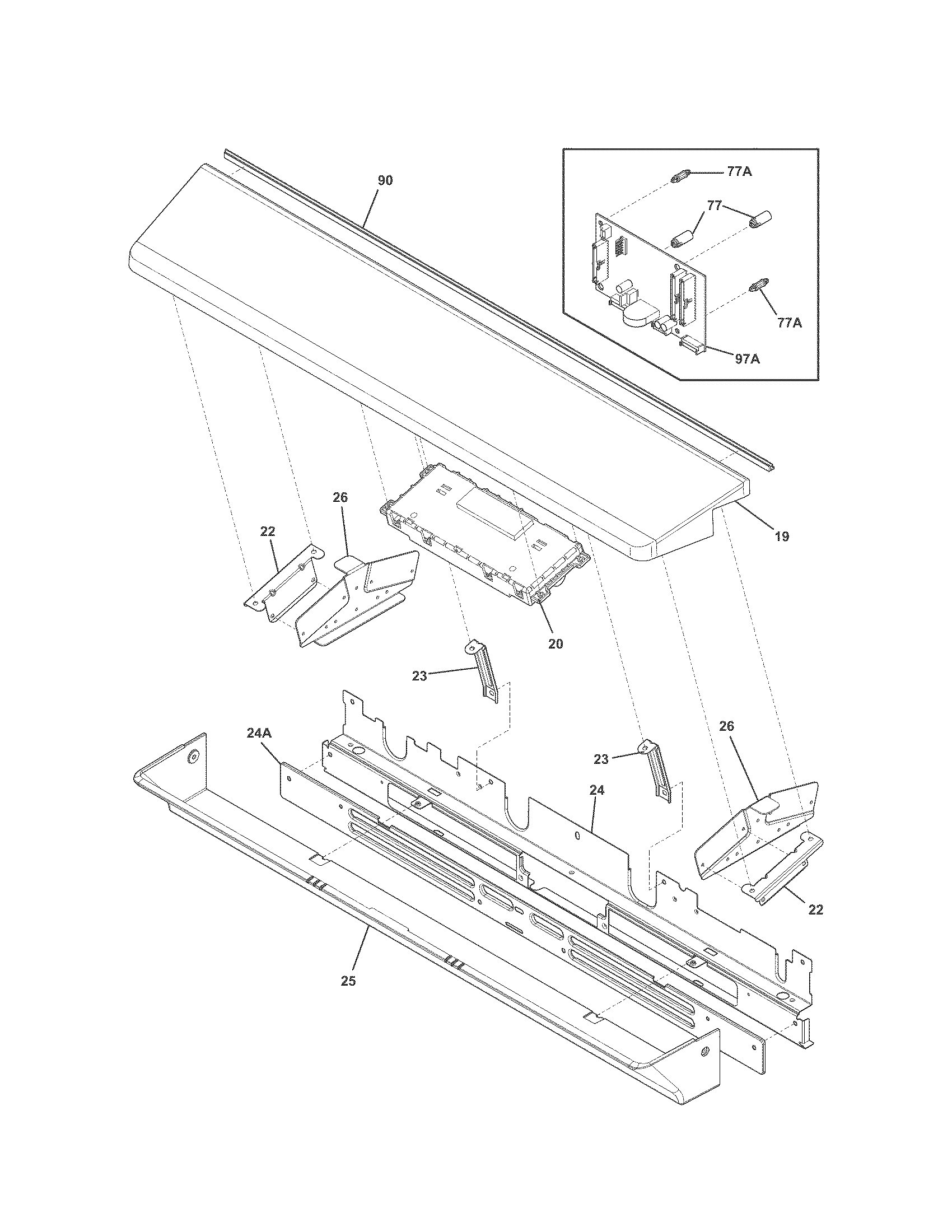

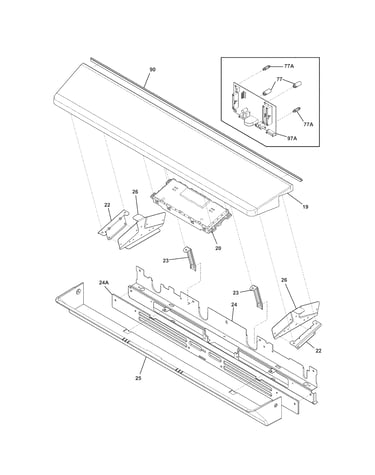

Backguard diagram

Controller

Part #316577061

Replaced by #5304503500

?
Manufacturer substitution
This part replaces 316577061. Substitute parts can look different from the original.
$314.20 |
$12.00 OFF Phone Price : $326.20
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
#NI

Body diagram

Range oven light bulb (replaces 808564103)

Part #318946500

$38.98 |
13% OFF Phone Price : $44.98
In Stock
