Model # MERB750BAB10 Official Maytag 30" electric range

Here are the diagrams and repair parts for Official Maytag MERB750BAB10 30" electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

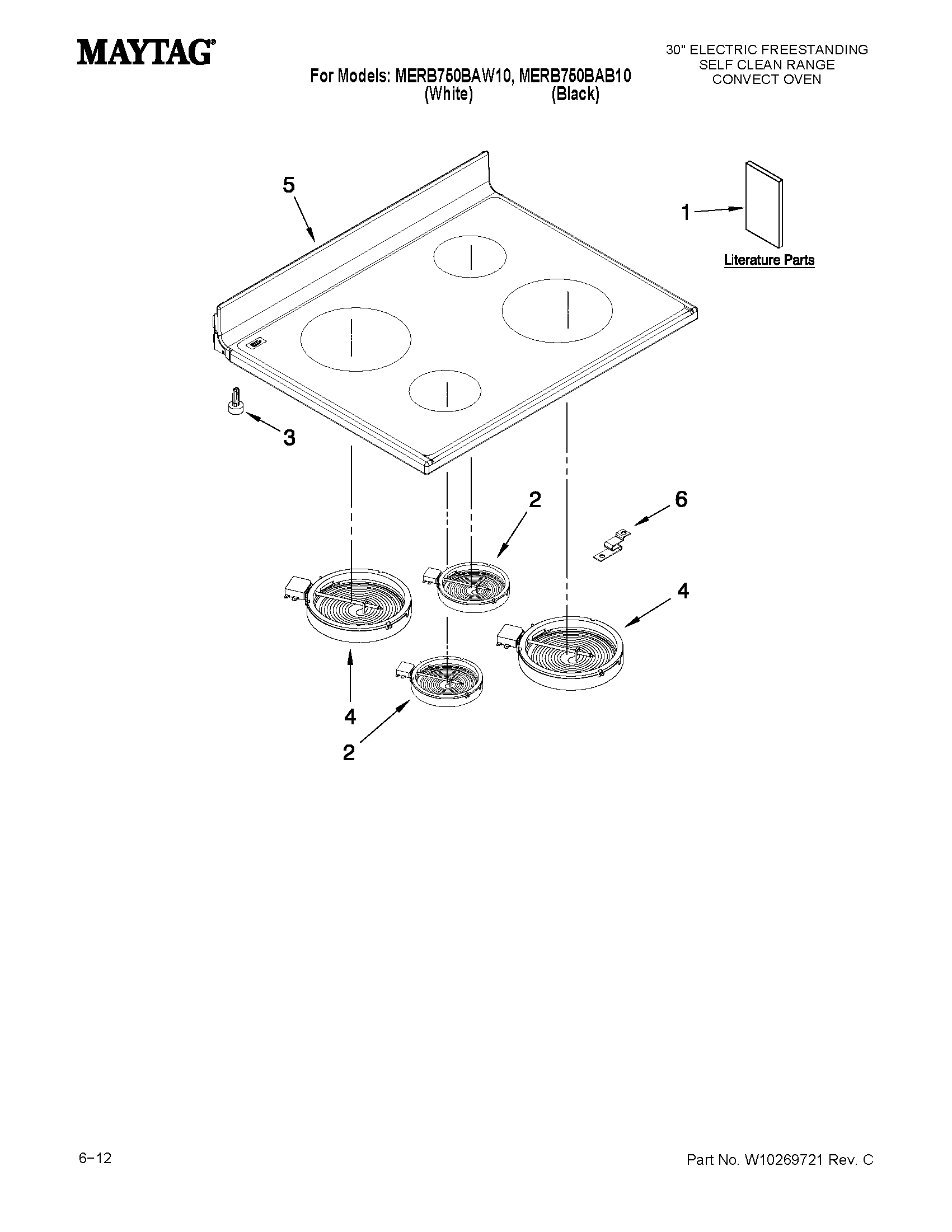

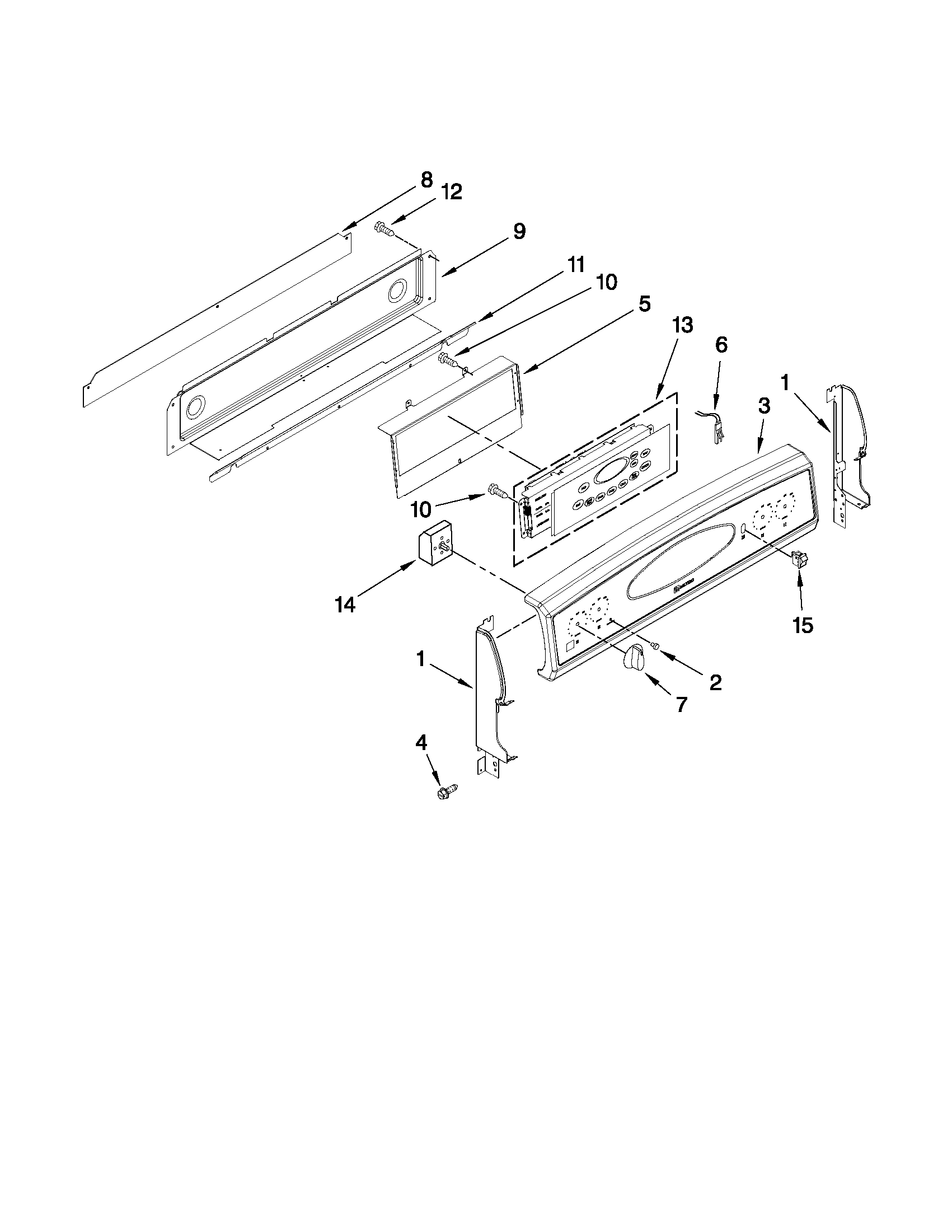

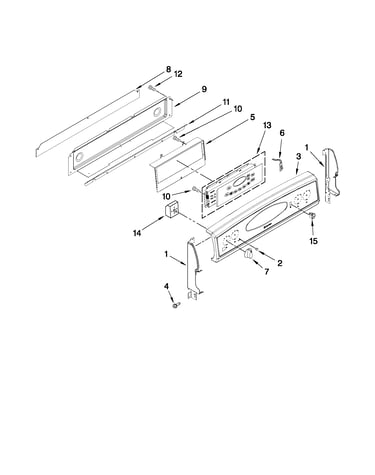

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Sensor 7430P042-60
#10

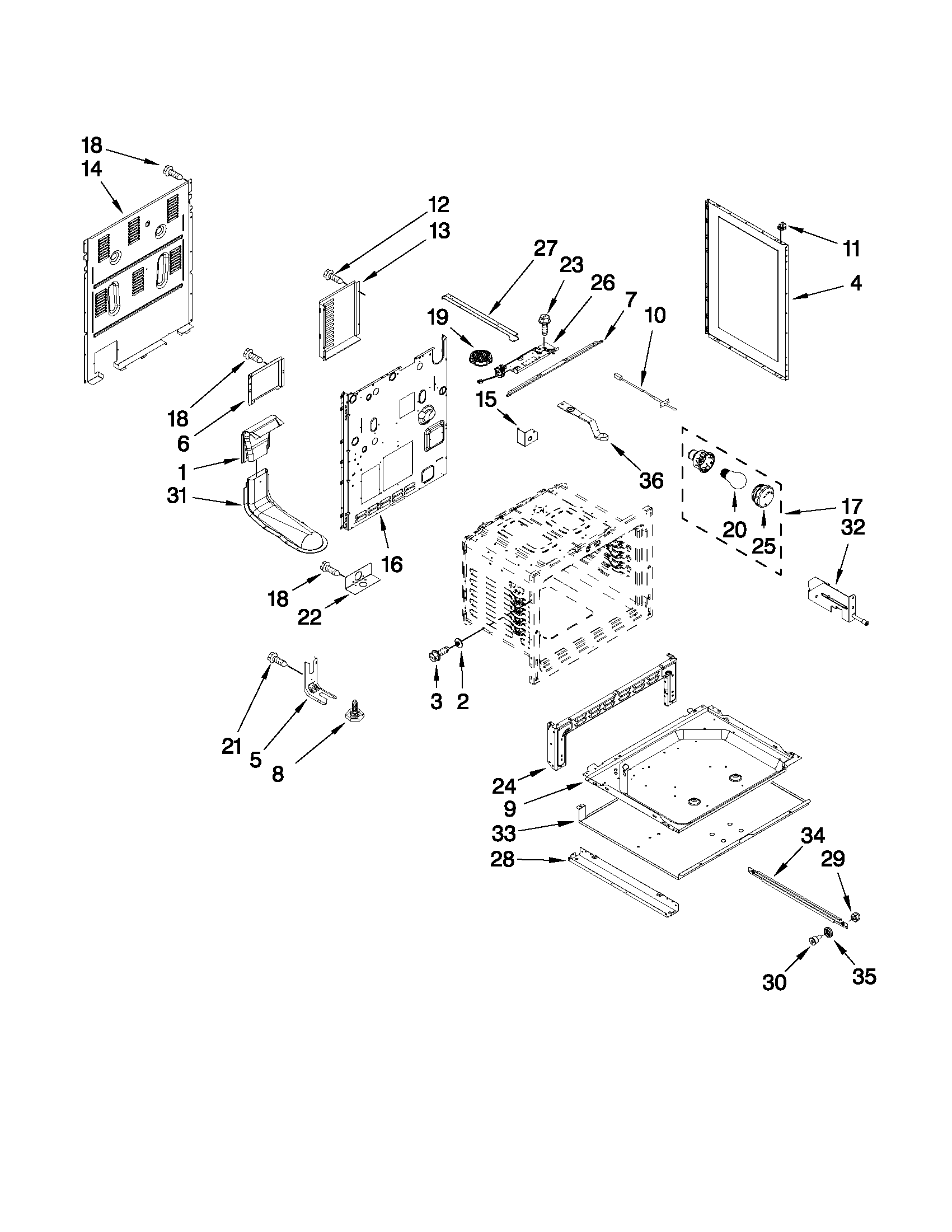

Chassis parts diagram

Sensor

Part #7430P042-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P042-60. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 7101P376-60
Screw

Part #7101P376-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P376-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P388-60
Screw

Part #7101P388-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P388-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Elmnt-brol 7406P205-60
#3

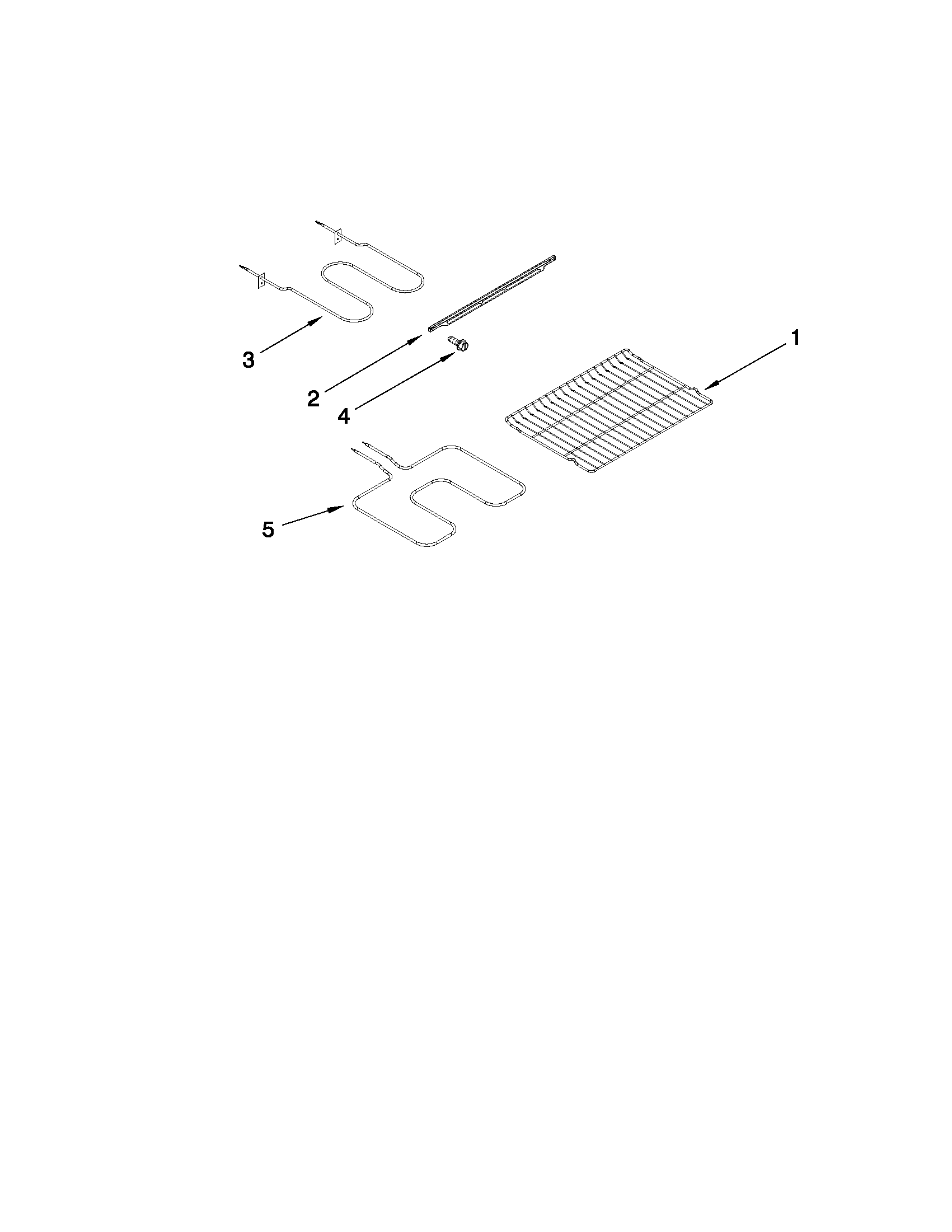

Rack and element parts diagram

Elmnt-brol

Part #7406P205-60

Replaced by #WPW10310249

?
Manufacturer substitution
This part replaces 7406P205-60. Substitute parts can look different from the original.
$74.22 |
7% OFF Phone Price : $80.22
In Stock
Stand Mixer Screw, #10-24 X 1/4-in WP4159193
#NI

Optional parts (not included) diagram

Stand mixer screw, #10-24 x 1/4-in

Part #WP4159193

This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P282-60
#16

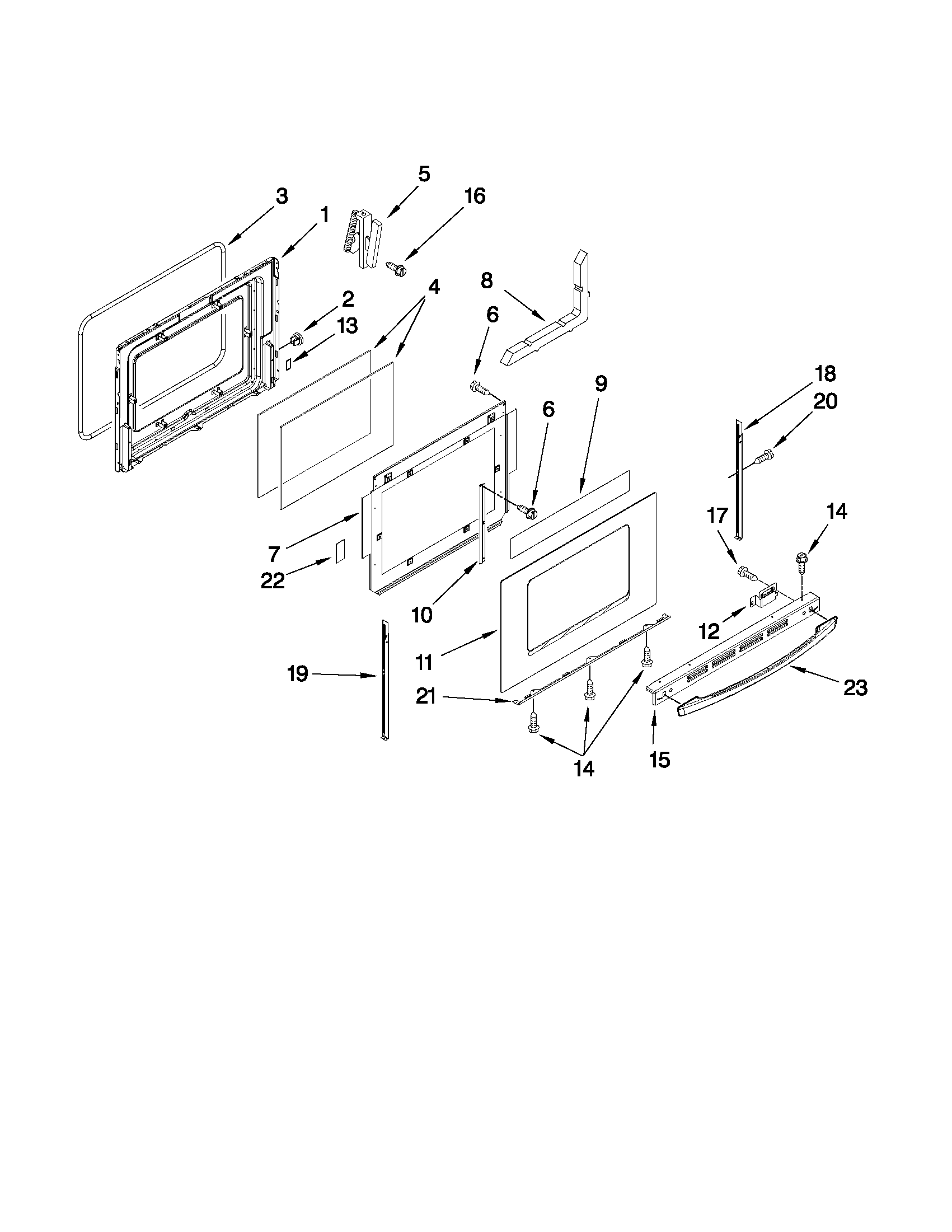

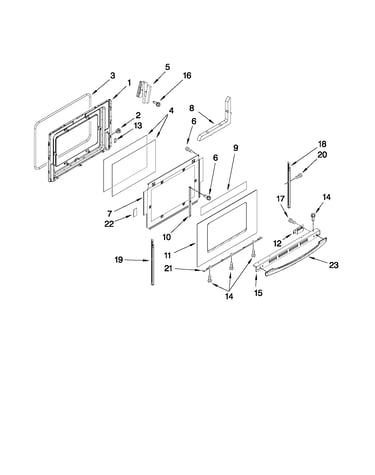

Door parts diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Range Anti-tip Bracket 3801F656-51
#5

Chassis parts diagram

Range anti-tip bracket

Part #3801F656-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F656-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Touch-up Paint 4392899
#NI

Optional parts (not included) diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
