Model # ACS3350AS-PACS3350AS0 Official Amana gas range

Here are the diagrams and repair parts for Official Amana ACS3350AS-PACS3350AS0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

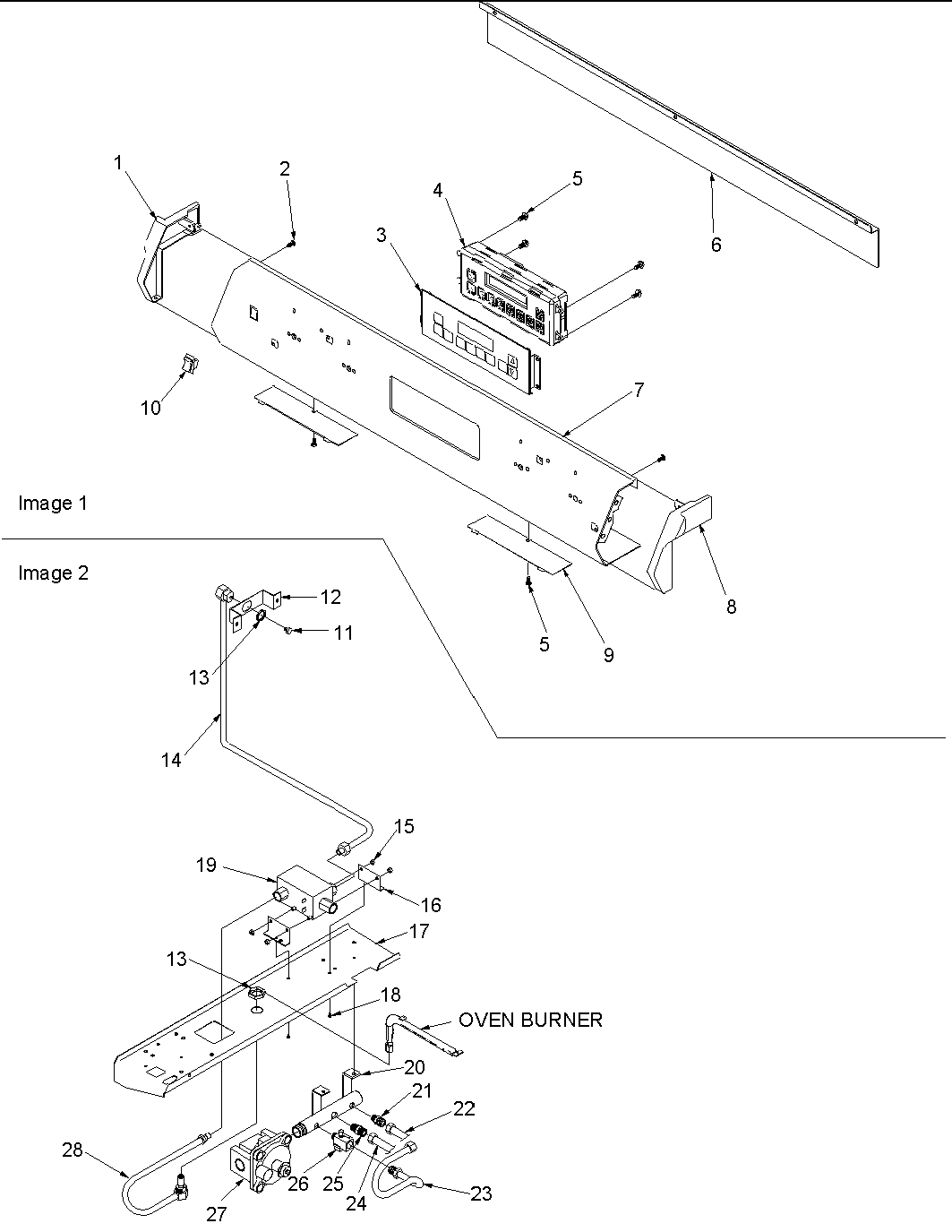

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Grate 0308026
#45

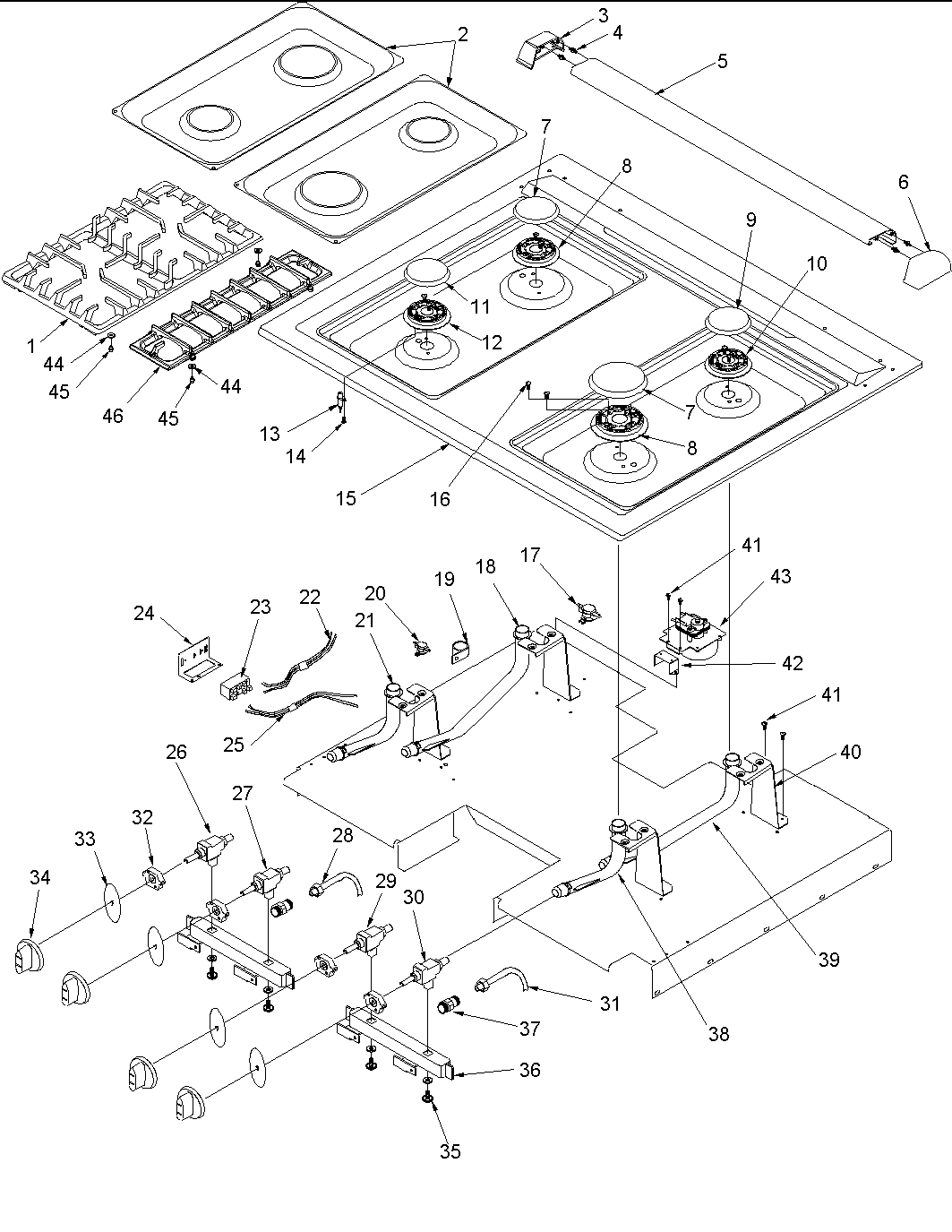

Main top diagram

Grate

Part #0308026

Replaced by #814323

?
Manufacturer substitution
This part replaces 0308026. Substitute parts can look different from the original.
BEST SELLER
$9.13 |
10% OFF Phone Price : $10.13
In Stock
Screw 31750432
#35

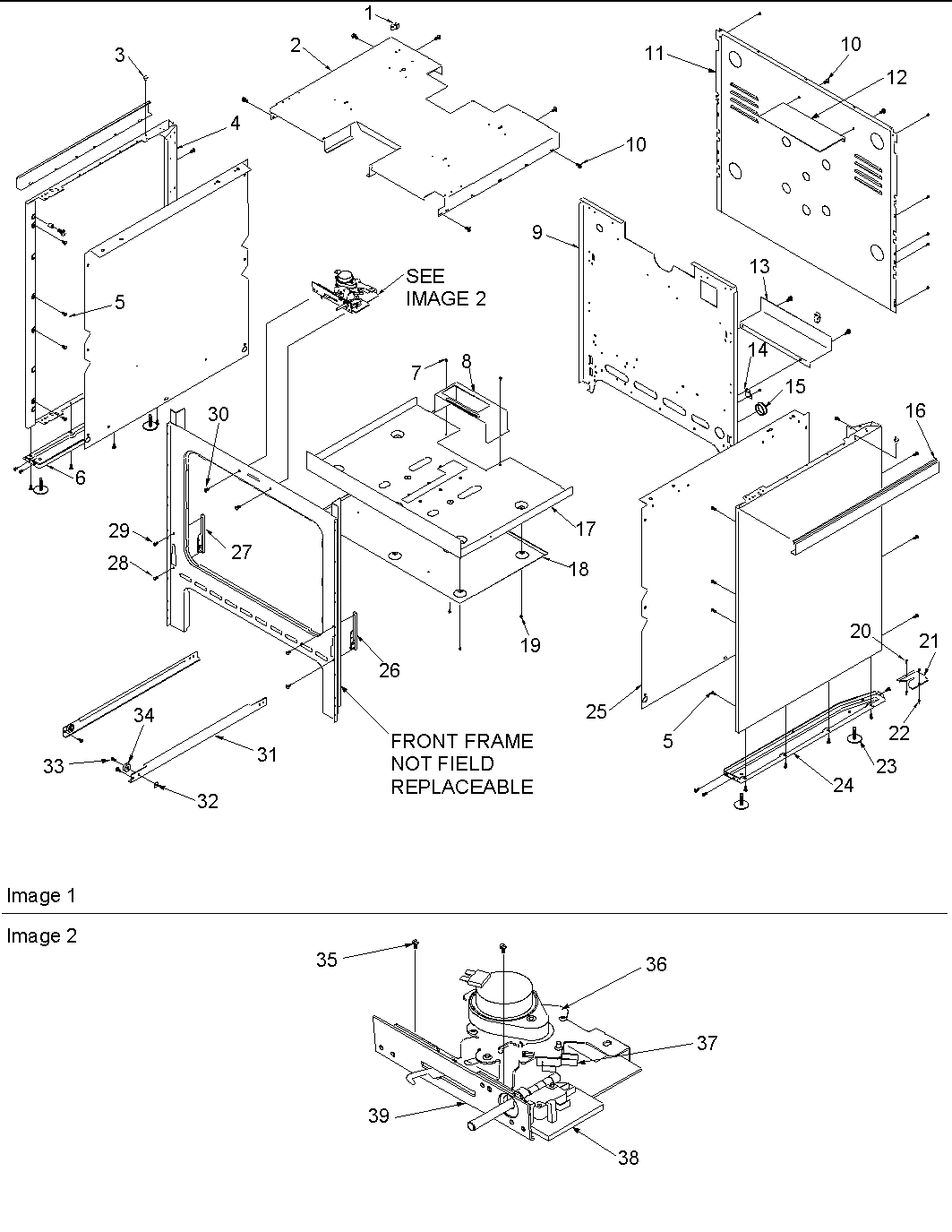

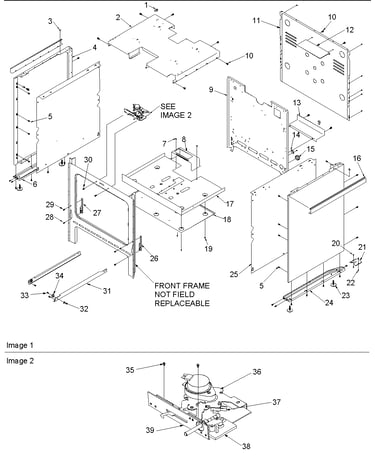

Cabinet diagram

Screw

Part #31750432

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 31750103
Hex nut

Part #31750103

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 31750103. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 31750409
#14

Main top diagram

Screw

Part #31750409

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 31750409. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Igniter 31939901
#25

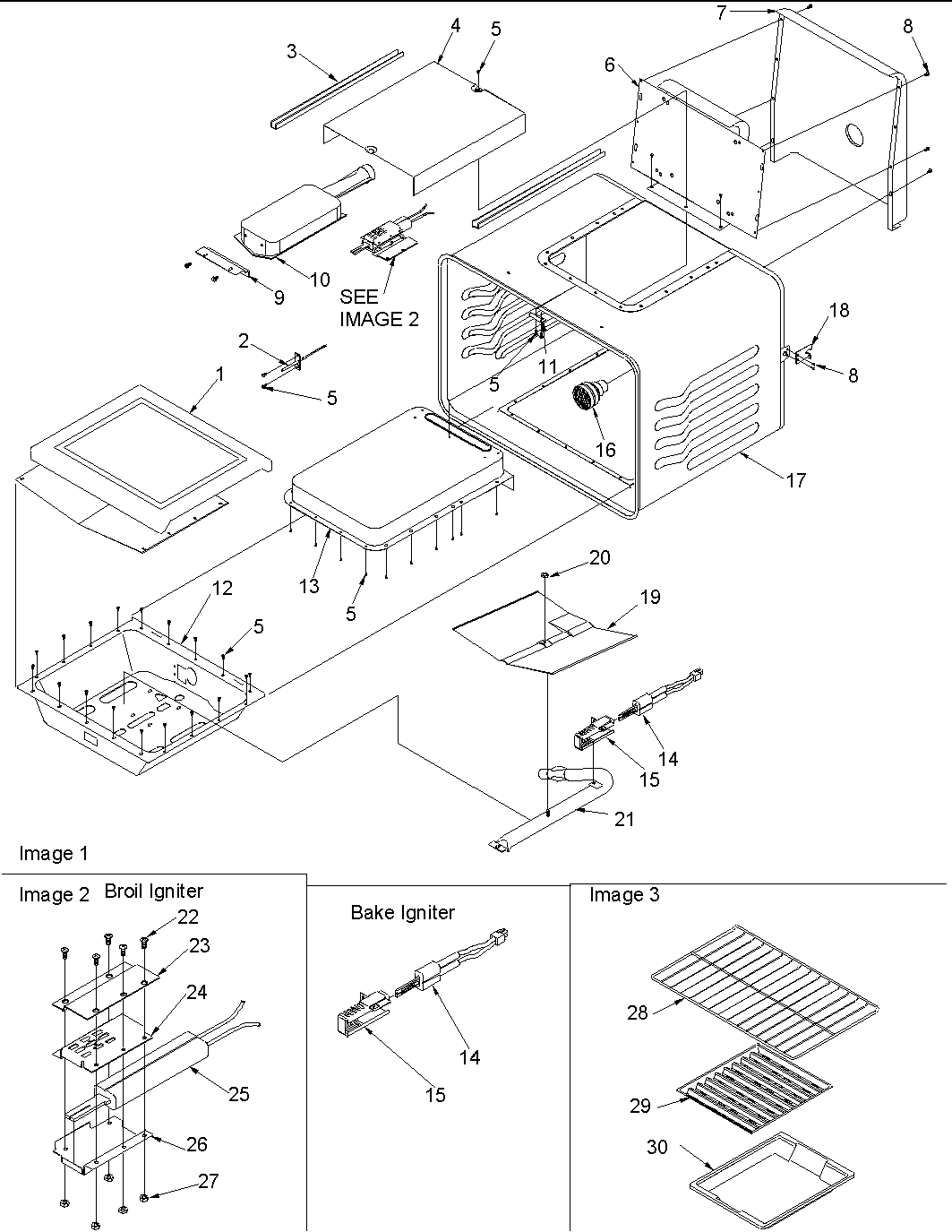

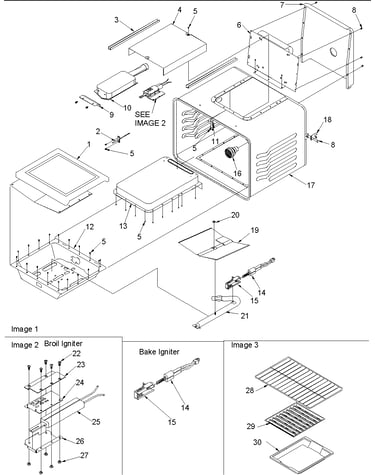

Cavity diagram

Igniter

Part #31939901

Replaced by #786324

?
Manufacturer substitution
This part replaces 31939901. Substitute parts can look different from the original.
$46.23 |
11% OFF Phone Price : $52.23
In Stock
Cap 31782501MB
#11

Main top diagram

Cap

Part #31782501MB

The manufacturer no longer makes this part, and there's no substitute part

Switch 31899201
#37

Cabinet diagram

Switch

Part #31899201

Replaced by #W10915404

?
Manufacturer substitution
This part replaces 31899201. Substitute parts can look different from the original.
This item is not returnable
$13.09 |
13% OFF Phone Price : $15.09
In Stock
Screw, #10-1 31750507
Screw, #10-1

Part #31750507

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 31750507. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Burner 0315768
Burner

Part #0315768

The manufacturer no longer makes this part, and there's no substitute part

Screw 31750410
#4

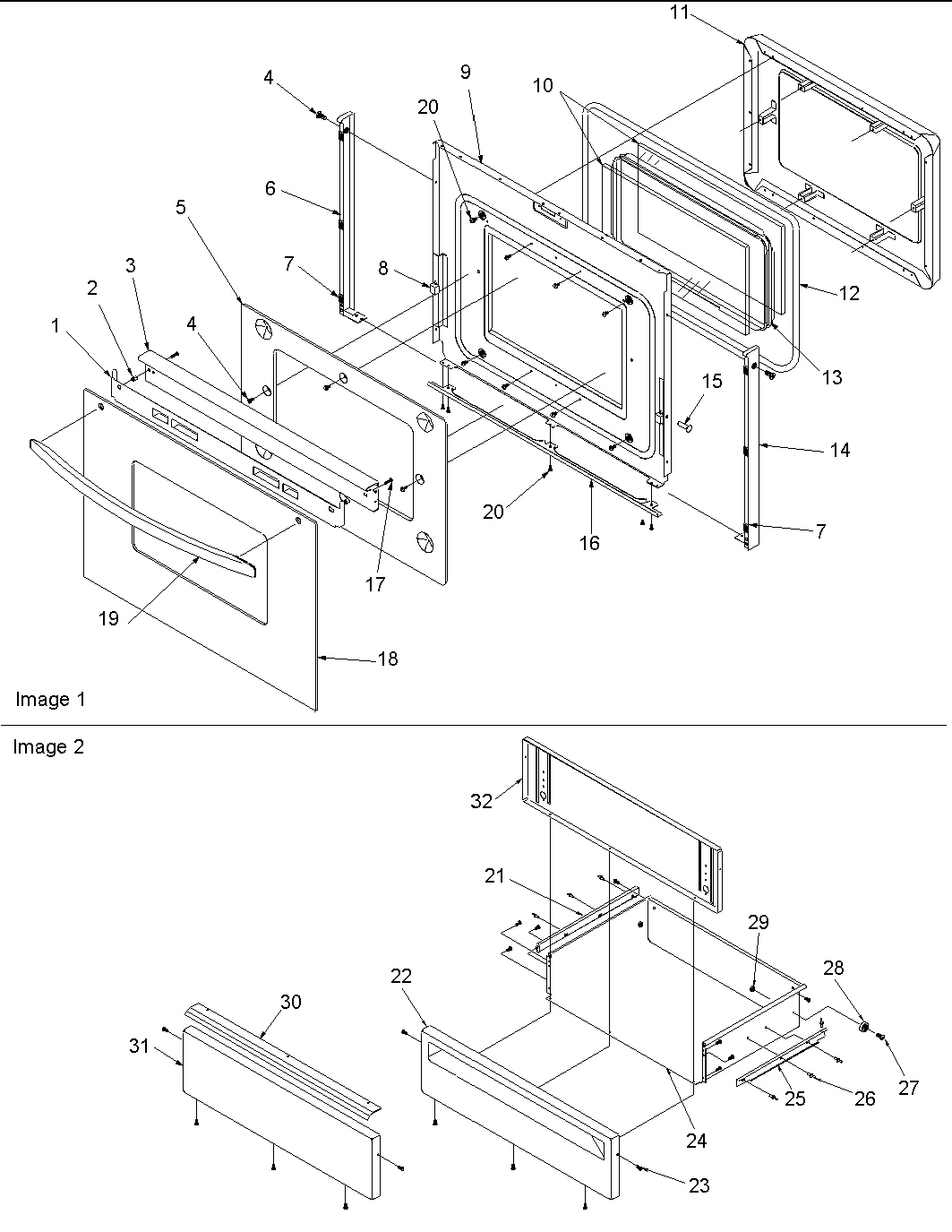

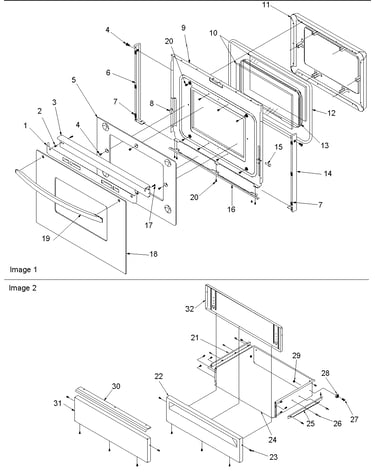

Oven door & storage drawer diagram

Screw

Part #31750410

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750410. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
