GE
Gas Range

Model # PGS920SEF1SS Official GE gas range

Here are the diagrams and repair parts for Official GE PGS920SEF1SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Oven Igniter WB13K10026
#218

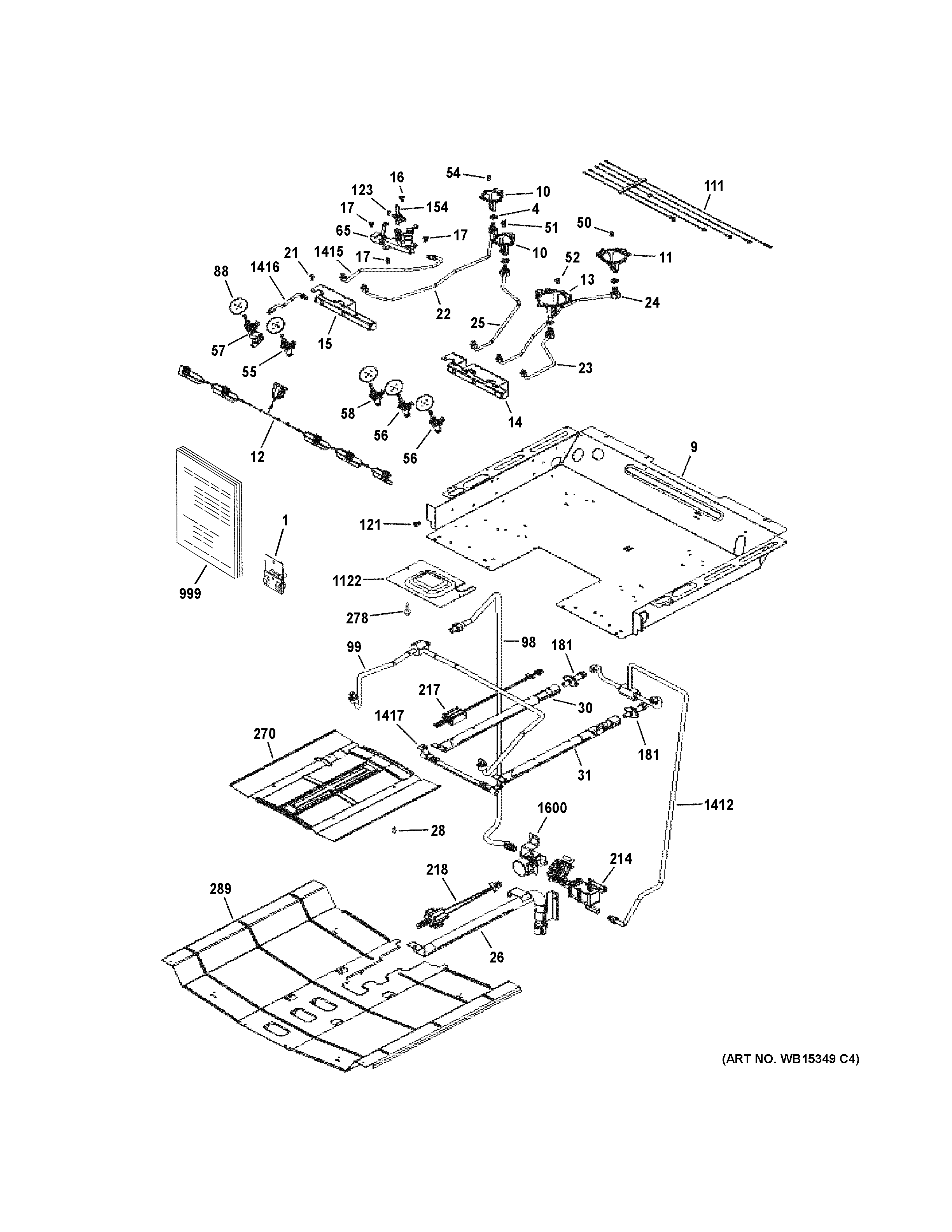

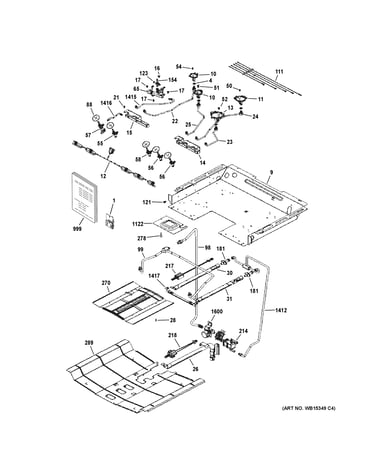

Gas & burner parts diagram

Oven igniter

Part #WB13K10026

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K10026. Substitute parts can look different from the original.
BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
Range Broil Igniter WB13K10043
#217

Gas & burner parts diagram

Range broil igniter

Part #WB13K10043

BEST SELLER
$108.79 |
10% OFF Phone Price : $120.79
In Stock
Sensor WB24X5340
#43

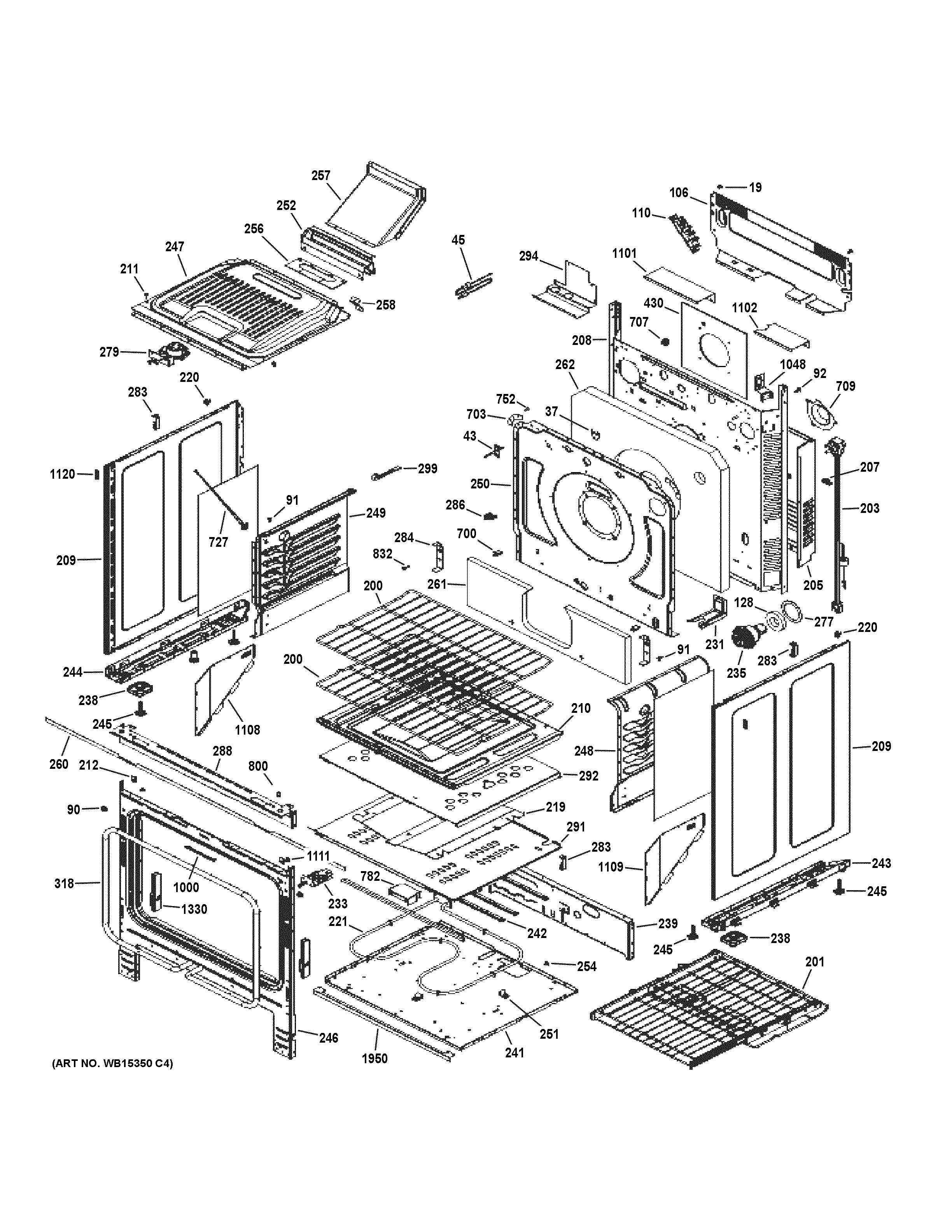

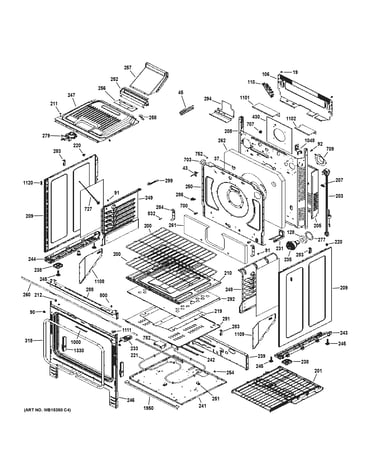

Body parts diagram

Sensor

Part #WB24X5340

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB24X5340. Substitute parts can look different from the original.
BEST SELLER
$126.20 |
10% OFF Was : $140.22
In Stock
Range Surface Burner Cap WB29K10024
#152

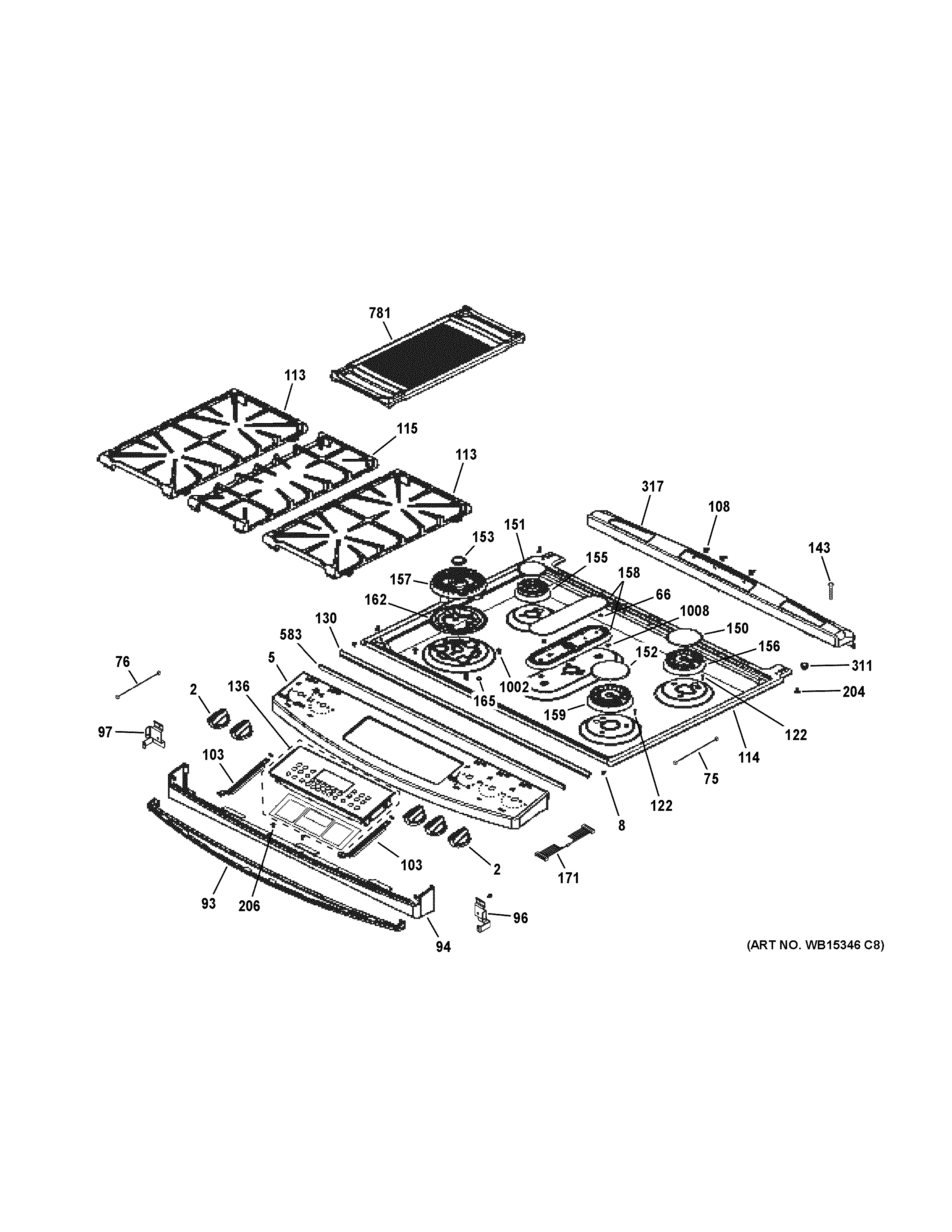

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10024

BEST SELLER
$11.33 |
15% OFF Phone Price : $13.33
In Stock
Oven Lamp Holder WB08T10002
#235

Body parts diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Range Spark Module WB13K10033
#110

Body parts diagram

Range spark module

Part #WB13K10033

Replaced by #WB13X26360

?
Manufacturer substitution
This part replaces WB13K10033. Substitute parts can look different from the original.
BEST SELLER
$67.88 |
8% OFF Phone Price : $73.88
In Stock
Range Surface Burner Valve WB21X20470
#56

Gas & burner parts diagram

Range surface burner valve

Part #WB21X20470

BEST SELLER
$28.44 |
17% OFF Phone Price : $34.44
In Stock
Range Surface Burner Cap WB29K10022
#151

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10022

BEST SELLER
$7.24 |
12% OFF Phone Price : $8.24
In Stock
Range Surface Burner Head WB16T10046
#159

Control panel & cooktop diagram

Range surface burner head

Part #WB16T10046

BEST SELLER
$31.57 |
16% OFF Phone Price : $37.57
In Stock
Range Oven Door Outer Glass WB56X23809
#338

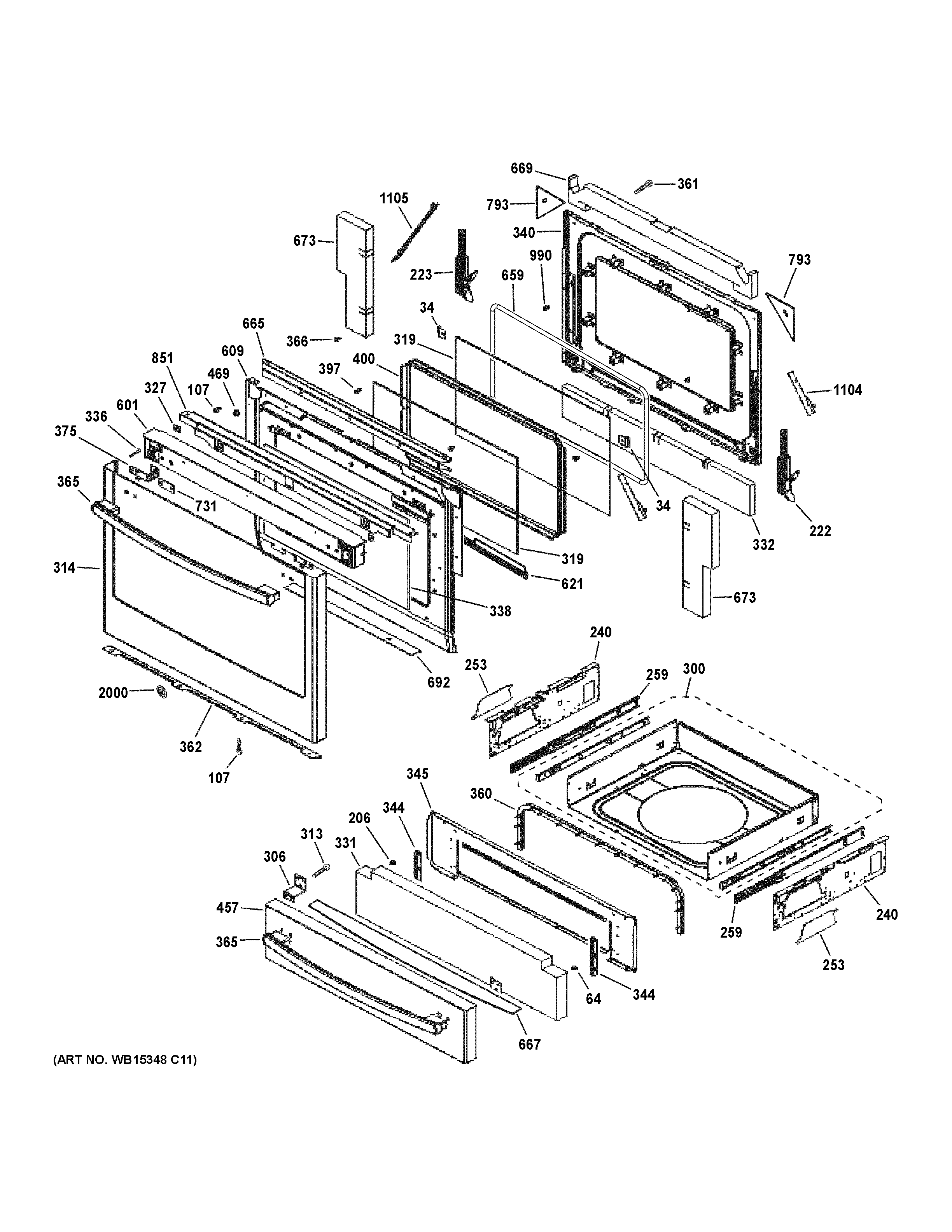

Door & drawer parts diagram

Range oven door outer glass

Part #WB56X23809

$91.51 |
6% OFF Phone Price : $97.51
In Stock
