Model # 1039897617 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 1039897617 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

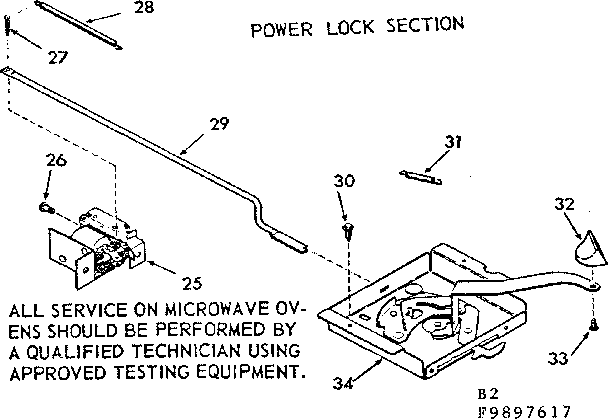

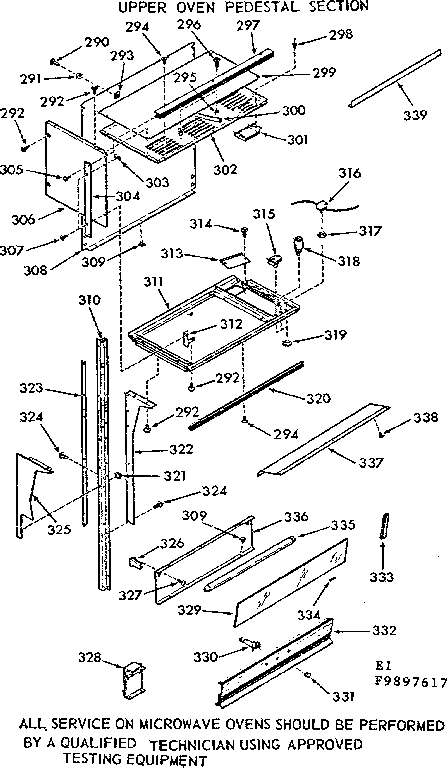

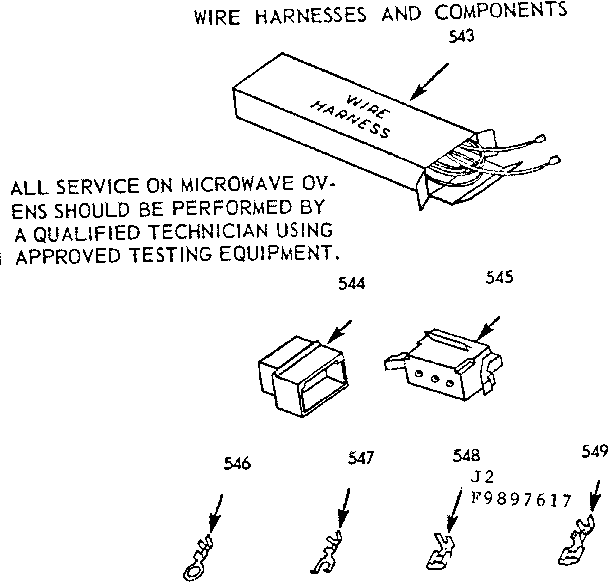

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 376 parts  |
Lamp Bulb STD372401
Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Infinite Switch 301820
#526

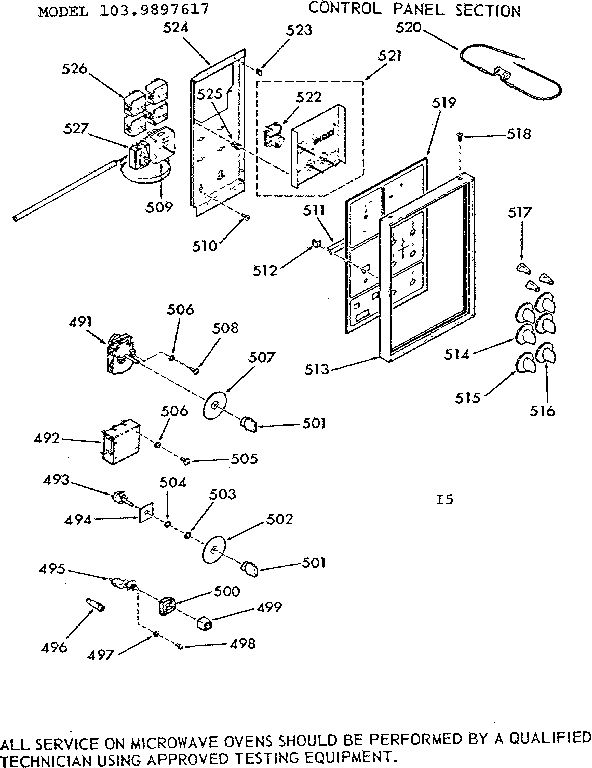

Control panel section diagram

Infinite switch

Part #301820

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 301820. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Sealant M13D2
#415A

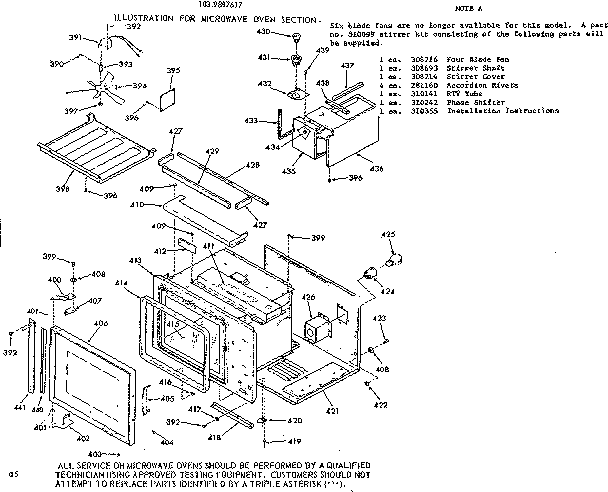

Microwave oven section diagram

Sealant

Part #M13D2

Replaced by #RTV102

?
Manufacturer substitution
This part replaces M13D2. Substitute parts can look different from the original.
BEST SELLER
$17.98 |
10% OFF Phone Price : $19.98
In Stock
Screw 105771
#250

Optional rotisserie diagram

Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Element 293105
#126A

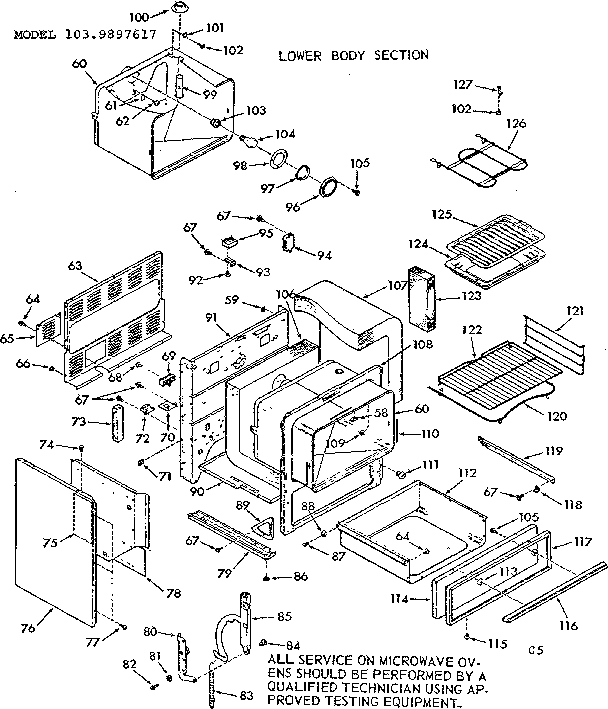

Lower body section diagram

Broil element

Part #293105

Replaced by #WB44M5

?
Manufacturer substitution
This part replaces 293105. Substitute parts can look different from the original.
$68.07 |
8% OFF Phone Price : $74.07
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
#105

Lower body section diagram

Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Gasket 292244
#161

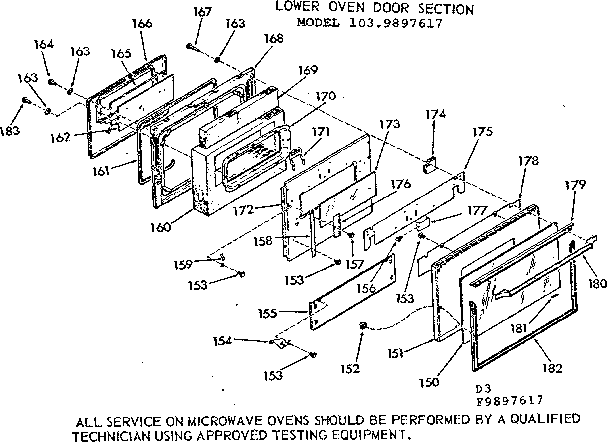

Lower oven door section diagram

Gasket

Part #292244

Replaced by #WB2X9373

?
Manufacturer substitution
This part replaces 292244. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Gm Hex Nut 453284
#373

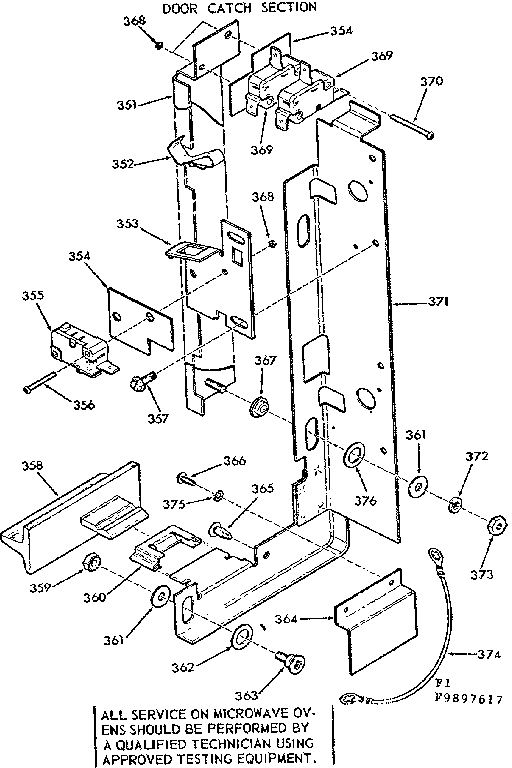

Door catch section diagram

Gm hex nut

Part #453284

Replaced by #WB1X1259

?
Manufacturer substitution
This part replaces 453284. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
