DeWalt
Power Drill

Model # DW991K2TY2 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW991K2TY2 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

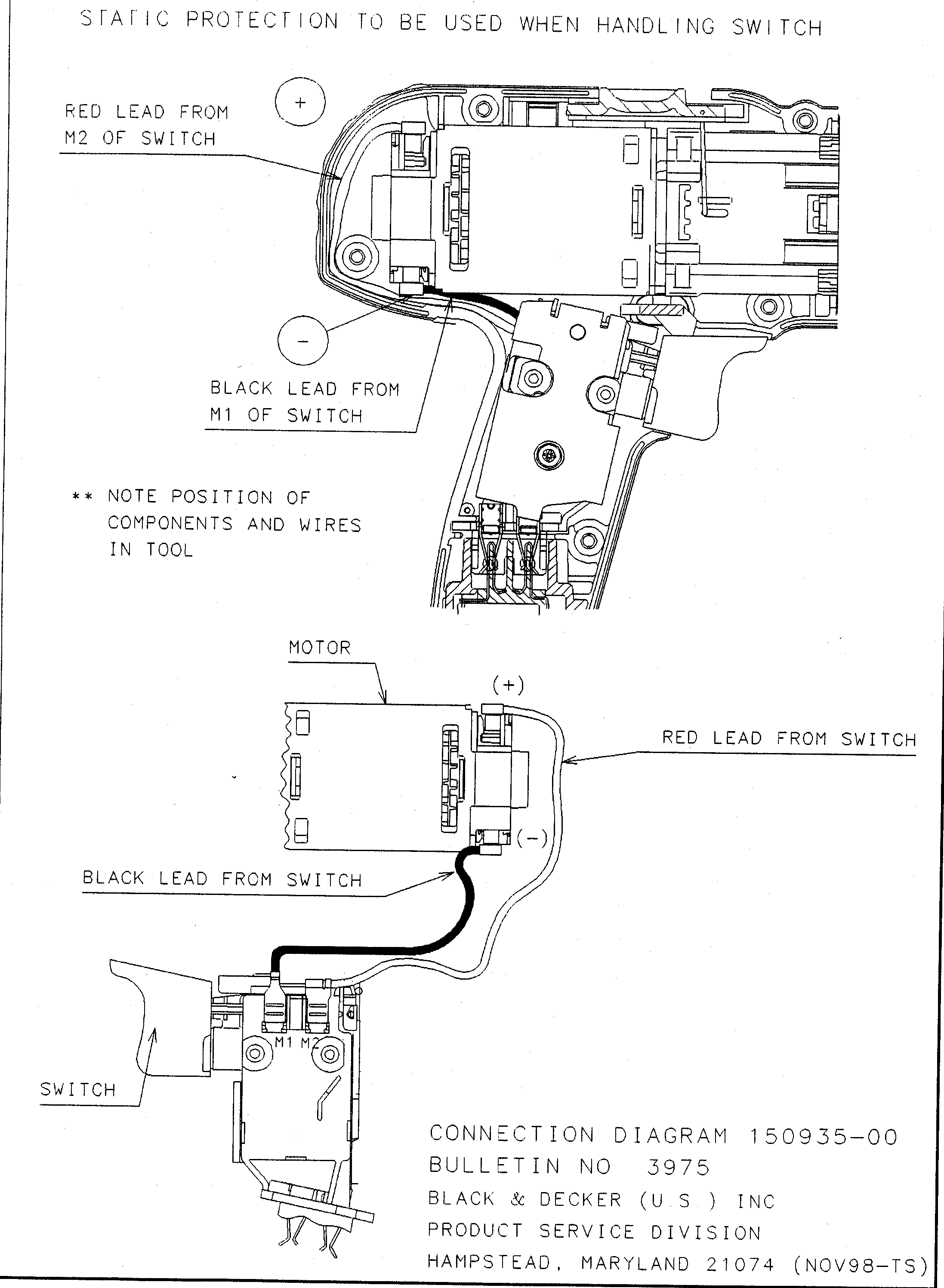

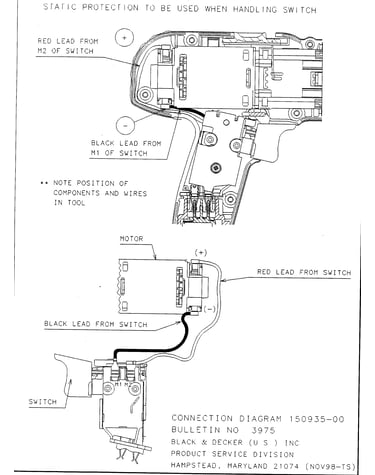

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Clip 798959-00
#37

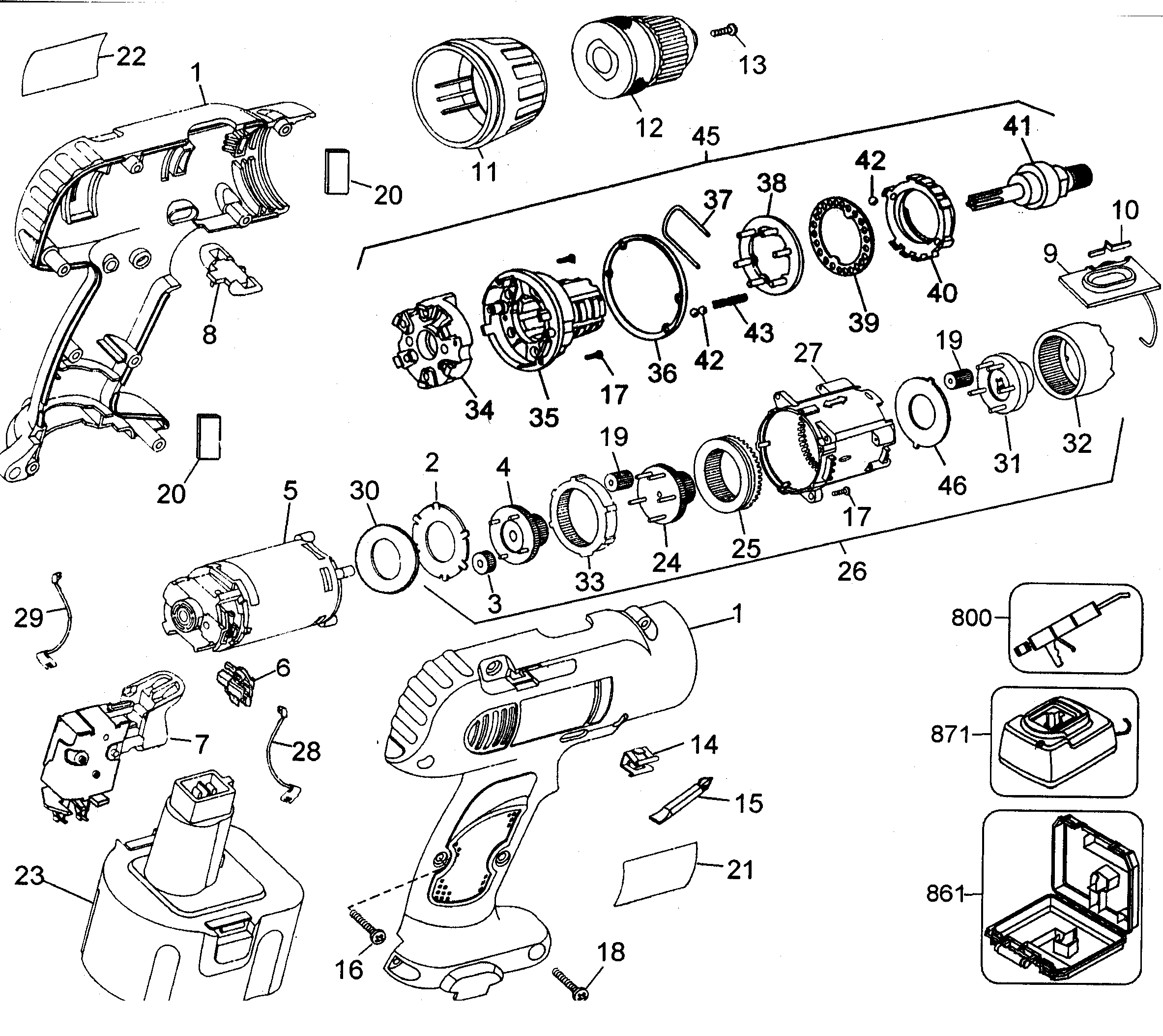

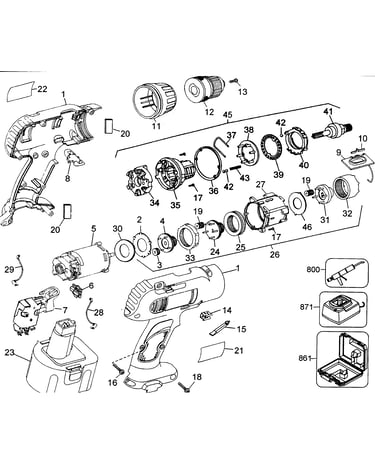

Drill diagram

Clip

Part #798959-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer 805004-00
#37A

Drill diagram

Black & decker washer

Part #805004-00

The manufacturer no longer makes this part, and there's no substitute part

Support 798963-01
#38

Drill diagram

Support

Part #798963-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer 798954-00
#2

Drill diagram

Black & decker washer

Part #798954-00

The manufacturer no longer makes this part, and there's no substitute part

Plate 798708-00
#39

Drill diagram

Plate

Part #798708-00

The manufacturer no longer makes this part, and there's no substitute part

Shifter Spring 144658-00
#10

Drill diagram

Shifter spring

Part #144658-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Plate 798689-00
#46

Drill diagram

Black & decker plate

Part #798689-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Spring 152347-00
#43

Drill diagram

Black & decker spring

Part #152347-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Gear 805063-02
#33

Drill diagram

Black & decker gear

Part #805063-02

The manufacturer no longer makes this part, and there's no substitute part

Clamshell 392654-04
#1

Drill diagram

Clamshell

Part #392654-04

The manufacturer no longer makes this part, and there's no substitute part
