Model # RGE4900W1 Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RGE4900W1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

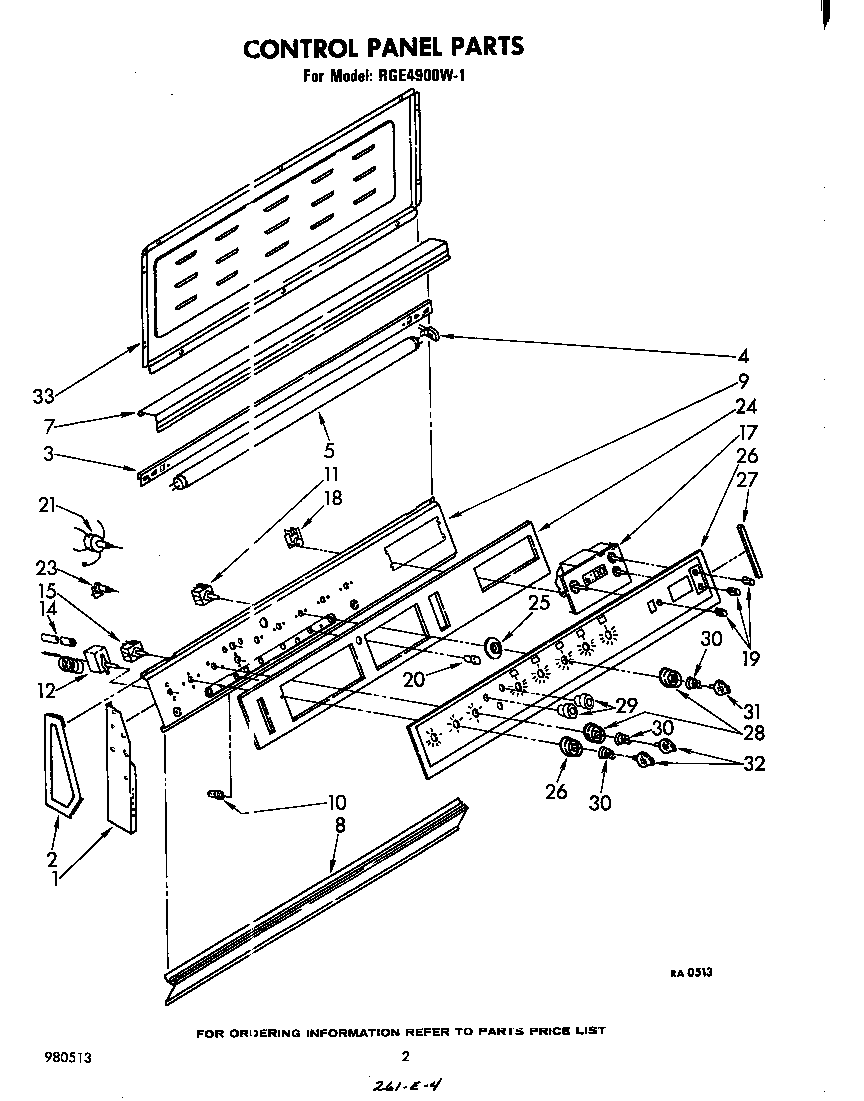

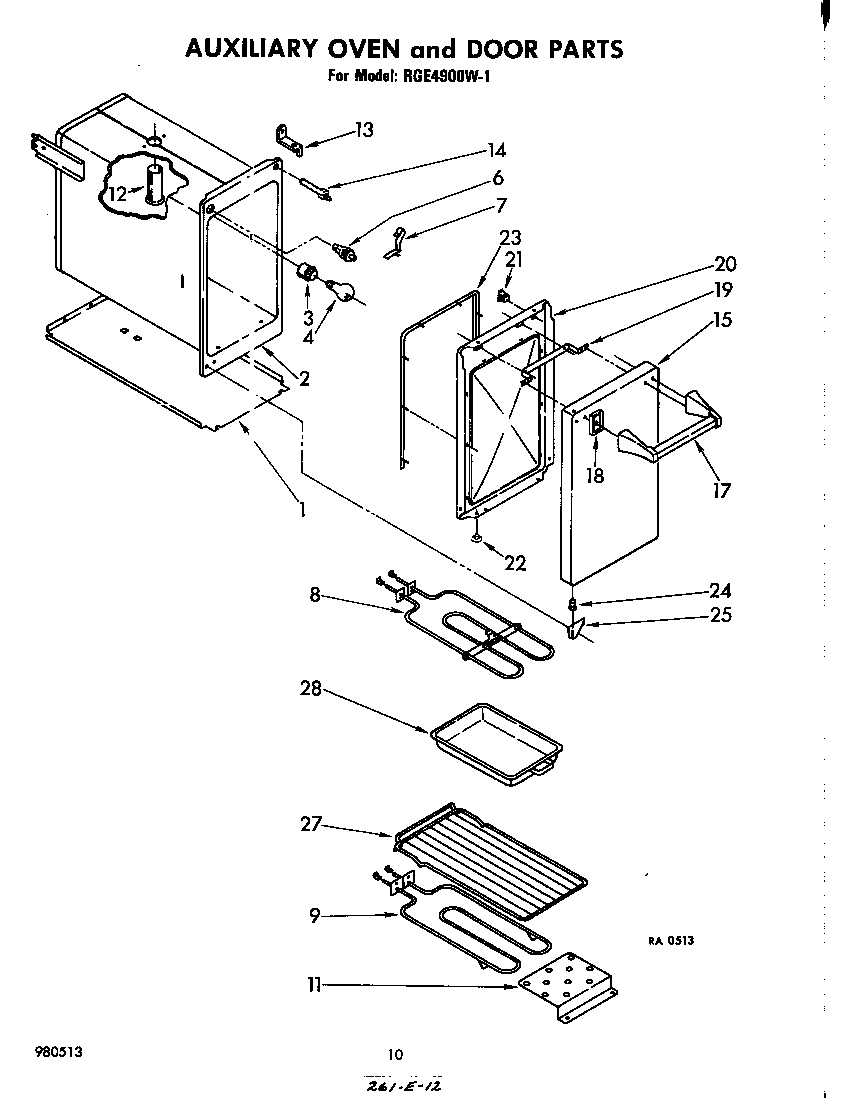

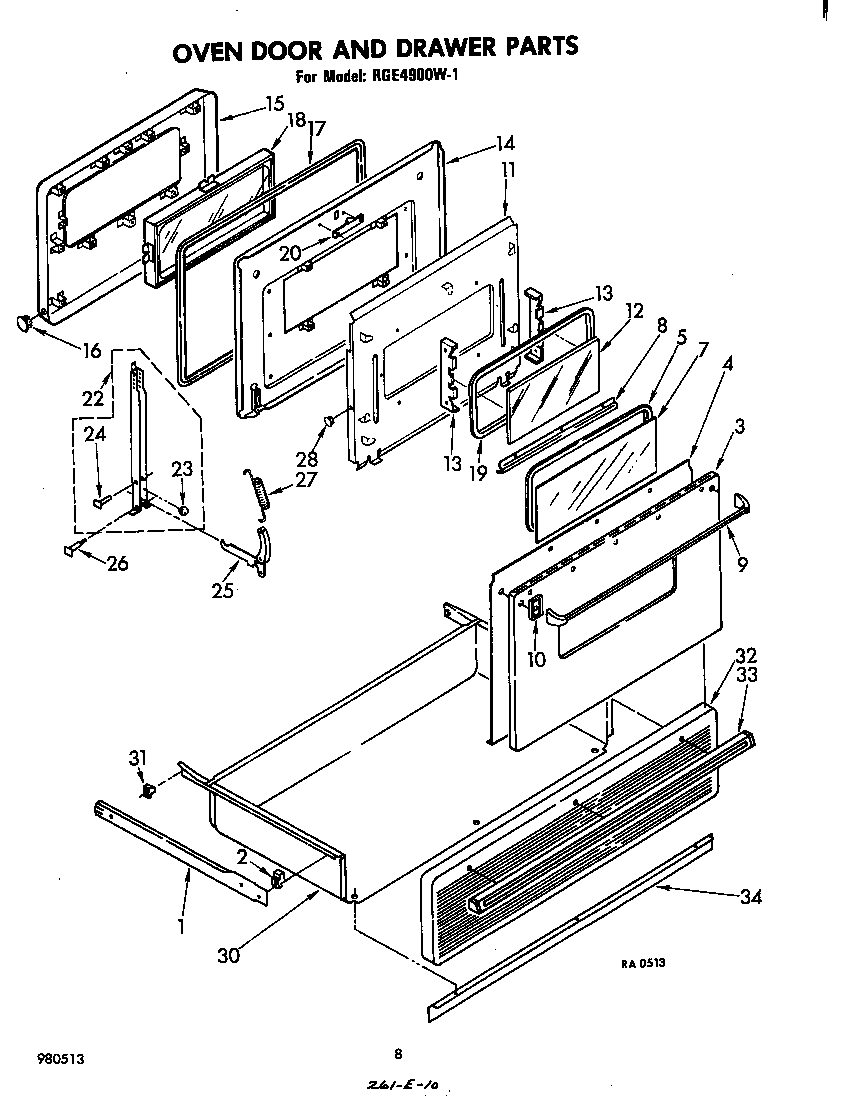

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 284 parts  |
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Receptacle 865702
#25C

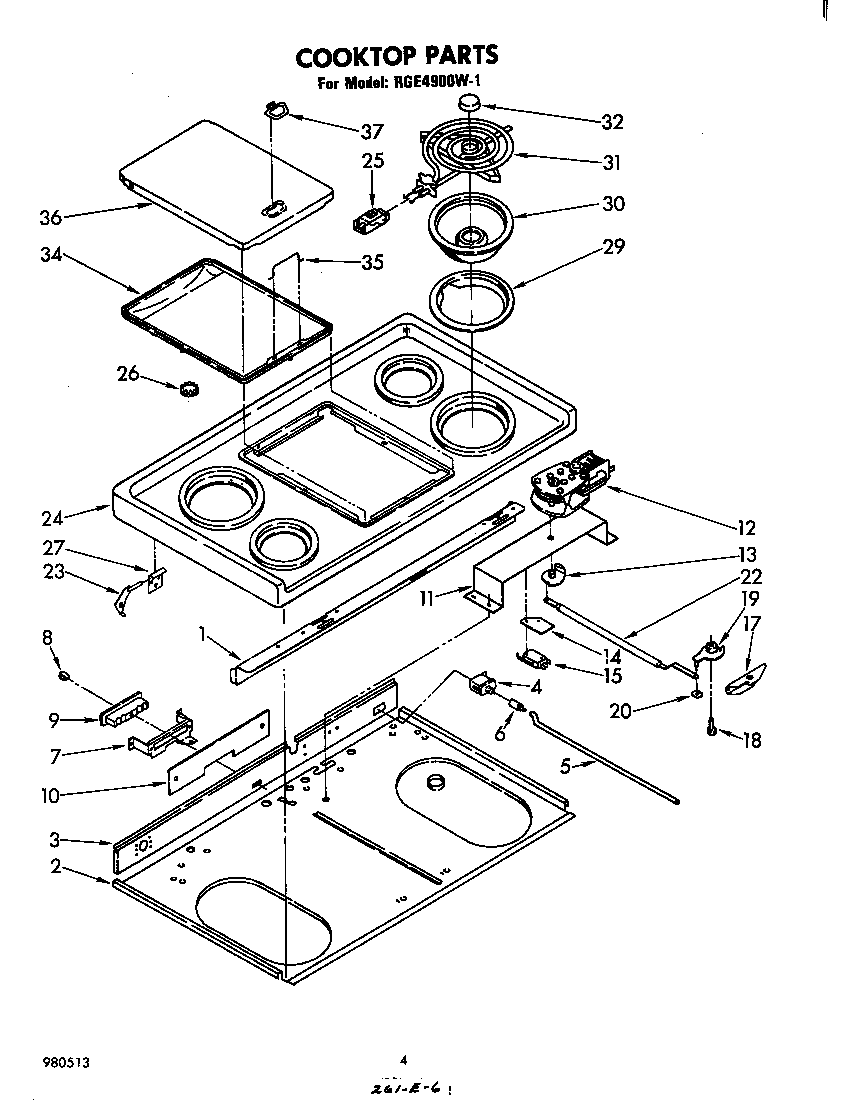

Cooktop diagram

Receptacle

Part #865702

Replaced by #330031

?
Manufacturer substitution
This part replaces 865702. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Receptacle 877578
#25B

Cooktop diagram

Receptacle

Part #877578

Replaced by #330031

?
Manufacturer substitution
This part replaces 877578. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Receptacle 877579
#25D

Cooktop diagram

Receptacle

Part #877579

Replaced by #330031

?
Manufacturer substitution
This part replaces 877579. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Receptacle 865701
#25A

Cooktop diagram

Receptacle

Part #865701

Replaced by #330031

?
Manufacturer substitution
This part replaces 865701. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Spray W 350930

#NI

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Touchup Ng 72110

#NI

All parts diagram

Touchup ng

Part #72110

Replaced by #72110

?
Manufacturer substitution
This part replaces 72110. Substitute parts can look different from the original.
This item is not returnable
$13.24 |
13% OFF Phone Price : $15.24
In Stock
Block 241212
#32

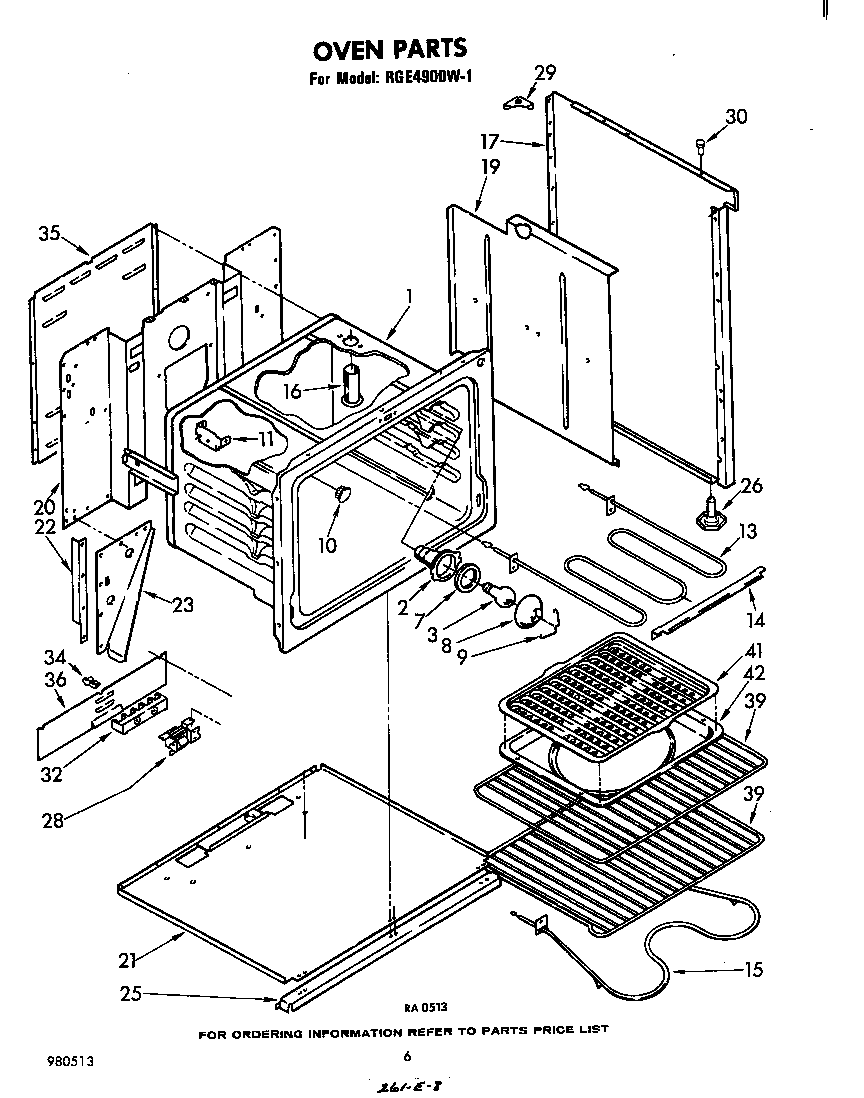

Oven diagram

Block

Part #241212

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 241212. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Appliance Spray Paint (black) (replaces 10952, 830864) 285006

#NI

All parts diagram

Appliance spray paint (black) (replaces 10952, 830864)

Part #285006

This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
