Maytag
Electric Wall Oven

Model # MEW5530DDW Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW5530DDW electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

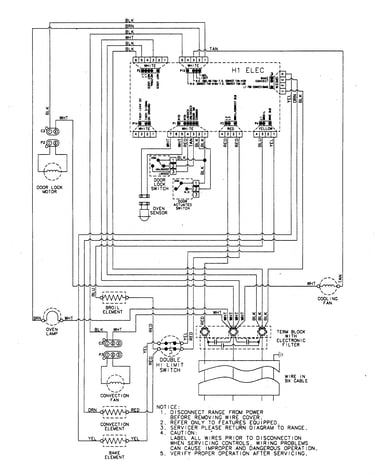

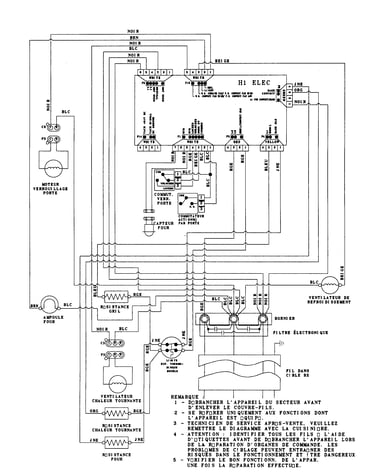

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Terminal Block 7401P039-60
#12

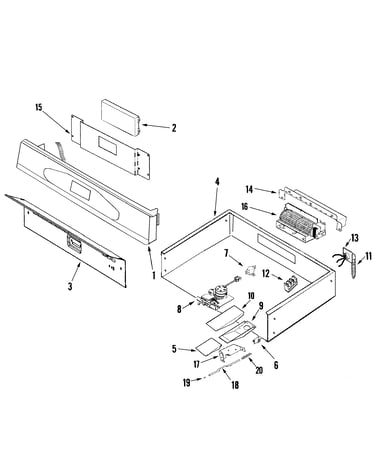

Control panel and internal controls diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#12

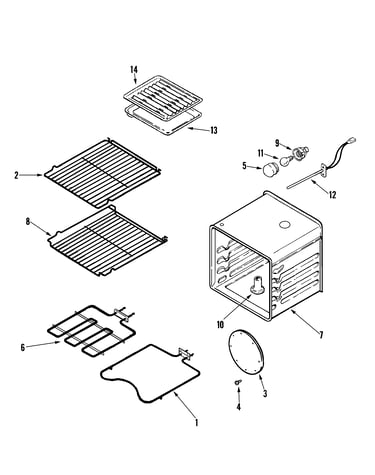

Oven diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Microwave Door Handle 74011768
#9D

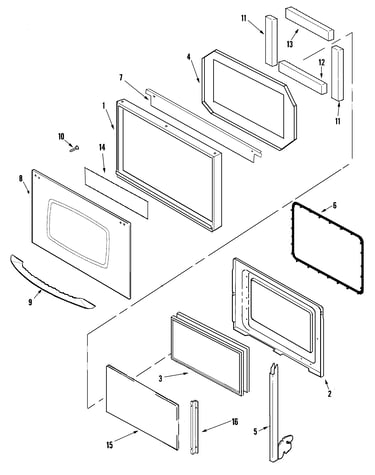

Door diagram

Microwave door handle

Part #74011768

Replaced by #WP74011768

?
Manufacturer substitution
This part replaces 74011768. Substitute parts can look different from the original.
$84.55 |
7% OFF Phone Price : $90.55
In Stock
Door Handle 74008942
#9A

Door diagram

Door handle

Part #74008942

Replaced by #WP74011768

?
Manufacturer substitution
This part replaces 74008942. Substitute parts can look different from the original.
$84.55 |
7% OFF Phone Price : $90.55
In Stock
Terminal Nut 7103P027-60
#12A

Control panel and internal controls diagram

Terminal nut

Part #7103P027-60

Replaced by #WP7103P027-60

?
Manufacturer substitution
This part replaces 7103P027-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Range Screw 74011674
#10A

Door diagram

Range screw

Part #74011674

Replaced by #WP74006515

?
Manufacturer substitution
This part replaces 74011674. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Oven Control 74008960
#2

Control panel and internal controls diagram

Oven control

Part #74008960

Replaced by #W10757354

?
Manufacturer substitution
This part replaces 74008960. Substitute parts can look different from the original.
$205.49 |
6% OFF Phone Price : $217.49
In Stock
Oven Door Hinge Receiver 74008015
#7

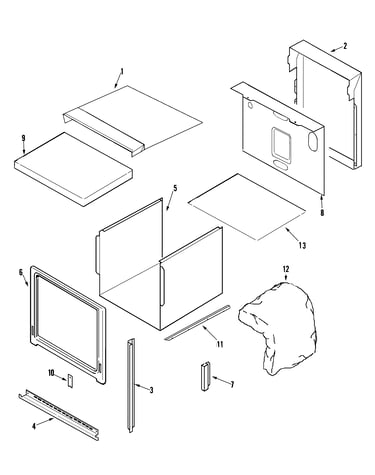

Body diagram

Oven door hinge receiver

Part #74008015

Replaced by #WP74008015

?
Manufacturer substitution
This part replaces 74008015. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Oven Door Switch 74008263
#6

Control panel and internal controls diagram

Oven door switch

Part #74008263

Replaced by #WP74008263

?
Manufacturer substitution
This part replaces 74008263. Substitute parts can look different from the original.
$64.60
In Stock
