Model # JCKS10BM3BB Official GE electric oven

Here are the diagrams and repair parts for Official GE JCKS10BM3BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Sensor WB21T10017
#253

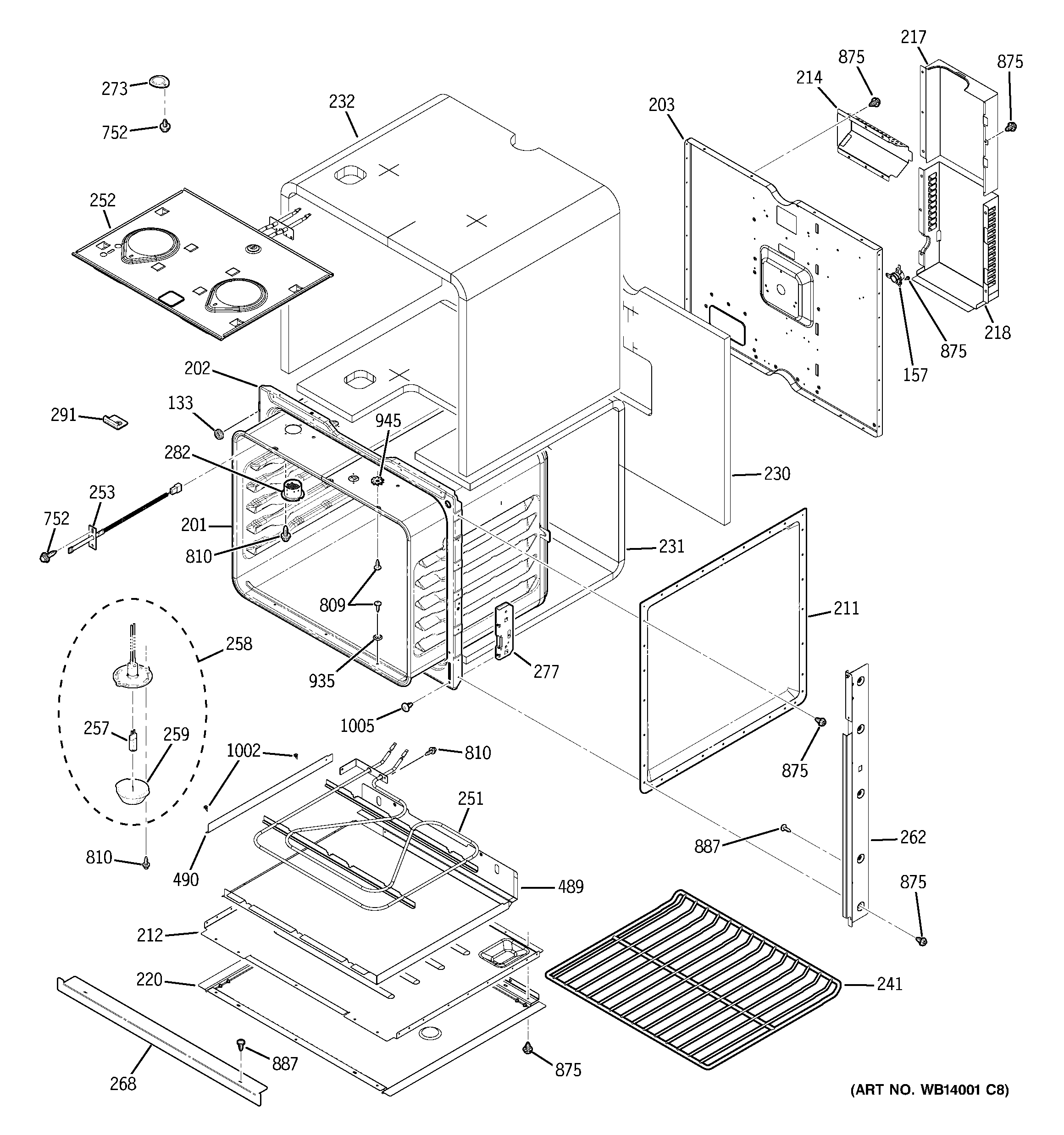

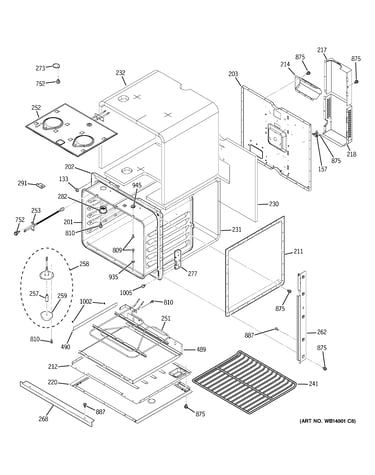

Body parts diagram

Sensor

Part #WB21T10017

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10017. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5150
#699

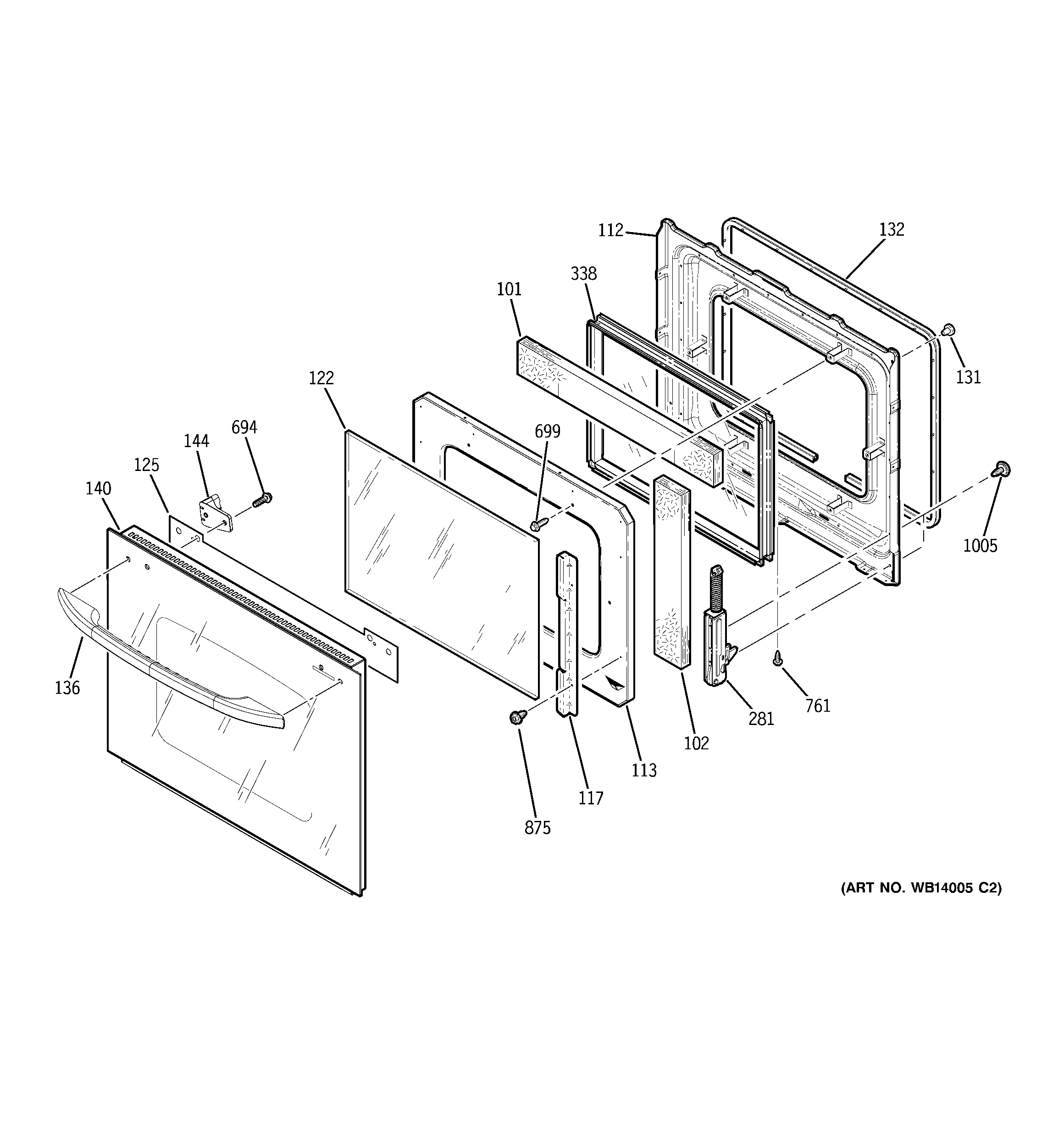

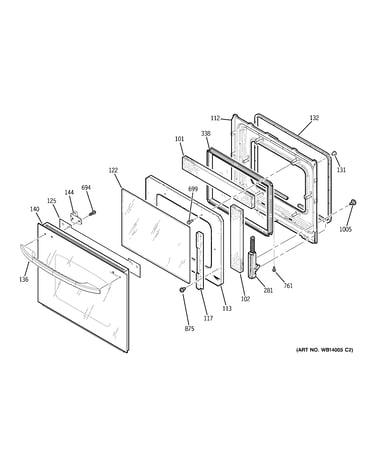

Door diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Screw, #10-32 X 17/32-in WB01X1253
#810

Body parts diagram

Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5200
Screw

Part #WB01K5200

Replaced by #WB1K5200

?
Manufacturer substitution
This part replaces WB01K5200. Substitute parts can look different from the original.
This item is not returnable
$8.11
In Stock
Screw, #8-18 WB01T10017
#1002

Body parts diagram

Screw, #8-18

Part #WB01T10017

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Nameplate WB02T10359
#55

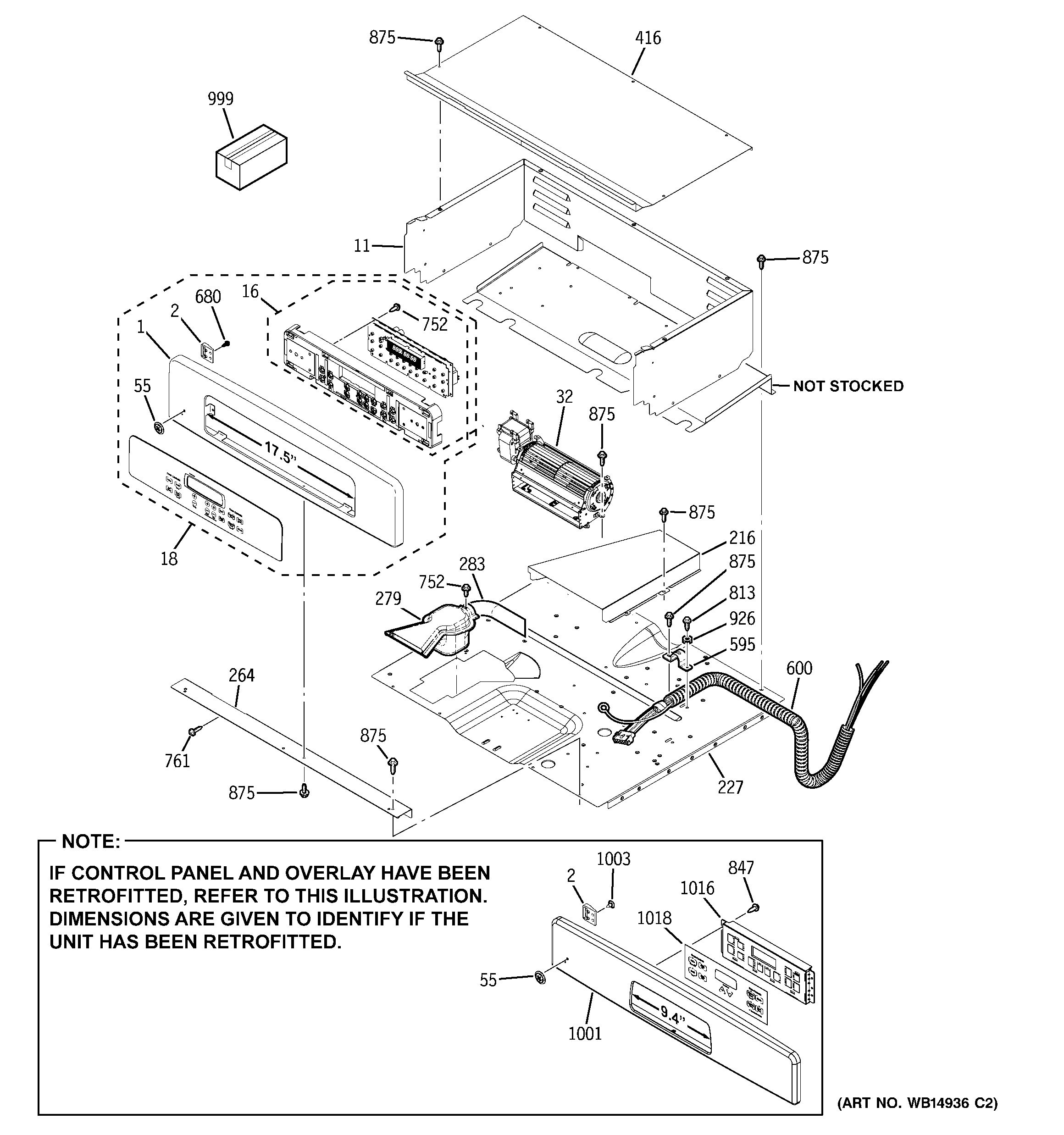

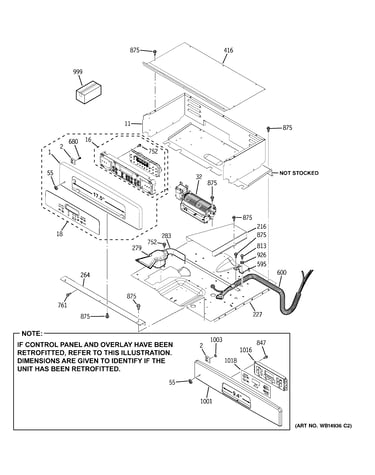

Control panel diagram

Range nameplate

Part #WB02T10359

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Range Oven Light Lens WB25T10027
#259

Body parts diagram

Range oven light lens

Part #WB25T10027

This item is not returnable
$10.85 |
16% OFF Phone Price : $12.85
In Stock
Scr 6-20 Gxb WB02T10324
#847

Control panel diagram

Scr 6-20 gxb

Part #WB02T10324

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
