GE
Range Hood

Model # CV966EK1DS Official GE range hood

Here are the diagrams and repair parts for Official GE CV966EK1DS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Range Hood Blower Switch WB24X10078
#559

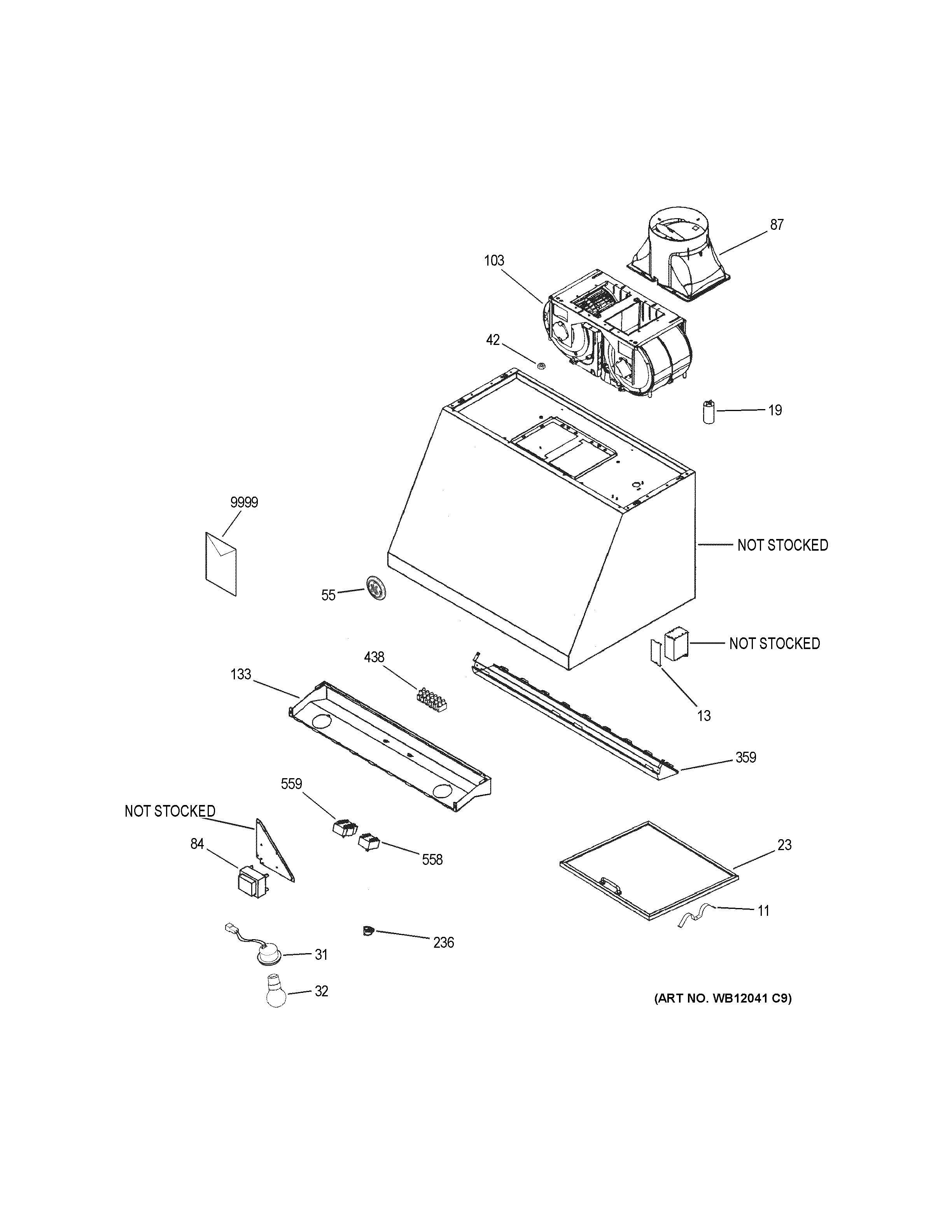

Range hood diagram

Range hood blower switch

Part #WB24X10078

Replaced by #WB24X32233

?
Manufacturer substitution
This part replaces WB24X10078. Substitute parts can look different from the original.
$79.25 |
7% OFF Phone Price : $85.25
In Stock
Range Nameplate WB02T10589
#55

Range hood diagram

Range nameplate

Part #WB02T10589

This item is not returnable
$11.53 |
15% OFF Phone Price : $13.53
In Stock
Range Hood Grease Filter WB02X10771
#23

Range hood diagram

Range hood grease filter

Part #WB02X10771

Replaced by #WB02X32234

?
Manufacturer substitution
This part replaces WB02X10771. Substitute parts can look different from the original.
$83.15 |
7% OFF Phone Price : $89.15
In Stock
Junction Box WB02X10872
#13

Range hood diagram

Junction box

Part #WB02X10872

$17.52 |
10% OFF Phone Price : $19.52
In Stock
Nut WB01X10336
#42

Range hood diagram

Nut

Part #WB01X10336

$8.11
In Stock
Filter Clip WB02X11042
#11

Range hood diagram

Filter clip

Part #WB02X11042

$9.91
In Stock
Range Hood Light Assembly (replaces Wb08x10021, Wb25x24086) WB25X27226
#31

Range hood diagram

Range hood light assembly (replaces wb08x10021, wb25x24086)

Part #WB25X27226

$102.19 |
11% OFF Phone Price : $114.19
In Stock
Cooking Appliance Halogen Light Bulb (replaces Wb08x10045, Wb36x10176, Wr02x11184) WB01X10239
#32

Range hood diagram

Cooking appliance halogen light bulb (replaces wb08x10045, wb36x10176, wr02x11184)

Part #WB01X10239

$27.25 |
18% OFF Phone Price : $33.25
In Stock
Panel WB07X26567
#133

Range hood diagram

Panel

Part #WB07X26567

$135.37
In Stock
Range Hood Light Switch WB24X10077
#558

Range hood diagram

Range hood light switch

Part #WB24X10077

$55.34 |
10% OFF Phone Price : $61.34
In Stock
