Dehumidifier

Model # DH40J7 Official Amana dehumidifier

Here are the diagrams and repair parts for Official Amana DH40J7 dehumidifier, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DH40J7 Dehumidifier
Screw 400030-1

#NI06

All parts diagram

Screw

Part #400030-1

The manufacturer no longer makes this part, and there's no substitute part

Bracket 18350-2
#13

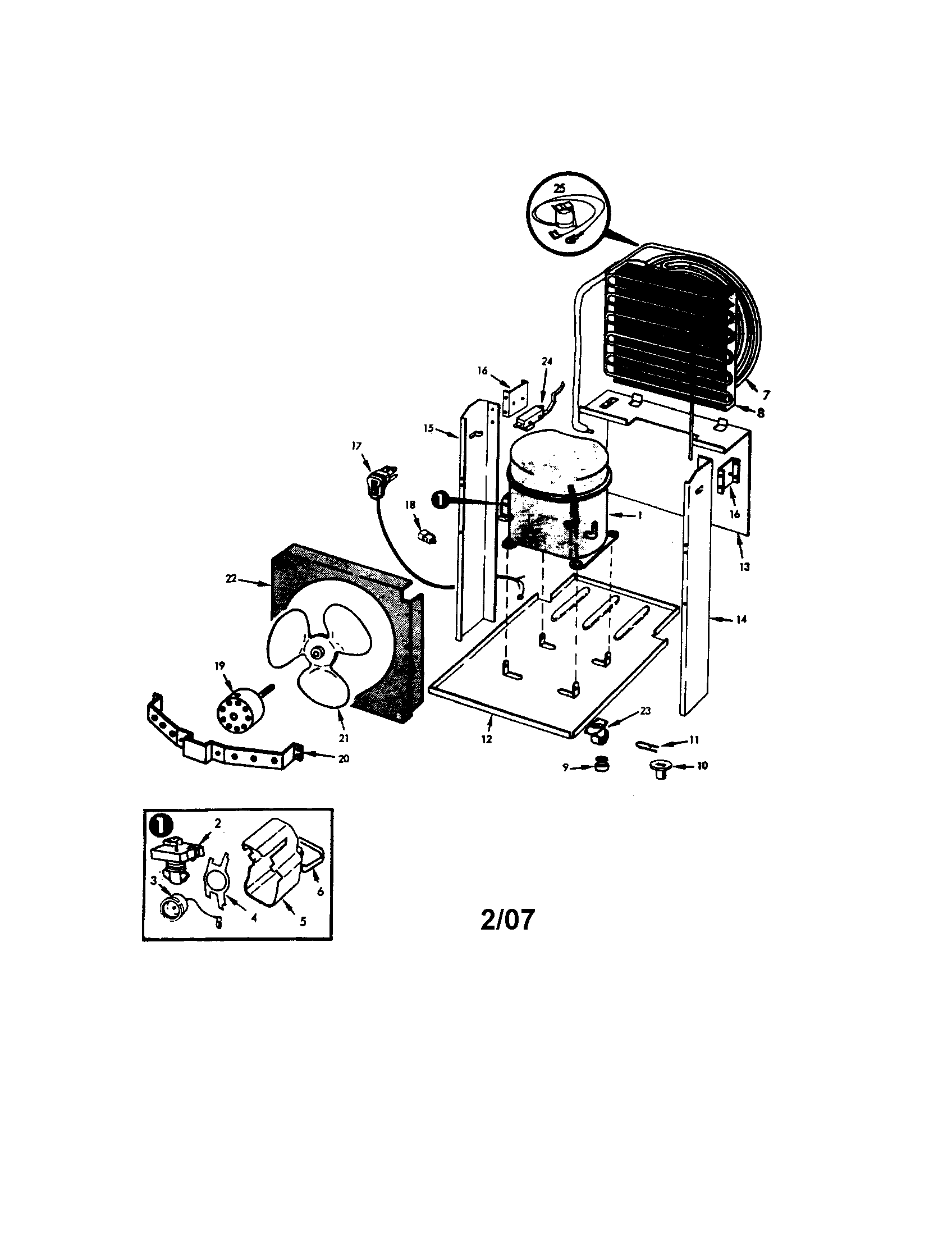

System and chassis diagram

Bracket

Part #18350-2

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 18536-9

#NI14

All parts diagram

Escutcheon

Part #18536-9

The manufacturer no longer makes this part, and there's no substitute part

Compressor RA1007
#1

System and chassis diagram

Compressor

Part #RA1007

The manufacturer no longer makes this part, and there's no substitute part

Bucket 18151-8
#5

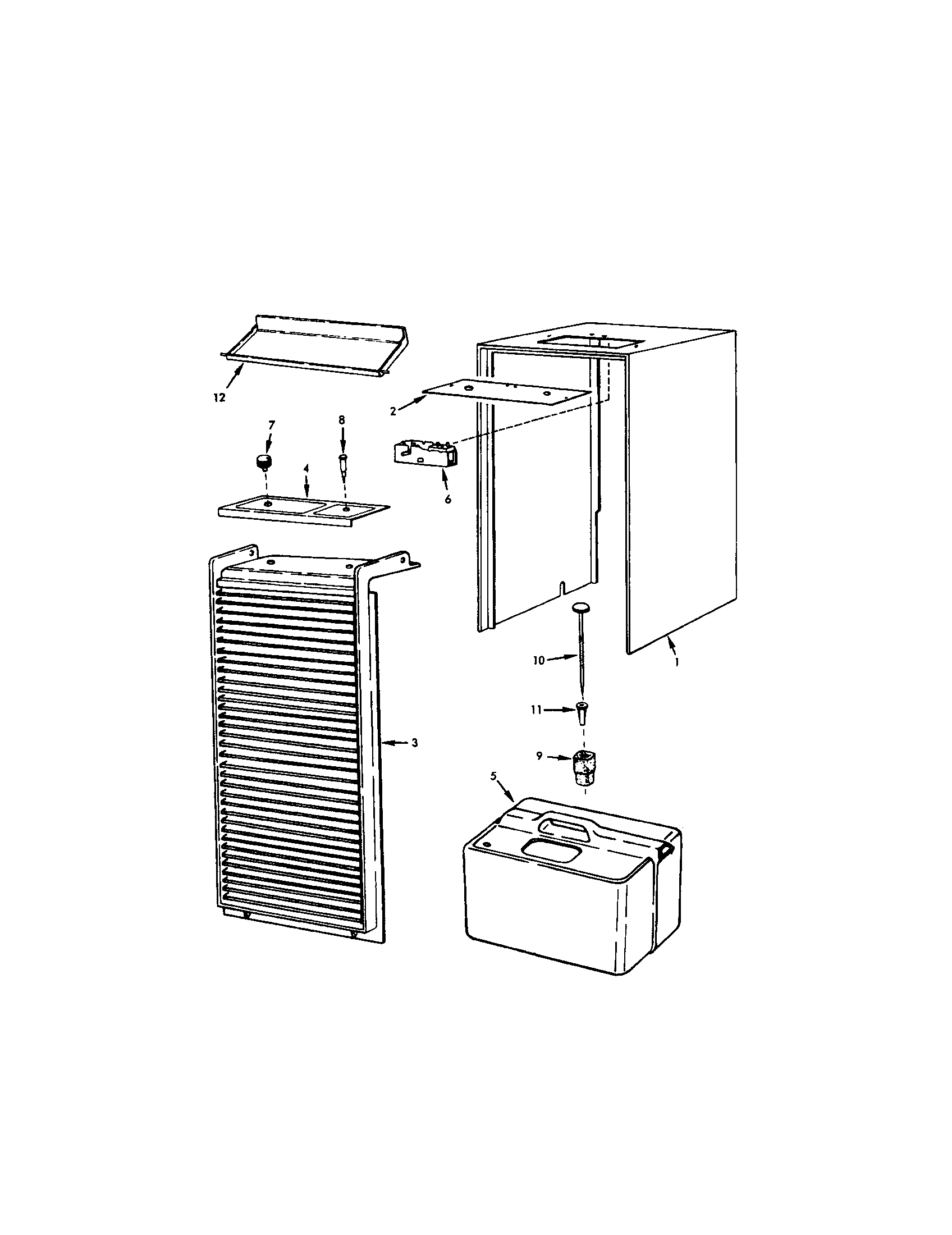

Cabinet/front diagram

Bucket

Part #18151-8

The manufacturer no longer makes this part, and there's no substitute part

Front 18554-1
#3

Cabinet/front diagram

Front

Part #18554-1

The manufacturer no longer makes this part, and there's no substitute part

Relay 9286-111
#2

System and chassis diagram

Relay

Part #9286-111

The manufacturer no longer makes this part, and there's no substitute part

Sub 400016-4 400016-804

#NI10

All parts diagram

Sub 400016-4

Part #400016-804

The manufacturer no longer makes this part, and there's no substitute part

Guide 18182-1
#11

Cabinet/front diagram

Guide

Part #18182-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 406009-1

#NI04

All parts diagram

Screw

Part #406009-1

The manufacturer no longer makes this part, and there's no substitute part
