Model # WT4000 Official Weed Eater gas line trimmer

Here are the diagrams and repair parts for Official Weed Eater WT4000 gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Hex Flange Lock Nut 145212
#14

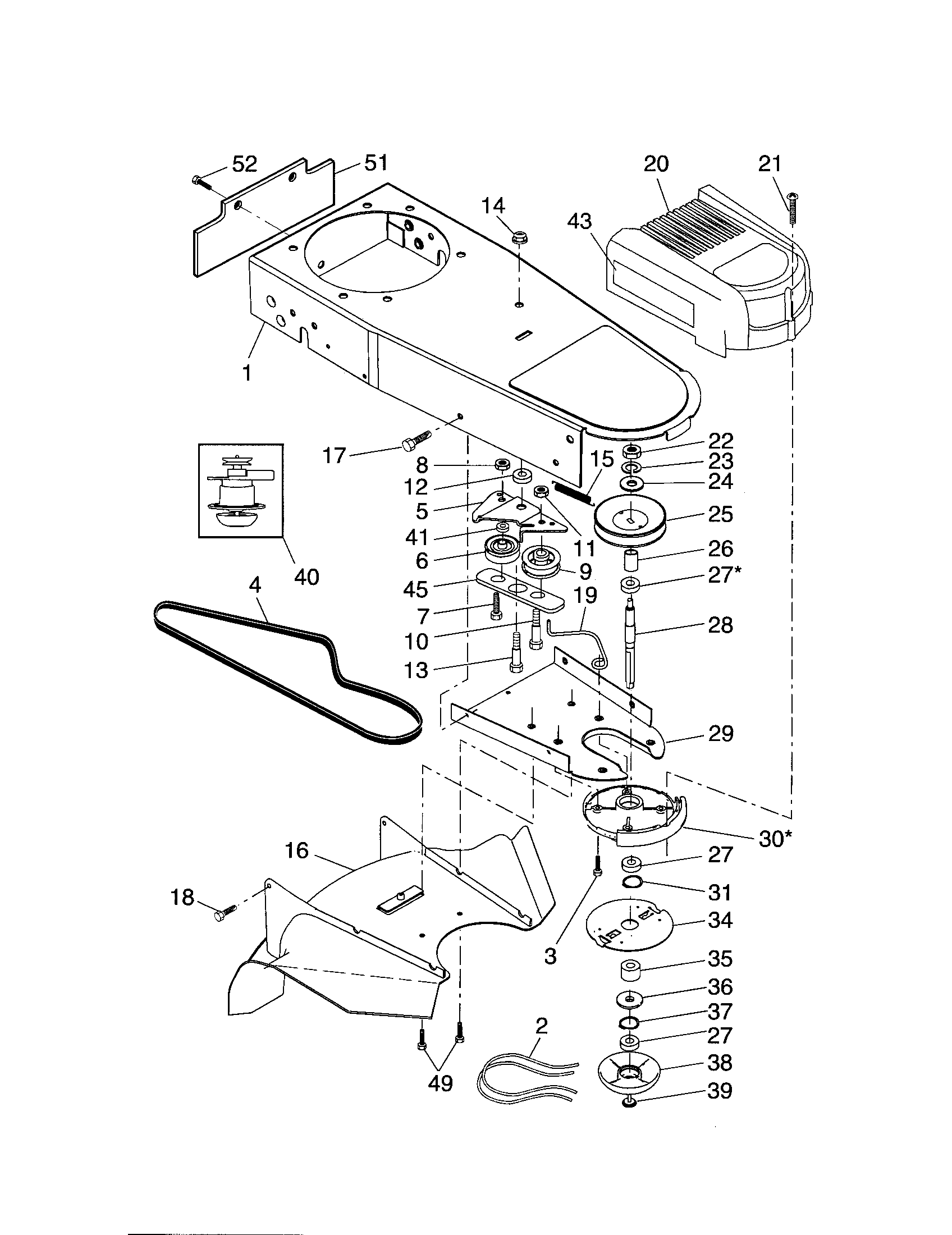

Chassis and v-belt diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#27

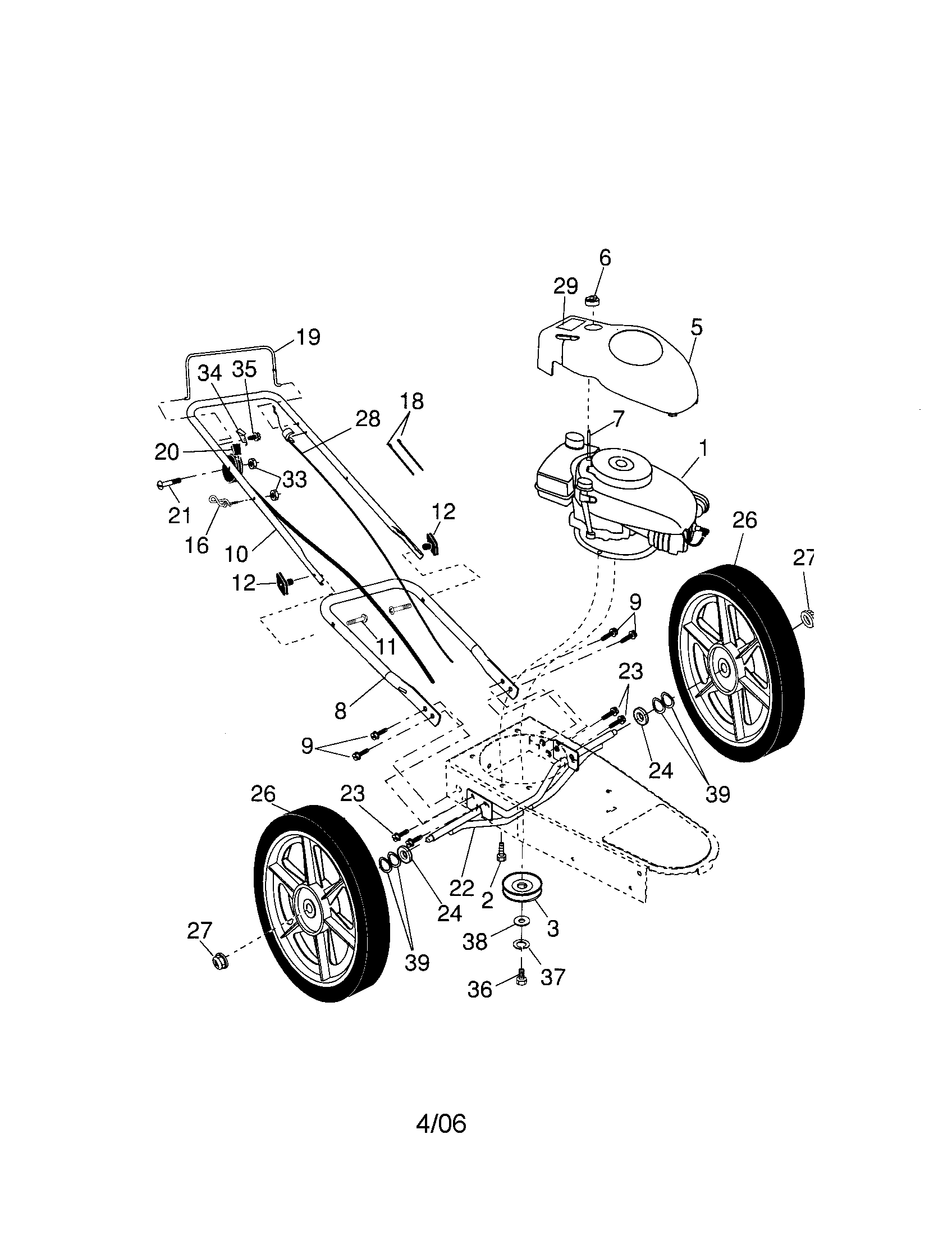

Engine and wheels diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#12

Engine and wheels diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Line Trimmer Belt 185476
#4

Chassis and v-belt diagram

Line trimmer belt

Part #185476

Replaced by #532185476

?
Manufacturer substitution
This part replaces 185476. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.01 |
17% OFF Phone Price : $36.01
In Stock
Handle Bolt 191574
#11

Engine and wheels diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Washer 10040600
#23

Chassis and v-belt diagram

Lock washer

Part #10040600

Replaced by #596238701

?
Manufacturer substitution
This part replaces 10040600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Jackshaft 172603
#28

Chassis and v-belt diagram

Jackshaft

Part #172603

Replaced by #596878501

?
Manufacturer substitution
This part replaces 172603. Substitute parts can look different from the original.
BEST SELLER
$147.72 |
8% OFF Phone Price : $159.72
In Stock
Carrier Plate 173531
#34

Chassis and v-belt diagram

Carrier plate

Part #173531

Replaced by #596878501

?
Manufacturer substitution
This part replaces 173531. Substitute parts can look different from the original.
BEST SELLER
$147.72 |
8% OFF Phone Price : $159.72
In Stock
Head 173619
#40

Chassis and v-belt diagram

Head

Part #173619

Replaced by #596878501

?
Manufacturer substitution
This part replaces 173619. Substitute parts can look different from the original.
BEST SELLER
$147.72 |
8% OFF Phone Price : $159.72
In Stock
Nut 132004
#33

Engine and wheels diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
