Air Compressor

Model # WL602101 Official Campbell Hausfeld air compressor

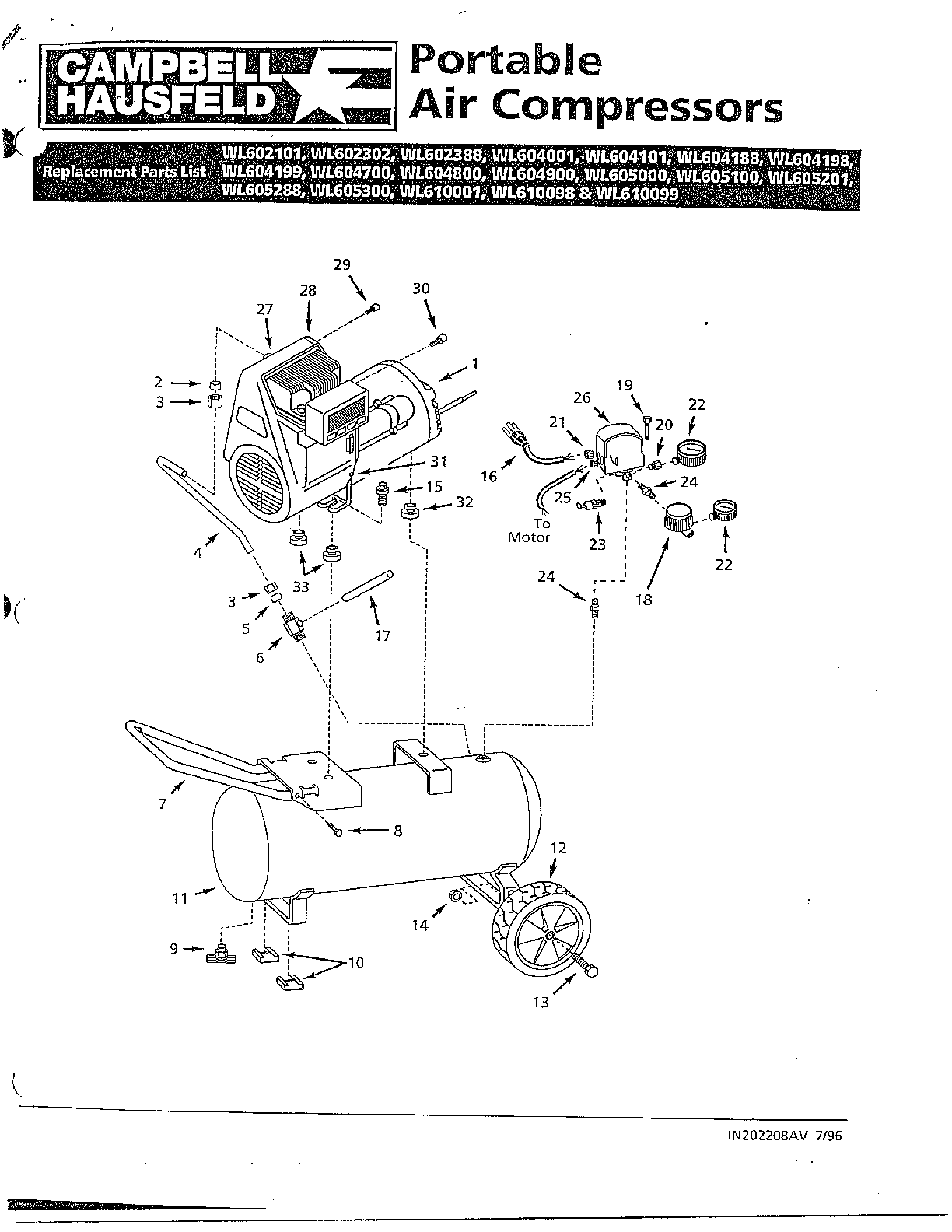

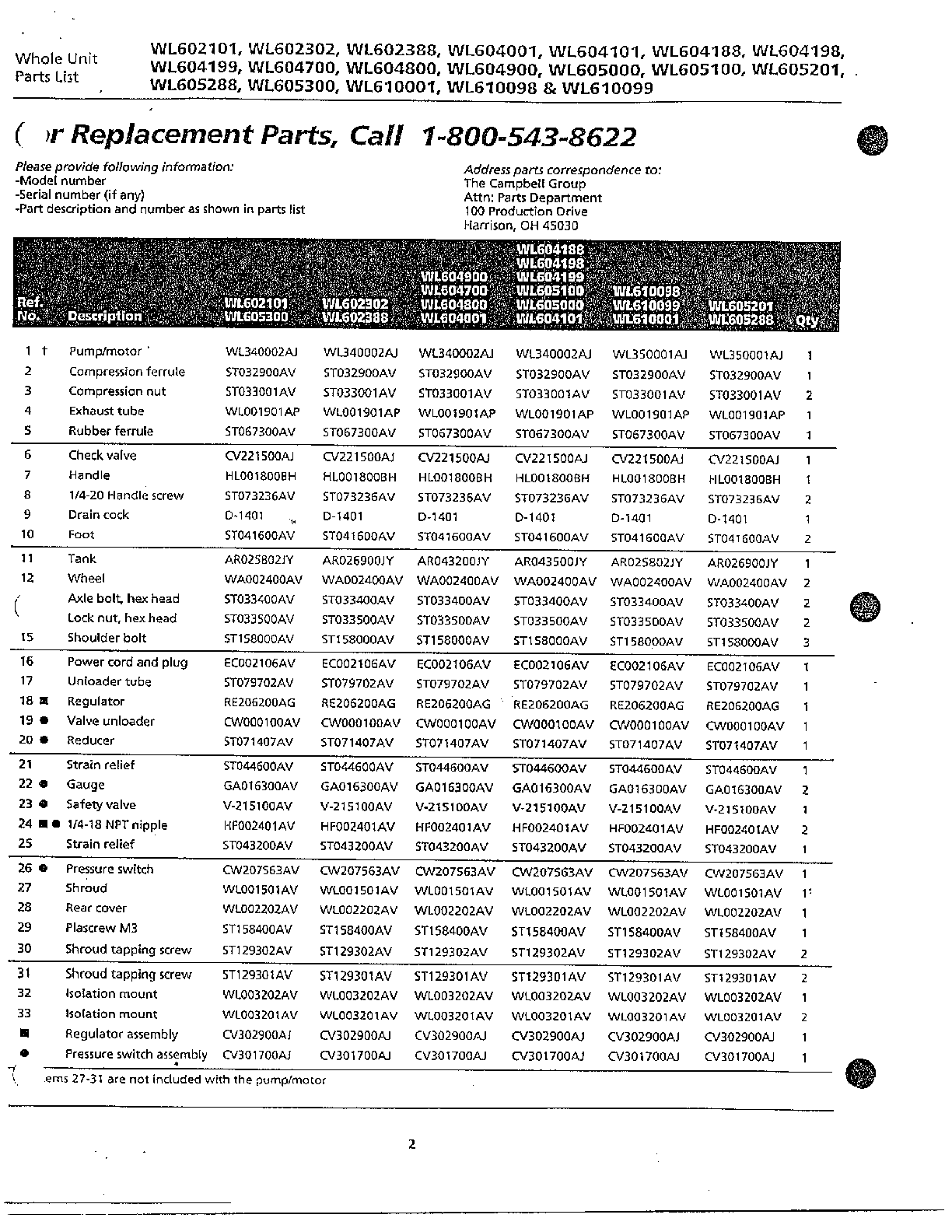

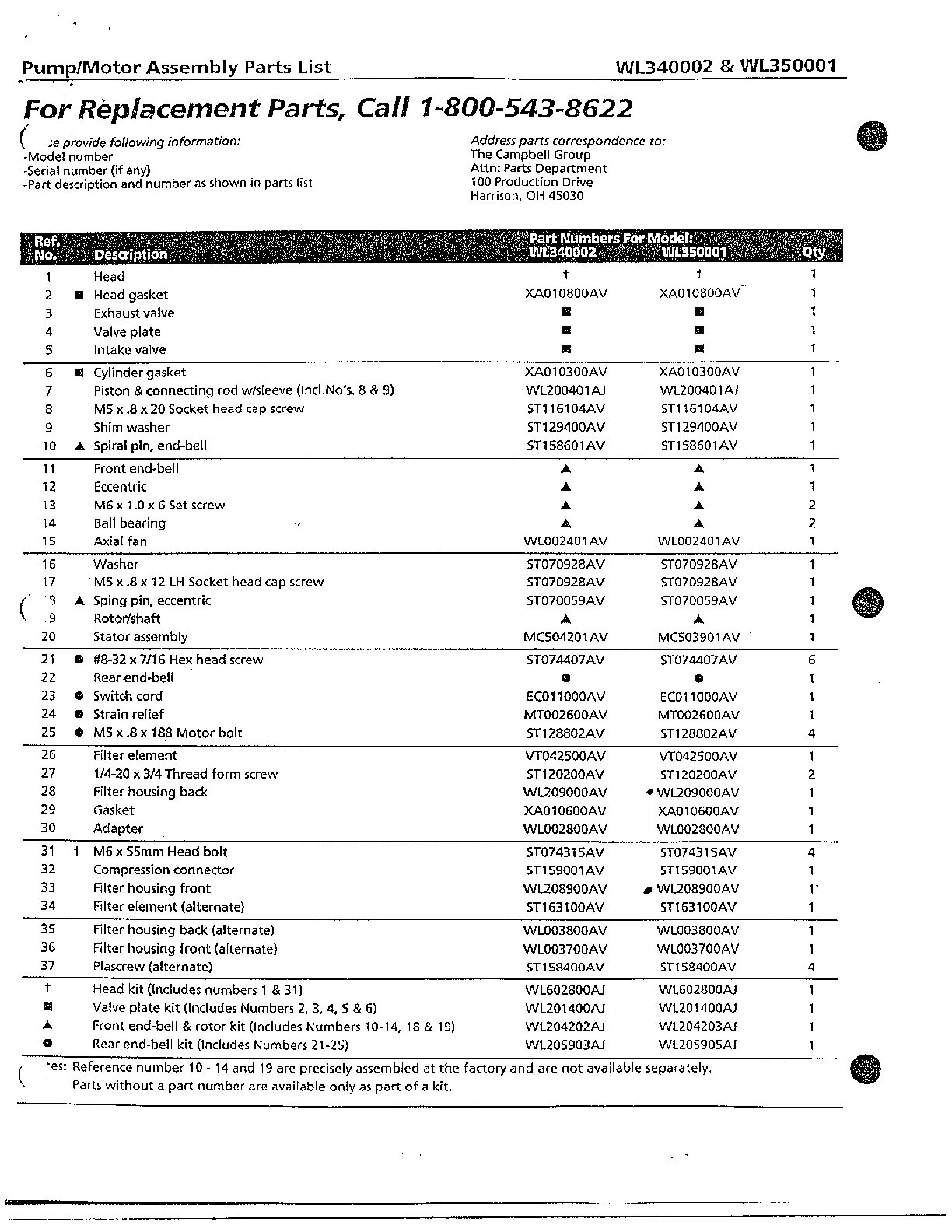

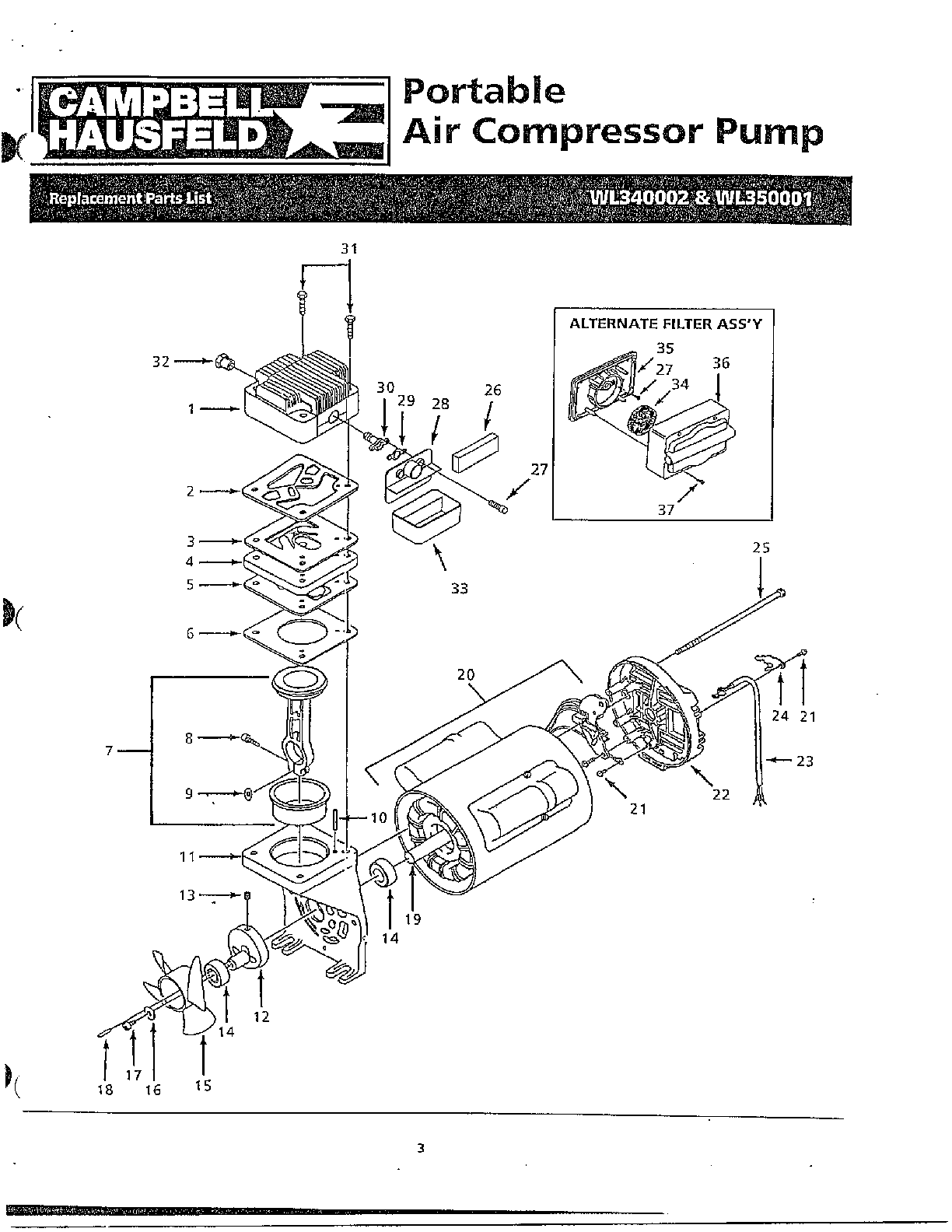

Here are the diagrams and repair parts for Official Campbell Hausfeld WL602101 air compressor, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forWL602101 Power Tools

    Most common symptoms to help you fix your air compressors

    Choose a symptom to see related air compressor repairs.

    View all

    Why does air leak from my air compressor?

    Main causes: loose air tube fitting connections, bad check valve, faulty safety valve, damaged or corroded air tank, bad…

    Read more

    Why won't my air compressor start with a full air tank?

    Main cause: bad check valve…

    Read more

    Why won't my air compressor build tank pressure?

    Main causes: tank drain valve open or leaking air, leaky air tank, bad safety valve, worn pump seals, bad pump valve pla…

    Read more

    Why won't my air compressor tank hold air?

    Main causes: rusted air tank, loose air tube fitting connections, bad check valve, leaky safety valve, bad tank drain va…

    Read more

    Why does my air compressor safety valve keep popping open?

    Main causes: bad safety valve, pressure switch failure…

    Read more

    Why can't I adjust the output air pressure on my air compressor?

    Main cause: faulty output air pressure regulator…

    Read more

    Why doesn't my air compressor's pressure gauge work?

    Main cause: bad air tank pressure gauge…

    Read more

    Why is my air compressor not turning on?

    Main causes: lack of electrical power, check valve failure, bad pressure switch…

    Read more

    Most common repair guides to help fix your air compressors

    These step-by-step repair guides will help you safely fix what’s broken on your air compressor.

    View all
    How to replace an air compressor pressure switch

    How to replace an air compressor pressure switch

    You can replace a broken air compressor pressure switch in about 45 minutes. …

    Read more
    Repair difficulty
    Time required
     45 minutes or less
    How to rebuild an air compressor pump

    How to rebuild an air compressor pump

    If the air compressor won't fill the tank with compressed air, rebuild the pump using these steps in about 45 minutes. …

    Read more
    Repair difficulty
    Time required
     45 minutes or less
    How to replace an air compressor check valve

    How to replace an air compressor check valve

    You can replace a defective air compressor check valve in about 10 minutes.…

    Read more
    Repair difficulty
    Time required
     15 minutes or less

    Effective articles & videos to help repair your air compressors

    Use the advice and tips in these articles and videos to get the most out of your air compressor.

    View all
    How to tell if a fuse is blown

    How to tell if a fuse is blown

    Learn how to tell whether a fuse is blown…

    Read more
    How to reduce air compressor noise

    How to reduce air compressor noise

    Find out how to reduce air compressor noise.…

    Read more
    How to maintain an oil-lubricated air compressor

    How to maintain an oil-lubricated air compressor

    See how to perform routine maintenance on your oil-lubricated air compressor.…

    Read more
    No results are available.
