Model # GT2424NDCW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT2424NDCW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

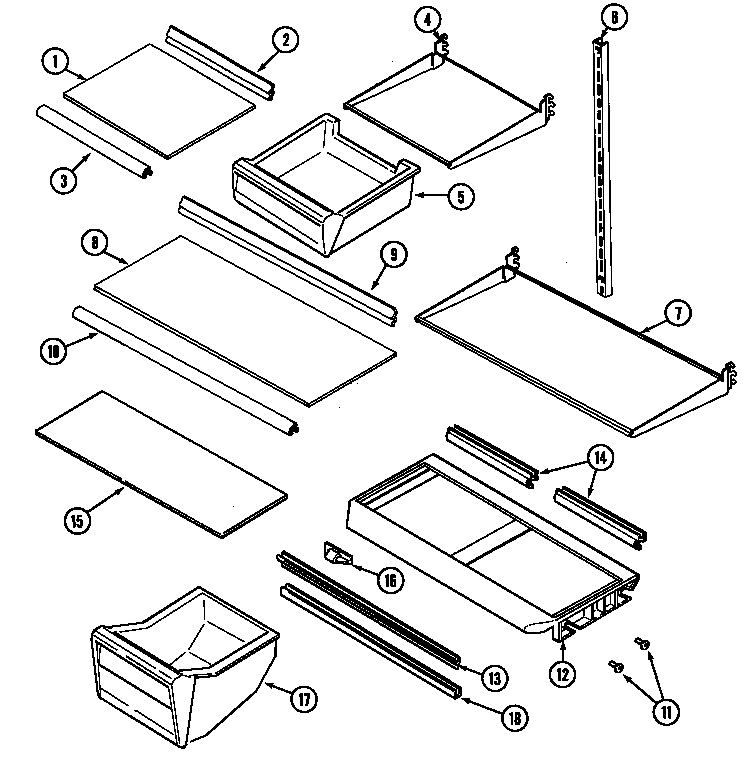

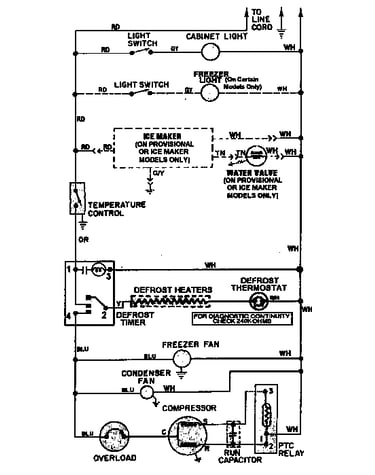

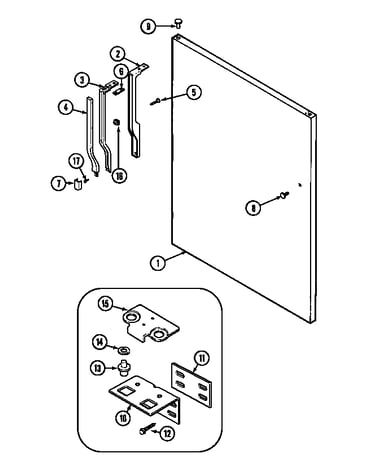

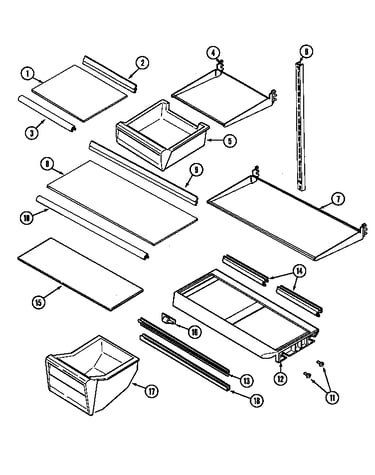

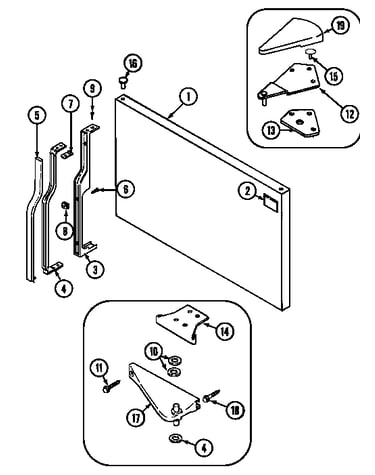

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

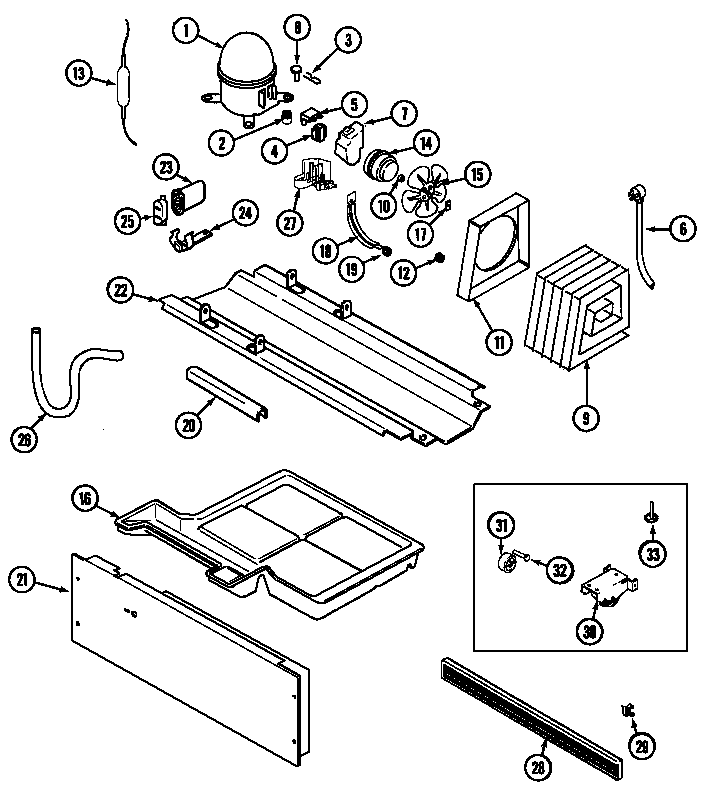

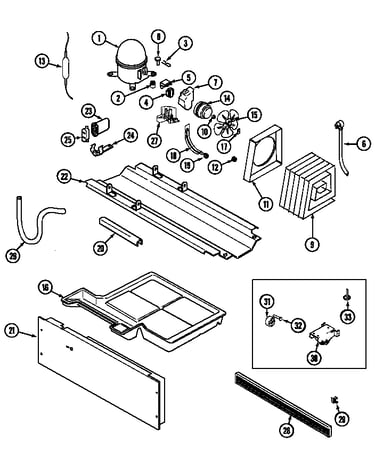

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 61003026
#10

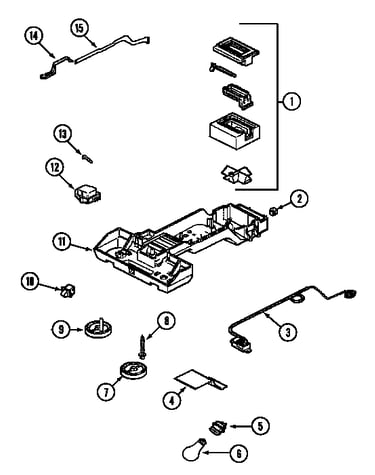

Controls diagram

Refrigerator light switch

Part #61003026

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 61003026. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Thermostat 61002113
#12A

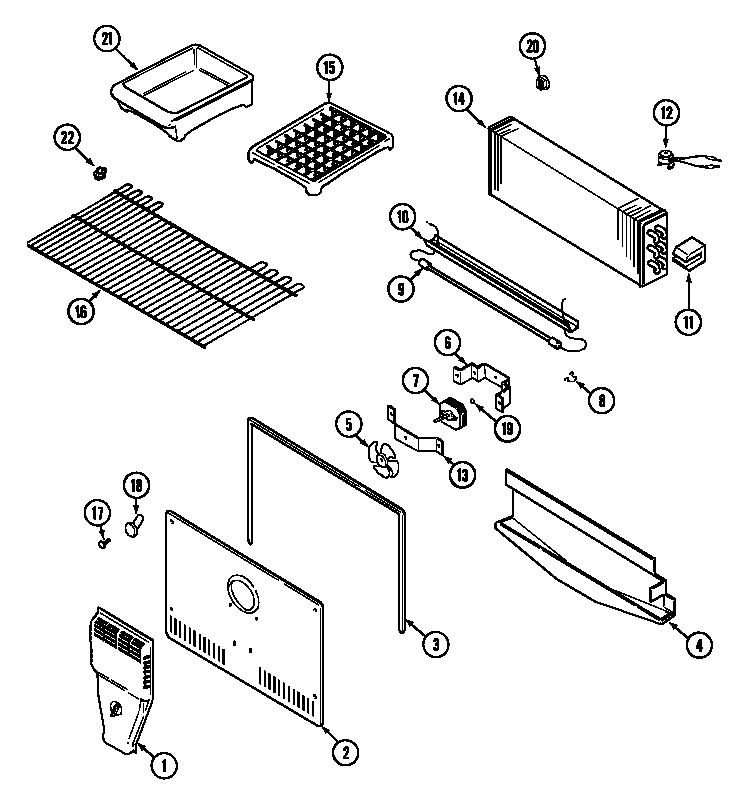

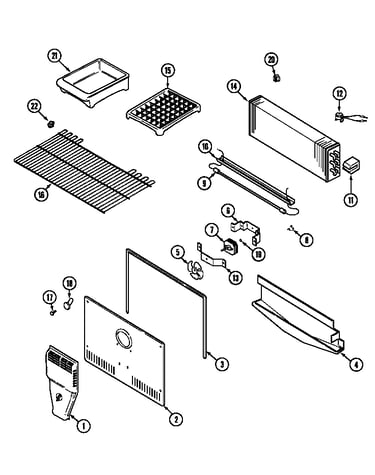

Freezer compartment diagram

Refrigerator thermostat

Part #61002113

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 61002113. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Screw 65275-49
#21A

Compressor diagram

Refrigerator screw

Part #65275-49

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 65275-49. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 400016-1
#30A

Compressor diagram

Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Door Shelf End Cap 61002112
#6

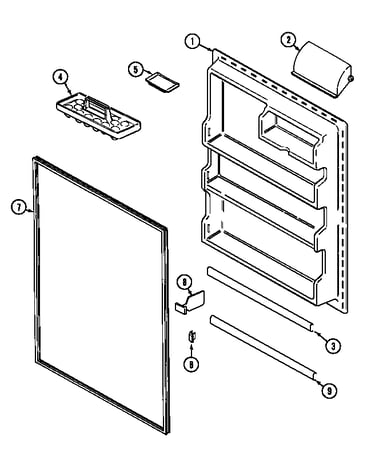

Fresh food inner door diagram

Refrigerator door shelf end cap

Part #61002112

Replaced by #WP61002112

?
Manufacturer substitution
This part replaces 61002112. Substitute parts can look different from the original.
$13.69 |
13% OFF Phone Price : $15.69
In Stock
Screw 61001885
Screw

Part #61001885

Replaced by #WP489399

?
Manufacturer substitution
This part replaces 61001885. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Central Washer 61002030
Central washer

Part #61002030

Replaced by #WP61002231

?
Manufacturer substitution
This part replaces 61002030. Substitute parts can look different from the original.
This item is not returnable
$6.84 |
13% OFF Phone Price : $7.84
In Stock
Seal, Frz. D 61002057
#2

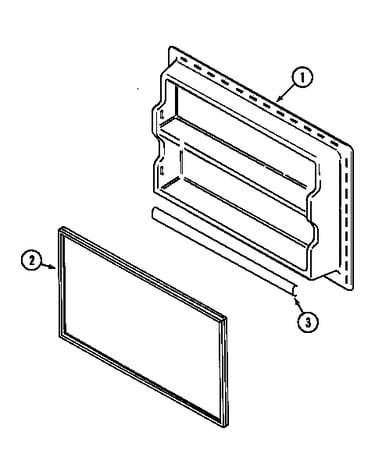

Freezer inner door diagram

Seal, frz. d

Part #61002057

Replaced by #WP61004011

?
Manufacturer substitution
This part replaces 61002057. Substitute parts can look different from the original.
$145.43 |
8% OFF Phone Price : $157.43
In Stock
