Model # GFWN1600J0WW Official GE washer

Here are the diagrams and repair parts for Official GE GFWN1600J0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

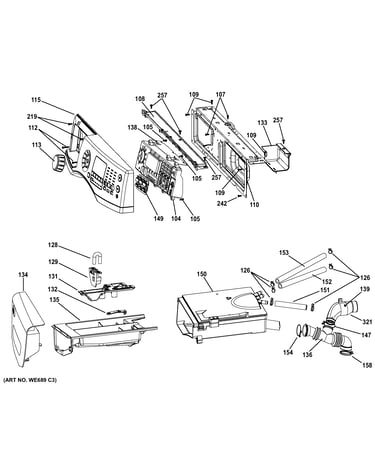

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Washer Door Lock WH10X20821
#217

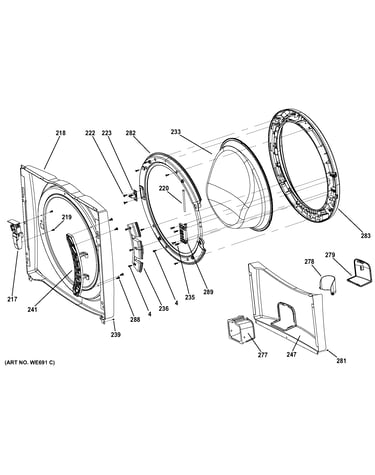

Front panel & door diagram

Washer door lock

Part #WH10X20821

BEST SELLER
$96.16 |
11% OFF Phone Price : $108.16
In Stock
Washer Water Inlet Valve WH13X10029
#203

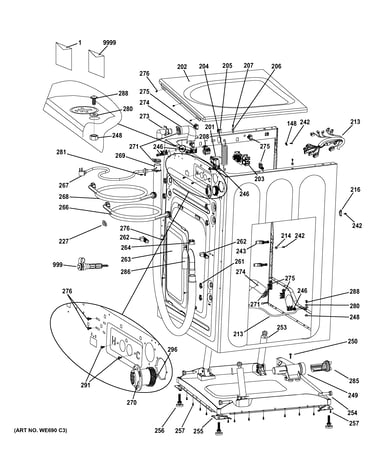

Cabinet & top panel diagram

Washer water inlet valve

Part #WH13X10029

$109.33 |
10% OFF Phone Price : $121.33
In Stock
Washer Drive Belt WH08X10050
#326

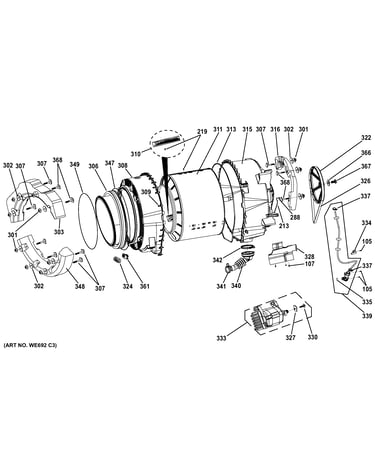

Tub & motor diagram

Washer drive belt

Part #WH08X10050

$112.74 |
10% OFF Phone Price : $124.74
In Stock
Washer Drive Motor (replaces Wh20x20837) WH20X23194
#333

Tub & motor diagram

Washer drive motor (replaces wh20x20837)

Part #WH20X23194

$308.80 |
$12.00 OFF Phone Price : $320.80
In Stock
Hanger Spring WH01X10251
#205

Cabinet & top panel diagram

Hanger spring

Part #WH01X10251

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Outer Front Tub (replaces Wh45x20907) WH45X22894
#308

Tub & motor diagram

Washer outer front tub (replaces wh45x20907)

Part #WH45X22894

$159.90 |
7% OFF Phone Price : $171.90
In Stock
Washer Door Inner Glass WH46X10242
#233

Front panel & door diagram

Washer door inner glass

Part #WH46X10242

Replaced by #WH46X10286

?
Manufacturer substitution
This part replaces WH46X10242. Substitute parts can look different from the original.
$105.79 |
10% OFF Phone Price : $117.79
In Stock
Washer Leveling Leg Bracket WH16X10077
#255

Cabinet & top panel diagram

Washer leveling leg bracket

Part #WH16X10077

$13.51
In Stock
Washer Noise Filter (replaces Wh41x10123, Wh41x10298) WH41X10301
#201

Cabinet & top panel diagram

Washer noise filter (replaces wh41x10123, wh41x10298)

Part #WH41X10301

$68.36 |
8% OFF Phone Price : $74.36
In Stock
Pump Clamp WH01X10275
#341

Tub & motor diagram

Pump clamp

Part #WH01X10275

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
