Model # FWC100 Official Franklin Chef wine cellar

Here are the diagrams and repair parts for Official Franklin Chef FWC100 wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Hinge Cover L232001121
#7

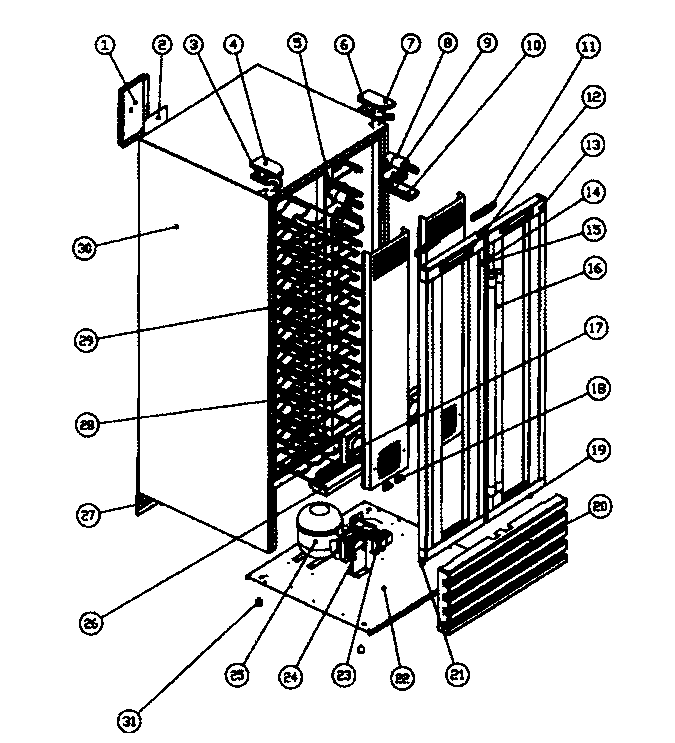

Cabinet parts diagram

Hinge cover

Part #L232001121

The manufacturer no longer makes this part, and there's no substitute part

Sponge L232000240
#NI

Cabinet parts diagram

Sponge

Part #L232000240

The manufacturer no longer makes this part, and there's no substitute part

Power Control Board Assembly L252000116
#2

Cabinet parts diagram

Power control board assembly

Part #L252000116

The manufacturer no longer makes this part, and there's no substitute part

Lock L222000034
#14

Cabinet parts diagram

Lock

Part #L222000034

The manufacturer no longer makes this part, and there's no substitute part

Hinge L232001120
#6

Cabinet parts diagram

Hinge

Part #L232001120

The manufacturer no longer makes this part, and there's no substitute part

Lcd L252000731
#11

Cabinet parts diagram

Lcd

Part #L252000731

The manufacturer no longer makes this part, and there's no substitute part

Complete Door L222000017
#12A

Cabinet parts diagram

Complete door

Part #L222000017

The manufacturer no longer makes this part, and there's no substitute part

Bracket L222001325
#16A

Cabinet parts diagram

Bracket

Part #L222001325

The manufacturer no longer makes this part, and there's no substitute part

Hinge Cover L232000013
#4

Cabinet parts diagram

Hinge cover

Part #L232000013

The manufacturer no longer makes this part, and there's no substitute part

Hinge L232001216
#21

Cabinet parts diagram

Hinge

Part #L232001216

The manufacturer no longer makes this part, and there's no substitute part
